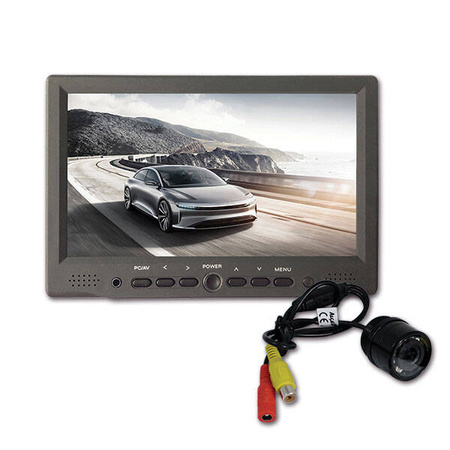

Rear view camera and 7" RCA monitor kit

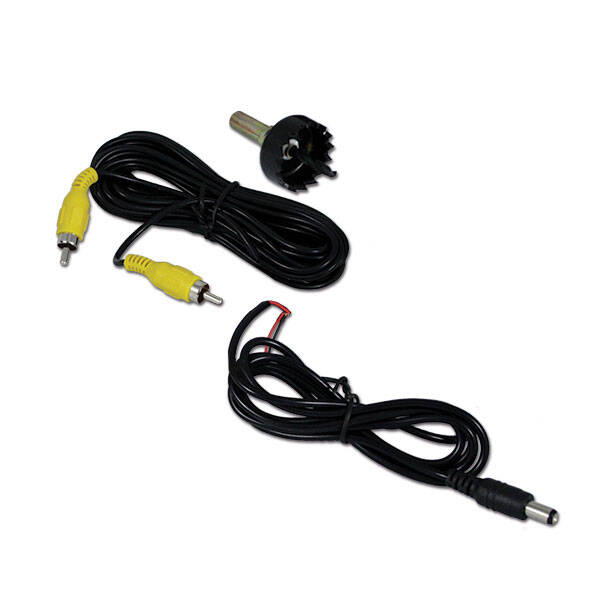

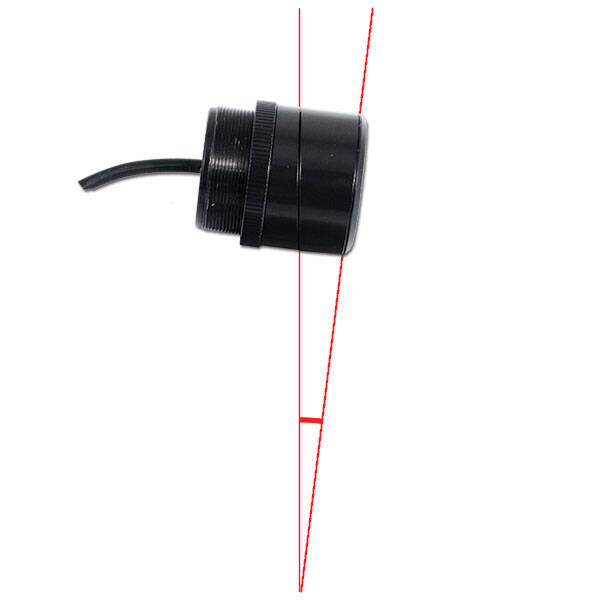

Kit consisting of a built-in CMOS color rear view camera with rear threaded ring fixing, infrared night vision adjustable with spacer ring.With 7" mirror monitor, color with provision for RCA video input.Including remote control and 6 m RCA video extension.Compatible with RCA connectionsRear view camera data
| Wide angle | 120° |
| Extension cable | 6 m RCA |
| Input voltage | 12V DC ±10% |
| Current absorbed | ≤150mA |
| Operating temperature | -30°C ~ 50°C RH95% |
| Dimensions | L35 mm Ø 31.4mm. |
| Weight | 55 g |
Monitor data
| Monitor resolution | 800x400 px |
| HDMI input | 480I/480P/720P(50)/720P(60)/576I/576P/1080(I)50)/1080P(50) 1080I(60)/1080P(60) |
| VGA input | from 640x480 up to 1920x1200. |
| A/V input | Yes, jack with RCA adapter |
| Earphone input | Yes |
| Integrated speakers | Yes |
| Power input | 12/24V DC |
| Power absorbed | approximately 10W |
| Operating temperature | -20°C ~ 70°C. |
| Dimensions | 180 x 120 63 x 31mm. |
| Weight | 332 g |
Compatible with RCA connections
Symbol
RTC049
Producer code
85258019
