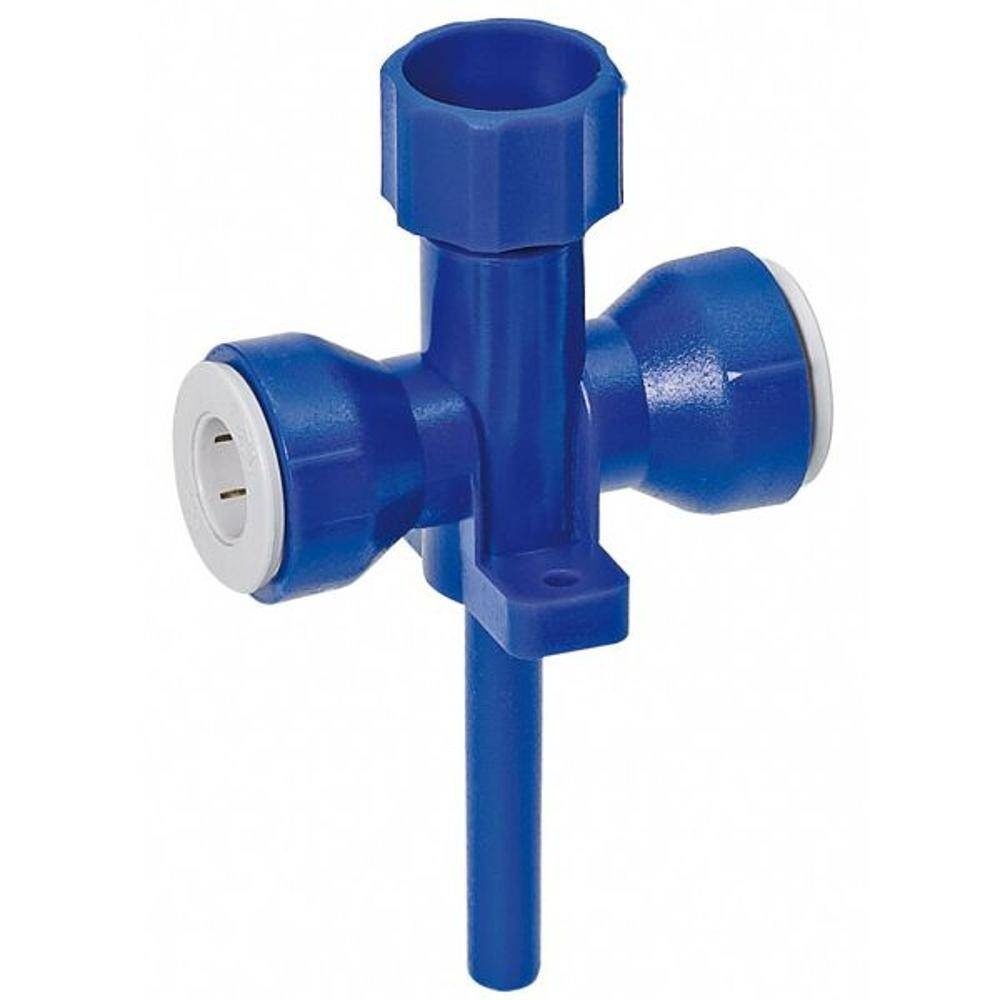

REICH UniQuick drain and vent valve 12 mm - complete draining of the drinking water system before frost
- REICH drain and vent valve for the UniQuick 12 mm pipe system. It drains the water and lets air into the pipes so that the drinking water system empties completely before winter. Tight up to 6 bar at 80°C.
The REICH drain and vent valve is part of the UniQuick 12 mm push-fit pipe system. It combines two functions: draining water and letting air into the system. The air inflow makes the water run out of the pipes completely - important when winterising a motorhome or caravan, because water left in the pipes can freeze.
Key information
- draining and venting in one valve
- UniQuick 12 mm push-fit system
- assembly without screwing, gluing or welding
- 100% tight up to 6 bar at 80°C
- frost-proof
- material compliant with drinking water regulations
- detachable, reusable connection
Before you order
Simply push the UniQuick pipe into the fitting - the connection can be released and reused if necessary. Thanks to the rigid pipe the system can be laid without kinks and without water pockets, which according to REICH reduces the risk of water remaining in the pipes in frost. Before winter, open the drain valves and drain the fresh water system completely. Before ordering, check the diameter and type of pipes in your water system.
Related products
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | REICH |
| System | UniQuick |
| Pipe diameter | 12 mm |
| Working pressure | up to 6 bar at 80°C |
| Frost resistance | yes |
| Drinking water | yes |
| Manufacturer article number | 533-8250 |
Questions and answers
What is venting for?
The air let in allows the water to run out of the pipes completely, protecting the system from frost.
Which pipes does it fit?
The REICH UniQuick 12 mm push-fit pipe system.
Can the connection be released?
Yes, UniQuick connections are detachable and reusable.
Manufacturer
REICH GmbH Regel- und Sicherheitstechnik, Ahornweg 37, 35713 Eschenburg, Germany.
