Remis REMIcare Van pleated fly screen door for Fiat Ducato X250/X290 sliding door, high door opening, 125 x 171 cm
- Remis REMIcare Van pleated fly screen door for the Fiat Ducato X250/X290 sliding door with high door opening and long wheelbase (Fiat codes MH2, LH2, LH3, XLH2, XLH3), left-hand drive version. Aluminium frame and handle bar, 125 x 171 cm.

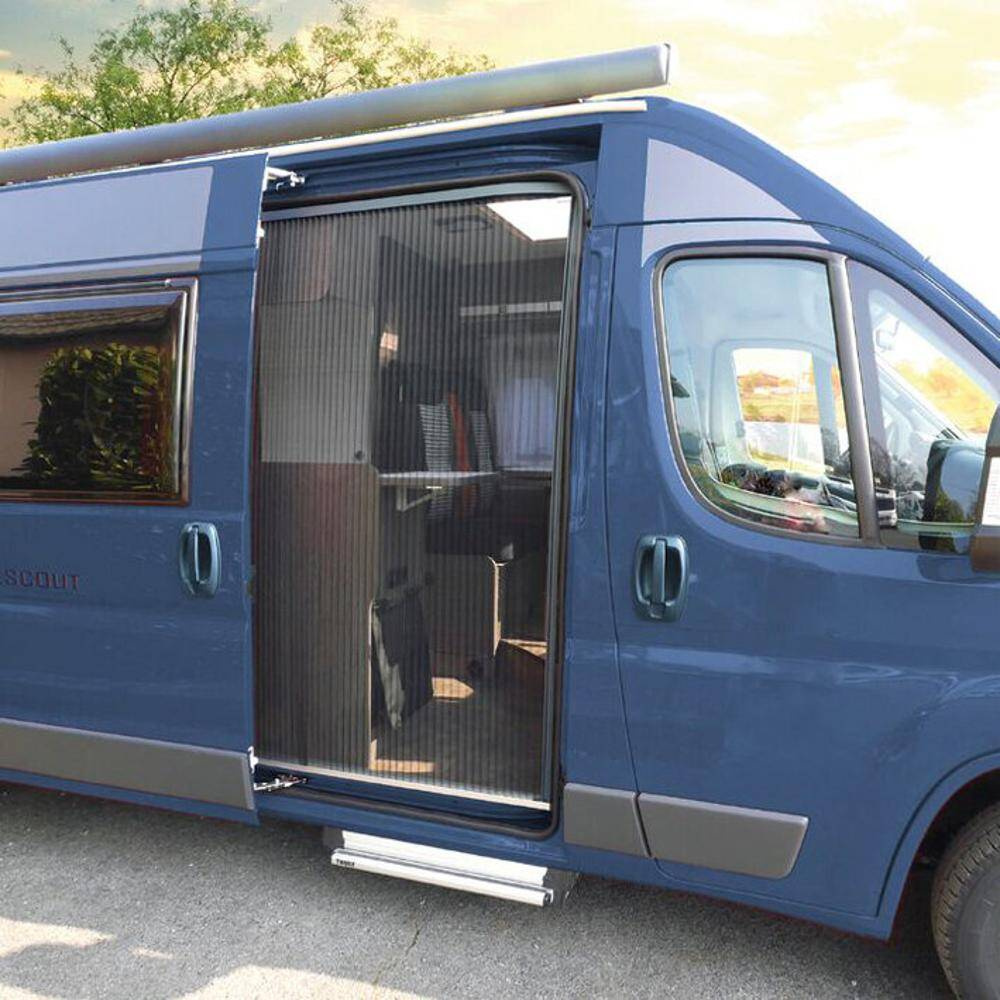

Remis REMIcare Van is a pleated fly screen door for the sliding side door of the Fiat Ducato X250 and X290 with high door opening and long wheelbase (Fiat codes MH2, LH2, LH3, XLH2, XLH3), left-hand drive version. It lets you keep the door open and enjoy fresh air and light without mosquitoes and other insects inside. The pleated screen runs in guide rails and closes completely and flush at the B-pillar.
Construction
- pleated insect screen running in guide rails
- sturdy aluminium frame and aluminium handle bar
- complete and flush closing at the B-pillar
- dimensions 1250 x 1710 mm (W x H)
- manufacturer item number 10043836, version without table rail
Installation
- the manufacturer recommends installation by 2 people
- installation is possible if dimension X at the base plate is at least 22 mm, or at least 27 mm with a raised edge; remove the aluminium bracket before measuring
- the top guide protrudes 49 mm into the interior in the bent version or 28 mm in the straight version
- the bottom rail is screwed to the floor, the top guide and cassette to the furniture
- the 2 upper door hinge screws are replaced one at a time by the supplied flat-head M8 x 25 screws
- cord tension is adjusted with a 1.5 mm Allen key; too much tension makes operation stiff and can break the cords
Package contents
- pre-assembled cassette with top guide and bottom rail
- cover panel
- pre-assembled mounting bracket
- 2 screws M8 x 25 (DIN 6912-8.8)
- 2 screws 2.9 x 19 mm
- screws for floor and furniture (5 x 2.9 x 16 mm, 2 x 3.5 x 16 mm and 5 x 3.5 mm in a length to suit the furniture) are not included

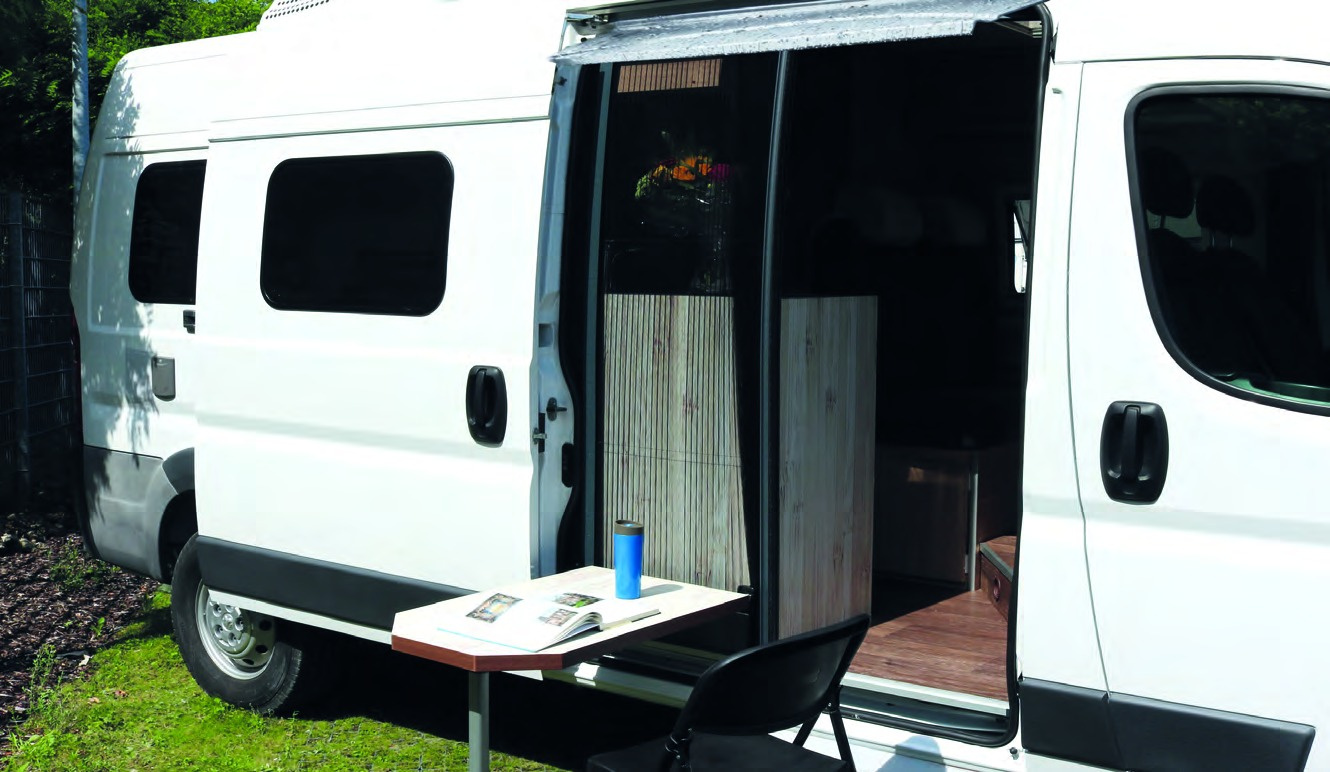

The manufacturer photo may show the optional table rail and rain deflector, which Remis offers separately. The set includes the items listed in the description.
Related products
- Remis REMIcare Van fly screen door for Fiat Ducato with table rail
- REMIcare Van rain deflector for Fiat Ducato
- Horrex fly screen door for Fiat Ducato, Peugeot Boxer, Citroën Jumper H2/H3
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Remis (Germany) |
| Model | REMIcare Van |
| Manufacturer item number | 10043836 |
| Product | pleated sliding door fly screen |
| Vehicle | Fiat Ducato X250 / X290 |
| Body version | high door opening, long wheelbase |
| Fiat codes | MH2, LH2, LH3, XLH2, XLH3 |
| Version | left-hand drive vehicles |
| Dimensions (W x H) | 125 x 171 cm |
| Frame and handle bar | aluminium |
| Table rail | no (version with table rail available) |
| Minimum dimension X | 22 mm (27 mm with raised edge) |
Questions and answers
Which vehicles does it fit?
The sliding side door of the Fiat Ducato X250 and X290 with high door opening and long wheelbase, Fiat codes MH2, LH2, LH3, XLH2, XLH3. This is the left-hand drive version.
Are all screws included?
No. The set includes 2 M8 x 25 screws for the door hinge and 2 screws 2.9 x 19 mm. Screws for the floor and furniture must be provided separately.
Will it fit my vehicle?
Dimension X at the base plate must be at least 22 mm, or at least 27 mm with a raised edge. The top guide protrudes 49 mm into the interior in the bent version or 28 mm in the straight version.
Can I add a table rail or rain deflector?
Yes. Remis offers a rain deflector separately and the fly screen door with table rail as a separate version.
How do I adjust the cord tension?
Loosen the grub screw in the cord tensioner with a 1.5 mm Allen key, move the tensioner and tighten the screw again. Do not overtension the cords, or the screen will be stiff to operate.
Manufacturer
REMIS GmbH, Mathias-Brüggen-Str. 67-69, 50829 Köln, Germany.
