Replacement kit for Thetford C400 for cassette toilet
Replacement kit for Thetford C400 for cassette toilet Arwinger
No water, no chemicals, but 100% comfort: Arwinger cassette toilet

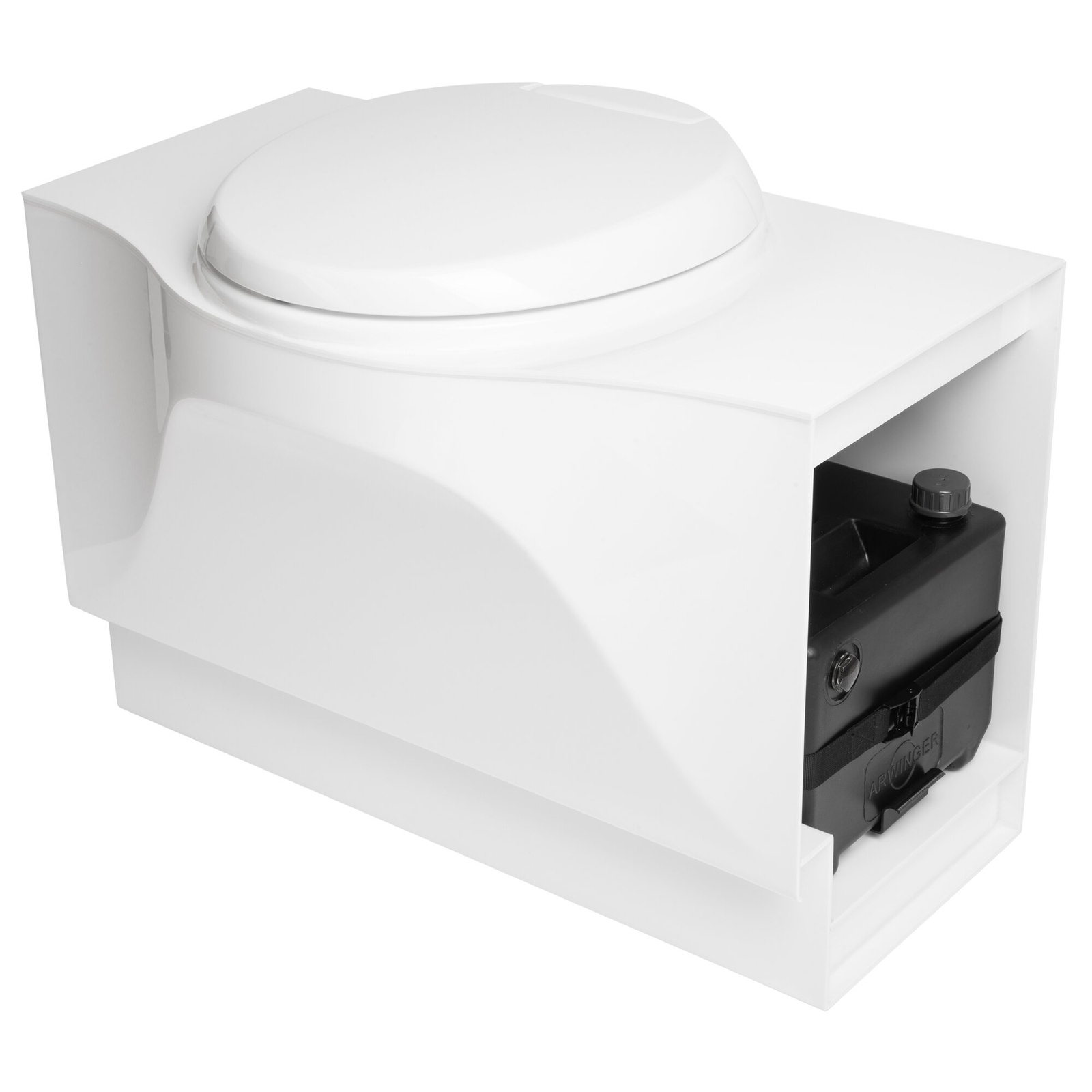

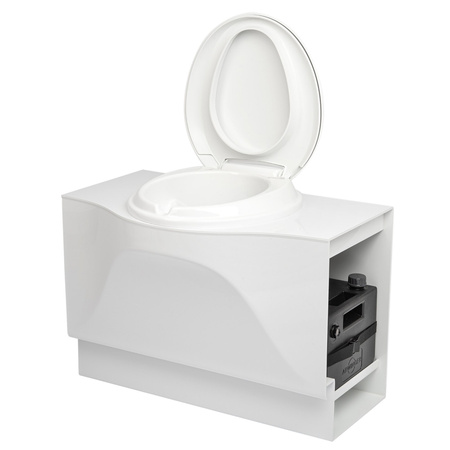

With the new bench model of the Arwinger cassette toilet, you can replace your Thetford bench toilet from the C400 series one-to-one. Benefit from all the advantages of the toilet without affecting the bathroom design and without having to forego the convenient and practical removal via the service hatch.
The Arwinger cassette separation toilet kit seat part with separation function is embedded in the body. It ensures the separation of solids and liquids.

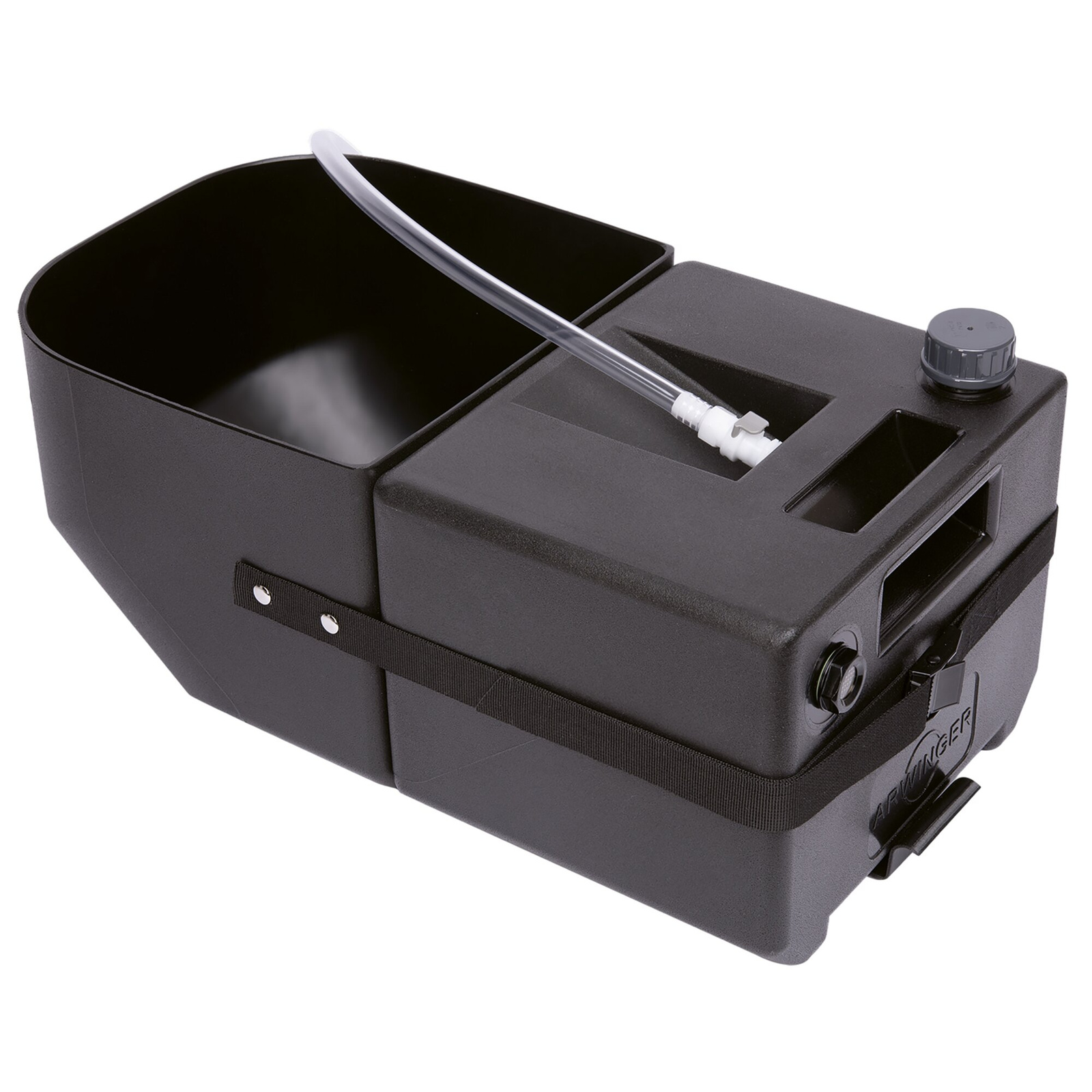

Both are collected by the Arwinger cassette separation toilet kit cassette, which is positioned in the service compartment and replaces the Thetford chemical cassette. The solids fall into the open container of the cassette, which is provided with a bag, and the liquid is fed into the cassette tank via the hose. Both cassette parts can be separated for emptying. The container for the solids has a volume of approx. 9 liters, the one for the liquid approx. 7.7 liters. The fill level of the liquid tank can be read using an optical fill level indicator.
Please note: The body of the bench model can be adapted to different individual installation situations. Specialist knowledge is required to remove the Thetford bench toilet and install the Arwinger bench model. The replacement should be carried out by Arwinger or an Arwinger installation partner. You can find an overview of the workshops at: https://arwinger.de/#einbaupartner . The costs for the replacement are not included in the price of the product.
- complete replacement
- suitable dimensions
- made of high-quality ABS/PMMA plastic
- Seat part produced using deep-drawing technology for high quality and high-quality surface
- separate solid and liquid containers to be emptied
- Original Thetford C220 lid and glasses
Technical data:
Body including seat part with separation function
- Material: ABS/PMMA plastic
- Color: white
- Dimensions (W x D x H): 670 x 400 x 510 mm
- Weight: 9500 g
- load capacity: 300 kg
cassette
- Material: Polyethylen
- Color: black
- Dimensions (W x D x H): 250 x 500 x 250 mm
- Weight: 1985 g
Scope of delivery:
Body including seat part with separation function
- body, ABS/PMMA
- seat part, ABS/PMMA, PVC
- cuff, silicone
- cuff fastening, PETG, polyamide
- hose connection, brass
- urine tube, PVC
- ball valves, PP
- stops and stop pins, PETG
- screws, stainless steel
- locking wedges, PETG
- mounting pins, PETG
- Lid and glasses Thetford C220, plastic
- installation instructions
cassette
- Cassette, PE, PA6, PVC, POM, brass; incl. hose connector, POM; incl. tensioning belt, polyester
- cap, PVC, PETG
- Plug, PETG; Plug holder, EPDM
- operating instructions
