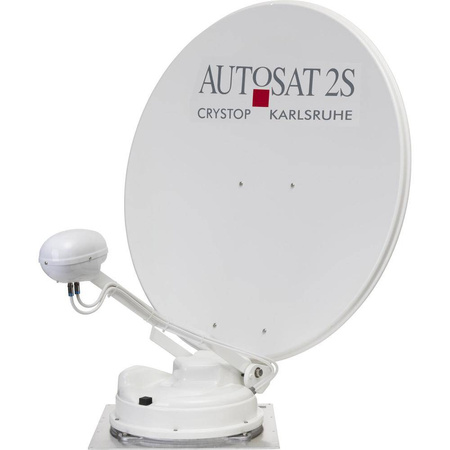

Satellite System AutoSat 2S 85 Control
Satellite System AutoSat 2S 85 Control
AutoSat 2 Control is a receiver-independent solution, equipped with a separate control box to digitally search for the desired satellite. This device is always the right choice: future-proof, compatible and can always be retrofitted- best technology and all you can expect.
Performance features:
- Operation as easy as possible
- Directly alignment to the last satellite position
- Modern 32 bit processor and Smooth Motion technology
- Fully-automatic alignment, typically in 30 – 90 seconds
- High searching speed (50°/ sec.)
- Automatic retraction upon starting the vehicle
- High-quality manufacturing and non-corrosive materials (aluminium, V2A)
- Robust, reliable mechanism (bearing, engine, gearing)
- High compatibility, as mechanics and electronics come from the same fabrication
- Double protection against electronic engine overvoltage
- No power consumption when switched off
- Optionally available with 10 m cable length
- Optional with app control
- Easy assembly
- 5 years functional warranty by the manufacture
- AutoSat 2S 85: 20 cm/ 19 kg
- AutoSat 2F: 20 cm/ 18 kg
Space Requirements:
- AutoSat 2S 85: L 105 x W 90 cm
- AutoSat 2F: L 75 x W 75 cm
Scope of Delivery:
Motor-controlled, 12V exterior unit, complete with antenna dish and low-noise universal LNB with noise factor 0.3 dB typ. (AutoSat 2S 85) or 0.6 dB typ. (AutoSat 2F). Control box, external control panel (length connection cable 2 m), mounting material, user manuals and all connection cables (control cable 6 m).Control box and control panel:Via the cable-bound operation unit, all functions of the control box can be operated. Both components can be installed flexibly. Dimensions Controlbox W 20 x H 5 x D 16 cm.
AutoSat 2S Control:The 85 cm sized offset dish provides reception beyond the European borders. The Twin version is also available with GPS and Skew Motion to automatically correct the locking angle of the LNB to the satellite.
