satellite system Megasat Campingman Portable 4
satellite system Megasat Campingman Portable 4 Megasat

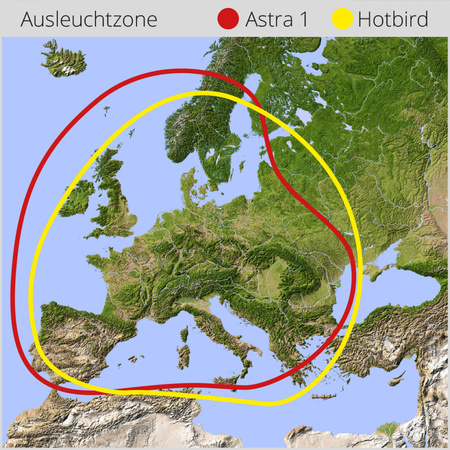

Thanks to its mobile and small design, the mobile satellite system can be used flexibly and can be set up anywhere with a clear view of the satellite. Trees and other obstacles can be easily avoided. Transport is easy using the handle attached to the housing. The new control unit is simply connected to the antenna via a coaxial cable and does not require an additional power supply. It is very easy to use: select one of the 5 preset satellites (Astra 1, Astra 2, Astra 3, Hotbird, Thor) and the system's 38 cm mirror will align in no time. Thanks to the control unit, future transponder updates are no longer necessary. The integrated auto-skew system with GPS enables the LNB to be precisely polarized and ensures the best reception at most locations in Europe.
Technical data:
- universal LNB
- Elevation / inclination angle 15° – 50°
- Azimuth / search angle 360°
- power supply 12 volts
- Consumption in search mode 33 watts
- Operating temperature -25 °C – +70 °C
- Dimensions ø 46.7 x H 40.8 cm
- Weight of the outdoor unit 5.1 kg
- Dimensions control unit W 6 x H 2.4 x D 6 cm
Scope of delivery:
- Outdoor unit with 2 connection cables (length 2 x 10 m)
- mini control unit
- anti-theft device
- Connection cable between control unit and receiver / TV (length 1 m)
