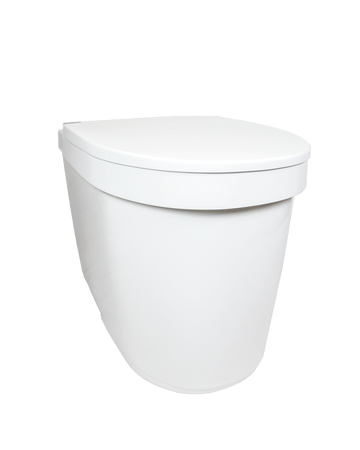

Separett Tiny Urine-Diverting Toilet with Ø32 mm Urine Outlet, 12 V / 230 V
- Compact Separett Tiny urine-diverting toilet with 12 V fan and Ø32 mm urine outlet, 10 l solids container, 230 V or 12 V power. For cabins, tiny houses and boats.
The Separett Tiny is a compact urine-diverting toilet designed for small spaces: cabins, tiny houses and boats. This version has a Ø32 mm urine outlet, so urine is drained through a pipe and there is no urine container to empty. Solids go into a 10 l container and a quiet 12 V fan removes odours to the outside. Power comes from 230 V mains (adapter included) or a 12 V battery - battery cables are included.
Key features
- Ø32 mm urine outlet to greywater, infiltration or a tank
- no urine emptying - just keep a constant fall in the pipe
- 10 l solids container with compostable bag
- 12 V fan: 1.6 W, only 0.04 kWh per day, below 30 dB(A)
- 230 V (110-230 V adapter) or 12 V, battery cables included
- no water, no chemicals and no bulking material
- rotating view screen hides the container until you sit down
- 5-year manufacturer warranty
How the Tiny works

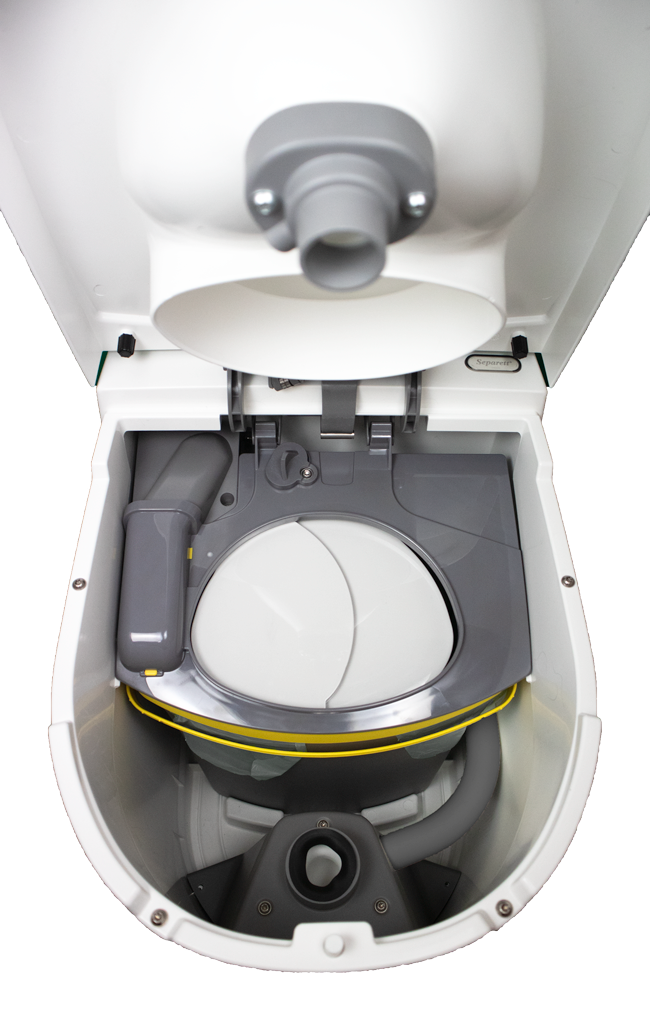

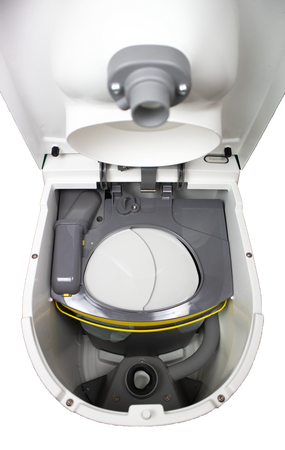

Urine runs through the front of the bowl into the Ø32 mm outlet and through a pipe to a greywater system, an infiltration unit or a sealed tank. Solids and toilet paper drop into the container lined with a compostable bag. The fan draws air through the toilet and leads it outside through a pipe, so the waste dries out and there is no odour. The fan should run all the time.
Contents of delivery
- Tiny urine-diverting toilet 12 V / 230 V with solids container
- user and installation manual
- 110-230 V adapter and 12 V battery cables
- wall flashing, ventilation pipe with 90° elbow and outdoor cover
- 2 m of Ø32 mm urine pipe
- samples: compostable bags, Absorb cloth
Installing the ventilation
- standard Ø50 mm pipe: max. 5 m and two 90° elbows
- 1.5" pipe: max. 4 m and two 90° elbows
- flexible ventilation pipe: max. 3 m and three elbows, no 360° loop
- exhaust through wall, floor or roof; take the pipe above the roof if wind comes from several directions
- screw the toilet to the floor; leave about 30 cm free space above it
- urine pipe with a constant fall of about 2 cm per 1 m, no traps; above 2 m use at least 38 mm inner diameter
Emptying
- with 2 users, empty the 10 l solids container about once a week
- close the bag, lift it out and fit a new compostable bag
- the waste can be composted for at least 6, preferably 12 months, following local rules
- once a month flush the drain with 50/50 vinegar and water or use a Bio-Drain Cleaner tablet
Care
- always sit down, men too
- do not add sawdust or bulking material - it can contaminate the fan
- remove and rinse the fan filter with water when it is dirty
- clean the toilet with a mild cleaner and a soft cloth
- protect urine and drain from freezing in unheated places
Matching Separett products
- Separett Tiny with urine container - other version
- Separett compostable bags for Tiny, 10 pcs
- Separett flexible ventilation pipe 2 m
- Separett urine container - spare or for conversion
- Separett Absorb, 2 pcs
Technical data
| Feature | Value |
|---|---|
| Brand | Separett |
| Model | Tiny |
| Version | with urine outlet |
| Product code | 1271-03 |
| Type | urine-diverting toilet with fan |
| Urine outlet | Ø32 mm |
| Solids container | 10 l |
| Toilet dimensions | 49.7 x 39.8 x 47 cm (L x W x H) |
| Seat height | 44-46 cm |
| Seat (W x D) | 39.1 x 39.9 cm |
| Toilet weight | 8.5 kg |
| Weight with packaging | 12 kg |
| Package dimensions | 58 x 45 x 59 cm |
| Max. user weight | 150 kg |
| Power supply | 12 V; 110-230 V adapter included |
| Fan rating | 12 V / 1.6 W / 133 mA |
| Energy consumption | 0.04 kWh / 24 h |
| Ventilation pipe | Ø50 mm |
| Noise level | below 30 dB(A) |
| Manufacturer warranty | 5 years |
Questions and answers
Will the Tiny fit in a motorhome?
Yes, its footprint is only 49.7 x 39.8 cm and it is 47 cm high. You need a ventilation outlet to the outside.
Can I run it from a battery?
Yes, 12 V battery cables are included and the fan draws only 1.6 W.
Can I change the version?
Yes, with the Separett urine container you can convert it to the container version, e.g. for a motorhome.
Do I need bulking material?
No, the fan removes odours and dries the waste.
How often do I empty the solids?
With 2 users about once a week.
Manufacturer
Separett AB, Bredastensvägen 8, 333 14 Skeppshult, Sweden.
