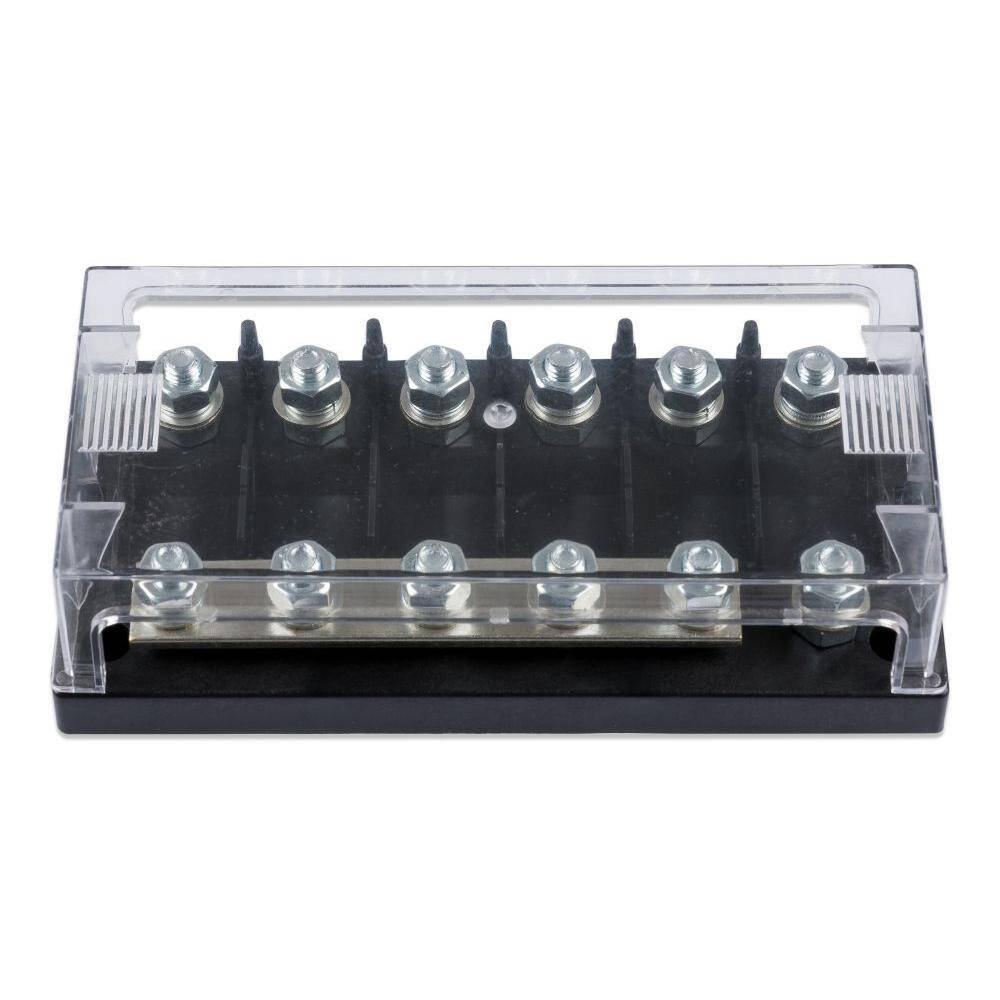

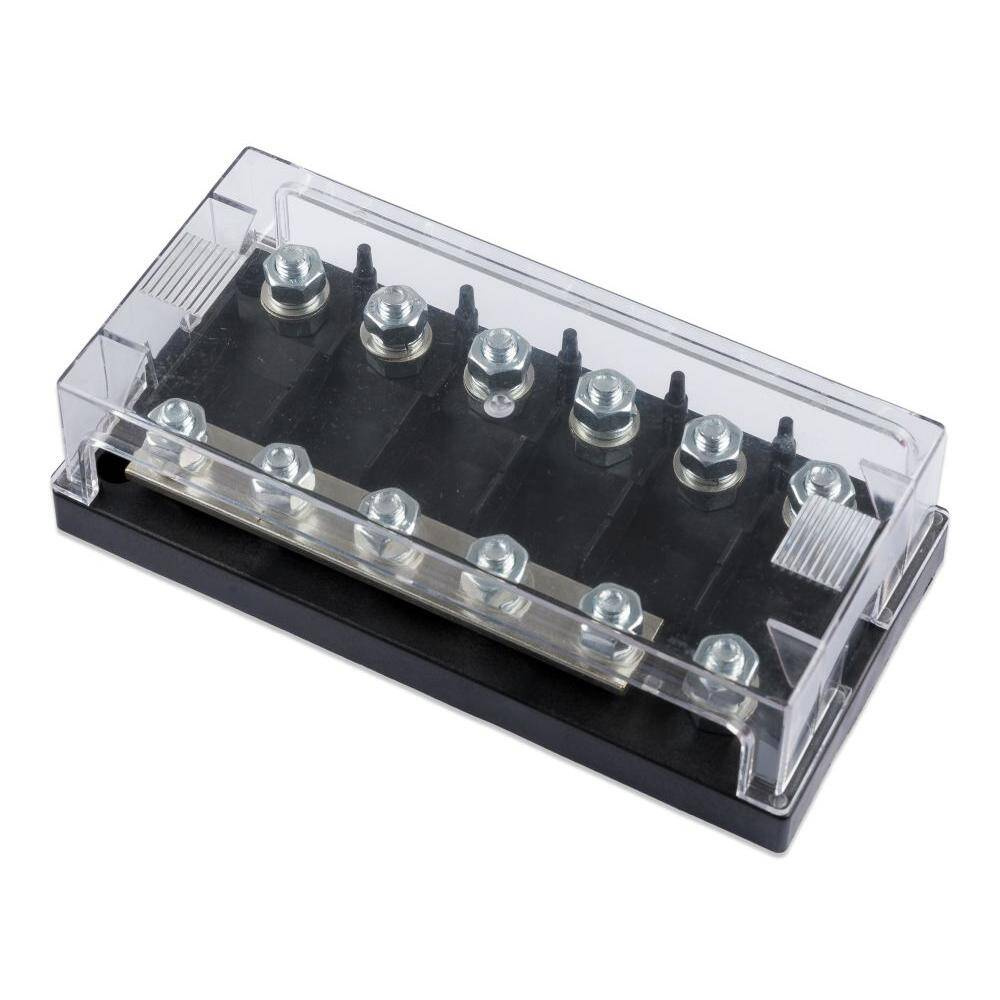

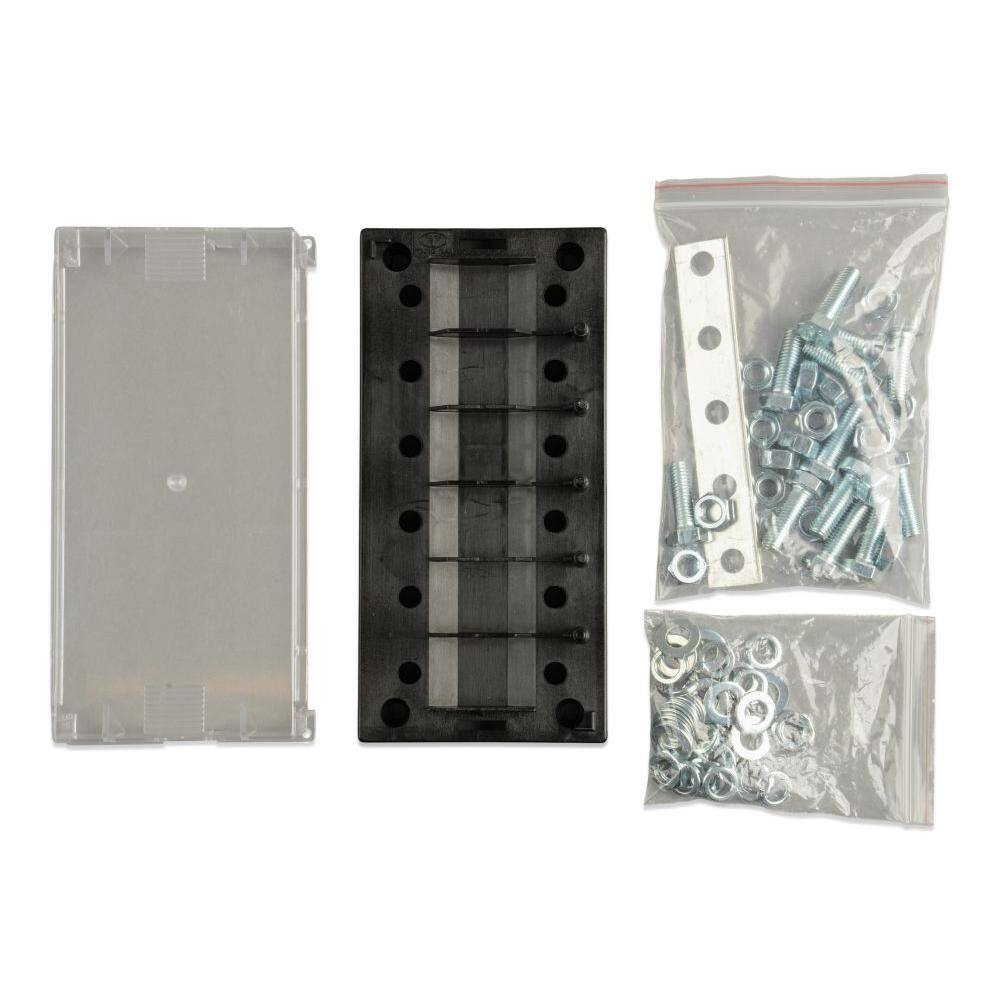

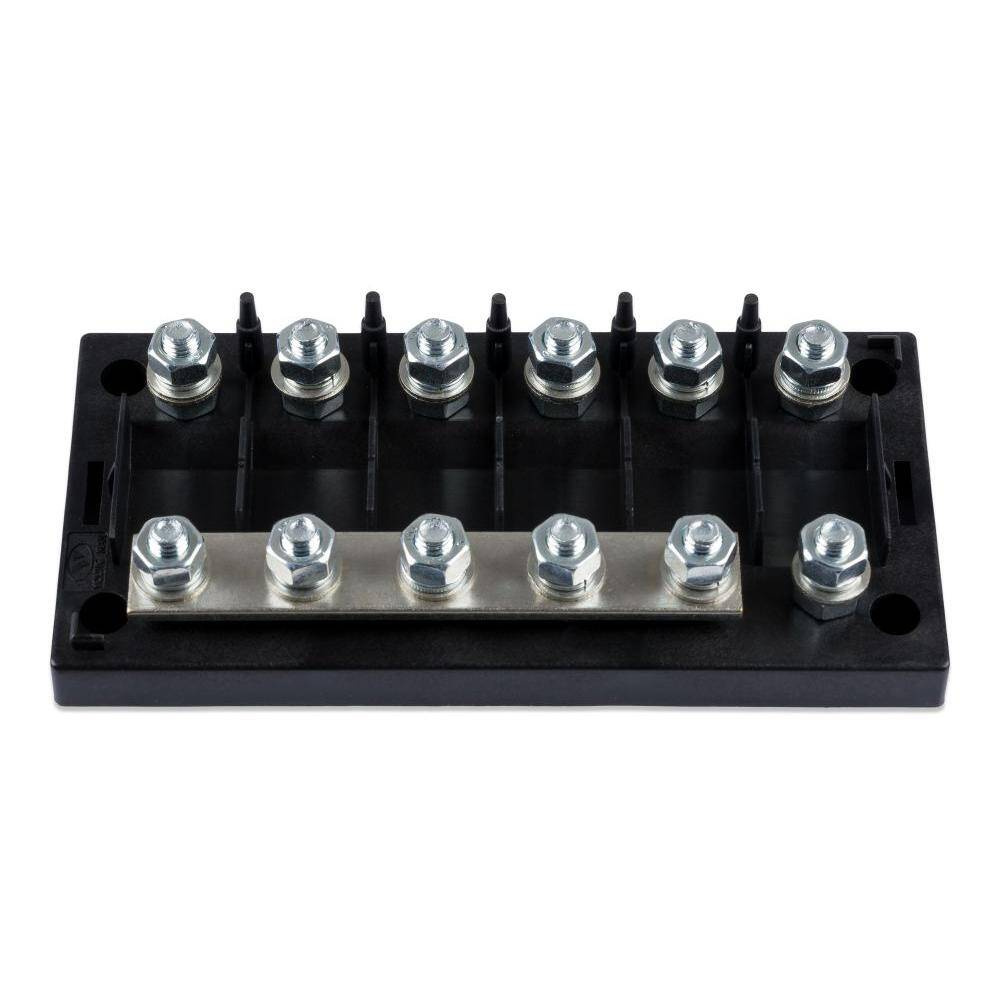

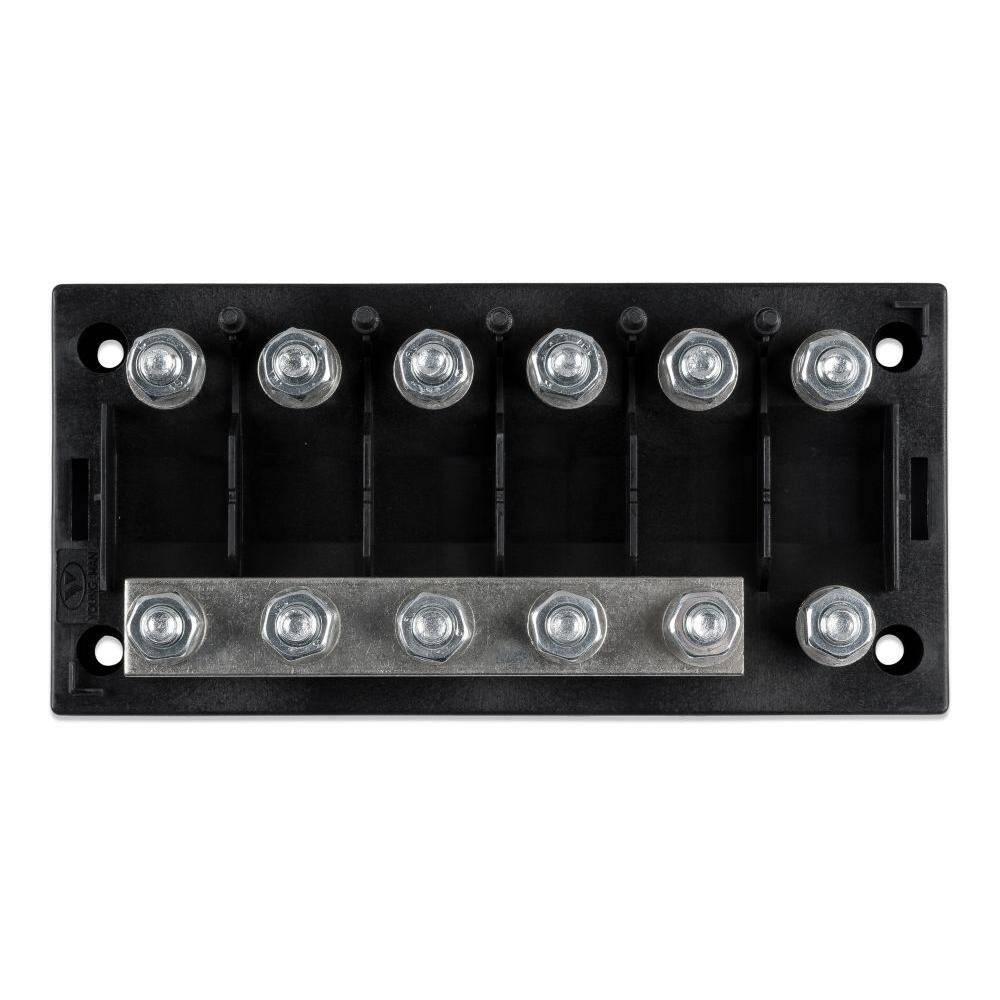

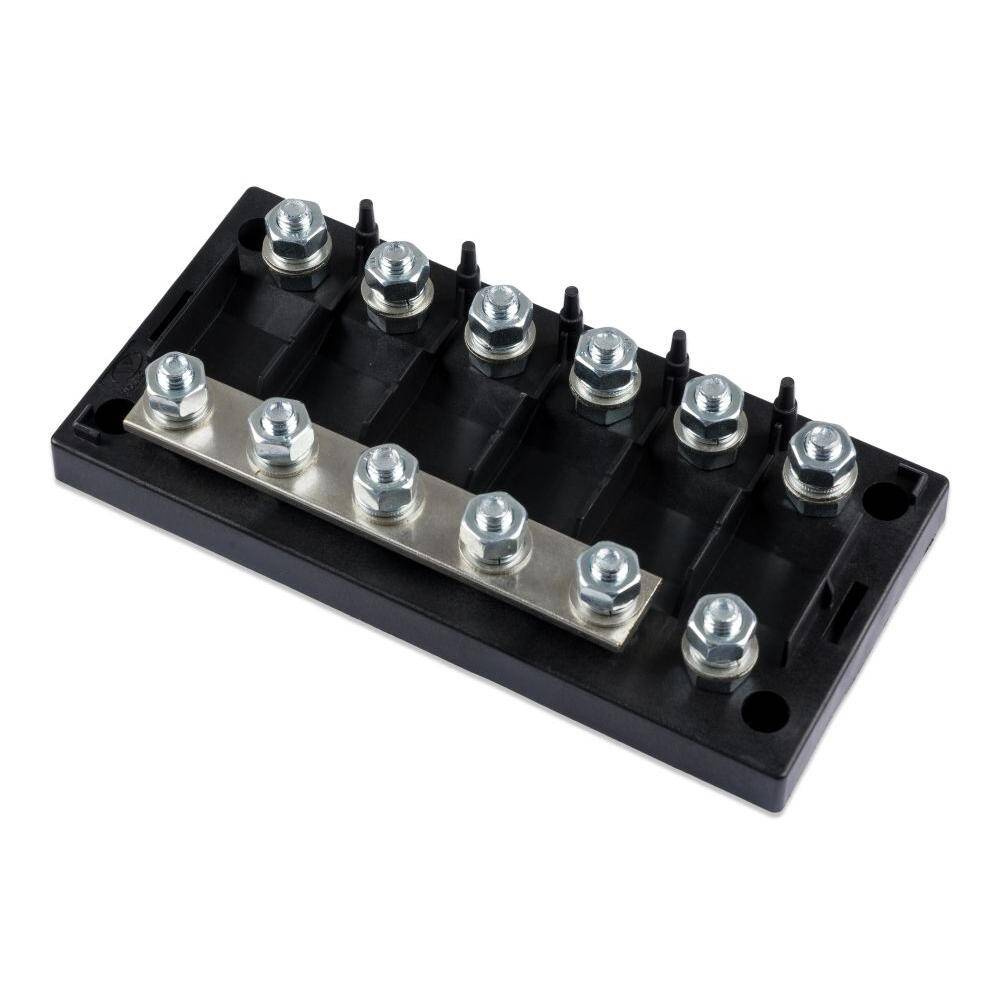

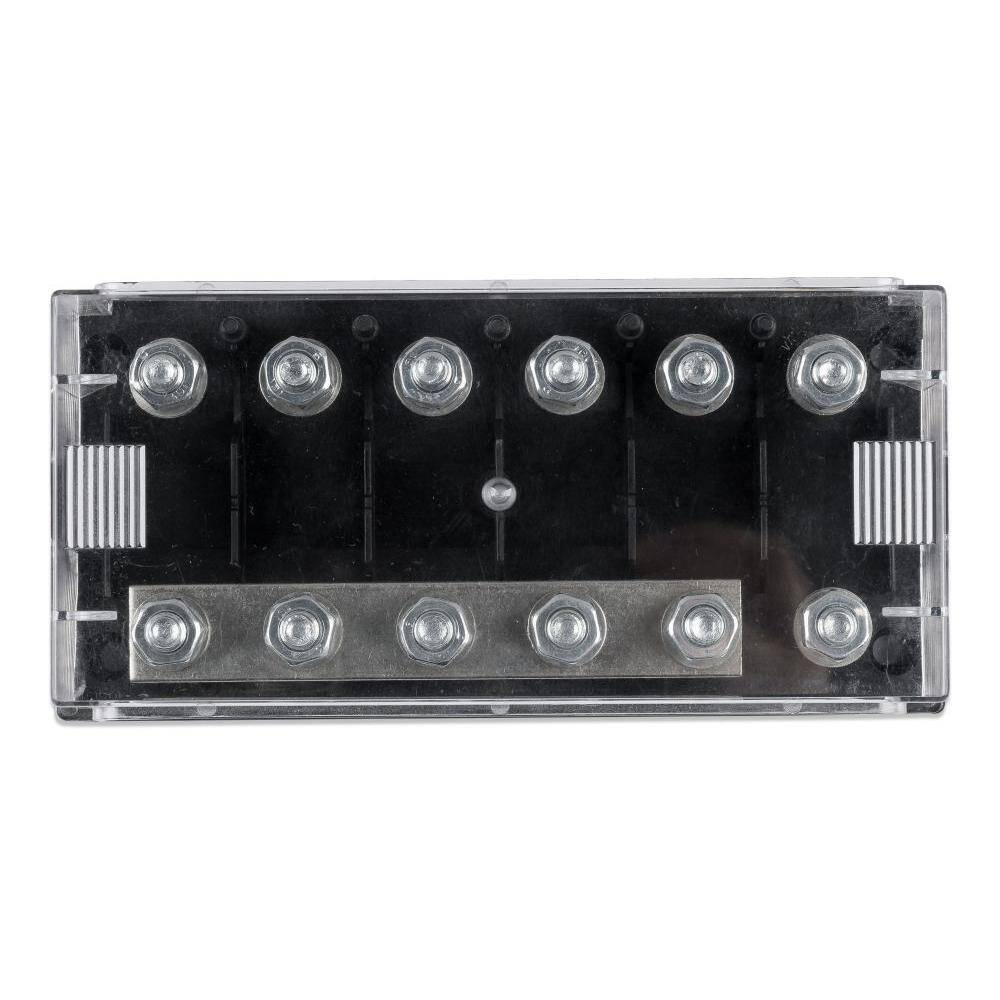

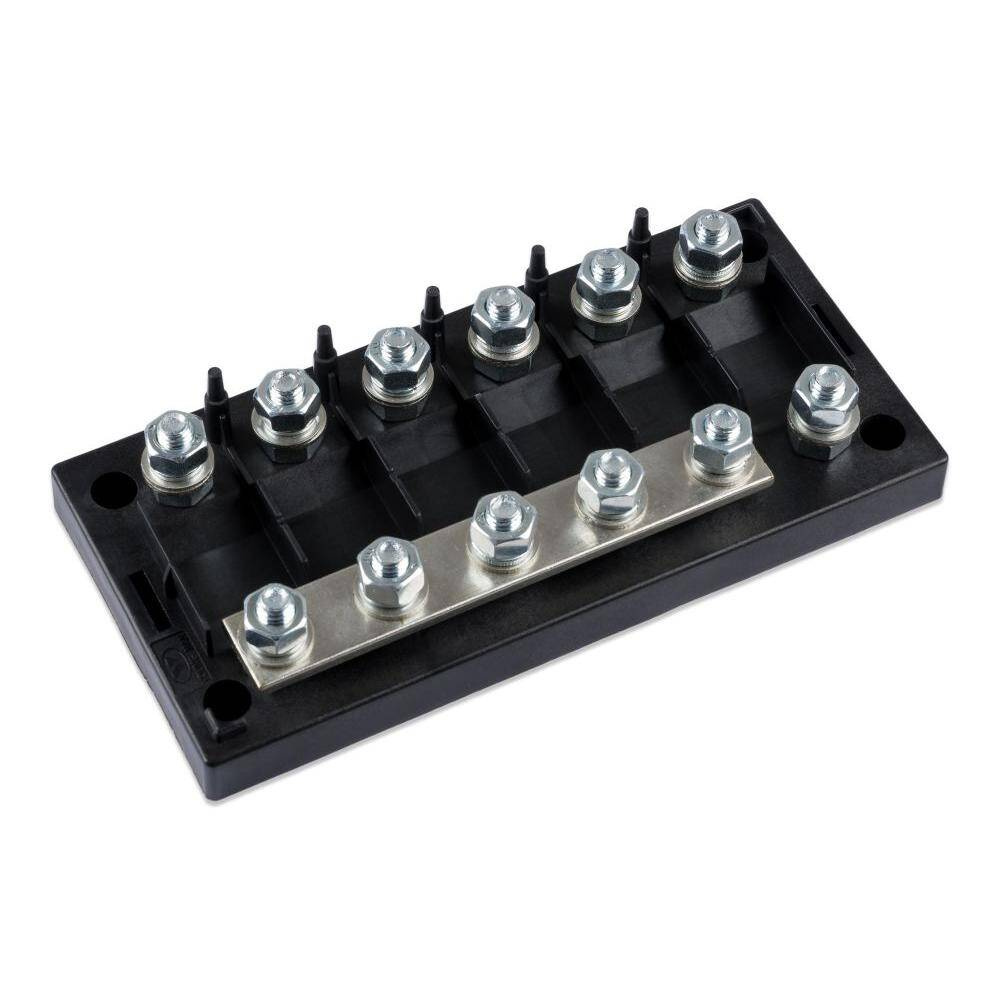

Six-way fuse holder for Mega-fuse with busbar (250A)
- The photo of the product is for illustration purposes only and may not correspond to a specific product model
Fuse holder 6-way for MEGA fuse
- Max. current 250 A
- Max. Voltage 70 VDC
- Terminal diameter 5/16 inch / 8 mm
- Terminal height 0.67 inch / 14 mm
- Terminal material Galvanised steel
- Hex nut material Galvanised steel
- Recommended torque 60 lbf·inch / 7 N·m
- Busbar strip material Tin-plated copper (3 x 18 mm)
- Base material ABS, black, UL 94 V-0

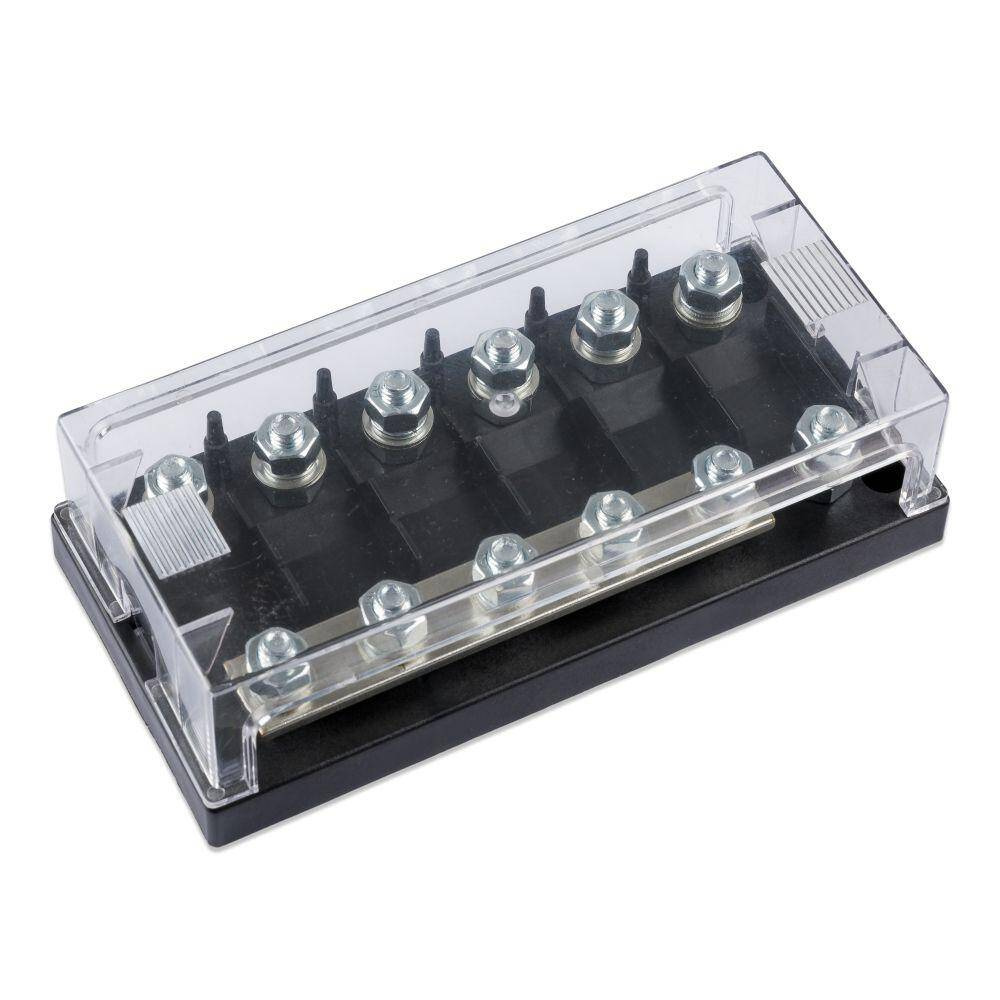

- Cover material Clear Polycarbonate, UL 94 HB
- Weight 1 lb / 0,45 kg
- Dimensions (hxwxd) (with cover) 2.0 x 7.2 x 3.5 inch 50.9 x 181.5 x 88 mm
