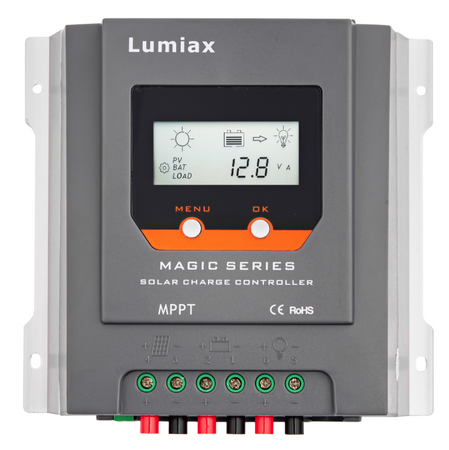

Solar charge controller 30A Lumiax MPPT 12V-24V MPPT
Solar charge controller 30A Lumiax MPPT 12V-24V MPPT
Solar charge controller 30A Lumiax MPPT 12V-24V MPPT
Solar charge controller 30A Lumiax MPPT 12V-24V MPPT
Solar charge controller 30A Lumiax MPPT 12V-24V MPPT
Solar charge controller 30A Lumiax MPPT 12V-24V MPPT

Solar charge controller 30A Lumiax MPPT 12V-24V MPPT

83,12 €
incl. VAT / szt.
Express checkout 1-Click(without registration)
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • Innovative MPPT technology, tracking efficiency 99.9%, conversion efficiency up to 98%
  • Real-time display the operational data and working status of the controller in digital, graphic and textual forms by a large LCD
  • AGM,Gel,Liquid and Lithium battery for selection
  • Two navigation buttons, easy to implement various operations
  • 12V/24V automatic recognition,
  • Temperature compensation,
  • Perfect EMC design
  • Four stage charge way: MPPT, boost, equalization, float
  • Full automatic electronic protect function

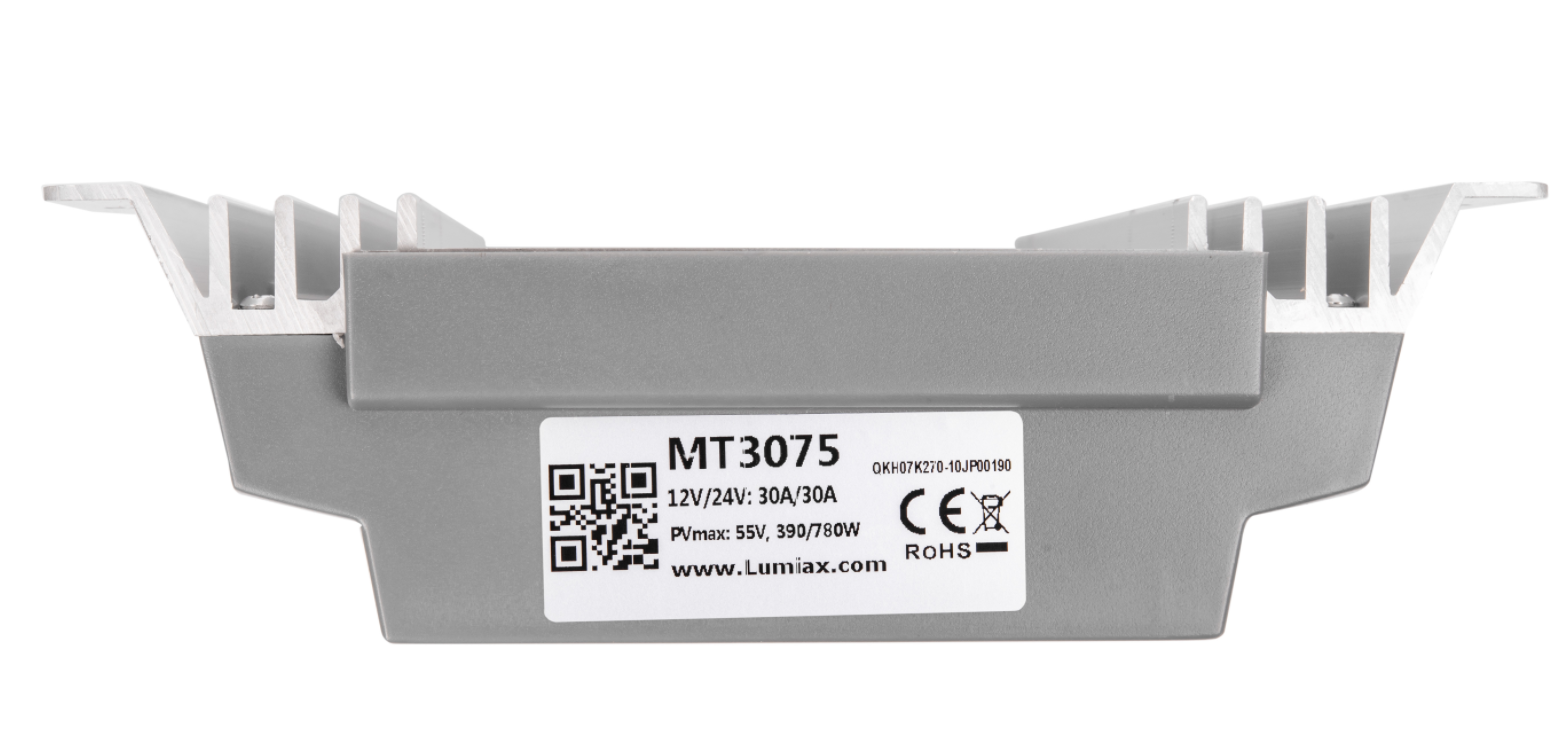

Type MT3075
Battery
Parameters
System Voltage 12V/24V automatical recognization
Max Charging Current 30A
MPPT Charging Voltage <14.5/29.0V@25℃
Boost Voltage 14.5/29.0V @25℃
Equal voltage 14.8/29.6V @25℃(Liquid,AGM)
Float Voltage 13.7/27.4V @25℃
Low Volt. Disconnect 10.8~11.8V/21.6~23.6V,SOC1~5
Reconnect Voltage 11.6~12.8V/23.2~25.6V
Overcharge Protect 15.8/31.3V
Max volt on Bat. terminal 35V
Temp. Compensation -4.17mV/K per cell (Boost, Equal), -3.33mV/K per cell (Float)
Battery Type Liquid, Gel, AGM,Lithium
Panel
Parameters
Max volt on PV terminal 55V
Max input power 390/780W
Dusk/Dawn detect volt. 8.0/16.0V
MPPT tracking range (Battery Voltage + 1.0V)~ Voc*0.9
Load Output Current 30A
Work mode Always on, Dusk to Dawn, Evening, User-defined mode
System
Parameters
Max tracking efficiency >99.9%
Max charge conversion 98.00%
Dimensions(mm)/Weight 189*182*64/1.3KGS
Grounding Common Negative
Self consumption ≦13mA
Ambient temperature -20 ~ +55℃
Storage temperature -25 ~ +80℃
Ambient humidity 0 ~ 100%RH
Protection degree IP32
Brand
Symbol
FW-R-19
Producer code
R0006
