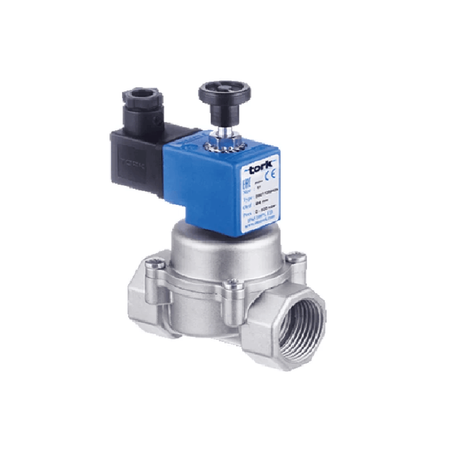

Elektro 3/4",N.O.,230VAC,15W,NBR, 0-0.5bar,ROwith manual opening,normally open (N.O)
Pressure:0-0.5bar
Coil voltage: 230VAC
Usable power:15W
Sealing: NBR
Valve diameter: 24mm
Flow: 32 m3/h.
Operating temperature: -10°C…80°C
Solenoid valves are electromechanical parts used to control the flow of liquid media, i.e. they convert electrical energy into mechanical energy. This conversion is achieved by a magnetic circuit consisting of an electromagnetic coil. The term solenoid coil is also used to refer to a valve.
Operation
Solenoid valves are control elements used to control the flow of liquid media. The functions of the solenoid valve can therefore be summarized as follows: its task is to ensure flow, cut off the flow, ensure proper proportions, create a mixture. Solenoid valves in the form of a 2/2-way and 3/2-way valve can be used in a variety of applications. These are valves most often used to control the flow of liquid media. They are used with many media such as air, water, steam, acid, gas, natural gas, fuel oil, gasoline, LPG, diesel, etc.
Advantages of solenoid valve
Reasons that support the use of solenoid valves:
- compact design of valves,
- cost reduction,
- instantaneous startup,
- low energy consumption,
- material compatibility,
- long service life,
- high level of safety.
Assembly
Before installation, make sure that the product is not damaged in any way and is complete. Do not use a damaged or incomplete product. Before using the product, please read the labels and other information on the product and packaging. Before installation, make sure that the pressure in the line does not exceed the maximum pressure indicated on the product label and that the product is compatible with the installation in which it is to be used. The operating limits given in the technical specifications should not be exceeded. Before starting the installation, make sure that there is no flow in the pipe to which the valve will be connected and that it cannot occur during installation.
Maintenance
The solenoid valve has an open design and the parts are checked and cleaned with compressed air. First of all, the core, diaphragm, diaphragm spring and orifice should be properly cleaned. Burrs and residues should be removed. Any damaged parts should be replaced with original spare parts of the same brand. Spare parts can be provided.
