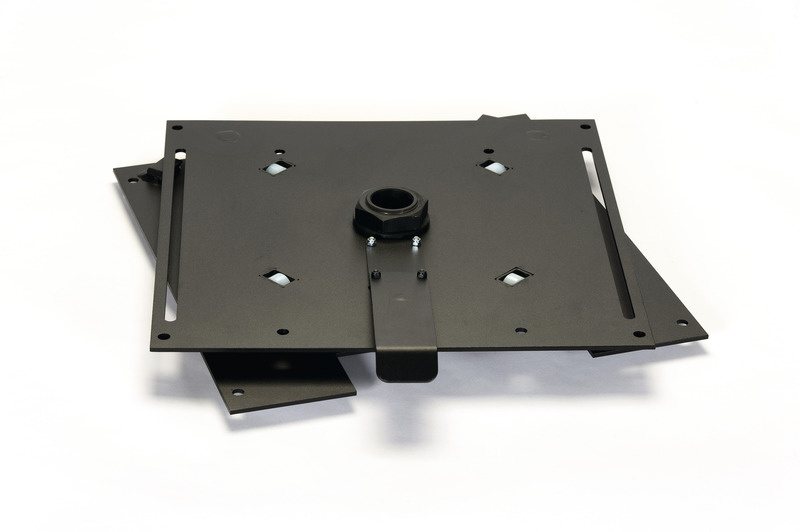

Sportscraft swivel seat base for VW T5/T6 from 2003, passenger side, low profile, for original seat
ID produktu: 61632
- Sportscraft swivel seat base for VW T5/T6 from 2003, fitted on the passenger side, for original seat. Comes with a TÜV parts certificate (Teilegutachten). Low-profile design – the seat is raised only slightly.
Sportscraft swivel seat base for VW T5/T6 from 2003, passenger side, low profile, for original seat
Sportscraft swivel seat base for VW T5/T6 from 2003, fitted on the passenger side, for original seat. It lets you turn the seat towards the living area of your motorhome or van – the cab becomes extra seating and getting in and out is easier.
Only 25.5 mm high. Pivot offset by approx. 40 mm. Can only be fitted if there is no battery under the seat. Comes with a TÜV parts certificate (Teilegutachten).
Key features
- Low-profile design – the seat is raised only slightly.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Sportscraft |
| Product code | RM59499 |
| Type | swivel seat base (swivel console) |
| Vehicle | VW T5/T6 from 2003 |
| Fitting side | passenger side |
| Seat | original seat |

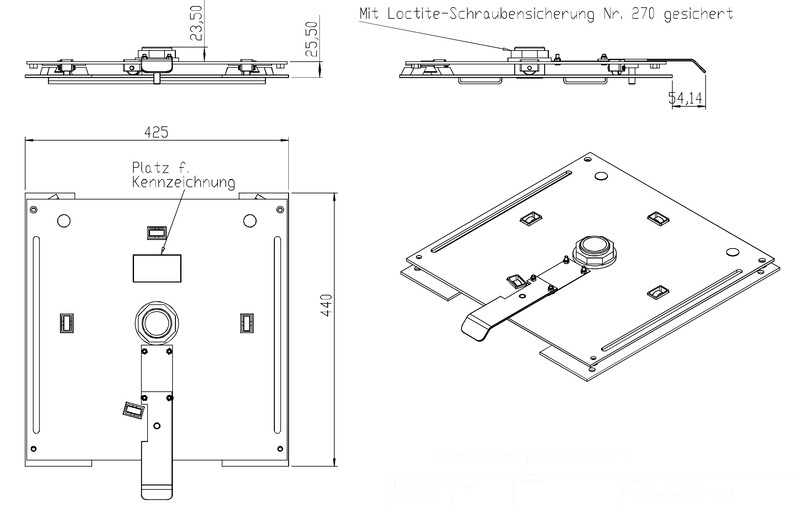

| Length | 425 mm |
| Width | 440 mm |
| Height | 25.5 mm |
| Colour | black |
| Documents | TÜV parts certificate (Teilegutachten) |
| Net weight | 15 kg |
| Scope of delivery | 1 swivel base, mounting hardware, instructions |
FAQ
Which vehicle does it fit?
VW T5/T6 from 2003.
Which side is it fitted on?
Passenger side.
Which seat does it work with?
Original seat.
Does it come with approval documents?
Comes with a TÜV parts certificate (Teilegutachten).
Manufacturer
Sportscraft Freizeittechnik GmbH of Munich (Germany) makes pilot seats and swivel seat bases for motorhomes and vans.
ID produktu
61632
Vehicle type
VW T5/T6
Vehicle year of manufacture
2003-
Installation location
Passenger side
Length
42.5 cm
Width
44 cm
Height
2.55 cm
Color
Black
Net weight
15000 g
