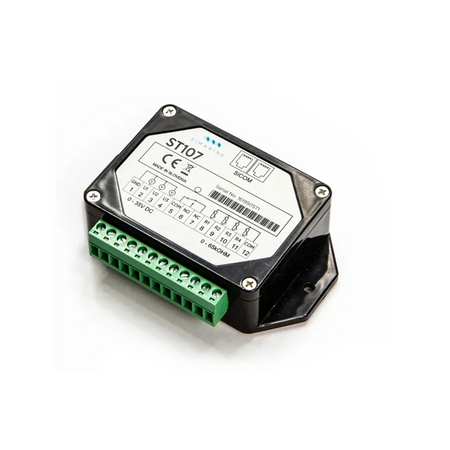

ST107 TANK MODULE
ID produktu: 49234
ST107 TANK MODULE
By connecting ST107 module to your system, you get 4 resistance and 3 voltage inputs to the system and 1 alarm signal relay. Its main purpose is to measure water, fuel, or other liquid levels, but you can also use it to measure voltage or temperature.
Technical data
- Voltage inputs (U1, U2, U3): 3
- Operating voltage range: 6–35 VDC
- Operating temperature range: From -20°C to 70°C
- Power consumption at 12 V during operation: 2.5 mA
- Voltage accuracy: 1 mV
- Voltage resolution: ± 0,3%
- Voltage sampling frequency: 100 ms
- Resistance range: 0 Ohm – 65 kOhm
- Resistance accuracy: ± 3%
- Connectivity: SiCOM
- Styk alarmowy: 1
