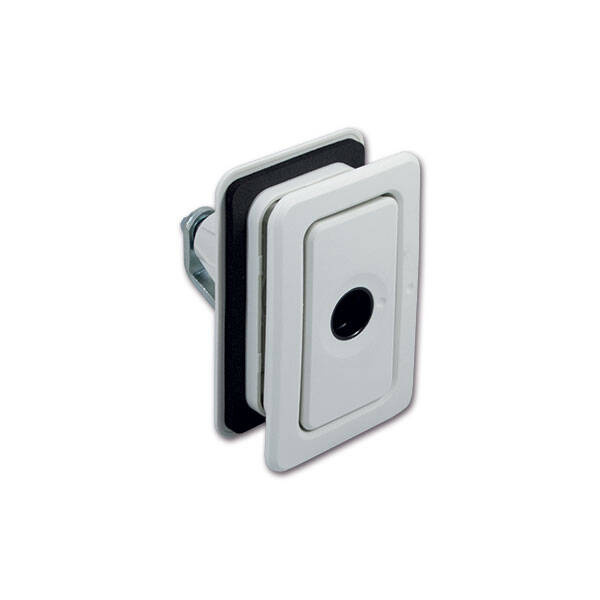

STS Quadro 2015 compression lock white - for motorhome and caravan locker doors, 70 x 110 mm, walls 26-45 mm, without cylinder and keys
ID produktu: 47949
- STS Quadro 2015 compression lock for motorhome and caravan locker and boot doors. White, 70 x 110 mm, walls 26-45 mm, waterproof, 6 mm compression. Without cylinder and keys, takes STS, Zadi and HSC cylinders.
The STS Quadro 2015 is a flush compression lock for boot, garage and external locker doors in motorhomes and caravans. Turning the handle by 180° pulls the door against the seal. This version is white and comes without a cylinder or keys - the cylinder is chosen separately.
Operation and build
- turning the handle by 180° pulls the door against the seal with a 6 mm compression stroke
- very smooth handle operation
- when closed, the handle lies flush in its recess with no protruding edges
- the lock is waterproof and corrosion-resistant

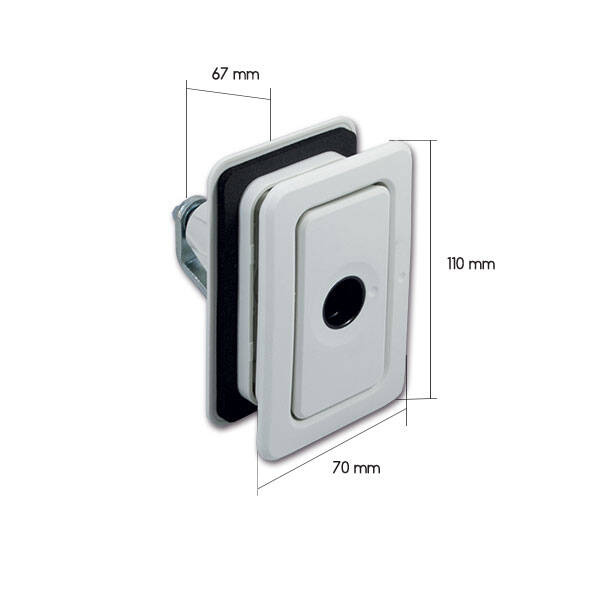

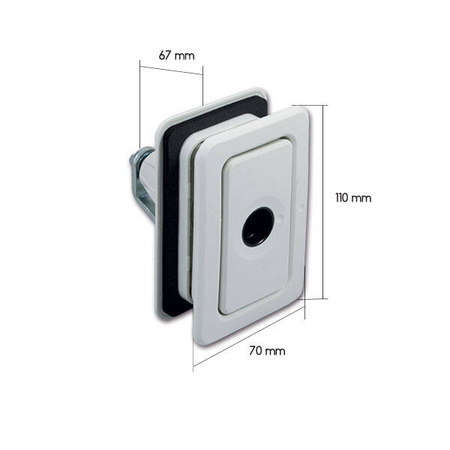

- outer dimensions 70 x 110 mm, white
Cylinder and fitting
- zamak cylinder housing for STS, Zadi and HSC plug-in cylinders
- cylinder and keys are not included
- for wall thicknesses of 26-45 mm
- Zadi cylinder in our range: Zadi barrel cylinder with key
Other versions
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | STS Oberholz |
| Model | Quadro 2015 |
| Type | compression lock for locker doors |
| Colour | white |
| Outer dimensions | 70 x 110 mm |
| Wall thickness | 26-45 mm |
| Compression stroke | 6 mm |
| Cylinder | not included, takes STS, Zadi and HSC |
| Keys | not included |
| Sealing | waterproof, corrosion-resistant |
| Use | motorhome and caravan boot and locker doors |
Questions and answers
Does the lock include a cylinder and keys?
No, this version comes without a cylinder and keys. The complete version is the white Quadro with cylinder and 2 keys.
Which cylinders fit?
The manufacturer states STS, Zadi and HSC plug-in cylinders.
What door thickness does it fit?
Walls 26-45 mm thick.
Manufacturer
STS Oberholz GmbH & Co. KG, Oststraße 15, 42551 Velbert, Germany.
