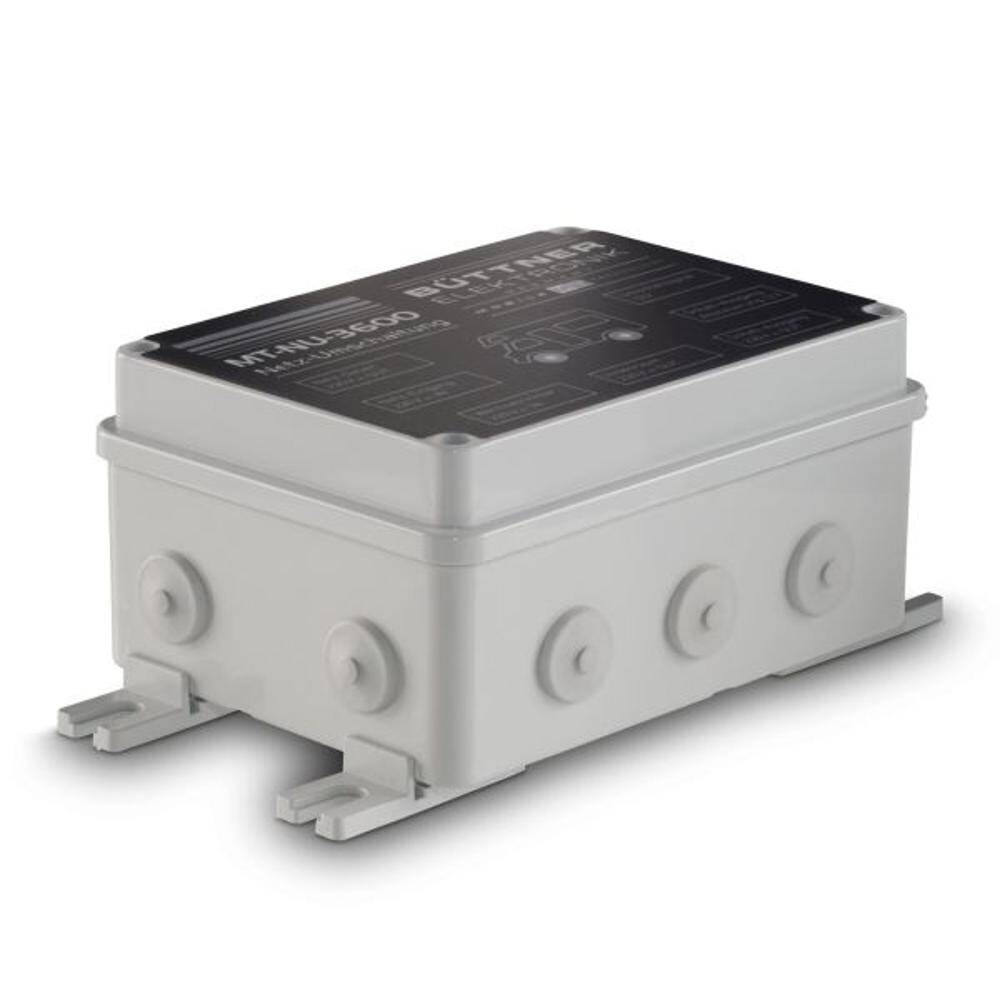

Switching System MT NU 3600

Switching System MT NU 3600

Intelligent motorhome priority switching with very high switching capacity. Suitable for all sine wave inverters that do not have an integrated switching system and those that would overload because of connected devices. The switching system ensures that the interior power outlets always have the optimal voltage supply of 230 V. This happens either through shore power, when it is charged at a campsite, or independently through an inverter. Additionally, a 230 V output can be unlocked. Accessible through Battery Computer MT 5000 iQ or any desired 12 V control signal. Therefore, if there is a power surplus (e.g. solar), an E-bike charger can be activated on board even without a grid connection, as it will be charged through the inverter. If the charging capacity is sufficient, the interior air conditioning may be used while driving.

The following connection options are available:

• Input mains/shore powe
• Input inverte
• Output for charger and refrigerator, etc.
• Output to interior power outlets
• Output 230 V after activation 12 V
• Signal output for operating status

The ideal solution for this is the MT NU 3600 mains switchover in conjunction with the MT 5000 iQ battery computer, which can be used to control the mains switchover. All indoor sockets are then automatically supplied either from the camping or pitch mains or independently from the inverter and the battery capacity is also always in view. Simply programme the control output on the battery computer (e.g. at 95 % ON and at 90 % OFF) and connect this to the mains switchover. Now the on-board batteries are charged first and the e-bike batteries are charged with the surplus power, for example from solar energy when the grid switchover is active.
