Tank Electrode K
ID produktu: 30631

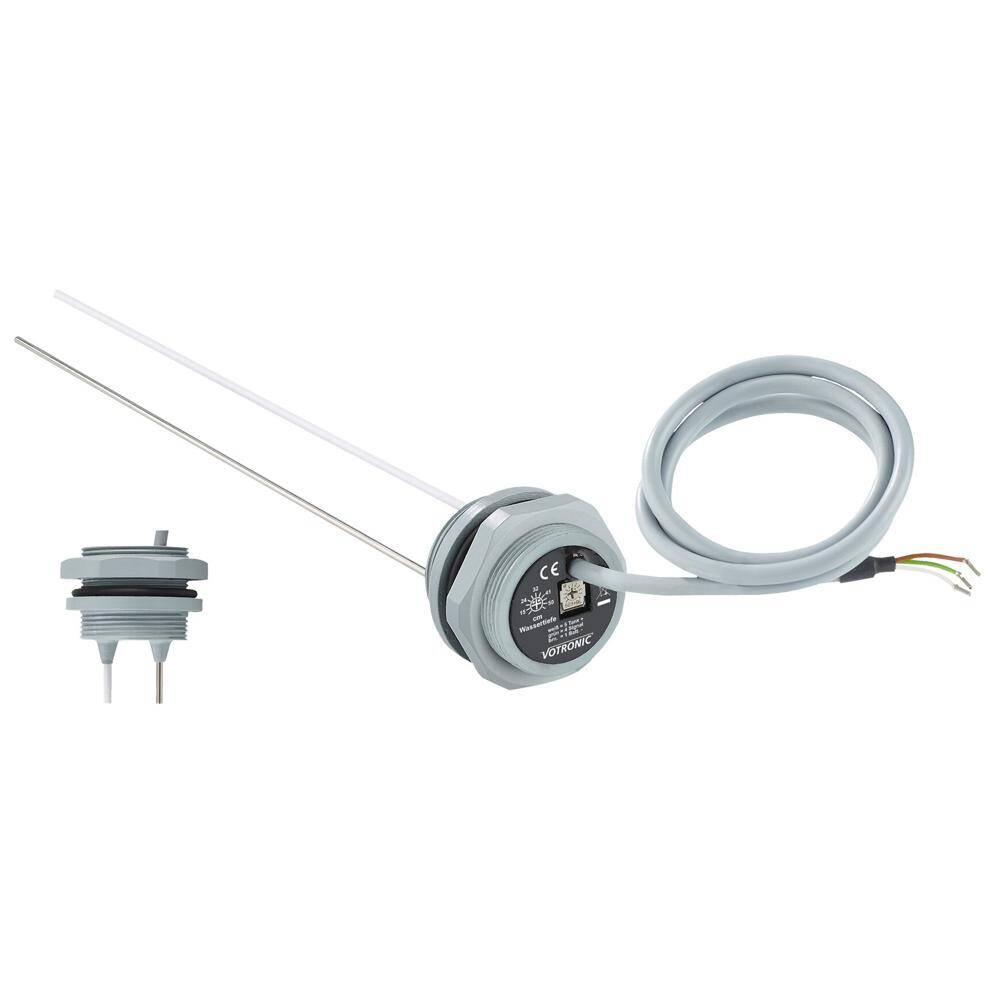

Tank Electrode K
The tank sensors measure the tank level and transmit data to the display via 2 lines, supplied with 12/24 V from the display. They are de-energised when not in use. Their encapsulated electronics (IP67) are suitable for use on underground tanks and are frost-proof. Votronic tank sensors use a capacitive measuring method, unaffected by overpressure, and give out a linear signal of the fill level via 10 LEDs in 3 colours. This method is precise and insensitive to contamination. Rod or rope probes are available for various tanks.
ID produktu
30631
Brand
Gross weight
150 g
Nominal voltage
12 V, 24 V
Net weight
140 g
Max wymiar pakowania
60 cm
Min wymiar pakowania
4.5 cm
Śr wymiar pakowania
11 cm
Variant
Tank height 15 – 50 cm
