Thermal Camera Guide PC210

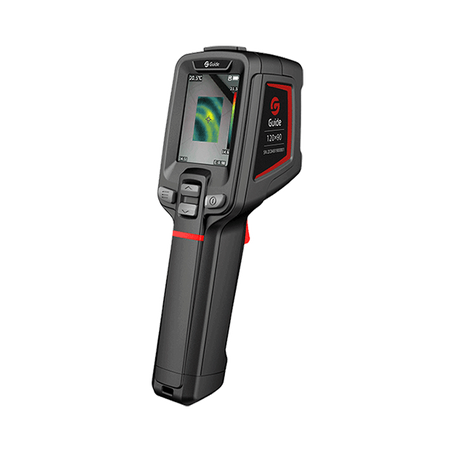

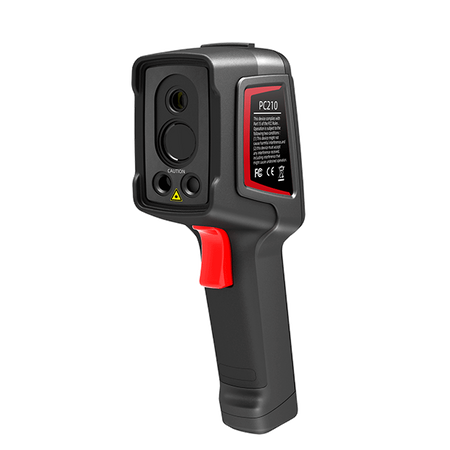

- Functional handheld thermo camera
PC210,Tool-like Handheld Thermal Camera,With excellent performance in image quality and charging battery life ,This Thermal Camera adopts 256x192 IR Detector and 200W pixel visible light . Adopts the New SharpIR composite image enhancement technology, it can provide you with detailed infrared thermal imaging and dual-light fusion images to help you find potential faults more quickly.
256x192@12μm, VOxInfrared module
16HrsOperating time
1 secondTurn on
IP54Encapsulation
The New SharpIR composite image enhancement technology
•Based on advanced and deep learning technology, SharpIR performs various optimization processes such as defogging, sharpening, contrast enhancement, and lossless magnification on low-resolution images to enhance the clarity of infrared images.

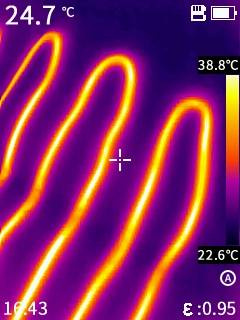

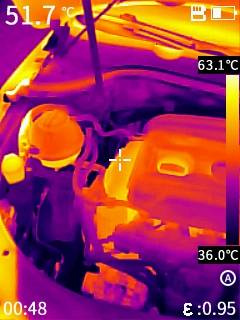

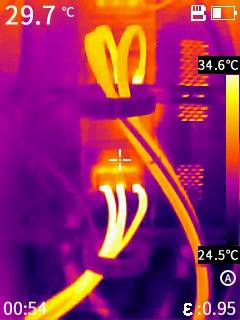

All palettes can display the temperature

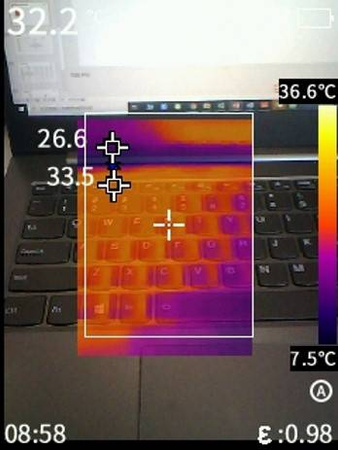

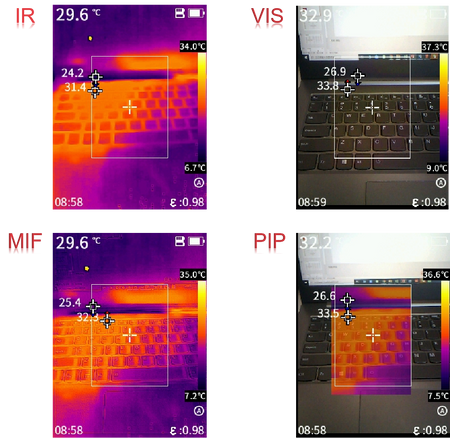

•IR/Visible Light/ MIF/ PIP Four Image Modes
•All Can Check The Temperatures Data Intuitive Of The Target
•Including The Full Screen Max & Min & Center Spot Temperature

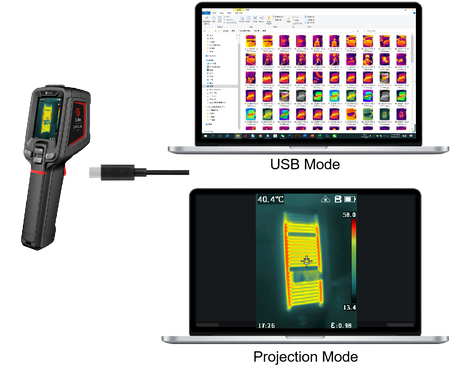

（3）Support PC Projection，To Get Large Screen Display
•Pictures And Videos In The Machine Can Be Transmitted To The Computer In Real Time By Using The Type-C To USB Cables
•Adopts 256x192 infrared module with Excellent imaging quality
•16H Operating time, 2.5H fast charge, easy to cope with two days of work
•Turn on in 1 second And Use, full-frame temperature measurement
•Rugged and Durable, Resistant to 2 meters drop, IP54 Protection Rating
•4 Color Palettes, And all palettes can display the temperature
•Wide temperature measurement range, -20°C~550°C, Automatic Switch
•Type C interface, Easy to transfer data And support PC screen projection
Technical Parameters
Imaging and optics |
|
| Detector type | VOx |
| Infrared resolution | 256*192 |
| Wavelength range | 7.5~14μm |
| Field angle | 56°*48° |
| Minimum object distance | 0.3m |
| Netd | <45mK |
| Infrared frame rate | 25Hz/9Hz |
| Focusing mode | Focus-free |
Measurement and analysis |
|
| Measurement range | -20℃~150℃, 100-550℃ (automatic switching) |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analyzed target | Center temperature measuring ON/OFF |
| Full-screen maximum/minimum temperature tracking/alarm | Full-screen high/low temperature alarm;Alarm mode: Visual and audio alarm |
| Temperature measuring parameter | Emissivity, reflected temperature, target distance |
| Image displad | |
| Display screen | 2.4" LCD |
| Image mode | IR, VIS, MIF and PIP |
| Image adjustment | Automatic, semi-automatic, manual |
| Palette | 6 pseudo colors such as White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1 |
| Storage and transmission | |
| Storage medium | TF card (up to 32G) |
| Image storage format | JPG with temp info |
| External interface | TYPE-C, TF card slot, tripod interface |
| Laser | Class 2 laser, only indicating the measured target |
| Wifi | Yes, it can be connected to the mobile terminal for data transmission |
| Power system | |
| Battery type | Rechargeable lithium-ion battery, non-removable |
| Battery working time | > 16 H |
| Power management | Automatic shutdown, and adjustable shutdown time from 5 min, 10 min to 20 min |
| Charging mode | TYPE-C charging;PC/portable charger;Capable of charging while using |
| Charging time | 90% of full charge in 2.5 hours |
| Environmental paraments | |
| Working temperature | -10℃~50℃ |
| Storage temperature | -40℃~70℃ |
| Ip rating | IP54 |
| Drop | 2m drop test |
| Certificati | CE, FCC, ROHS, UN38.3+ air/sea freight, IP54, 2m, damp heat test, shock vibration test, impact test |
| Physical parameters | |
| Weight | about 375g |
| Size | 194mm*61.5mm*76mm |
| Software kit | ThermoTools |
| Standard | A device, a 16G TF card, a Quick Product Manual, a USB-TYPEC cable, a wrist strap, an adapter |
| Opti | Tripod |
