Thule left articulated arm 1500603085 for Omnistor 5200 awning - 2.50 m projection, 3.00-5.00 m length

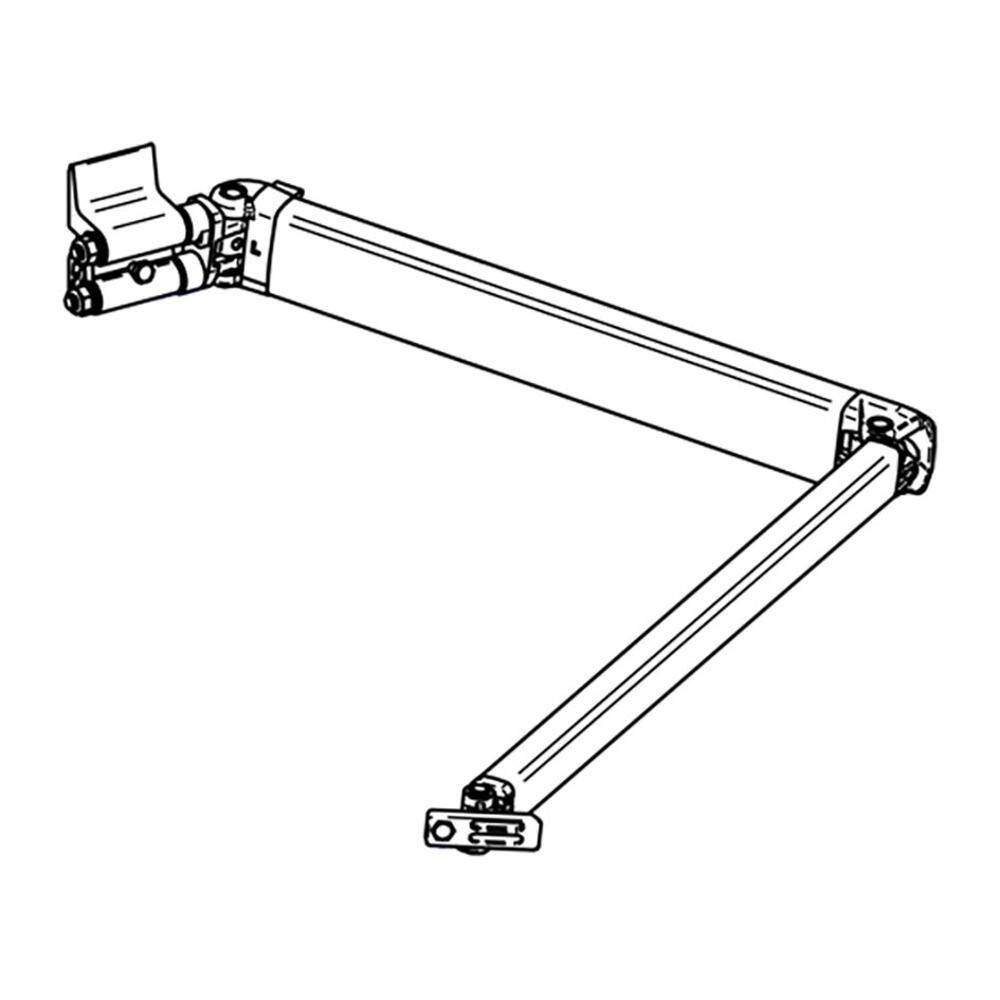

- Genuine Thule left spring arm 1500603085 for Omnistor 5200 awnings 3.00-5.00 m long with 2.50 m projection. Spare part, item 19 on the exploded view.
The Thule left articulated arm (part no. 1500603085) is a genuine spare part for Thule Omnistor 5200 awnings 3.00-5.00 m long with 2.50 m projection. The spring-loaded arm pushes out the front profile and keeps the fabric taut when the awning is extended. This arm fits on the left side of the awning, the right arm is a separate part, no. 1500603089.
Which awning does it fit
- Thule Omnistor 5200 - awning length 3.00-5.00 m
- awning projection: 2.50 m
- item 19 on the Thule spare parts drawing
- side: left
- right arm for the same awning: part no. 1500603089
- Thule also makes arms for the Omnistor 5200 1.90 m (left 1500603082, right 1500603086) and 2.30 m (left 1500603083, right 1500603087)
How the articulated arm works
- articulated arms work in pairs - one on the left and one on the right side of the awning
- the spring in the arm pushes the front profile out and keeps the fabric taut
- when the awning is rolled in, the arm folds into the cassette
- a damaged arm or weak spring shows as slack fabric or an unevenly extending front profile
- the arm is sold individually (1 pc)
- Thule supplies it as a complete arm
Before you order
- check the awning model on the type plate or the sticker on the cassette
- measure the awning length - arms for other lengths have different part numbers
- check on which side the damaged arm is - the left and right arms are different parts
- compare part no. 1500603085 with the number in your awning documentation
Fitting and safety
- roll the awning in fully before removal - the arm is under spring tension
- replace it with two people
- do not take the arm apart or remove the spring
- if you have no experience, have an awning service or caravan workshop do the job
- after fitting, check that the awning extends and rolls in evenly
Other arms for this awning
- right arm 1500603089 - length 3.00-5.00 m
- left arm 1500603084 - length 2.60 m
- right arm 1500603088 - length 2.60 m
Matching parts
- spring arm covers, left + right (1500602235)
- rotation plate (1500602811)
- lead rail connector, 2 pcs (1500603091)
- spring arm positioner, 2 pcs (1500602327)
- spring arm stops, left + right (1500603344)
- tension arm end caps, left + right (1500603345)
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Thule |
| Thule part no. | 1500603085 |
| EAN | 5415182053907 |
| Type | spring-loaded articulated arm (spare part) |
| Side | left |
| Fits | Thule Omnistor 5200 |
| Awning length | 3.00-5.00 m |
| Awning projection | 2.50 m |
| Item on parts drawing | 19 |
| Right arm | 1500603089 |
| Quantity | 1 pc |
Questions and answers
Which awning does this arm fit?
Thule Omnistor 5200 awnings 3.00-5.00 m long with 2.50 m projection.
Does it fit an awning of another length?
No. Thule makes separate arms for other awning lengths. The links are in the section with other arms.
Is it the left or the right arm?
Left. The right arm is part 1500603089.
Are both arms included?
No. You get 1 arm. The other one is ordered separately.
Is the arm under tension?
Yes, it has a spring that tensions the fabric. Replace it carefully with the awning rolled in.
Manufacturer
Thule NV, Kortrijkstraat 343, 8930 Menen, Belgium.
