TROBOLO DIY composting toilet set with wooden seat, grey - 22 l and 10 l containers

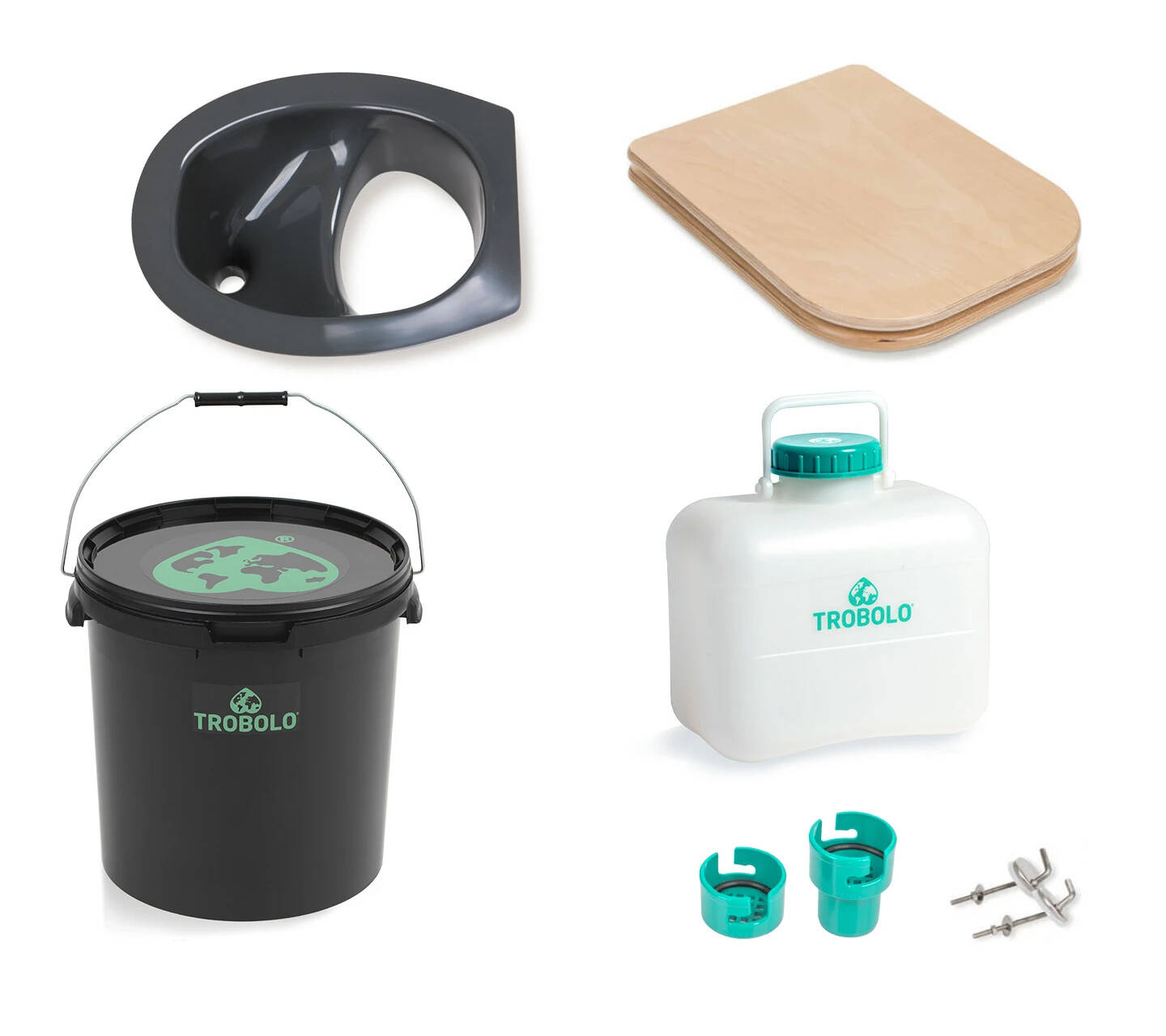

- TROBOLO set for building your own composting toilet: wooden seat with lid, grey urine diverter, 22 l solids container and 10 l liquids container.
The TROBOLO DIY set contains everything you need to build your own composting toilet with urine separation in a camper, cabin, garden house or bathroom. The urine diverter separates liquids from solids, and you seal both containers air- and liquid-tight and carry them easily by their handles. The set also includes a high-quality wooden toilet seat with lid.
Key features
- for building your own composting toilet
- easy disposal of toilet waste
- urine diverter with replaceable adapter system and filter sieve
- air- and liquid-tight sealable containers
- carrying handles for easy transport
- easy and hygienic cleaning of all components
- wooden toilet seat with lid
- diverter material: polypropylene
Scope of delivery
- wooden toilet seat with lid
- urine diverter (composting toilet insert), grey
- cutting template
- filter sieve and DN 32 hose connection with integrated filter sieve
- liquids container 10 l
- solids container 22 l
- diverter assembly instructions
- diverter care and maintenance instructions
Component dimensions
- seat with lid: height 55 mm, depth 404 mm, width 330 mm
- diverter: height 170 mm, depth 375 mm, width 322 mm
- inner opening of the diverter: 310 mm longitudinal, 240 mm transverse
- liquids container 10 l: 280 x 170 x 280 mm (L x W x H)
- solids container 22 l: Ø top 319 mm, Ø bottom 285 mm, height 316 mm
Planning the toilet body
With a 15 mm thick toilet body, the external dimensions with the 22 l container are for example 525 x 380 x 462 mm (D x W x H). Plan the interior with at least 495 x 350 x 429 mm. The Spill Stop, which protects the liquids container from spilling while driving, is available separately.
Matching TROBOLO products
- TROBOLO urine diverter, grey - for a self-built toilet
- Exhaust pipe set - DN 50, no power
- Solids container 22 l - with closure and metal handle
- Liquids container 10 l - with closure and handle
- TROBOLO Spill Stop - spill protection
- Filter sieve - for the diverter adapter system
- DN 32 hose connector with sieve - for the urine diverter
- TROBOLO litter 25 l - 100% pine
Technical data
| Feature | Value |
|---|---|
| Manufacturer | TROBOLO |
| Manufacturer code | BS2XX1405G |
| Type | DIY composting toilet set |
| Diverter colour | grey |
| Diverter material | polypropylene |
| Solids container | 22 l |
| Liquids container | 10 l |
| Toilet seat | wooden with lid |
| Hose connection | DN 32 |
| Diverter dimensions | 170 x 375 x 322 mm (H x D x W) |
Questions and answers
Do I need a separate toilet seat?
No, the wooden seat with lid is included.
How big does the toilet body need to be?
With the 22 l container, the interior should be at least 495 x 350 x 429 mm (D x W x H).
Can I drain the urine through a hose?
Yes, a DN 32 hose connection with integrated filter sieve is included.
Manufacturer
TROBOLO Europe Sp. z o.o., ul. Św. Marcin 29/8, 61-806 Poznań, Poland.
