TROBOLO KersaBœm - wooden cabin with composting toilet
- The TROBOLO KersaBœm is a solid wood cabin with composting toilet, natural exhaust and urine separation, without water, chemicals or power. 220 kg load.

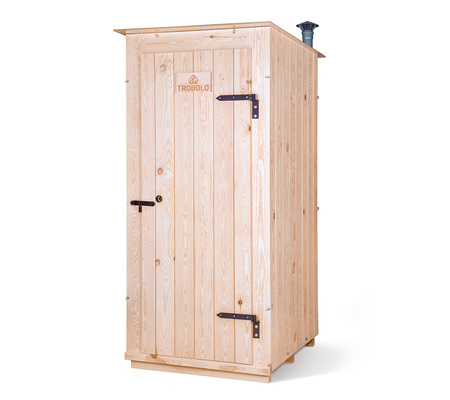

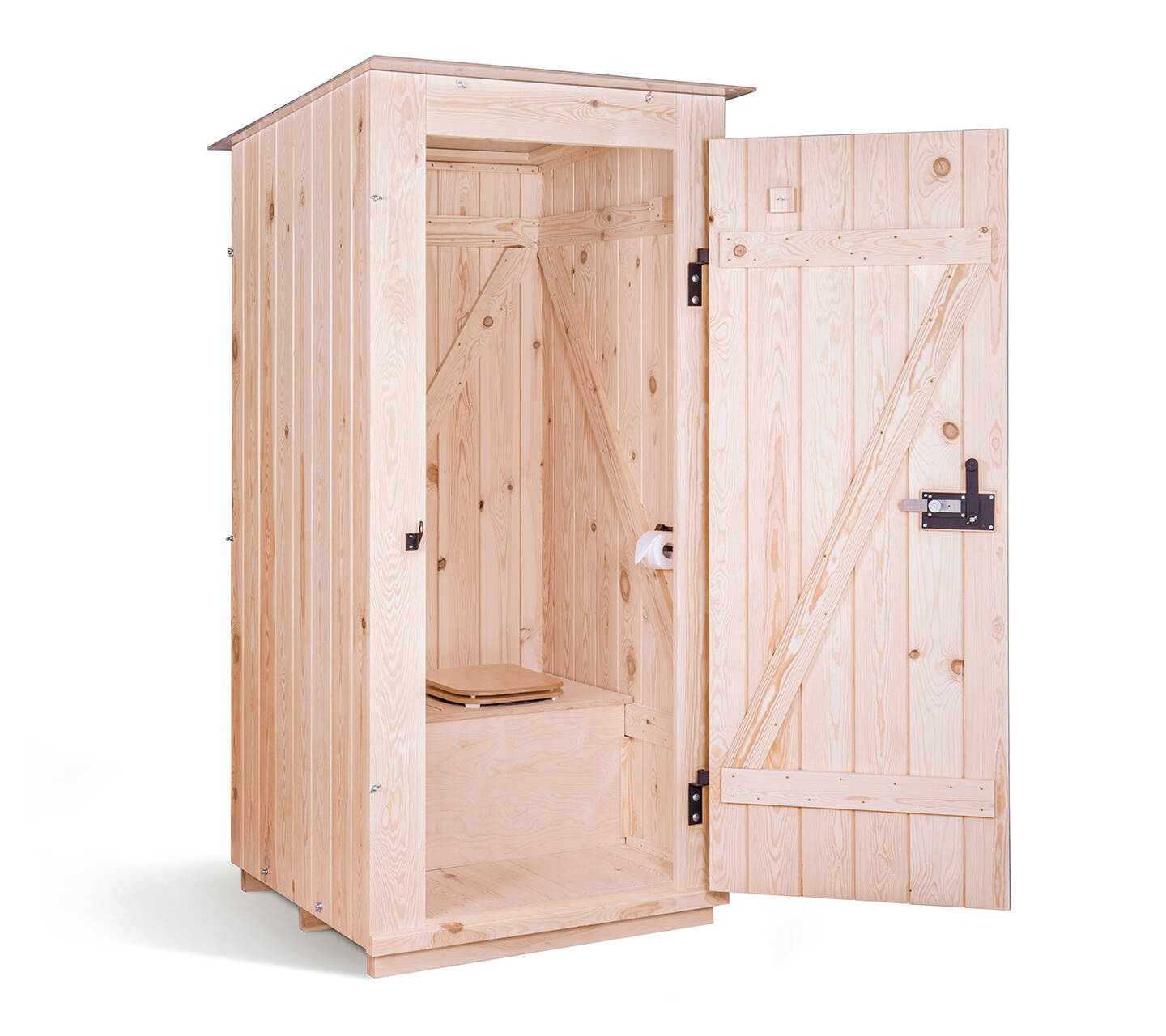

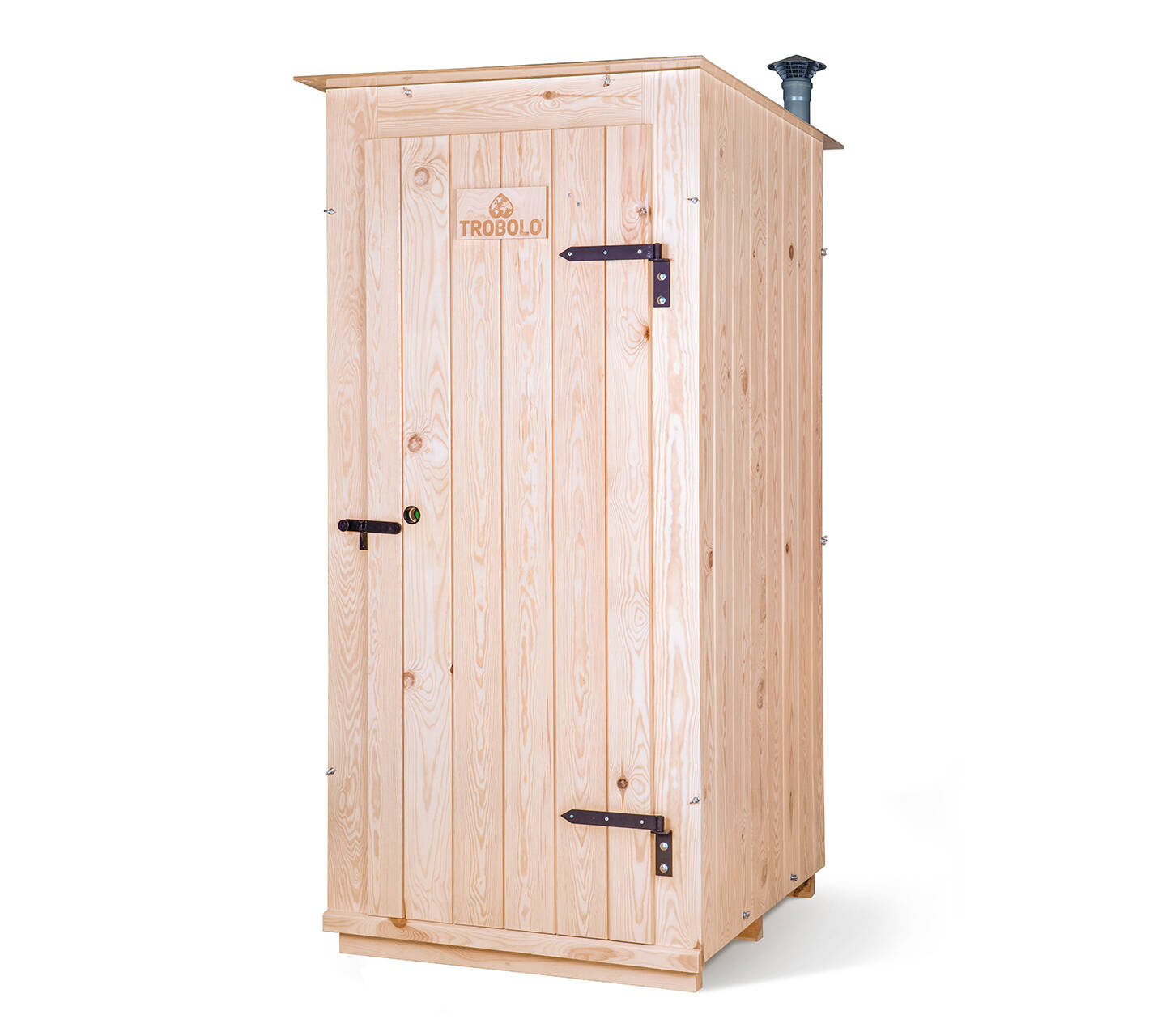

The TROBOLO KersaBœm is a robust solid wood toilet cabin for the garden and allotment, with a composting toilet with urine separation. It works self-sufficiently without water, chemicals or electricity, and the integrated natural exhaust system leads odours outside. You set the cabin up without a foundation and without tools.
Key features
- robust toilet cabin made of solid wood
- 160 kg weight, tested load capacity 220 kg
- capacity: 10 l liquids, 22 l solids

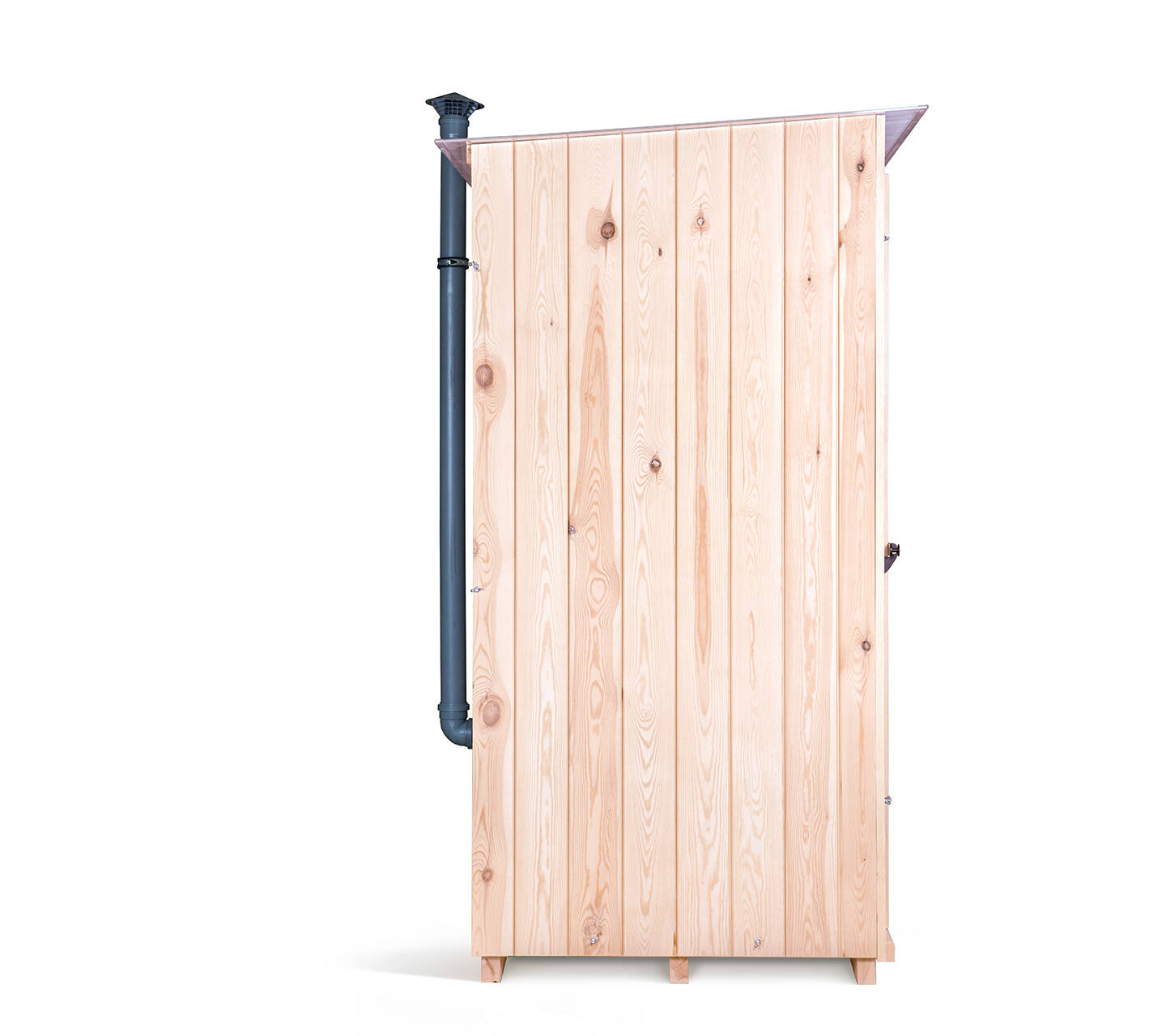

- integrated natural exhaust system
- works without water, chemicals or electricity

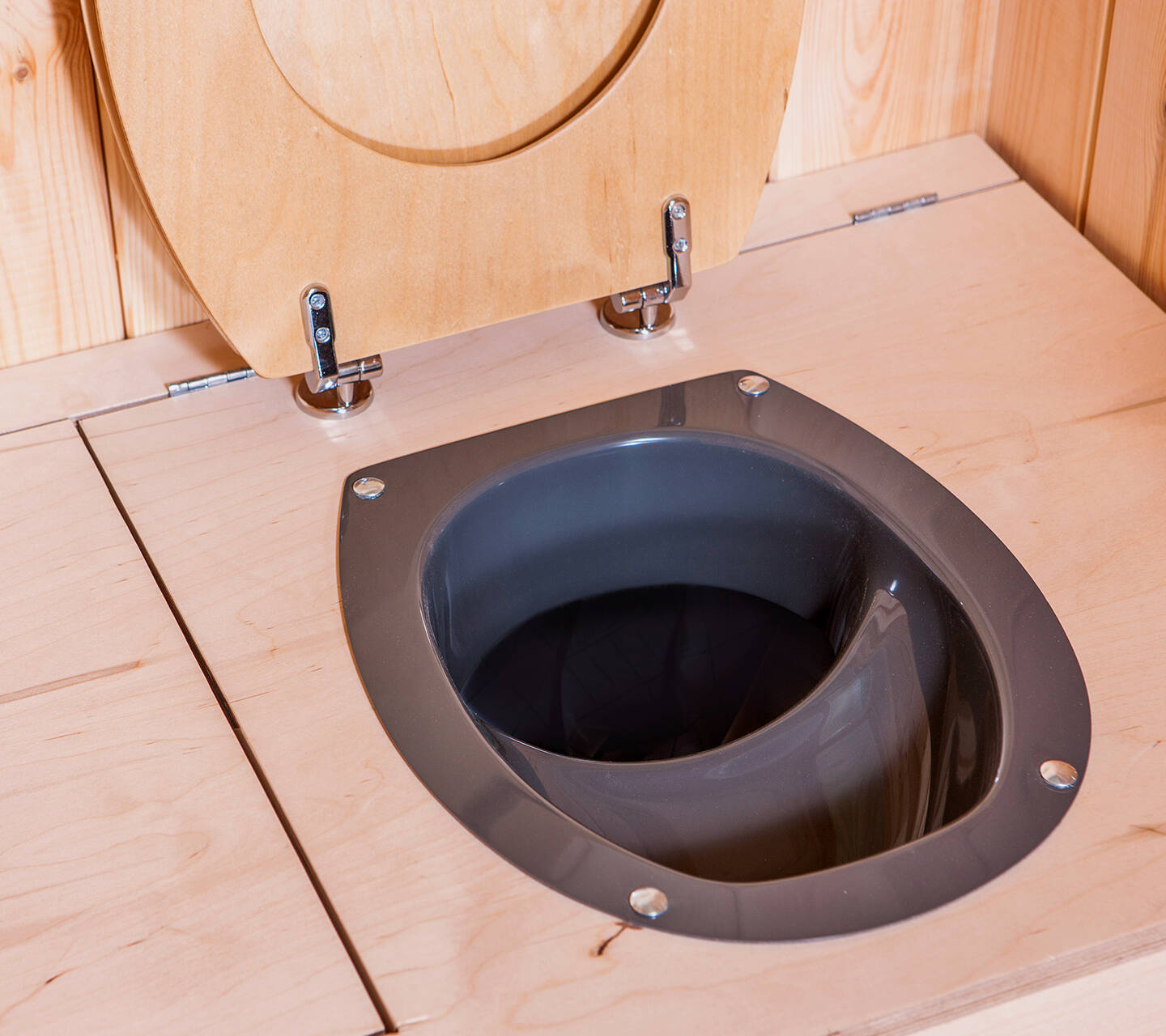

- reliable separation of urine and solids

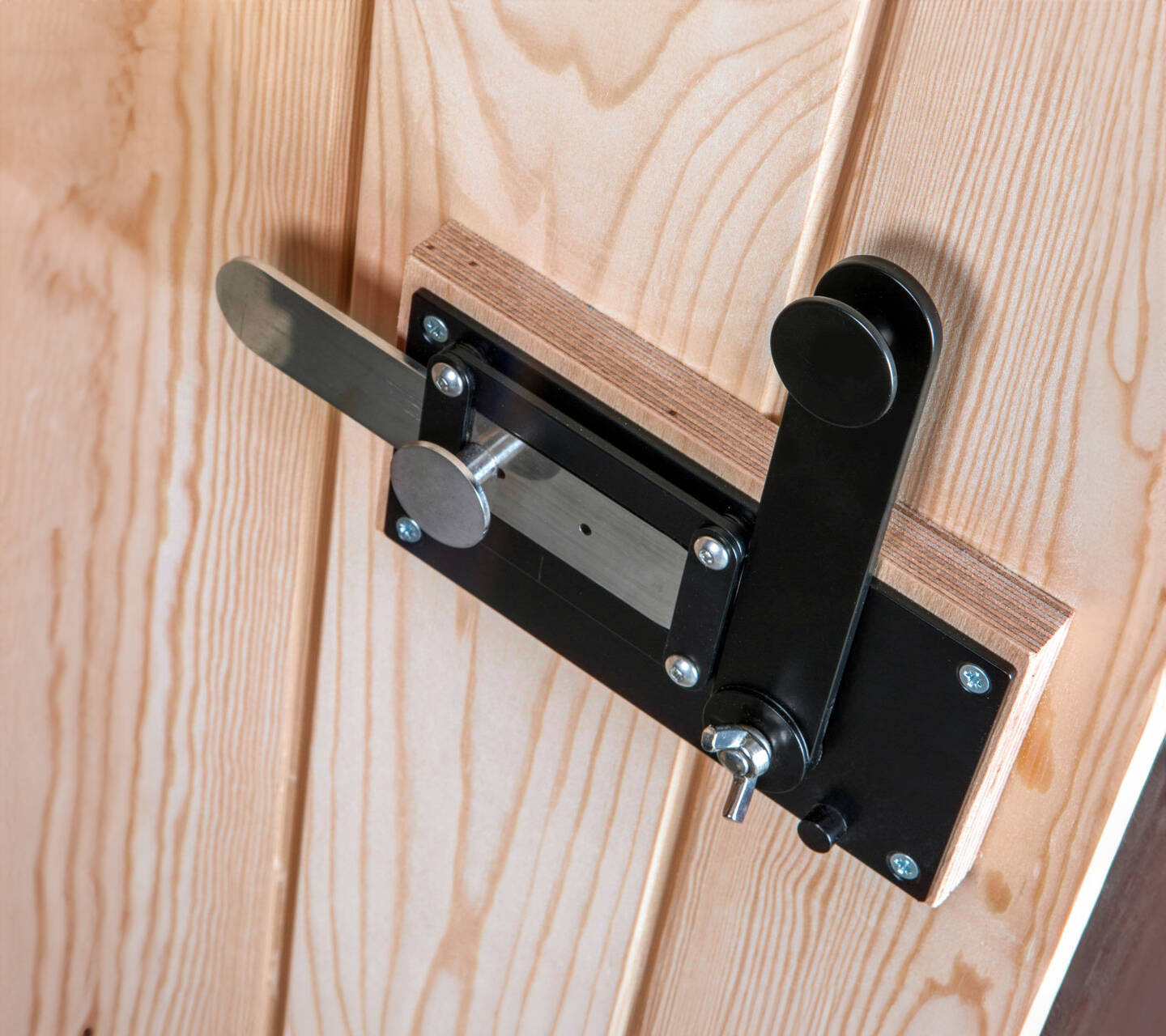

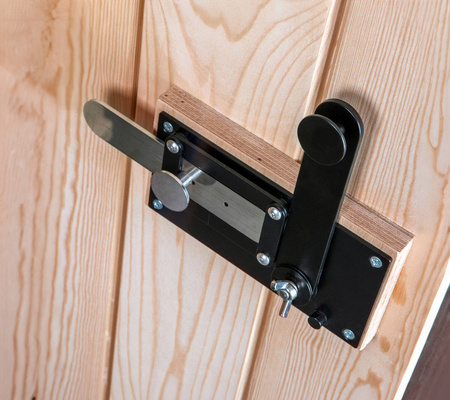

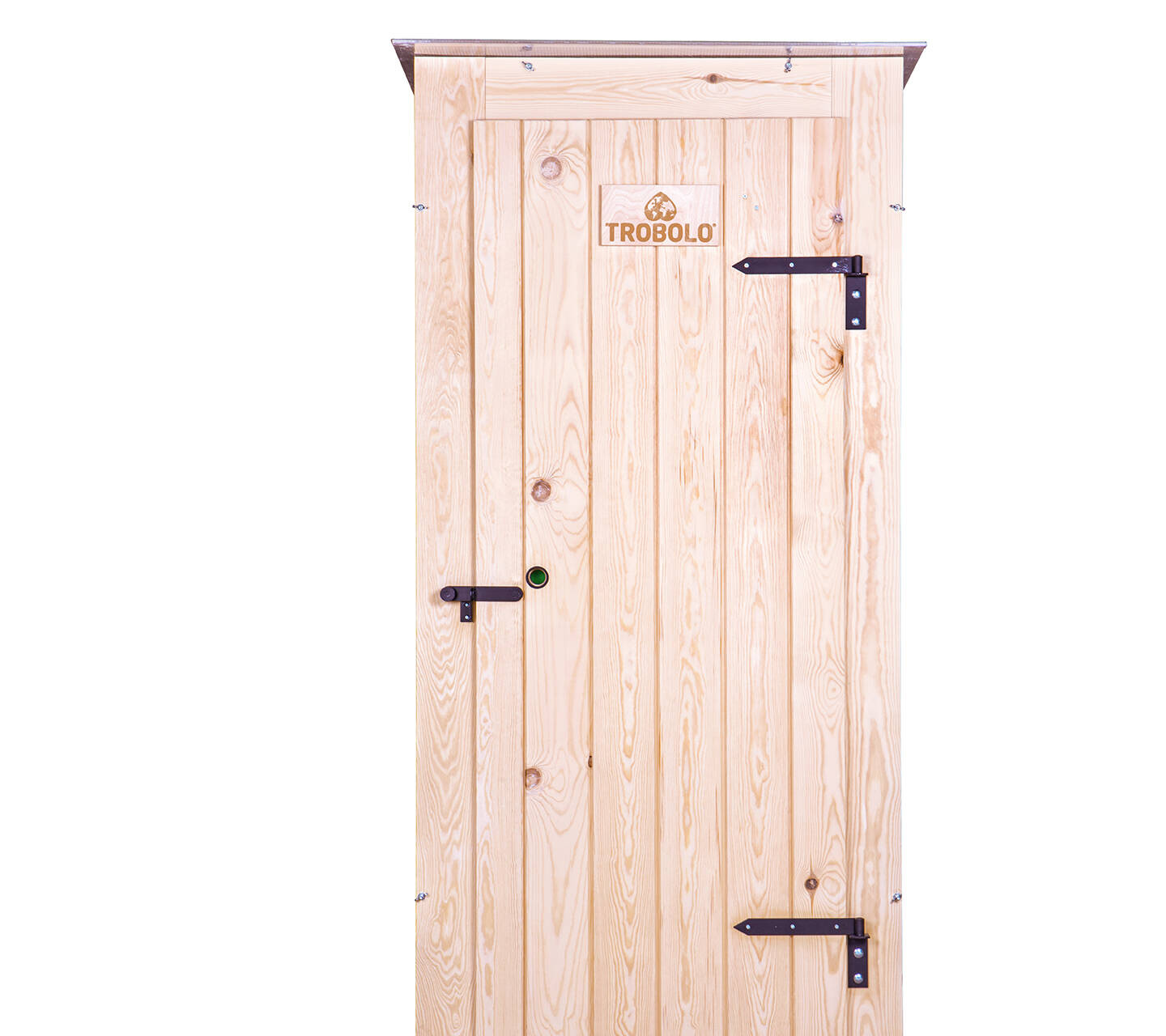

- door lock with stainless steel bolt and occupied sign
- lockable from outside with a padlock

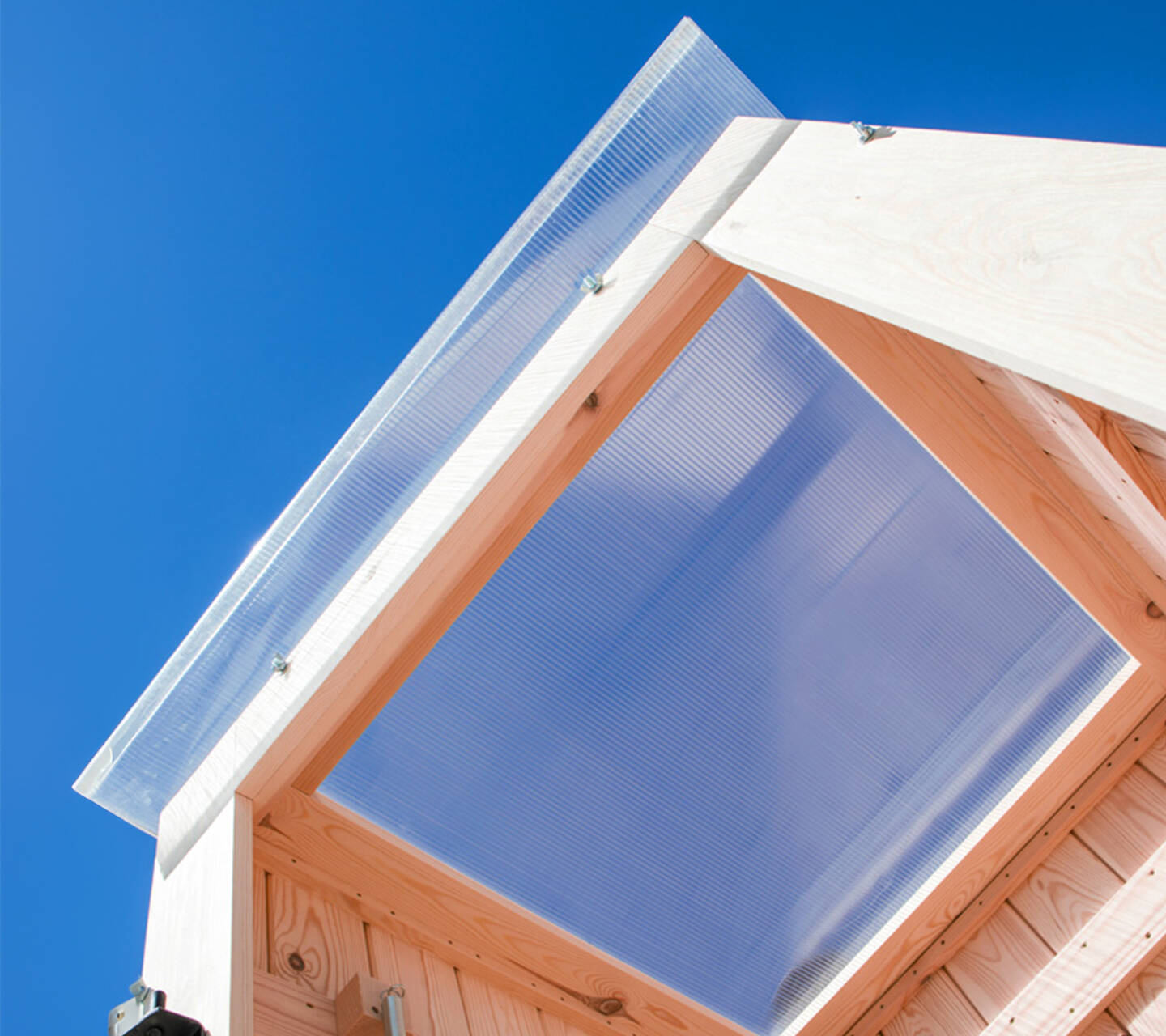

- weatherproof daylight roof
- safe operation even at sub-zero temperatures

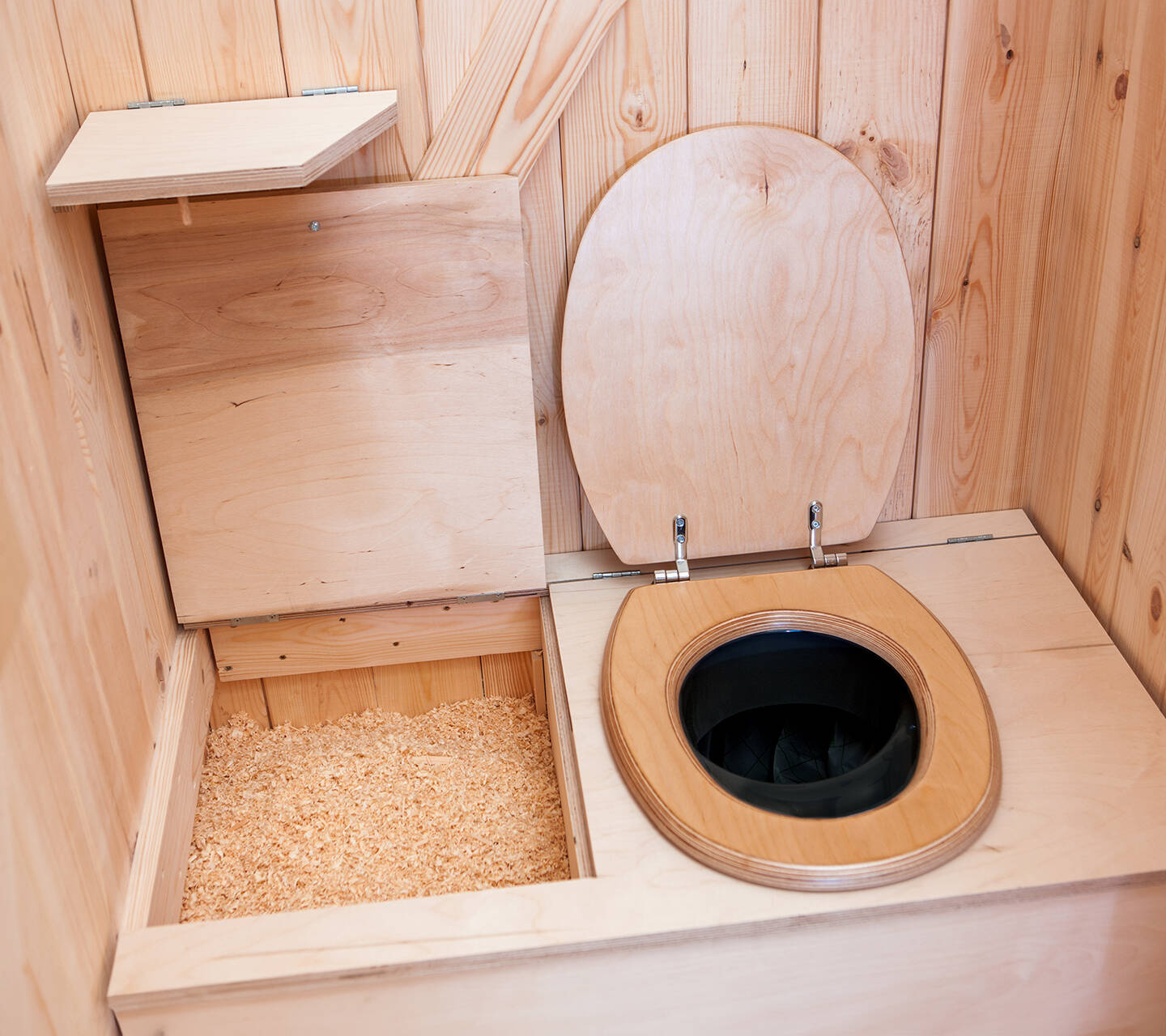

- wooden toilet seat with surface sealing

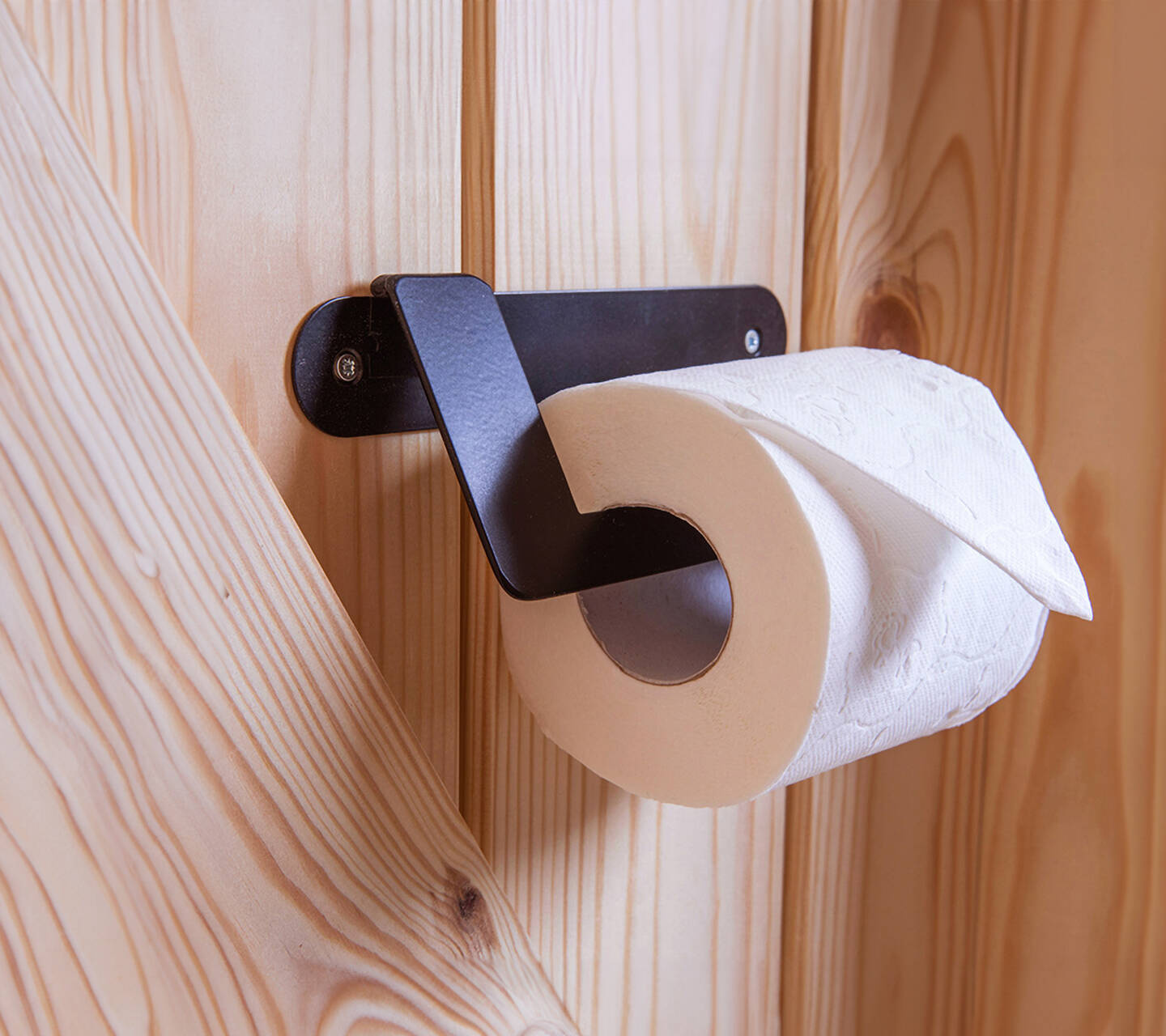

- regular toilet paper
Material

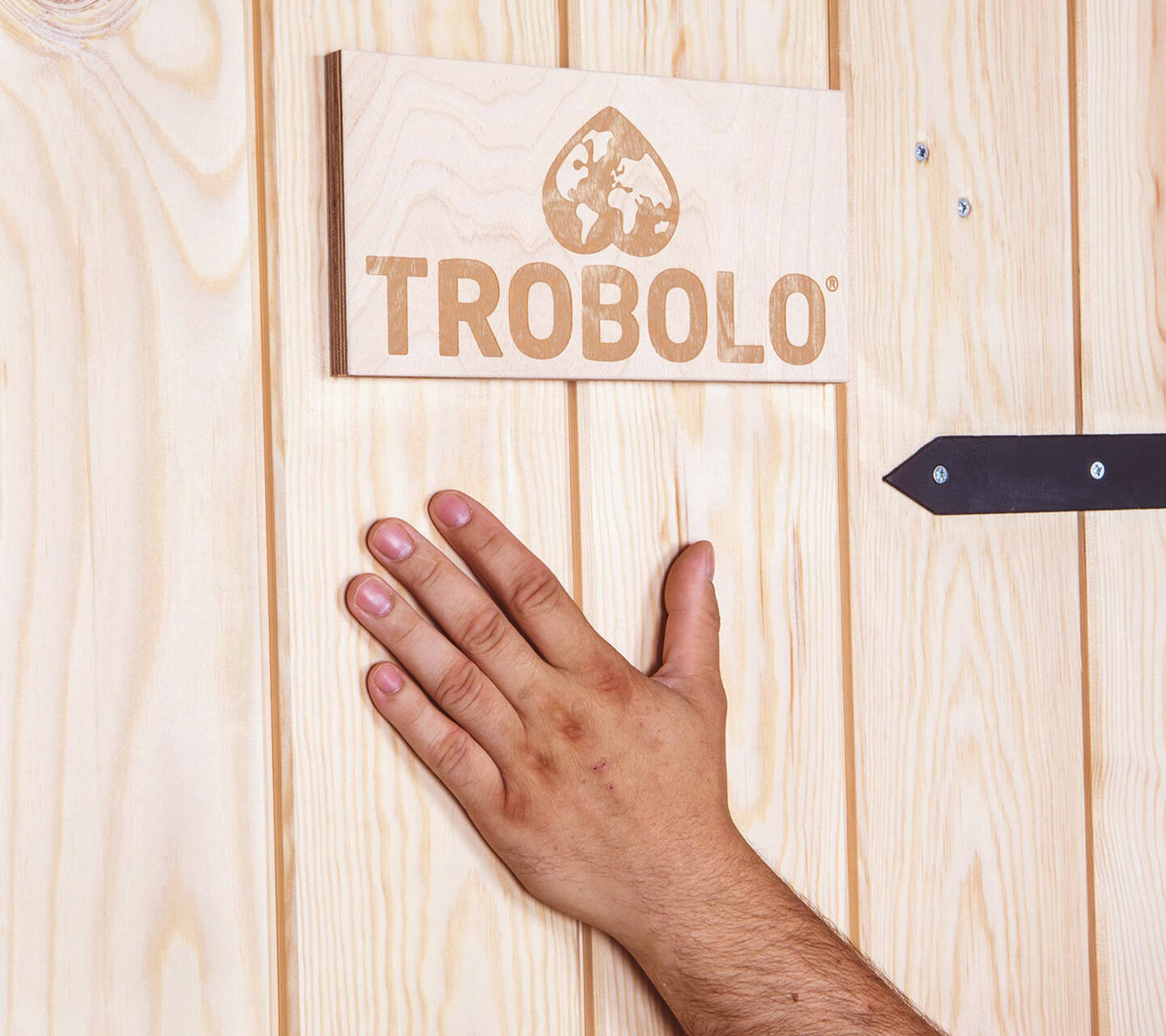

The cabin is made of 23 mm solid pinewood with constructive wood protection against waterlogging, which makes it very robust and durable. The surfaces are prepared for direct coating. The interior is made of 18 mm plywood veneered with alder and birch, and the urine diverter of robust, recyclable polypropylene.

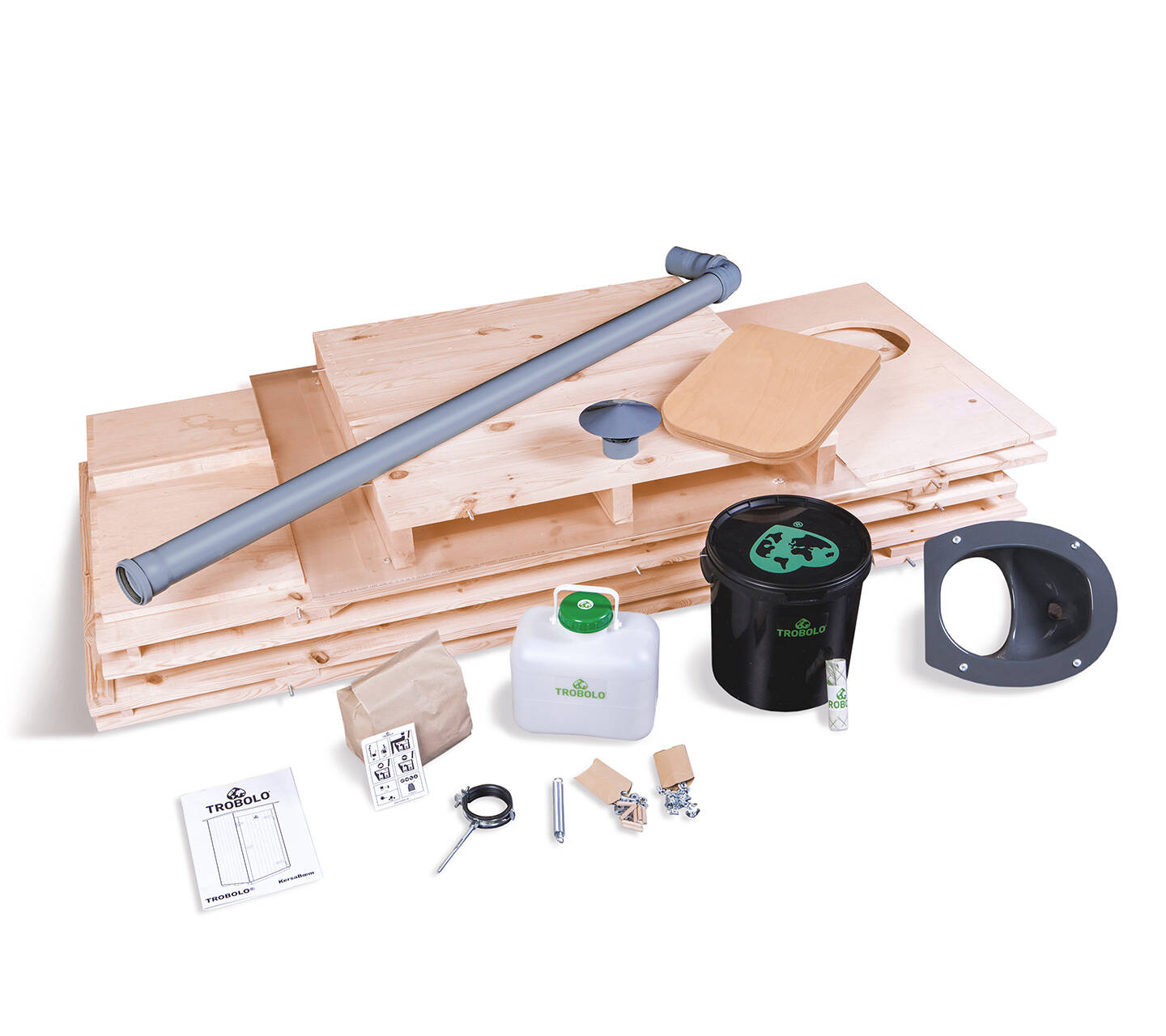

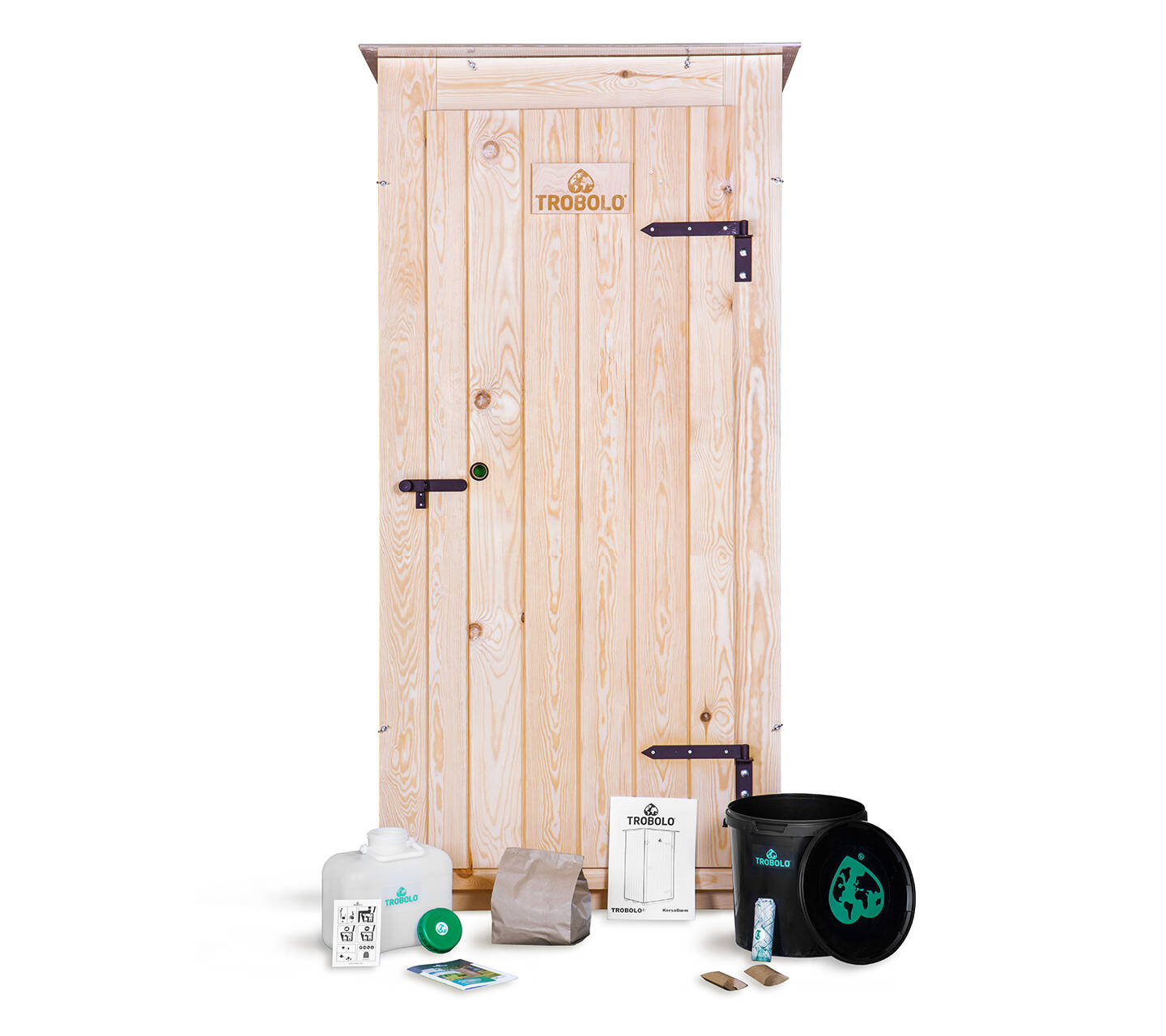

Scope of delivery
- kit incl. roof and small parts
- exhaust duct
- toilet seat with lid
- urine diverter
- solids container 22 l
- liquids container 10 l
- 3 l of litter
- roll of large compostable inlays
- user manual and assembly instructions

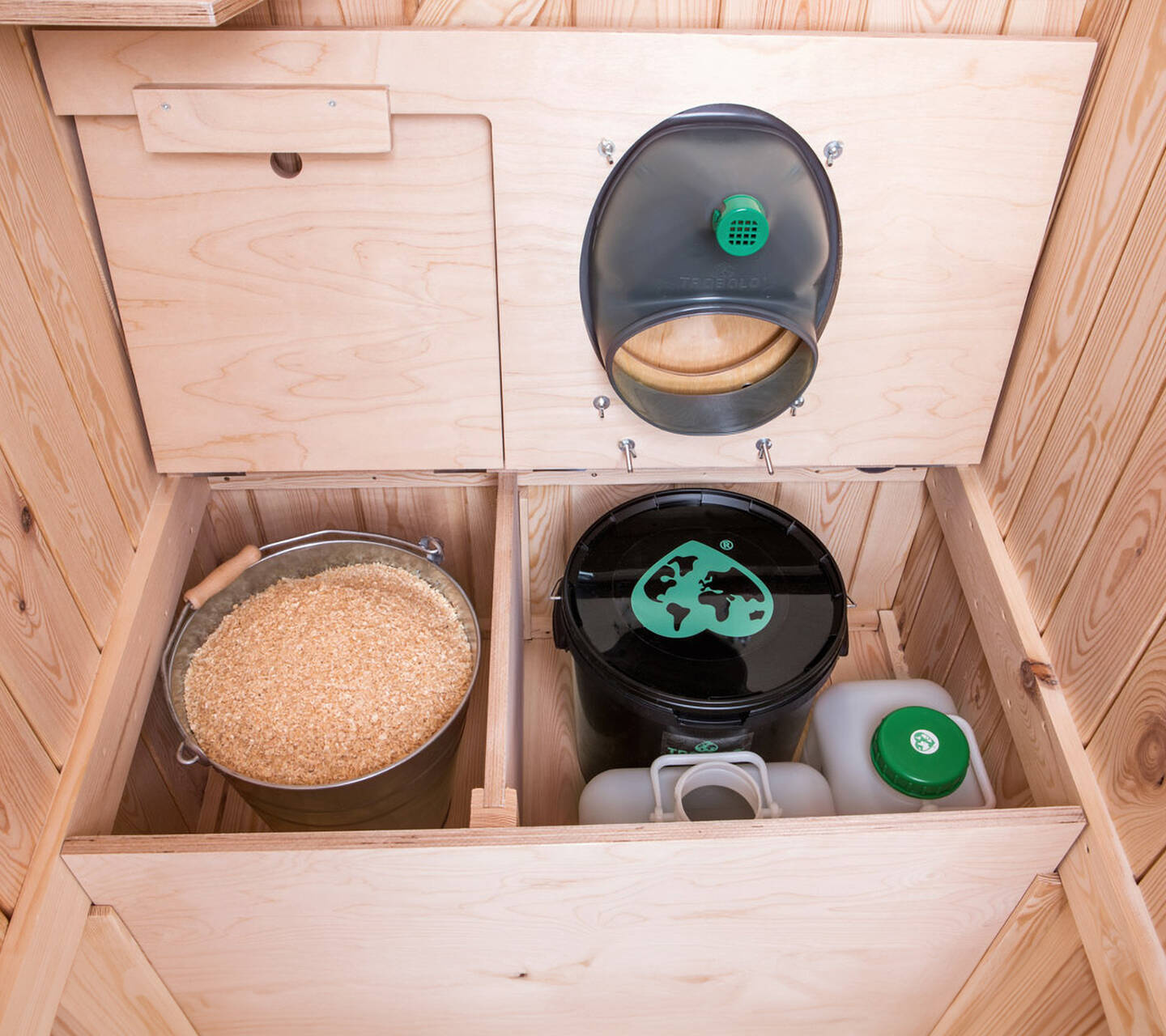

Capacity and emptying
- solids container 22 l: 30-40 uses, empty every 20-30 days
- liquids container 10 l: 30-50 uses, empty every 7-10 days
- there is space under the seat for additional containers, so you can easily double or triple the capacity
Dimensions and set-up

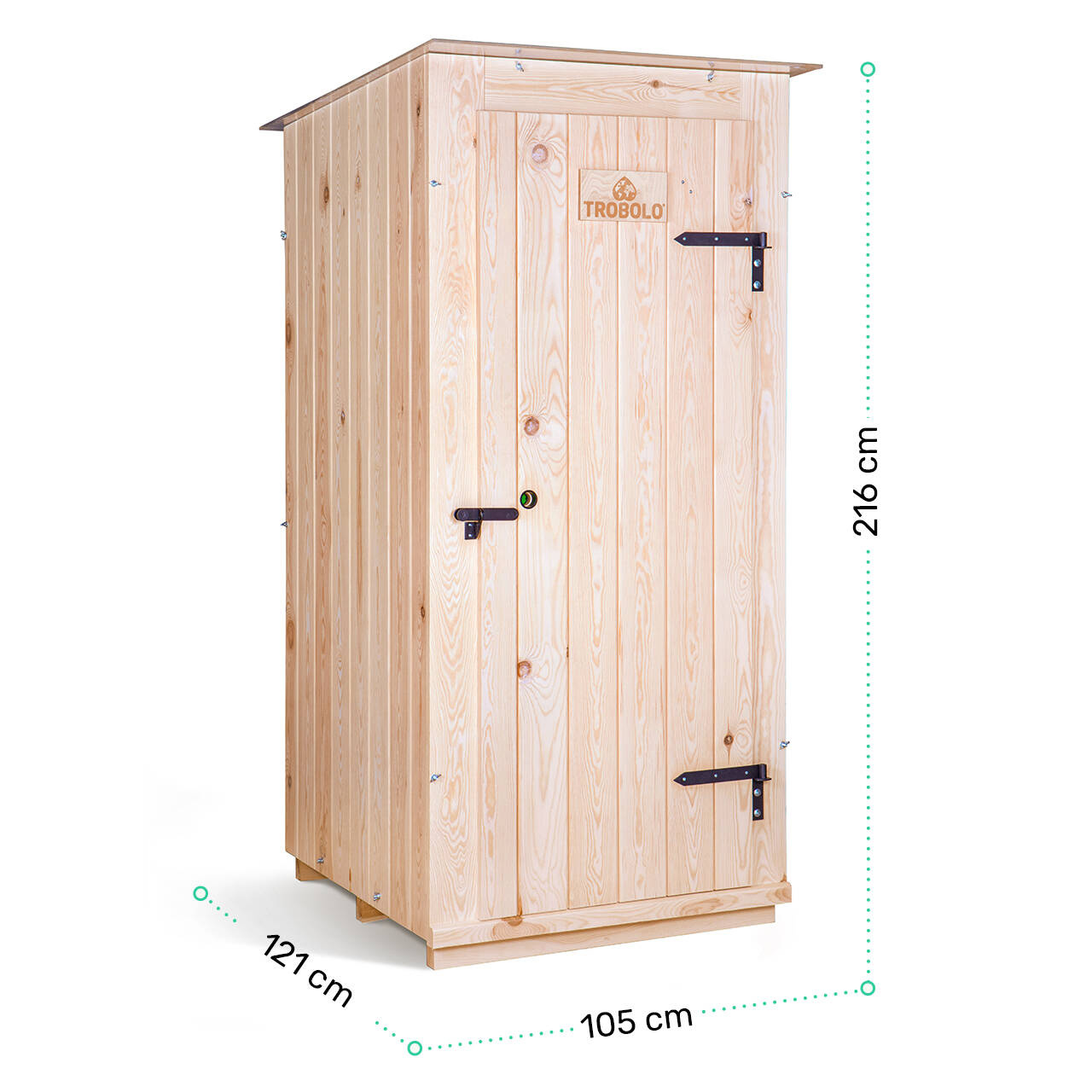

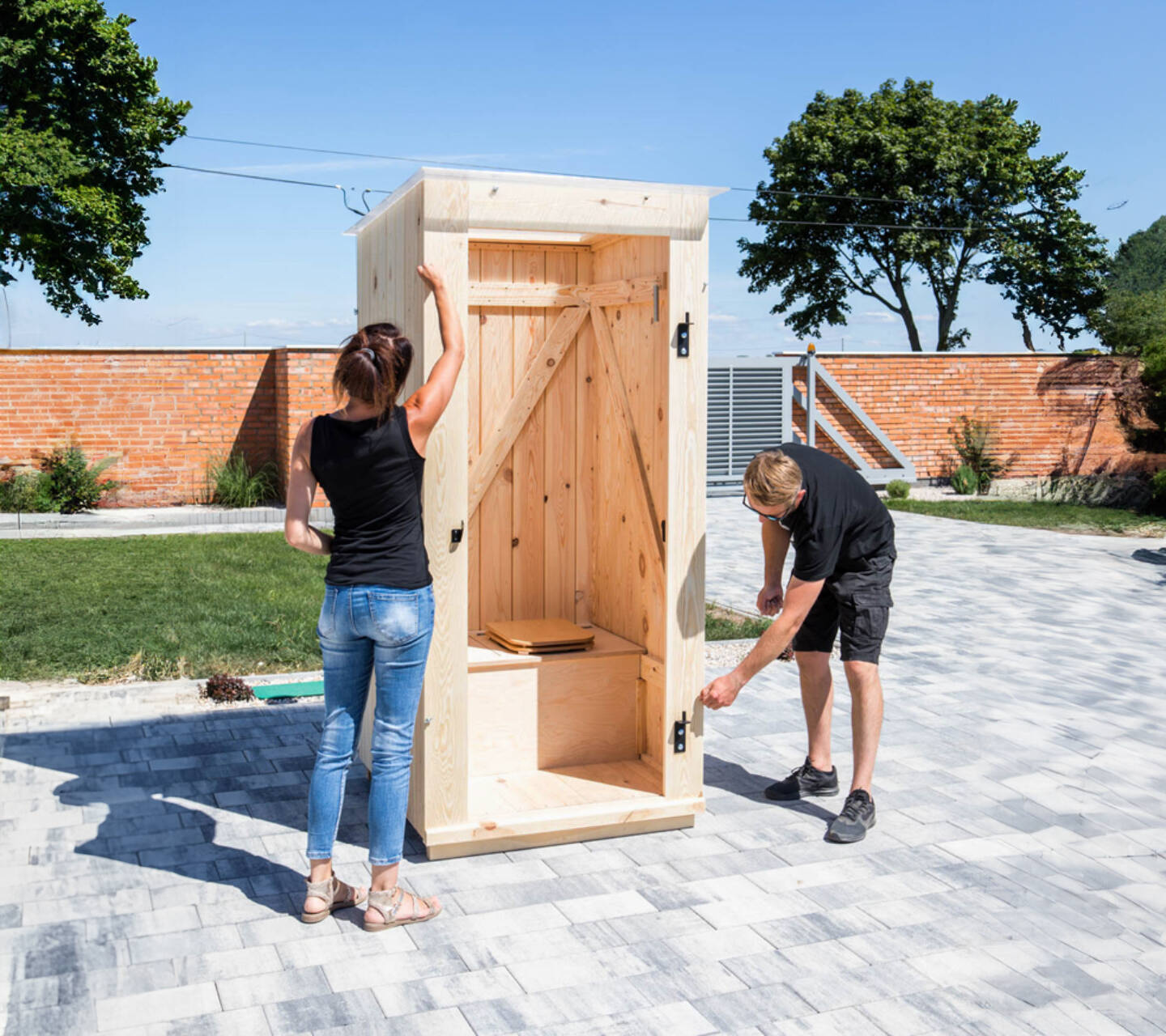

Exterior dimensions with roof: height 216 cm, depth 121 cm, width 105 cm, without roof: 216 x 102 x 100 cm. The interior measures 200 x 97 x 93 cm (H x D x W). Height and diameter of the toilet seat match German standard dimensions. You assemble the cabin without tools using the step-by-step instructions.
Matching TROBOLO products
- TROBOLO KersaBœm with composter - bundle with 300 l composter
- TROBOLO KitaBœm - cabin with child toilet
- TROBOLO KitaBœm with composter - bundle with 300 l composter
- Solids container 22 l - with closure and metal handle
- Liquids container 10 l - with closure and handle
- Large compostable inlays - for 11 l and 22 l containers
- TROBOLO litter 25 l - 100% pine
Technical data
| Feature | Value |
|---|---|
| Manufacturer | TROBOLO |
| Manufacturer code | M20XX1313 |
| Type | toilet cabin with composting toilet |
| Exterior dimensions with roof | 216 x 121 x 105 cm (H x D x W) |
| Interior dimensions | 200 x 97 x 93 cm (H x D x W) |
| Cabin weight | 160 kg (wood is a natural product, weight may vary slightly) |
| Load capacity | 220 kg |
| Solids container | 22 l |
| Liquids container | 10 l |
| Exhaust | natural, no power |
| Material | 23 mm solid pine, 18 mm plywood, polypropylene diverter |
Questions and answers
Does the cabin need a foundation?
No, you set it up without a foundation and without tools.
Can it be used in winter?
Yes, the manufacturer states safe operation even at sub-zero temperatures.
How often do I empty the containers?
The solids container every 20-30 days, the liquids container every 7-10 days.
