Truma MonoControl CS - 30 mbar gas pressure regulator with crash sensor, single cylinder, 1.5 kg/h, 8/10 mm outlet, for caravans and motorhomes
- Truma MonoControl CS 30 mbar gas pressure regulator with crash sensor for one cylinder. Capacity 1.5 kg/h, M20 x 1.5 inlet, 8 or 10 mm outlet. Lets you heat your caravan or motorhome safely while driving.

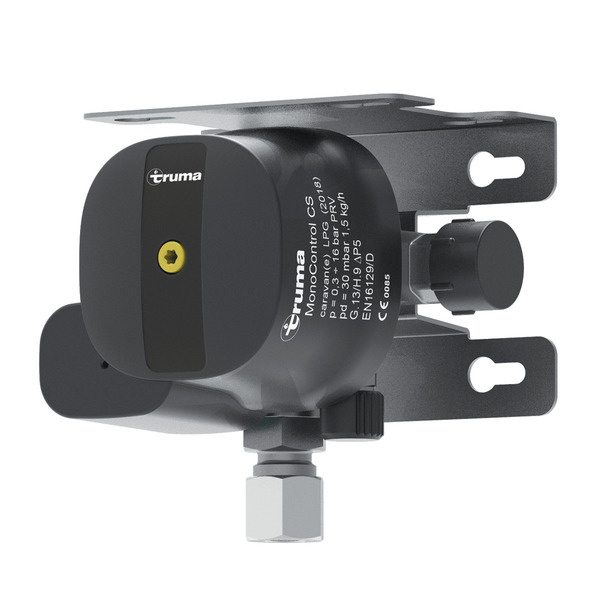

Truma MonoControl CS is a gas pressure regulator with an integrated crash sensor, designed for single-cylinder operation in caravans and motorhomes. It keeps a constant 30 mbar output pressure with an inlet pressure of 0.3-16 bar. In an accident the sensor shuts off the gas immediately, so no gas can escape from a damaged system. The regulator meets the requirements for a safety shut-off device, so you can use your gas heater while driving.
Key features
- 30 mbar output pressure, 0.3-16 bar inlet pressure
- capacity up to 1.5 kg/h - no need to calculate appliance consumption or system flow rate
- integrated crash sensor shuts off the gas in a collision at about 15-20 km/h (triggering value 4.0 g +/- 1.0 g)
- PRV safety valve protects appliances against excessive pressure
- works without power, no battery drain when parked
Dimensions and installation

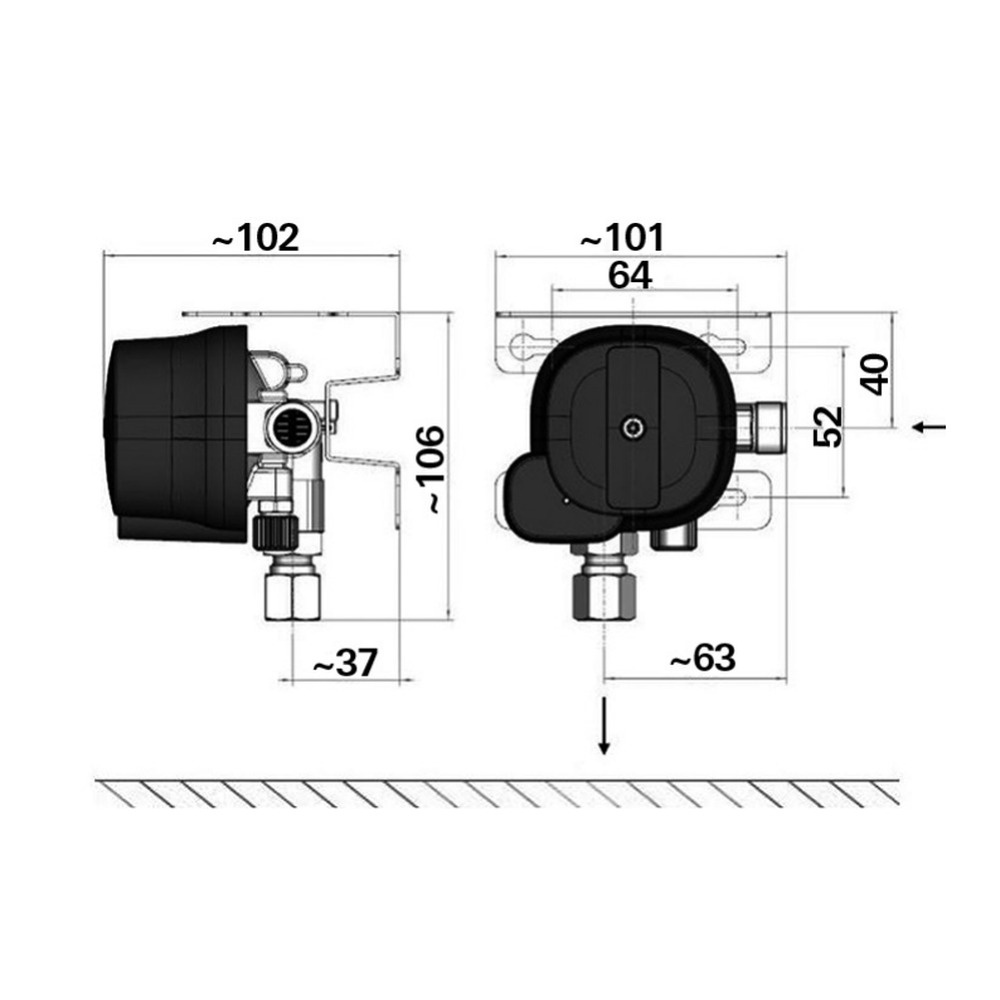

- dimensions approx. 102 x 101 x 106 mm
- mounted vertically on a stable wall or ceiling of the gas cylinder box with two diagonal screws, outlet facing down
- install the regulator higher than the cylinder valve and route the high-pressure hose sloping down to the cylinder
- outdoors the regulator must be protected from rain and dripping water
Resetting the crash sensor

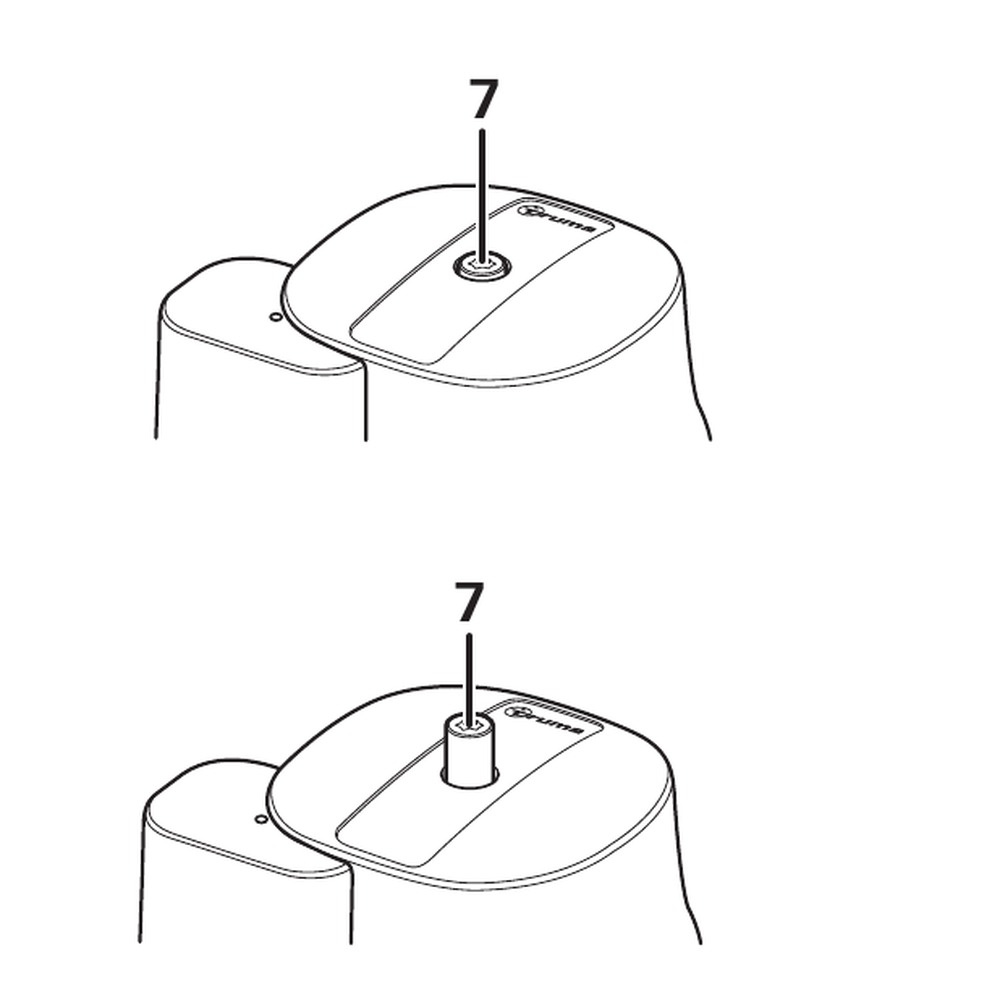

- the yellow button shows the sensor status: pressed in - ready, popped out - gas shut off
- to reset: press the yellow button firmly, turn it slightly clockwise and hold for 5 seconds
- if the button does not stay in, use the Torx T20 bit on the supplied screw aid
Connections
- inlet: male thread M20 x 1.5 (G.13) - for a high-pressure hose or gas filter
- outlet: olive screw connection 8 mm or 10 mm (H.9) for the gas pipe
- recommended tightening torque: 3-5 Nm for the M20 x 1.5 union nut, 14-19 Nm for the 8 mm fitting, 16-21 Nm for the 10 mm fitting
- integrated test connection for leak testing
Scope of delivery
- Truma MonoControl CS regulator
- screw aid a/f 23 with Torx T20 bit
- reducer union 10 to 8 mm
- operating and installation instructions
5-year manufacturer warranty
- Truma gives a 5-year manufacturer warranty on the kit: regulator, Truma gas filter and high-pressure hose with hose rupture protection
- requirements: register the kit at truma.com/regulatorwarranty and install and operate all three parts together according to the instructions, with regular maintenance and filter pad changes
- the 5 years run from the purchase date of each part; the warranty applies in the EU, Great Britain, Iceland, Norway, Switzerland and Turkey and covers the first user and vehicle
- the manufacturer warranty does not affect your statutory rights against the seller
Important information
- a gas filter must be fitted upstream of the regulator to protect it from dirt and oil aerosols from the cylinder
- connect the cylinder only with a high-pressure hose with hose rupture protection (not included)
- only for cylinders with gas-phase extraction, not for liquid-phase cylinders
- installation, repairs and leak testing must be done by a qualified gas fitter
- do not use the regulator in closed rooms, on boats, in EX zone 0 or for commercial purposes
- the regulator is maintenance-free; the manufacturer recommends replacing it within 10 years of manufacture and having the gas system checked every 2 years
Related products
- Truma gas filter M20 x 1.5 for gas pressure regulators
- Truma high-pressure hose 450 mm with hose rupture protection, G.12
- Truma GS 8 remote gas switch 12 V for 8 mm pipe
- Truma DuoControl CS 30 mbar gas pressure regulator for two cylinders, horizontal
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Truma |
| Model | MonoControl CS |
| Manufacturer no. | 52412-01 |
| EAN | 4052816037158 |
| Type | gas pressure regulator with crash sensor, single cylinder |
| Gas type | propane/butane (LPG) |
| Inlet pressure | 0.3-16 bar |
| Outlet pressure | 30 mbar |
| Capacity | 1.5 kg/h |
| Inlet | male thread M20 x 1.5 (G.13) |
| Outlet | olive screw connection 8 mm or 10 mm (H.9) |
| Crash sensor triggering value | 4.0 g +/- 1.0 g |
| Operating temperature | -20 to +50°C |
| Dimensions | approx. 102 x 101 x 106 mm |
| Weight | approx. 500 g |
| Manufacturer warranty | 5 years after registering the kit (regulator, gas filter, hose with rupture protection) |
| Standard | EN 16129 |
| Certificate no. | CE-0085CT0438 |
Questions and answers
Can I use the heater while driving with this regulator?
Yes. The crash sensor meets the requirements for a gas safety shut-off device in motorhomes and caravans, so a type-approved gas heater can be used while driving. National regulations must be followed.
What do I do when the crash sensor has been triggered?
Press the yellow button firmly, turn it slightly clockwise and hold it for 5 seconds. When the button stays in, the regulator is ready to use again.
Does it fit 8 mm and 10 mm pipes?
Yes. The outlet has a 10 mm olive fitting, and a reducer union for 8 mm pipe is included.
Do I need a gas filter?
Yes. The manufacturer requires a gas filter upstream of the regulator inlet to protect it from dirt and oil aerosols from the cylinder.
What warranty does it have?
Truma gives a 5-year manufacturer warranty if you register the kit at truma.com/regulatorwarranty and use the regulator together with a Truma gas filter and a Truma high-pressure hose with hose rupture protection.
Can it supply two cylinders?
No. MonoControl CS is for one cylinder. For two cylinders use the Truma DuoControl CS.
Manufacturer
Truma Gerätetechnik GmbH & Co. KG, Wernher-von-Braun-Straße 12, 85640 Putzbrunn, Germany.
