VuQube Auto II

VuQube Auto II

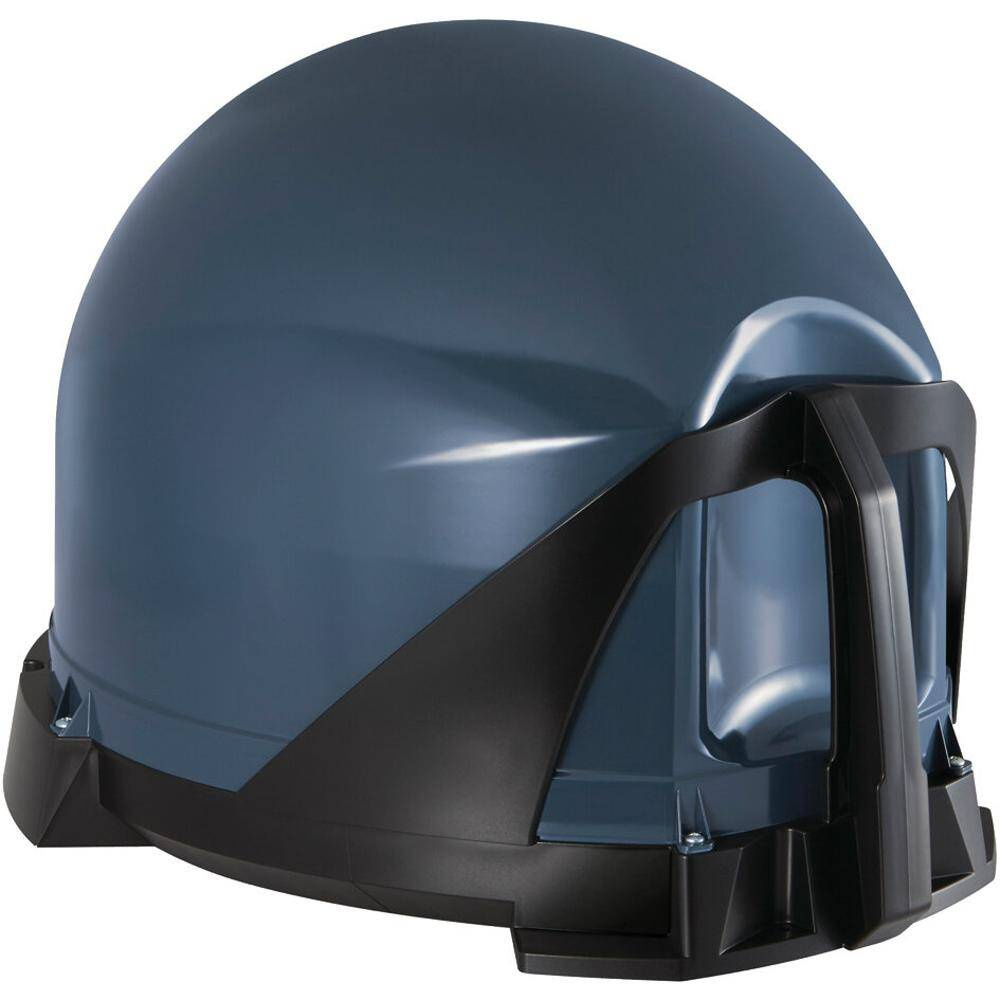

The fully automatic and receiver independent VuQube Auto II impresses by its extraordinary design, low weight and compact shape. One push of a button and it finds the desired satellite within 60 – 90 seconds by itself; the satellite can be chosen comfortably from inside the vehicle by an external control device. It is preconfigured to Astra 1, Astra 2, Astra 3 and Hotbird. With its powerful Cassegrain dish (ø 35 cm) and a sub-reflector especially developed for this sat antenna, it nearly matches to the reception strength of a flat antenna. It delivers high-quality TV pictures in European holiday regions and moreover allows to connect a second receiver due to its Twin-LNB. Possible unevenness of the floor is balanced out automatically by the VuQubeAuto II, and it can be transported in any position. The optionally available roof mounting set (item no. 72 316, 72 319) allows permanent installation of the system on the roof of a vehicle.

Technical Data:

• Twin Universal LNB
• Power supply 12 V
• Power consumption operation 0.6 amperes
• Azimuth 380°
• Dimensions W 49 x H 34 x D 43 cm
• Weight of the external unit 3.5 kg
• Dimensions control unit W 8.5& x H 2.5& x D 4 cm
• No software update necessary - always functioning antenna
• Alarm-protected

Scope of Delivery:

• 0.3 m micro coaxial cable
• 10 m coaxial cable
• Control unit
• Connecting cable (with plug) 12 V
• Mains adapter 230 V
