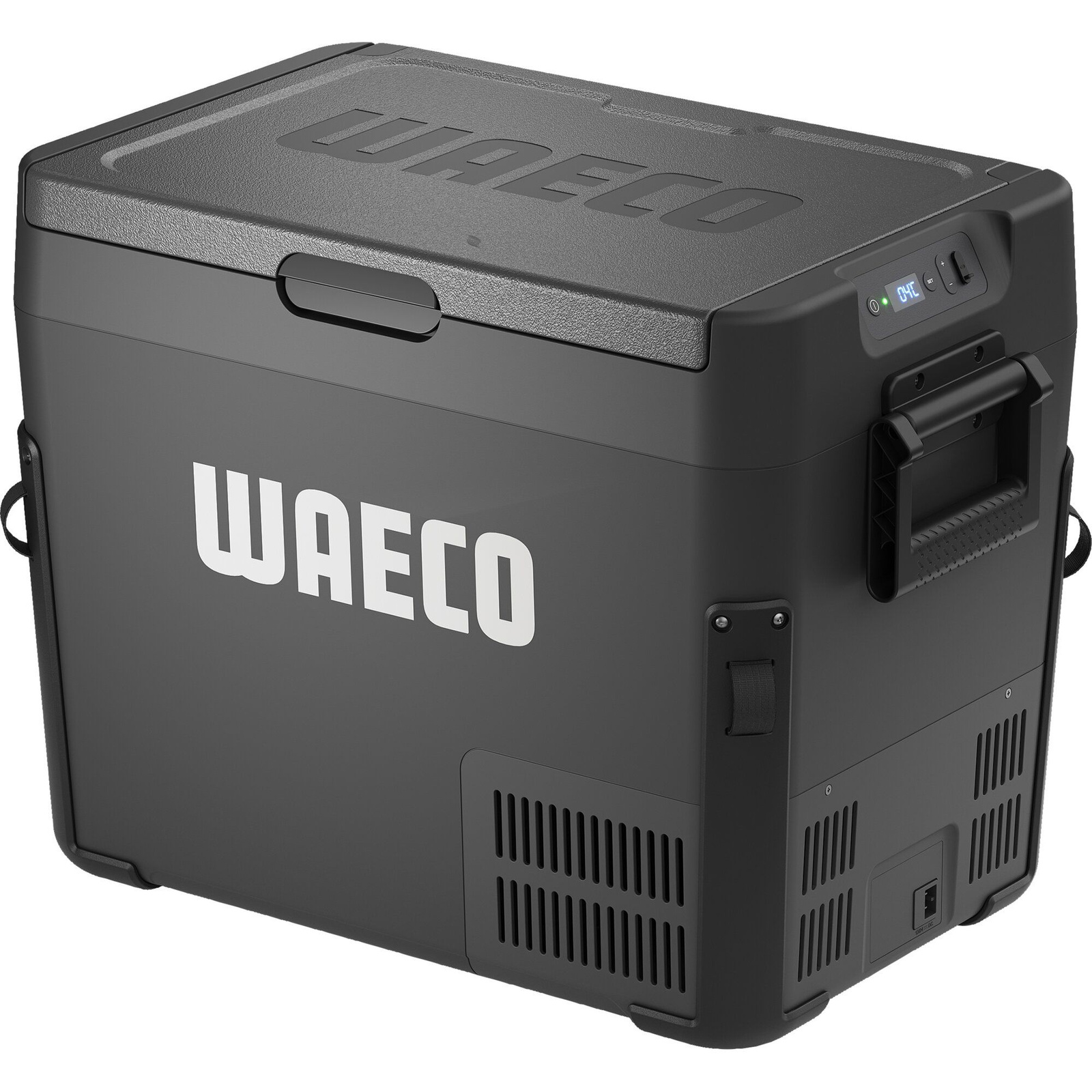

WAECO WCC 40 compressor cool box - 39 l, 12/24 V, +20 to -18°C, USB-C, battery protection
- WAECO WCC 40 portable compressor cool box, 39 l, for motorhomes, cars and boats. Cools and freezes from +20 to -18°C, 12/24 V supply, 46 W, USB-C port, 3-stage battery protection. 13.2 kg.
The WAECO WCC 40 is a 39 l portable compressor cool box for cars, motorhomes, trucks and boats. It chills drinks and keeps fresh and frozen food, even when it is hot outside. The temperature is set on the digital display between +20 and -18°C. Power supply 12/24 V DC, power input 46 W.
Cooling and freezing
- compressor cooling with low energy consumption
- temperature adjustable from +20 to -18°C, shown on the digital display
- selectable temperature unit and display brightness

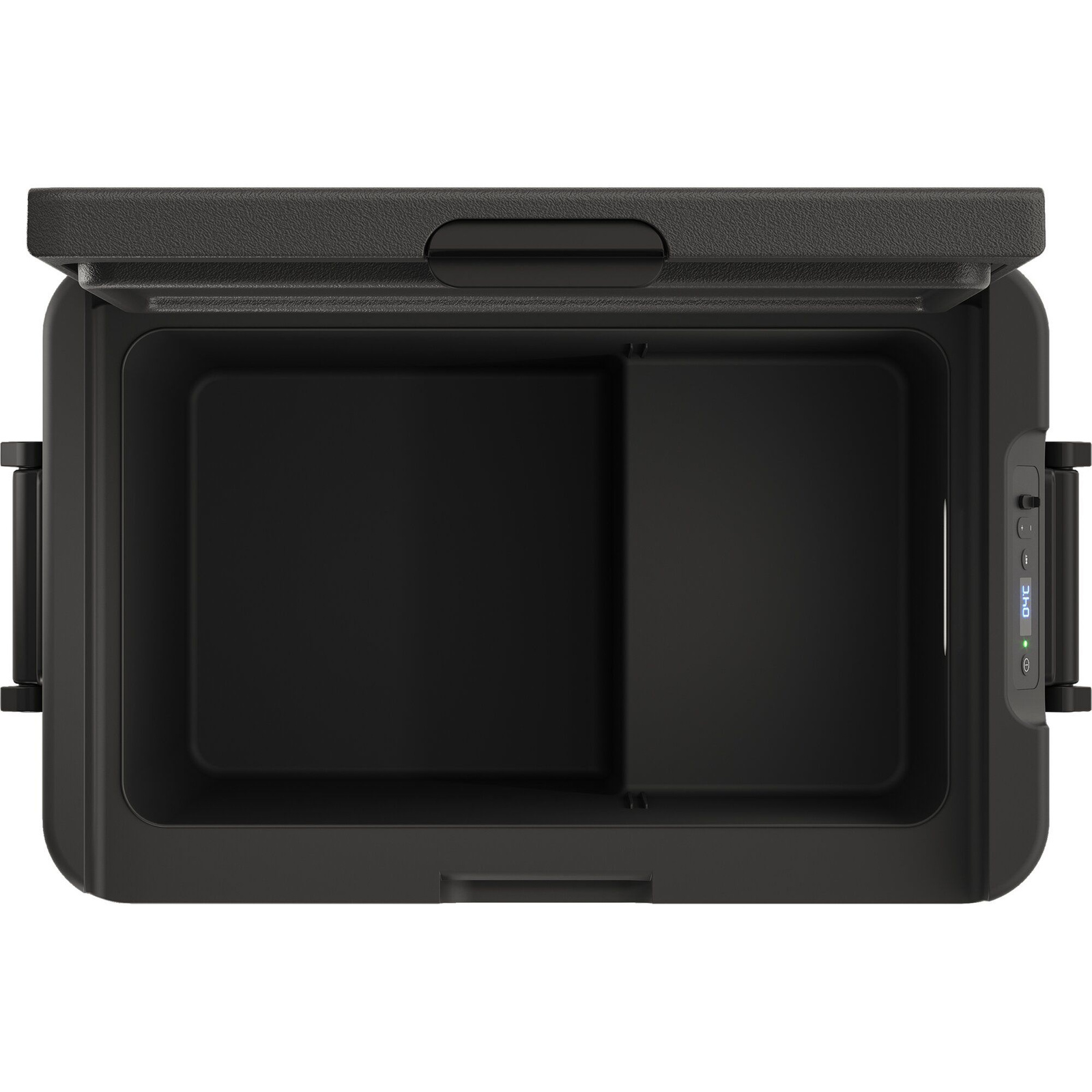

- 39 l capacity, R600a refrigerant
Design
- reinforced corners with integrated feet
- space-saving drop-down handles on both sides
- latch that opens with one hand
- removable lid for easier access and cleaning
- daisy chain loop for accessories
Power and battery
- 12/24 V DC supply in cars, motorhomes, trucks and boats
- 3-stage battery protection lets you keep the cool box plugged in
- USB-C port 5 V / 1.5 A for charging phones and small devices
- for 230 V mains you need the separate WAECO WPS 90 mains adapter
Other WAECO WCC cool boxes and accessories
- WAECO WCC 18 - 19 l
- WAECO WCC 32 - 32 l
- WAECO WCC 60 - 59 l
- WAECO WCC 80DZ - dual zone
- WAECO WPS 90 mains adapter for compressor cool boxes
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | WAECO |
| Model | WCC 40 |
| Manufacturer article number | 9630001971 |
| EAN | 7333497007461 |
| Type | portable compressor cool box (cooling and freezing) |
| Capacity | 39 l |
| Temperature range | +20 to -18°C |
| Power supply | 12/24 V DC |
| Power input | 46 W |
| Refrigerant | R600a |
| Width | 63.2 cm |
| Height | 46.7 cm |
| Depth | 37.4 cm |
| Weight | 13.2 kg |
| USB port | USB-C, 5 V / 1.5 A |
| Battery protection | 3-stage |
| Included | cool box, 12/24 V DC cable |
| 230 V adapter | optional WAECO WPS 90 (9630002155) |
Questions and answers
Can it freeze?
Yes. The temperature can be set from +20 to -18°C, so it cools and freezes.
Can I run it on 230 V?
A 12/24 V DC cable is included. For a 230 V socket you need the separate WAECO WPS 90 mains adapter.
Will it drain my vehicle battery?
The cool box has a 3-stage battery protection that you set in the menu. The manufacturer advises disconnecting the cool box from the battery before connecting a quick charger.
How should it be placed in the vehicle?
Level, tilted no more than 30°, with free air flow on all sides. Do not put it in a closed compartment without ventilation.
Manufacturer
WAECO, Östra Ringvägen 2, 522 35 Tidaholm, Sweden.
