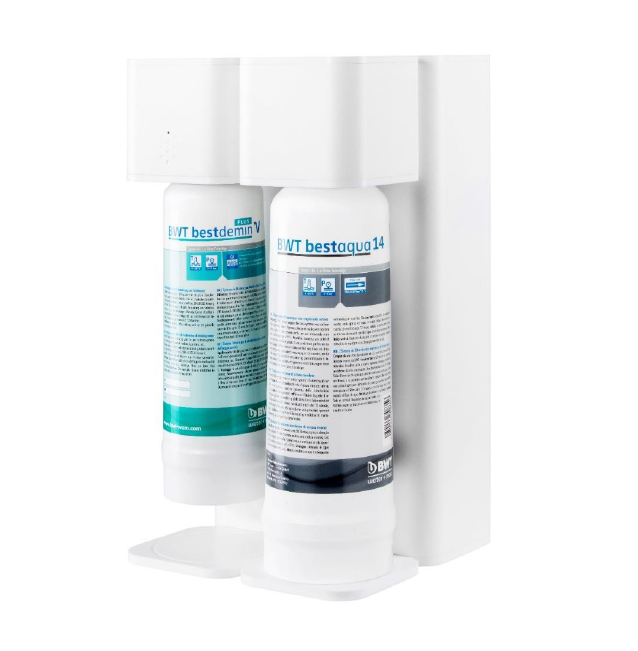

Water Purification System 2.1

Water Purification System 2.1

Water Purification System 2.1: Enapter electrolysers are highly resilient to water input and can be fed with purified rainwater or tap water. A simple reverse osmosis processes with resin filters can provide the required water quality. The water input to the electrolyser needs to be desalinated and have a conductivity of < 20 μS/cm.

Specifications

• Input water: Drinking water or Tap water
• Output water conductance: < 5 μS
• Operative power consumption: 200 W (Standby < 3 W)
• Standard power supply: 230 V / 50 Hz
• Clean water production rate: 2 l/min = 120 l/h
• Operating pressure water system: 1,5 bar … 4,0 bar
• Water temperature: +5 °C ... +30 °C
• Environment operating temperature: +5 °C ... +40 °C
• Weight (empty): 17,7 kg
• Filtering system: Reverse osmosis system is an osmotic module for the removal of dissolved salts and other possible pollutants present ion exchange resins bottle including:
• - Pre filter module:
• Capacity approx.: 8000 l
• - Fine filter module
• Capacity approx.: 1500 l
• Water storage tank: 2 l
• Maintenance: Maintenance intervals dependent on water input quality. Approximated values mentioned above
• Place of installation: Can be delivered preinstalled inside a cabinet on request.
• Recommended max number of AEM electrolysers that can be supplied with WPS: Maximum 5 Electrolysers
