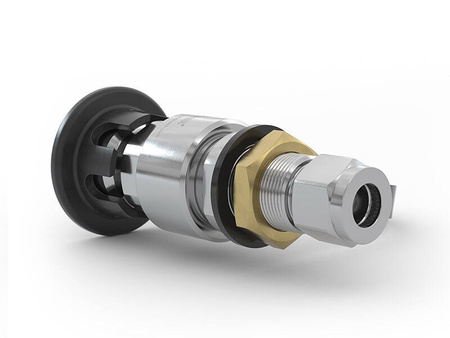

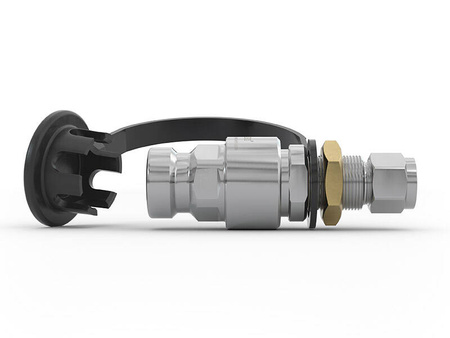

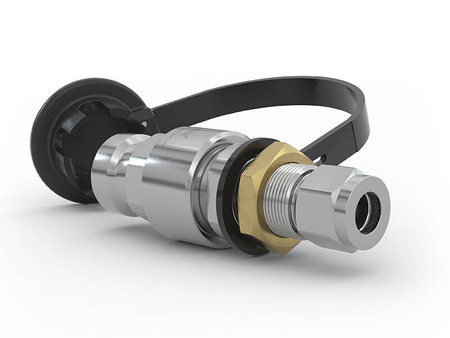

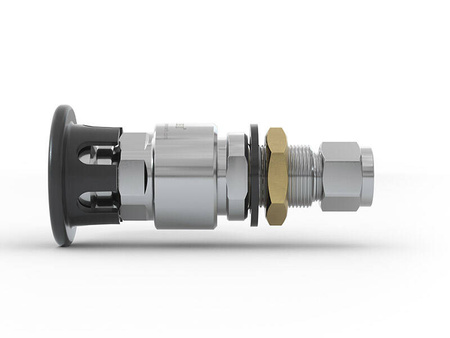

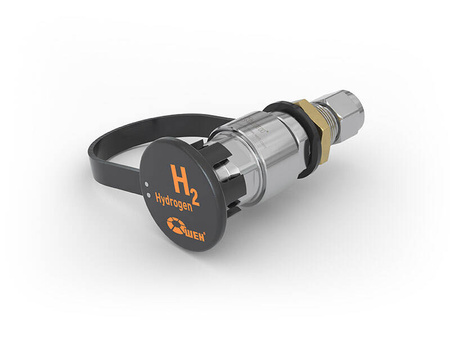

WEH® Receptacle TN1 H₂ (EC79), with tube Ø 3/8

The WEH® TN1 H2 Receptacle with double ferrule fitting is designed specifically for hydrogen refueling of fuel cell electric cars.


Due to the internal aerodynamic design the receptacle gives low noise (no high frequency whistle) combined with maximum flow rate and fast filling.

The receptacle is a very durable unit, minimizing maintenance and down-time.

The WEH® TN1 H2 Receptacle has an integrated check valve system which is designed to minimize the effect that dirt particles have on the sealing components within the receptacle. The TN1 H2 is also equipped with a coding for pressure range and gas type.



Application

Receptacle for hydrogen refueling / filling of cars and fork-lift trucks or other industrial applications, to be used with WEH ® Fueling nozzles.



Marketing Features
  • Also suitable for installation in forklifts
  • Coding for pressure range / gas type
  • Integrated high-flow check valve
  • Integrated self-cleaning particle filter (50 μm)
  • Low-noise refueling
  • Sealing-friendly design

Technical data

Nominal bore (DN): 8 mm
Pressure range: PN = 35 MPa | PS = 45 MPa
Temperature range: -40 °C up to +85 °C
Material: Corrosion resistant
Sealing material: Hydrogen resistant
Design: With protection cap, with integrated particle filter (40 μm or 50 μm), integrated check valve and fittings (only for receptacles with tube fitting)
Conformity / Tests / Approvals:
e1 00 0008 (Regulation (EC) No. 79/2009)
Leak tests acc. to SAE J2600:2002
GB/T 26779-2021 (only applies to EC79 articles)
Part no.
C1-31316
Symbol
WEH-C1-31316
Producer code
C1-31316-X1
