HELUKABEL SOLARFLEX-X H1Z2Z2-K 1 x 6 mm² black solar cable 713531 - for PV systems, 1500 V DC
ID produktu: 84590
- Single core HELUKABEL SOLARFLEX-X H1Z2Z2-K 1 x 6 mm² photovoltaic cable, black sheath, part no. 713531. Tinned copper, double cross-linked insulation, halogen-free, UV-resistant, DC 1500 V. Price per 1 m.

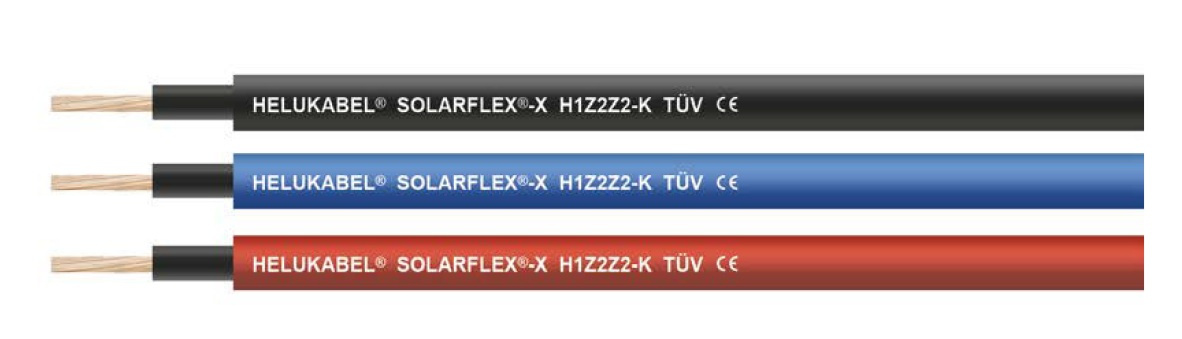

The HELUKABEL SOLARFLEX-X H1Z2Z2-K 1 x 6 mm² is a cross-linked single core cable for wiring solar modules to DIN EN 50618. It has a tinned copper conductor, insulation and sheath of cross-linked compound and is halogen-free. It resists UV radiation, ozone, weathering and water, and is suitable for outdoor use and direct burial. Sheath colour: black.
Construction
- tinned copper conductor, finely stranded class 5 to DIN VDE 0295 / IEC 60228
- core insulation of cross-linked compound
- outer sheath of cross-linked compound, black
- cross-section 1 x 6 mm², outer diameter 5.8-6.4 mm
Application and properties
- wiring of photovoltaic modules
- outdoor use and direct burial, not for permanent installation in water
- the maximum DC voltage of the system must not exceed 1.8 kV
- for devices and systems with protective insulation (protection class II)
- halogen-free to DIN EN 60754-1, flame-retardant to DIN EN 60332-1-2, low smoke density to DIN EN 61034
- minimum temperature during installation and handling: -25°C
Other colour in our shop

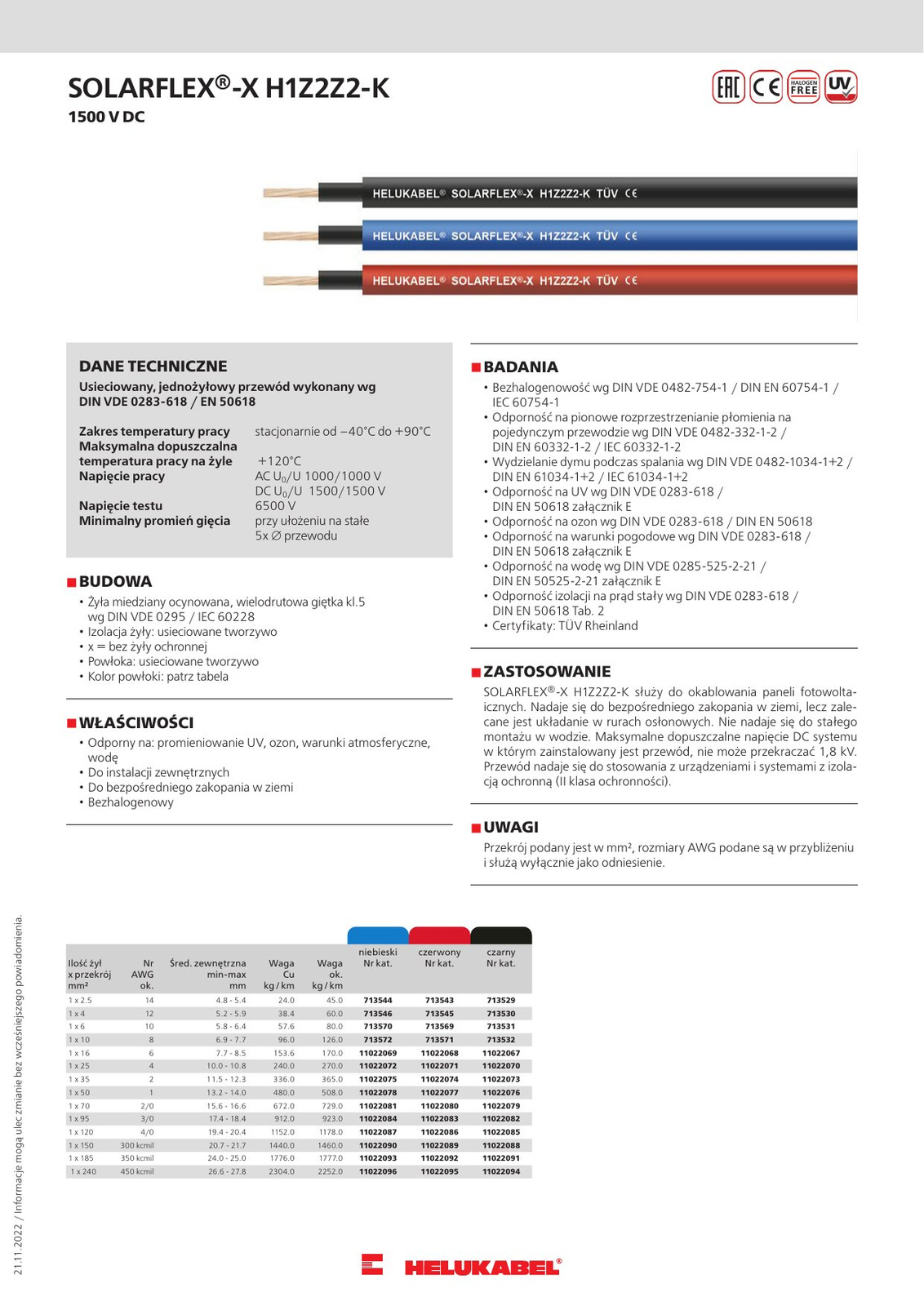

Technical data
| Parameter | Value |
|---|---|
| Manufacturer | HELUKABEL |
| Series | SOLARFLEX-X H1Z2Z2-K |
| Part number | 713531 |
| No. of cores x cross-section | 1 x 6 mm² |
| AWG (approx.) | 10 |
| Sheath colour | black |
| Outer diameter | 5.8-6.4 mm |
| Copper weight | 57.6 kg/km |
| Weight (approx.) | 80 kg/km |
| Conductor | tinned copper, class 5 to DIN VDE 0295 / IEC 60228 |
| Insulation and sheath | cross-linked compound, halogen-free |
| Nominal voltage | AC U0/U 1000/1000 V, DC U0/U 1500/1500 V |
| Test voltage | 6500 V |
| Temperature range, flexible | -25°C to +60°C |
| Temperature range, fixed | -40°C to +90°C |
| Permissible conductor temperature | +120°C |
| Short circuit temperature | +250°C (max. 5 s) |
| Min. bending radius | flexible 6x outer diameter, fixed 4x outer diameter |
| Standard | DIN VDE 0283-618 / DIN EN 50618 |
| Approvals | TÜV Rheinland, EAC |
| Sales unit | 1 m |
Questions and answers
Is the price per metre?
Yes. The price is for 1 m of cable, and the order quantity is the number of metres.
Can it be buried?
Yes. The manufacturer allows direct burial, but not permanent installation in water.
What voltage is it rated for?
AC 1000/1000 V and DC 1500/1500 V. The DC voltage of the system must not exceed 1.8 kV.
How much does 1 m weigh?
The manufacturer specifies approx. 80 kg/km, i.e. approx. 80 g per metre.
Manufacturer
HELU KABEL GmbH, Schloßhaldenstraße 10, 71282 Hemmingen, Germany.
ID produktu
84590
Brand
Color
Black
Cable cross-section
1 x 6 mm²
Nominal voltage
AC 1000/1000 V, DC 1500/1500 V
Outer diameter
5.8-6.4 mm
Net weight
80 g
