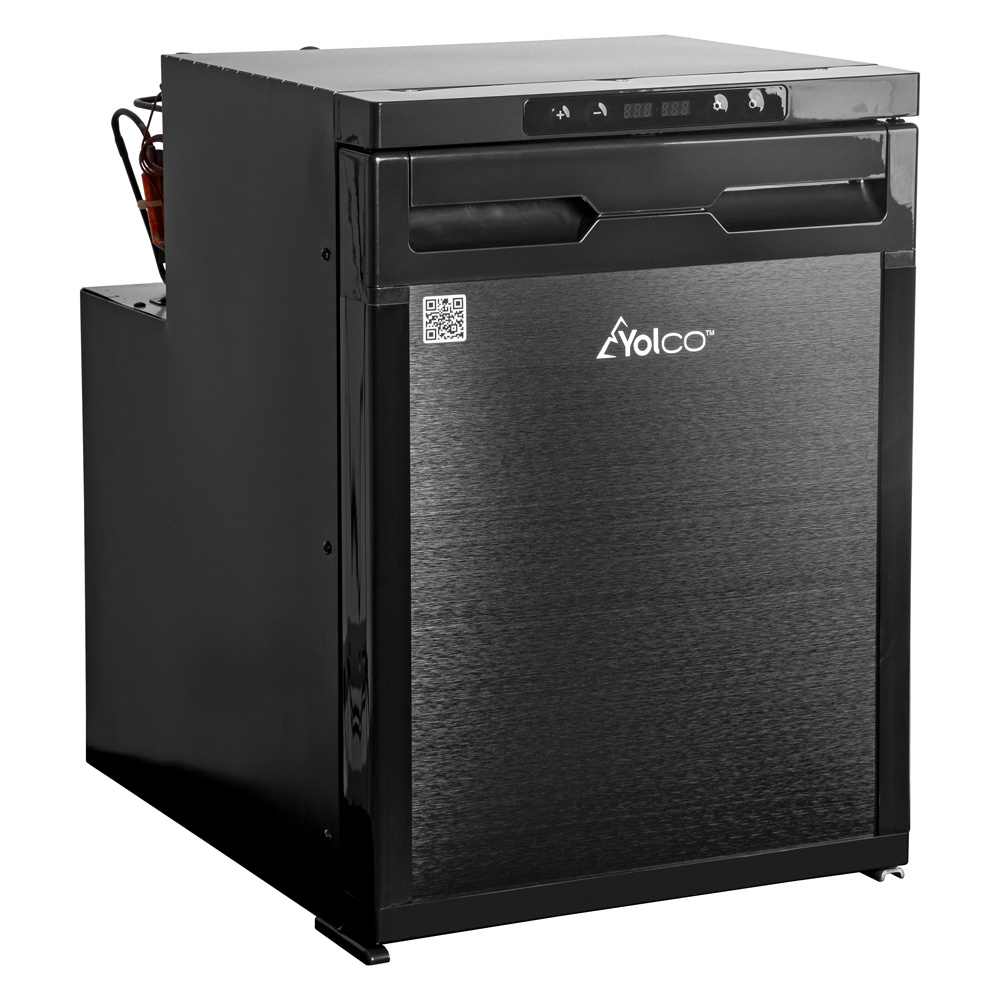

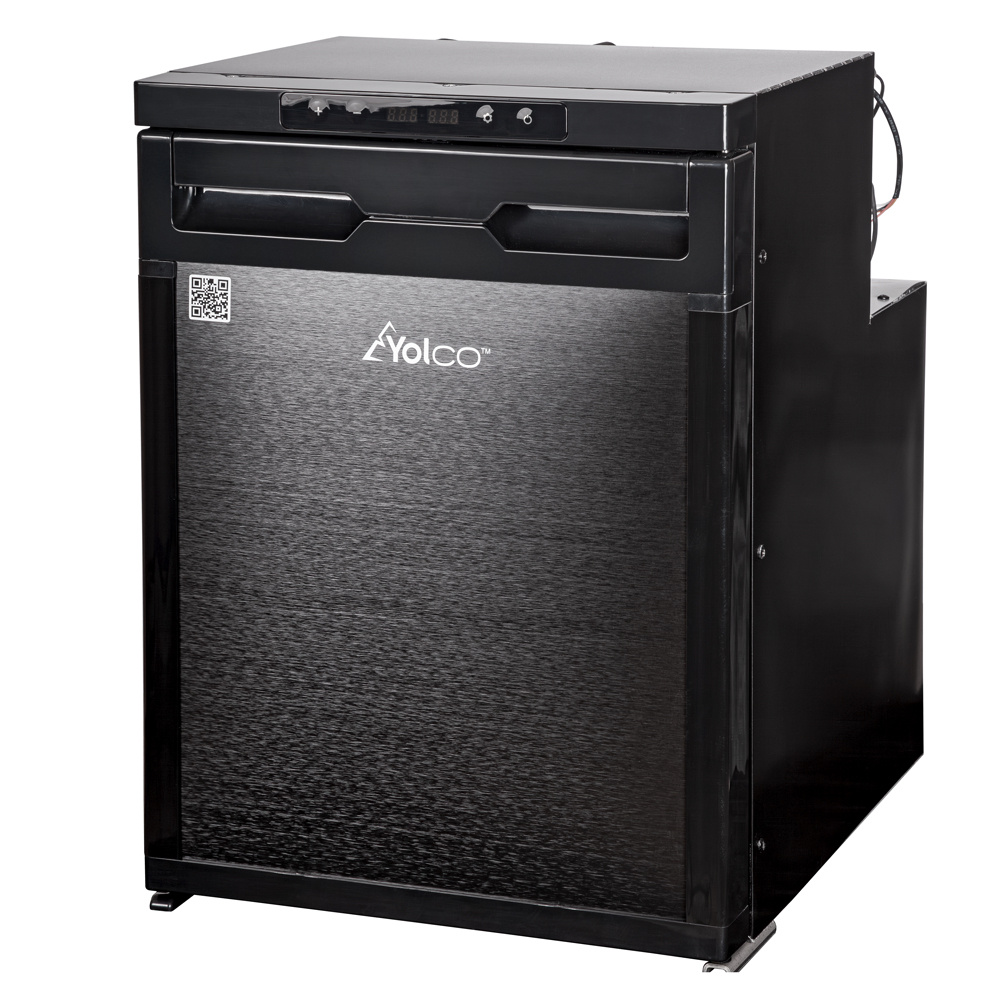

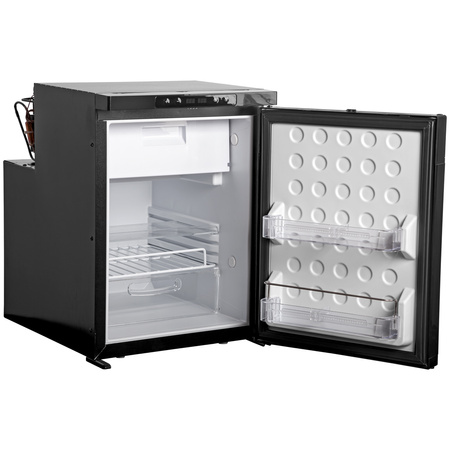

Yolco KL50D built-in compressor fridge 44 l - dual-zone with freezer, 12/24 V, Bluetooth, for motorhomes
- Yolco KL50D built-in compressor fridge: 41 l fridge (0 to +8°C) and 3 l freezer (-20 to -12°C), 12/24 V DC, 60 W, Bluetooth and app. 380 x 532 x 479 mm.

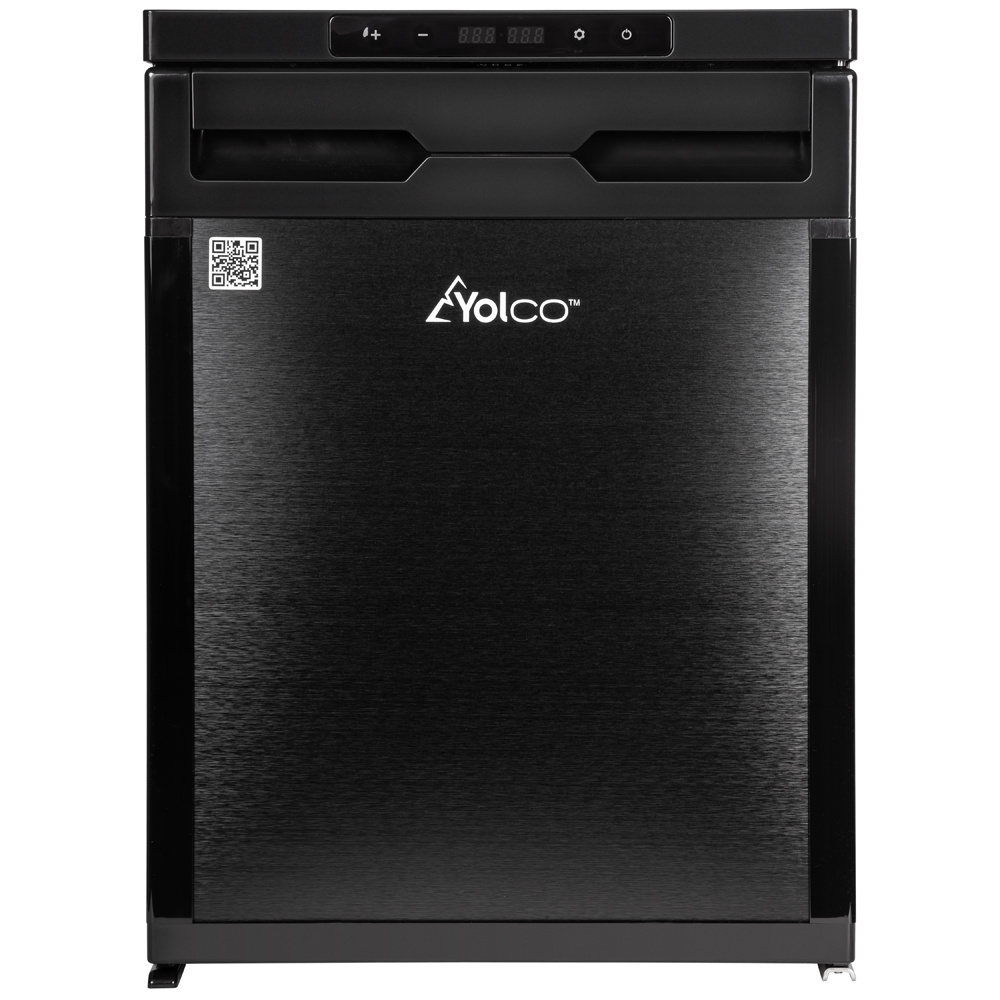

Yolco KL50D is a dual-zone built-in compressor fridge for caravans and motorhomes. It has a 41 l fridge compartment and a 3 l freezer with separate temperature control, a 12/24 V DC supply and control from the panel or an app via Bluetooth. Dimensions 380 x 532 x 479 mm.
Two temperature zones
- fridge compartment 41 l: 0 to +8°C
- freezer compartment 3 l: -20 to -12°C
- with the freezer divider removed the capacity is 46 l

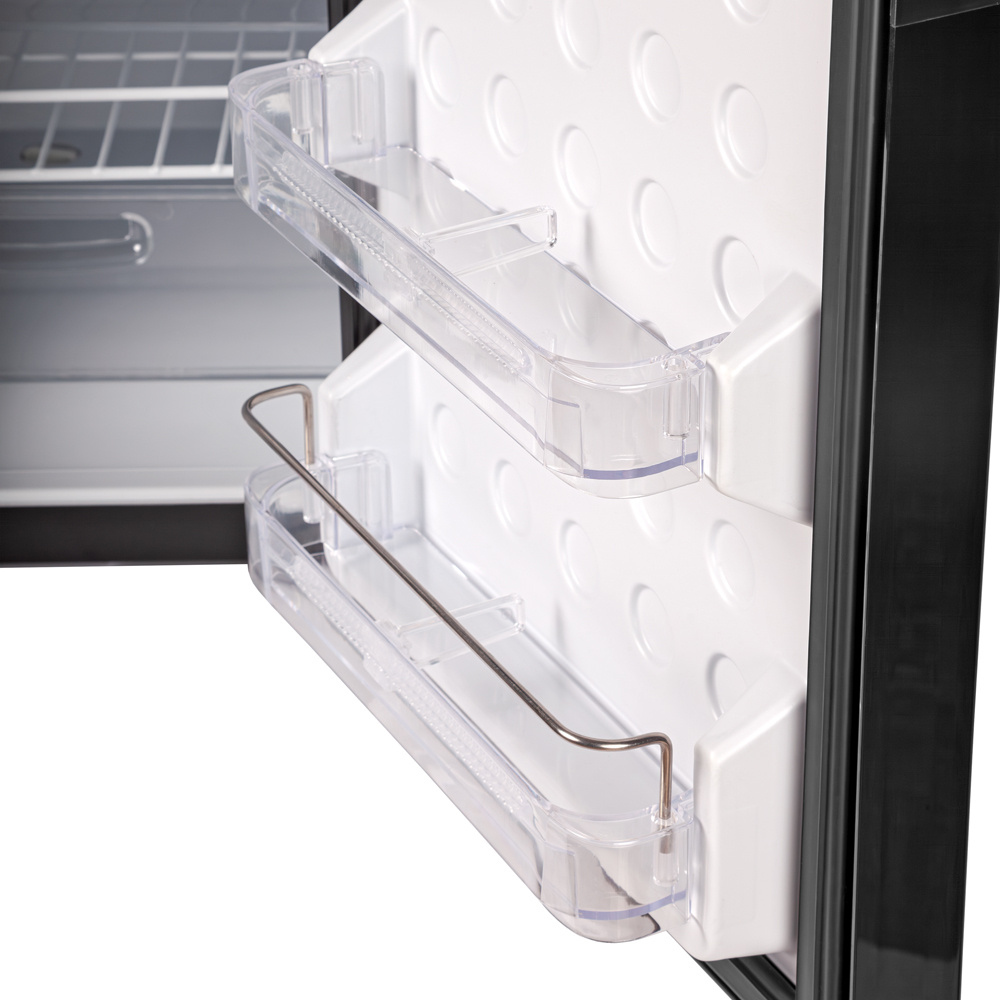

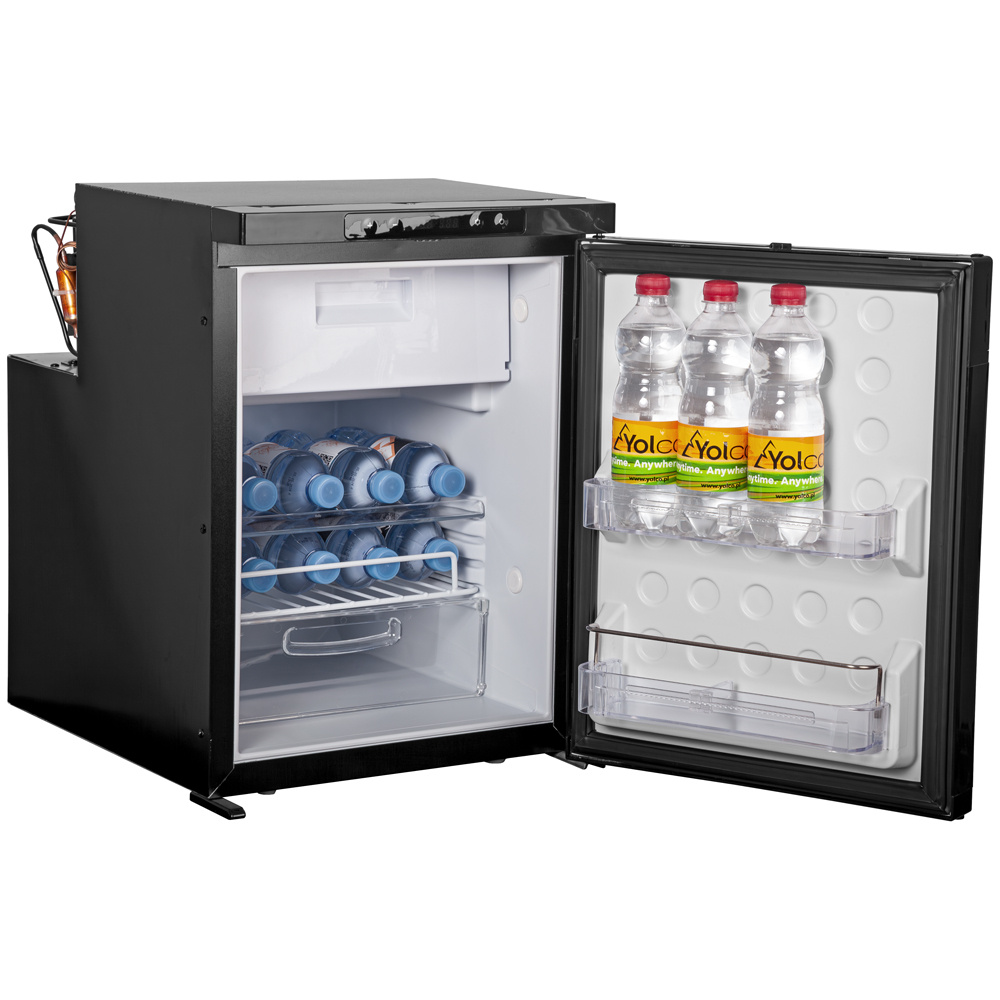

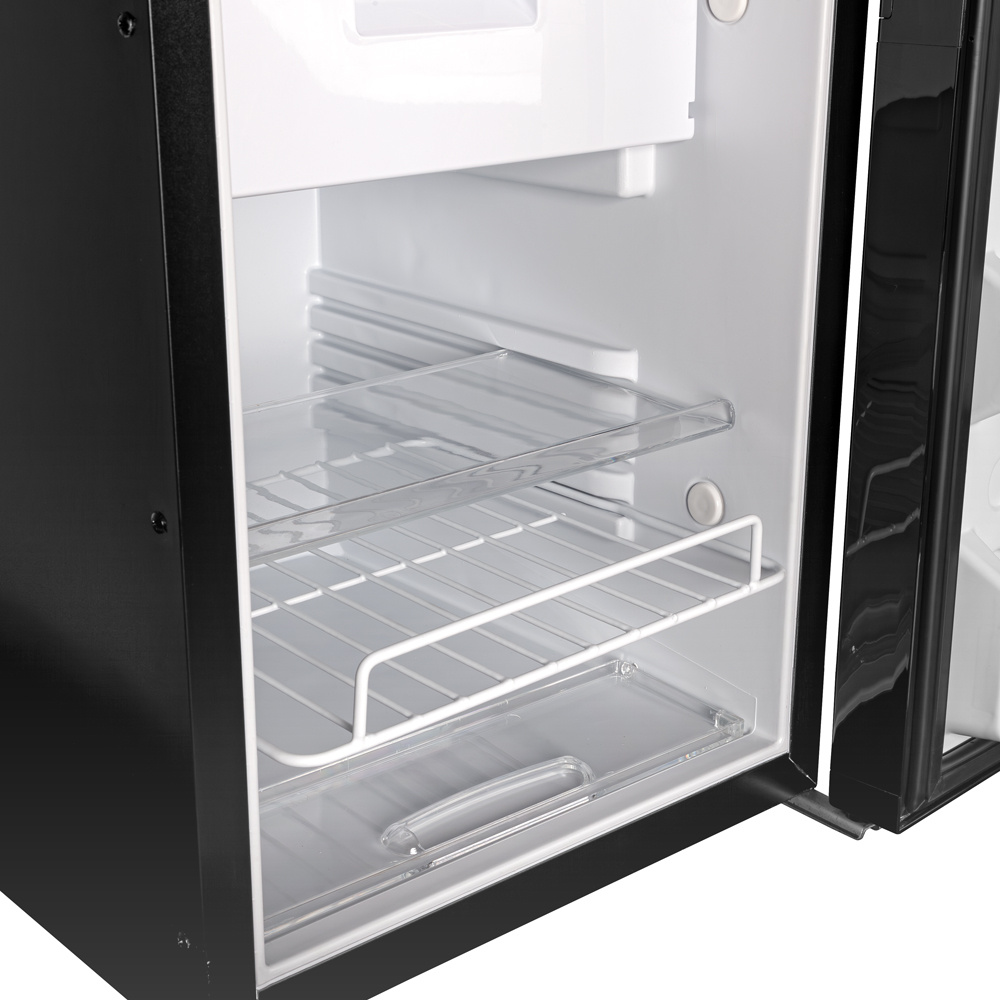

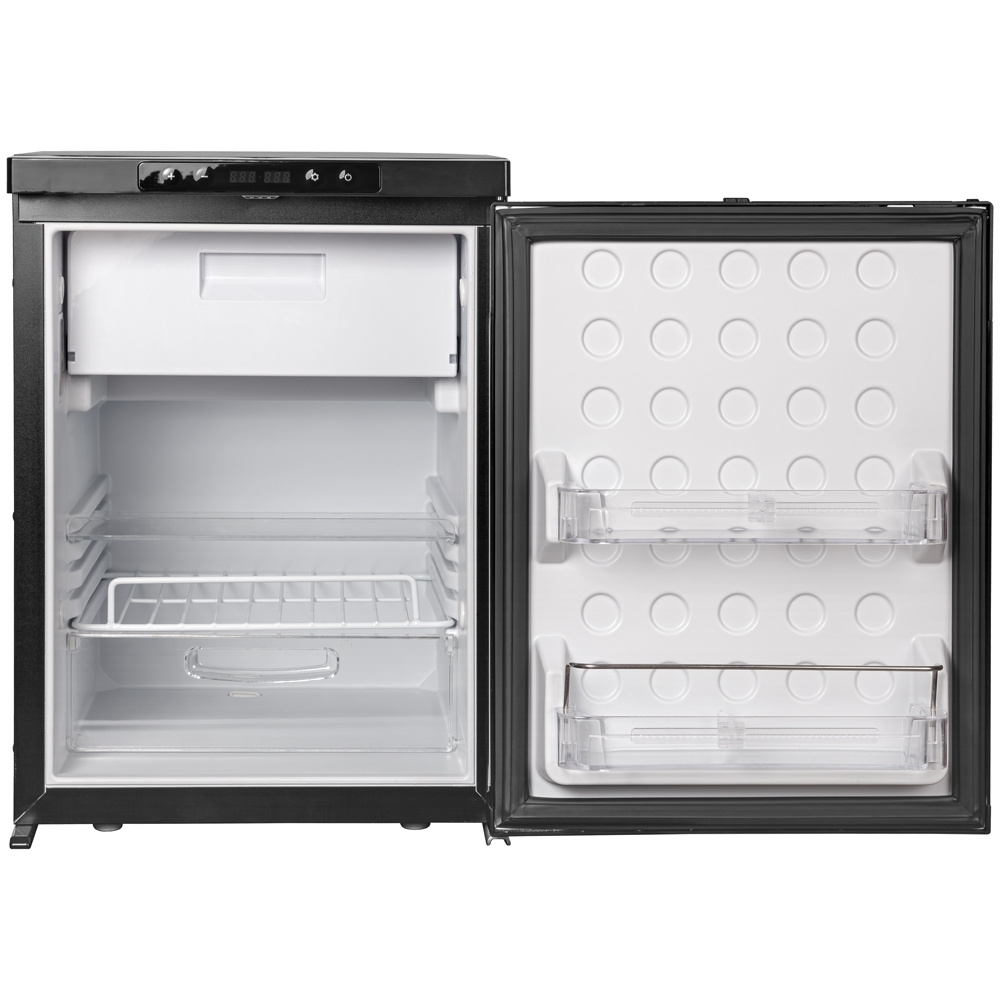

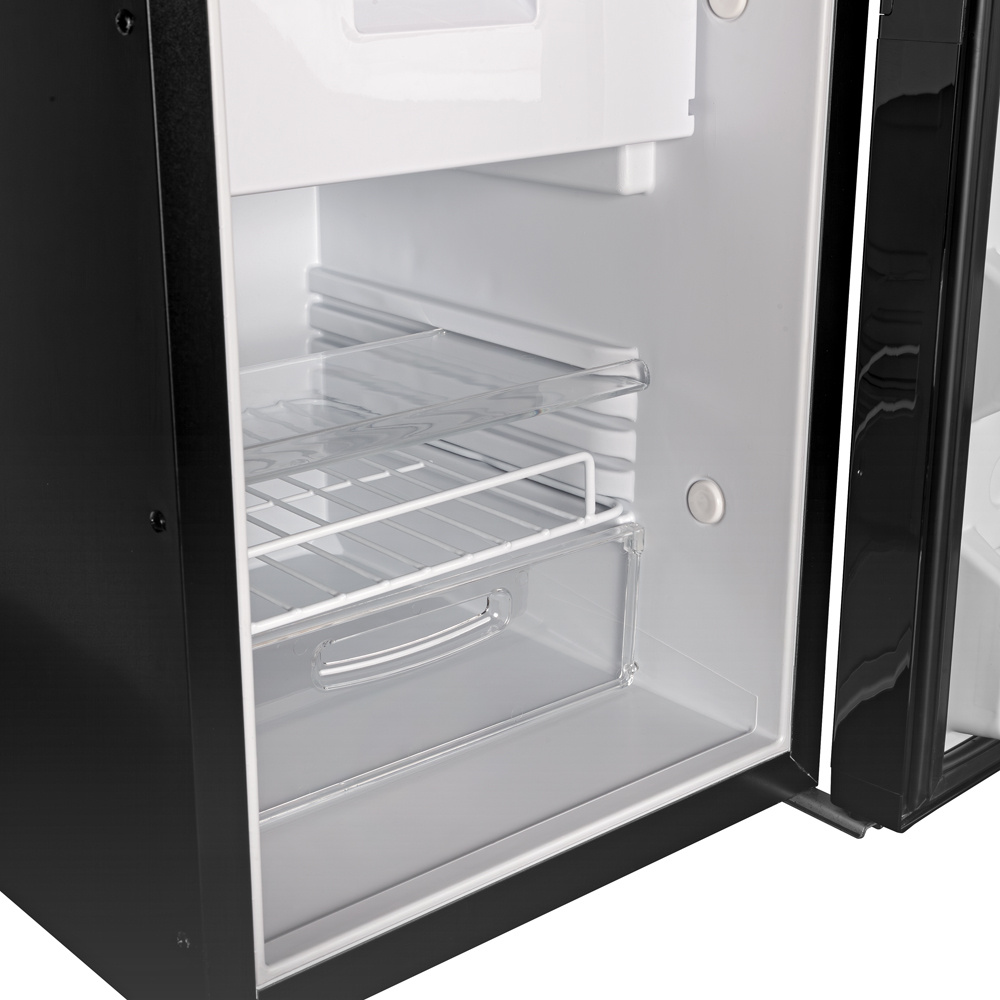

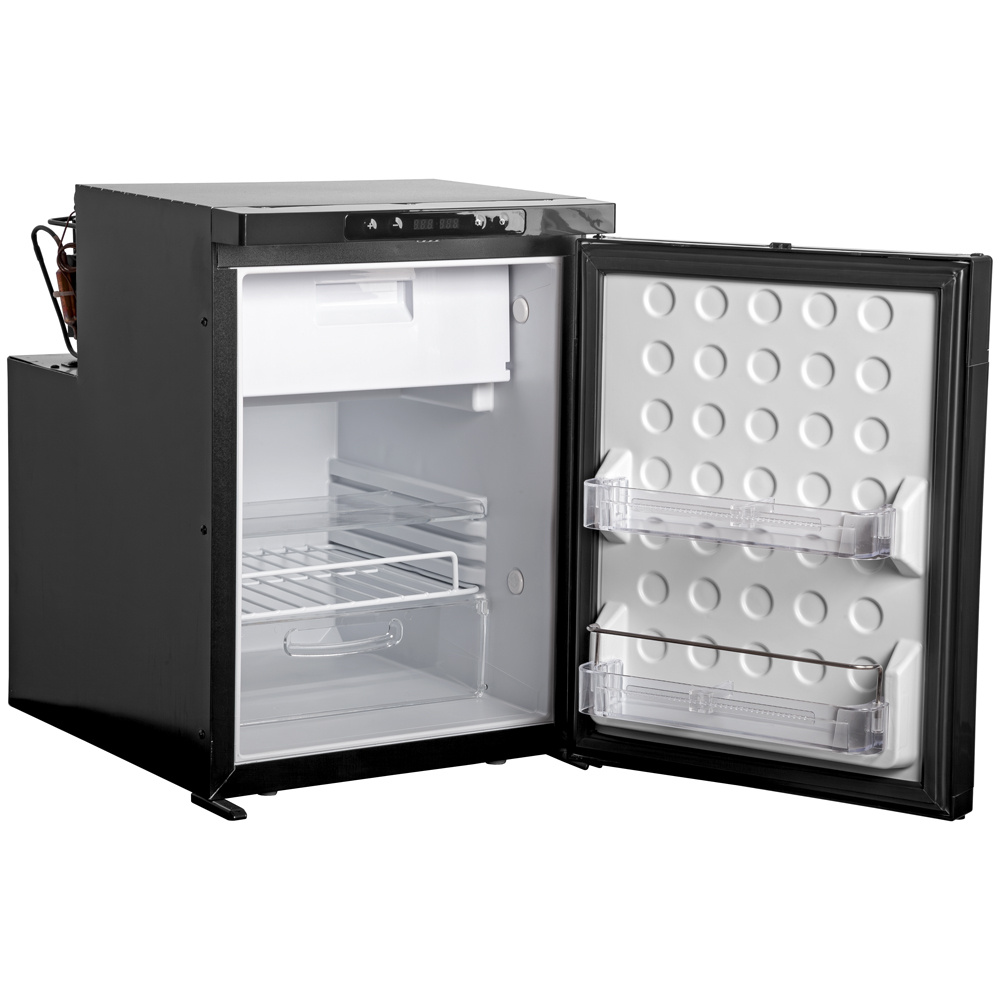

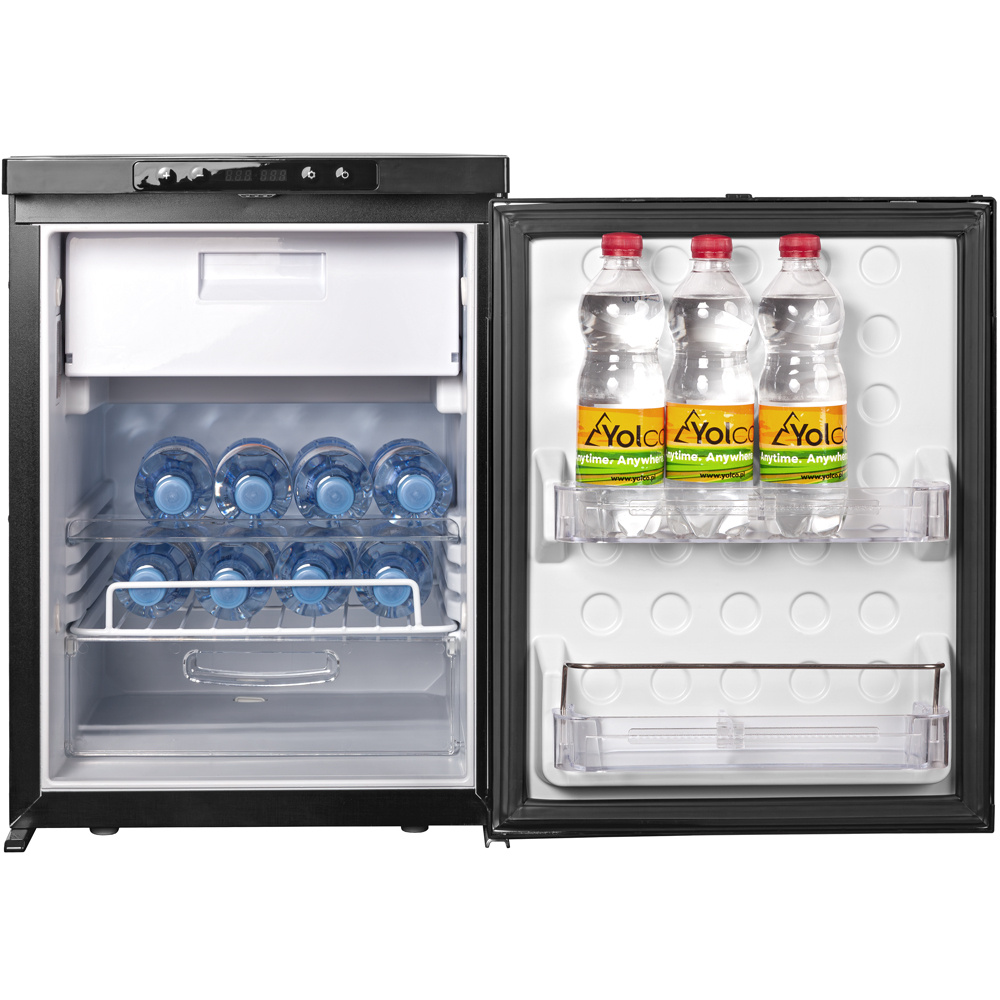

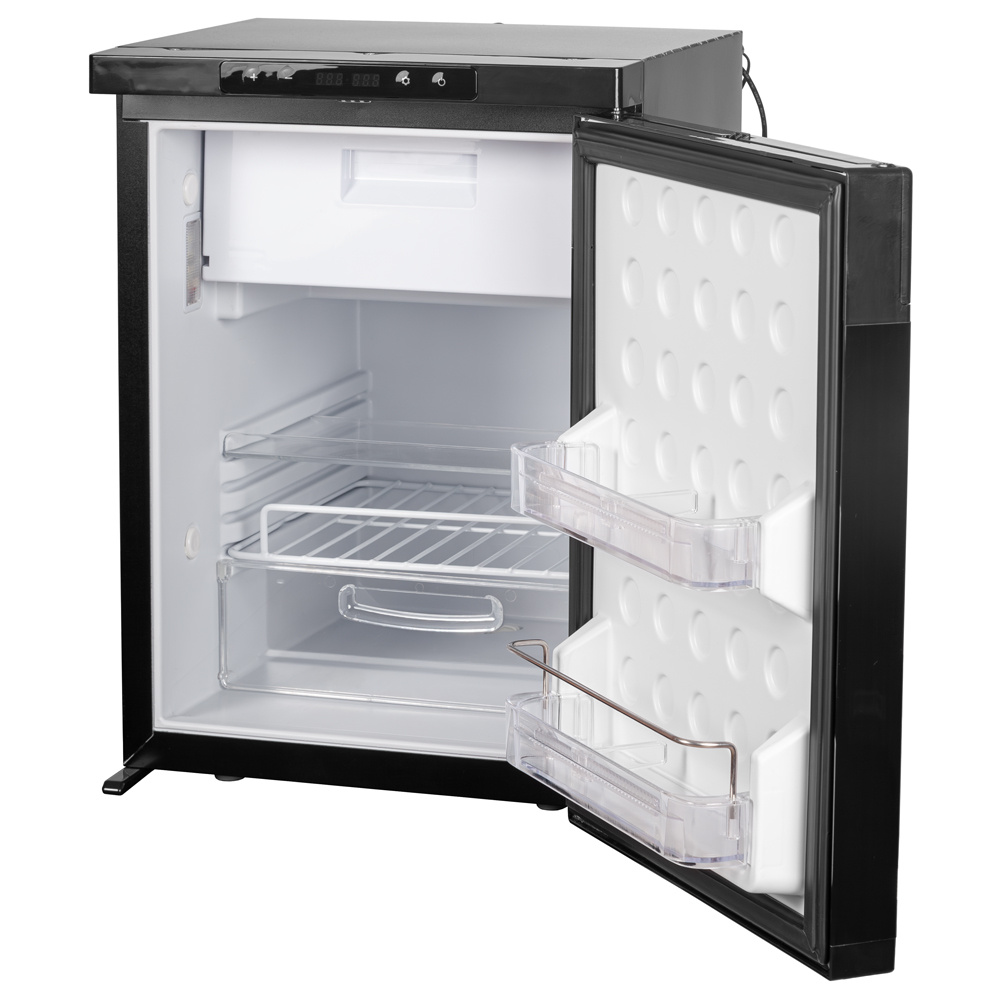

- shelves, drawer and door shelves
Capacity
- usable capacity 44 l (41 l + 3 l)

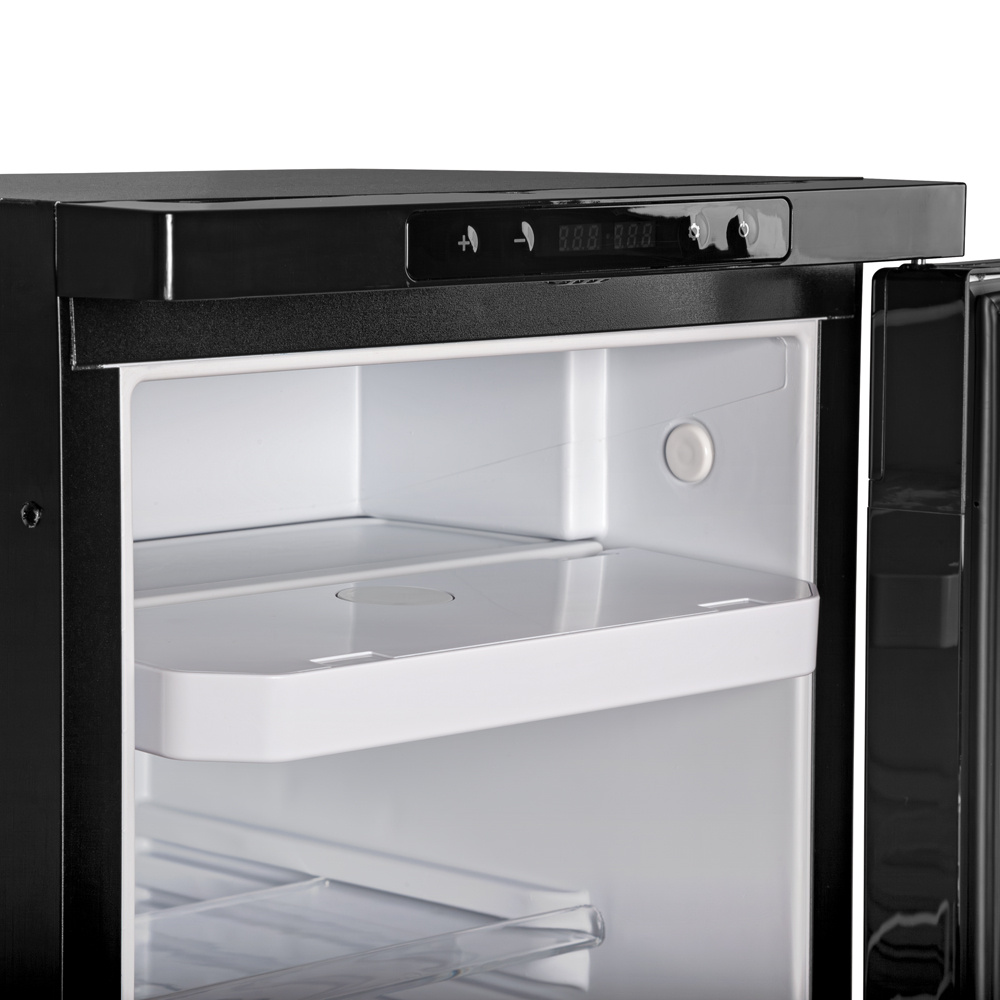

- removable freezer divider
- door opening direction can be reversed as described in the manual
Controls

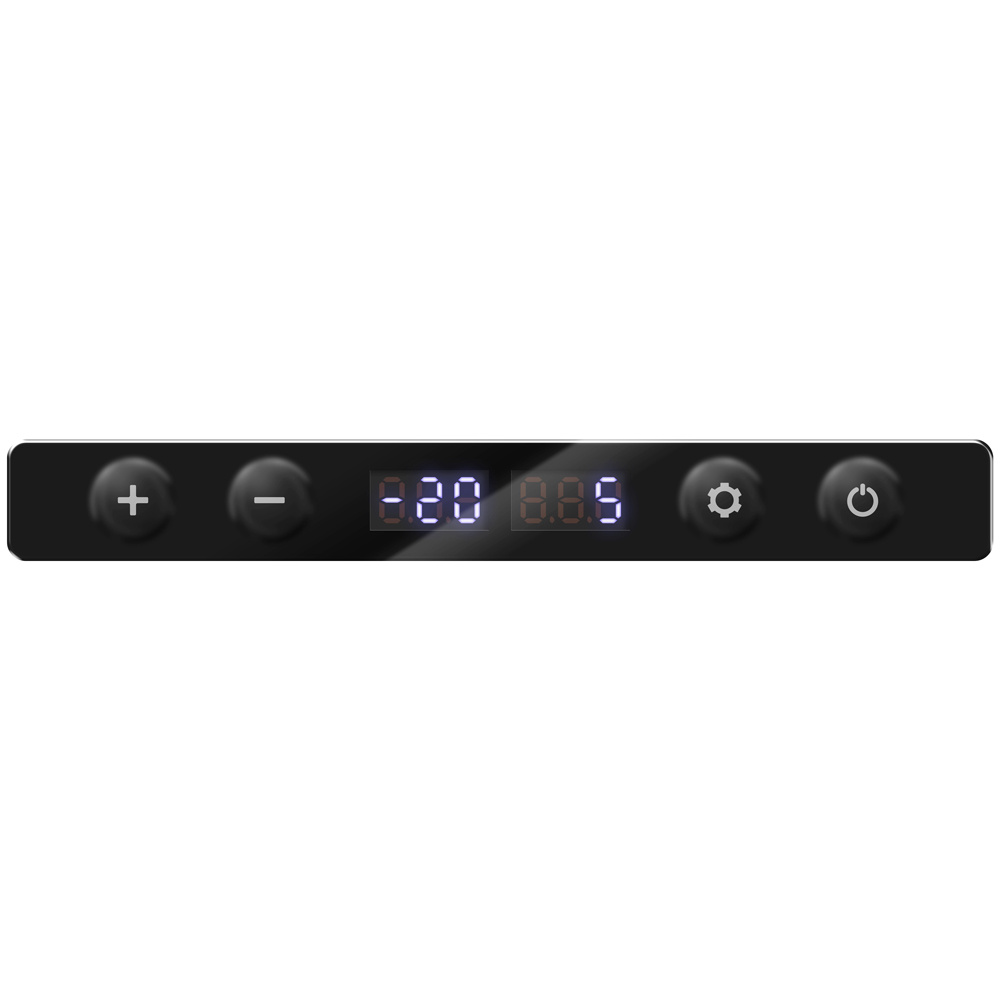

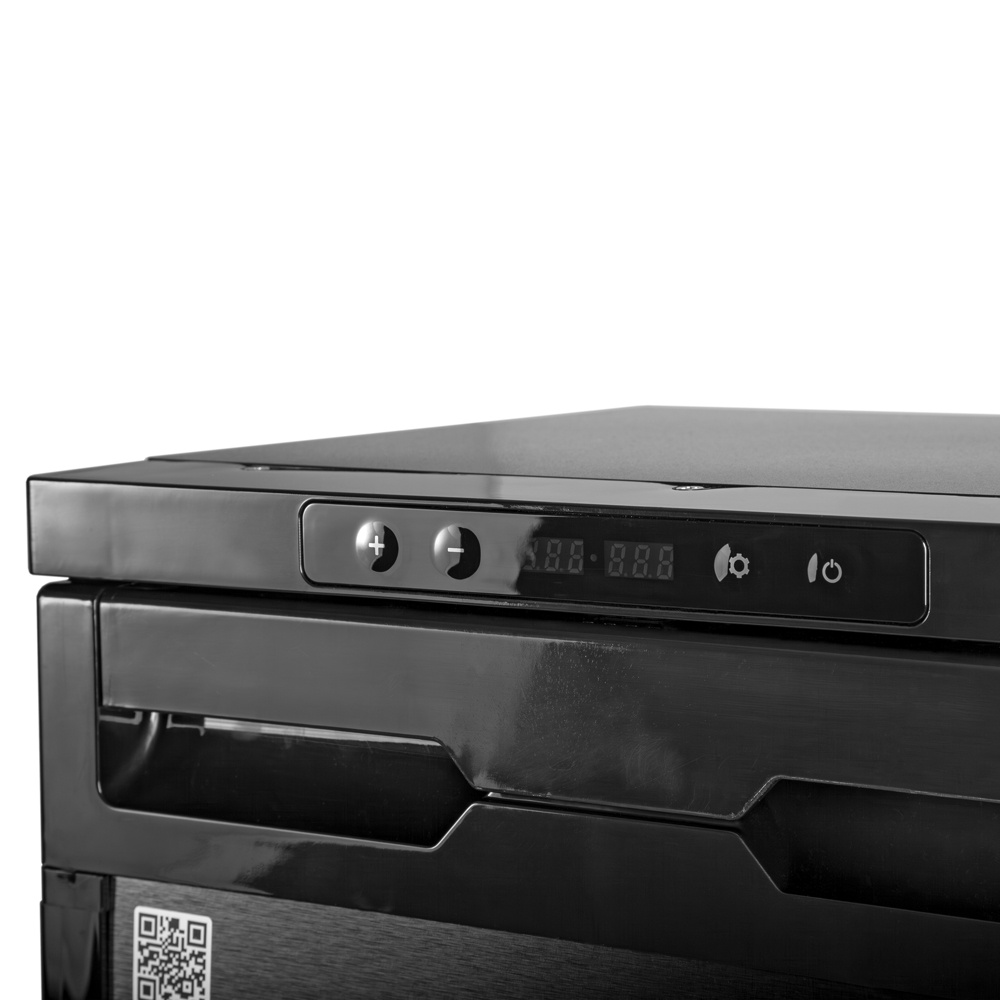

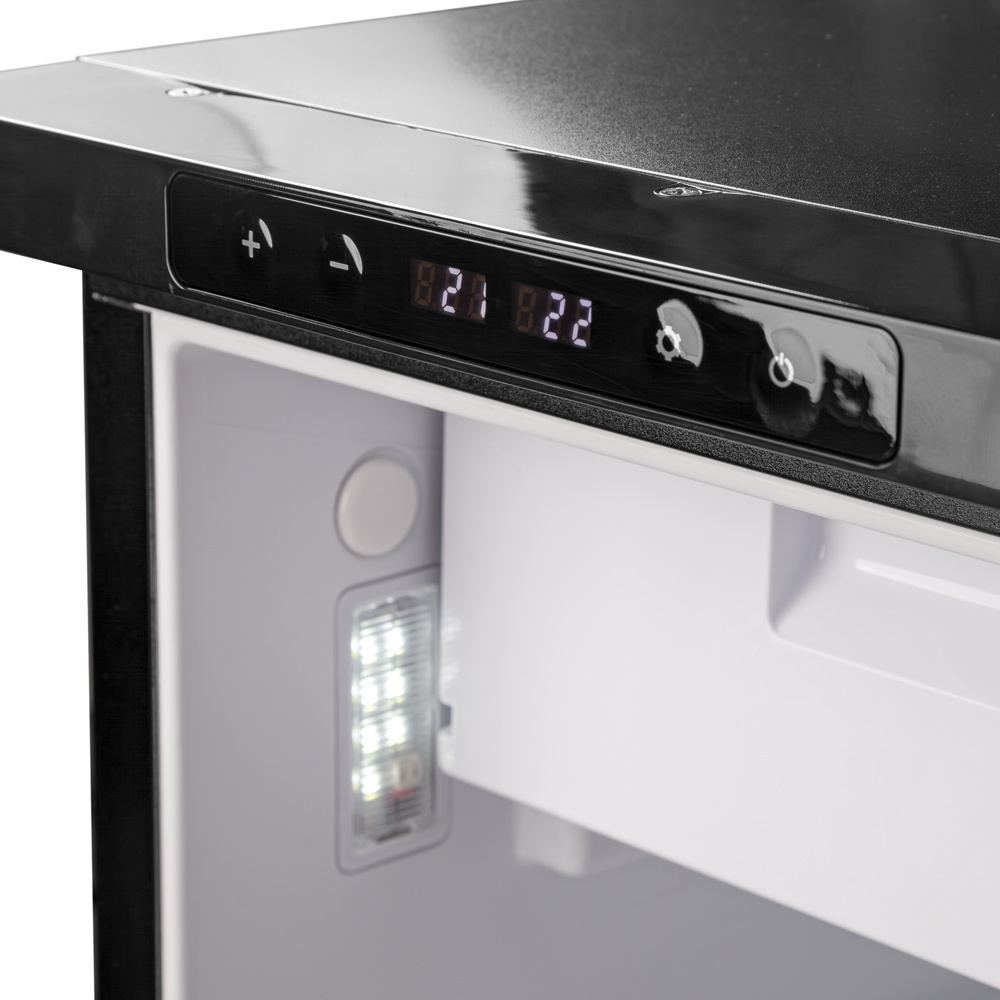

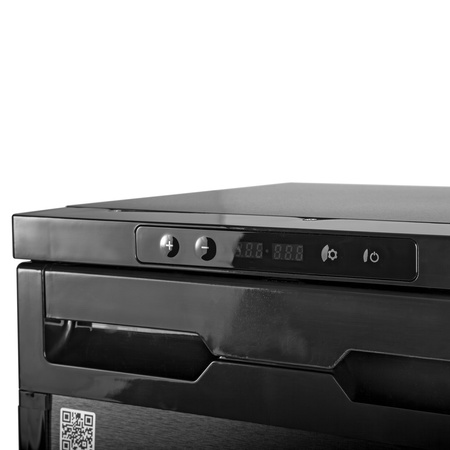

- panel with LED display
- separate temperature setting for both compartments
- 3 battery protection modes: L, M, H

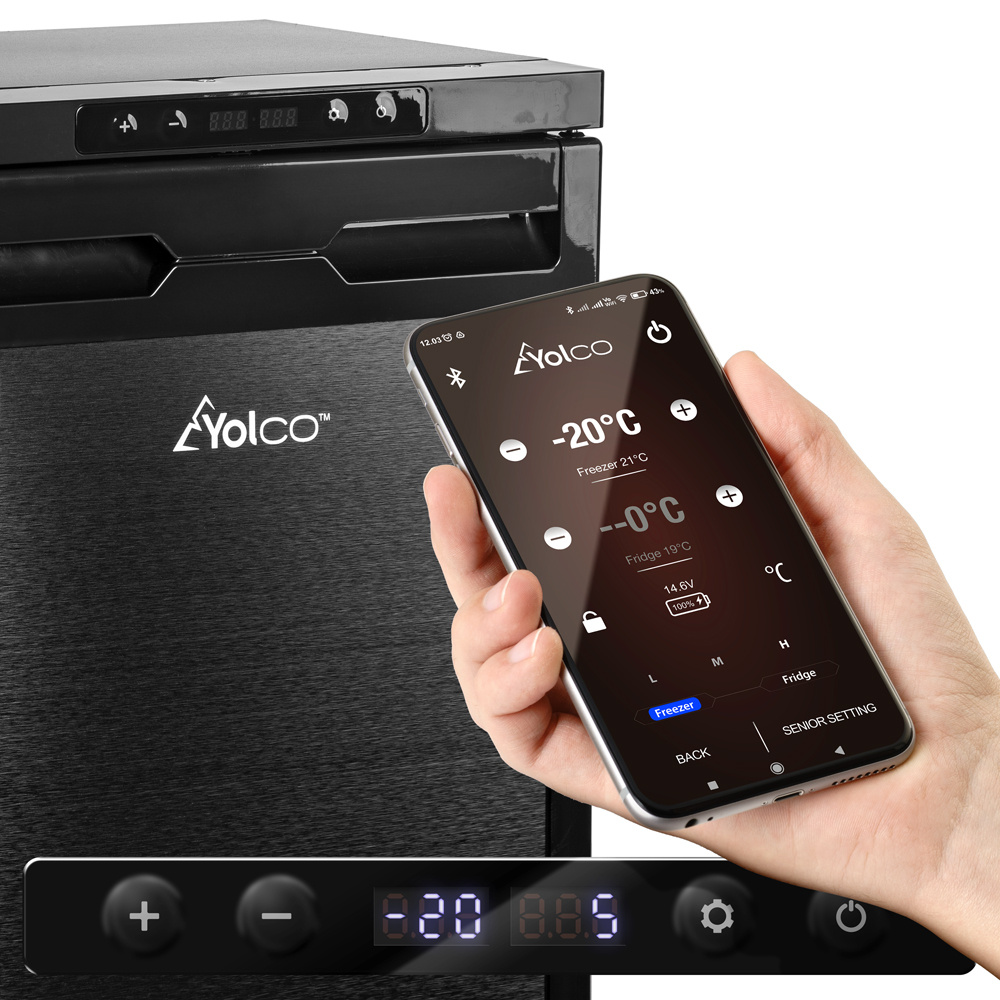

Yolco app
- Bluetooth 5.0, range up to 10 m
- Yolco app for Android and iOS
- Bluetooth and location must be enabled on the phone
Power supply and battery protection
- 12 V (5 A) or 24 V (2.5 A) DC supply, power consumption 60 W
- 100-240 V AC only via an AC/DC adapter (sold separately)
- 12 V battery protection: cut-out at 8.5 / 10.1 / 11.1 V (L / M / H)

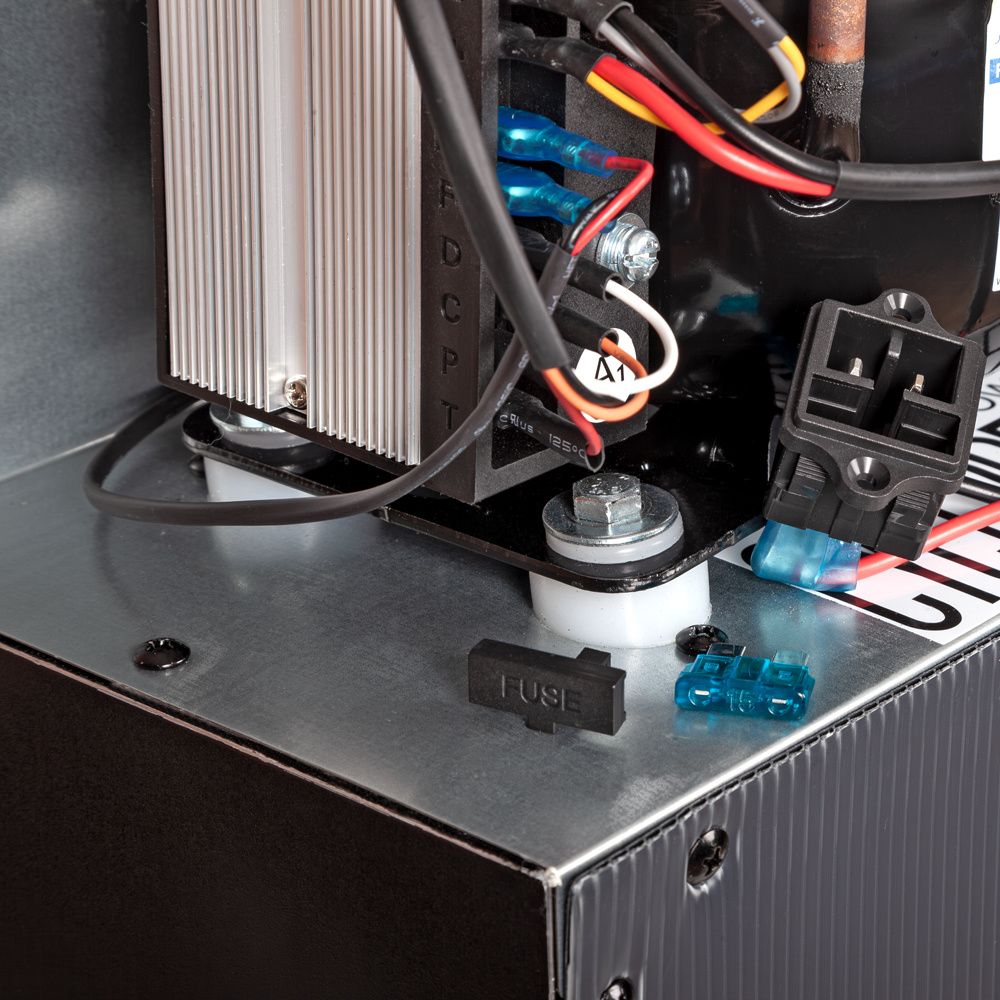

- surge protection

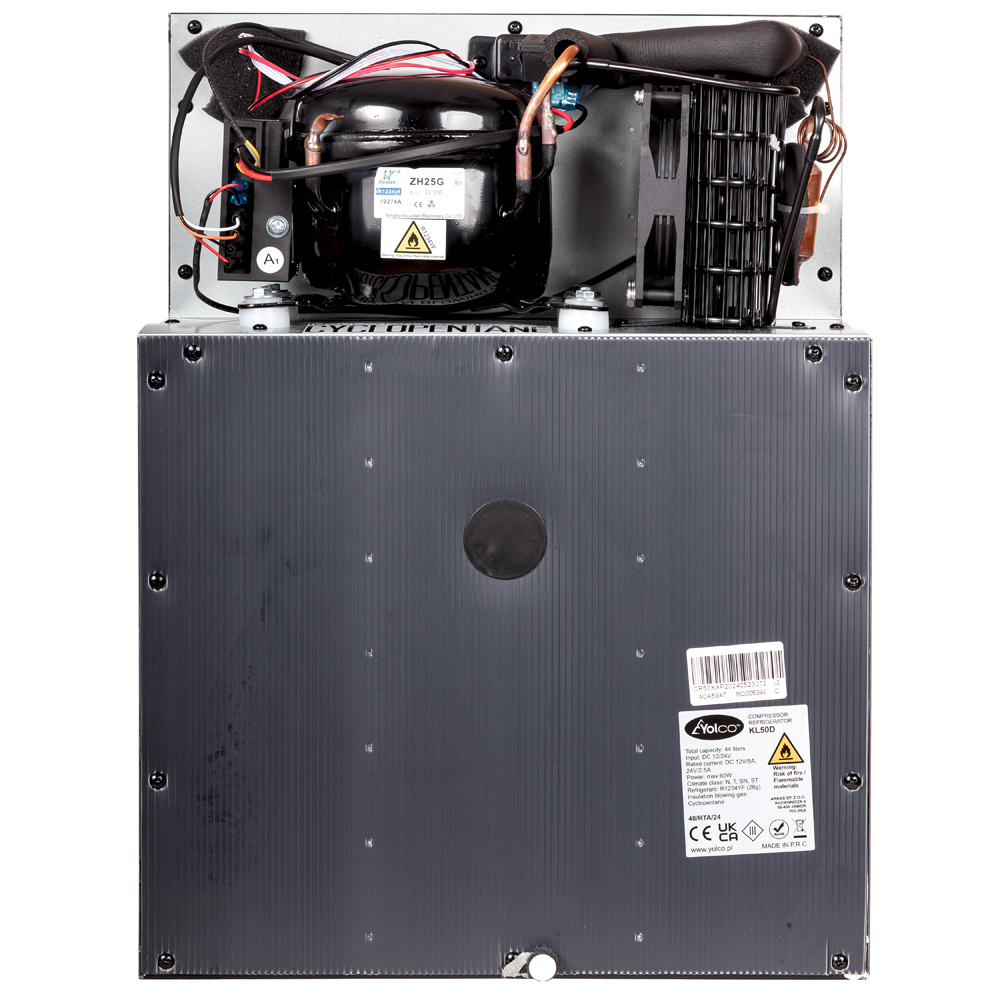

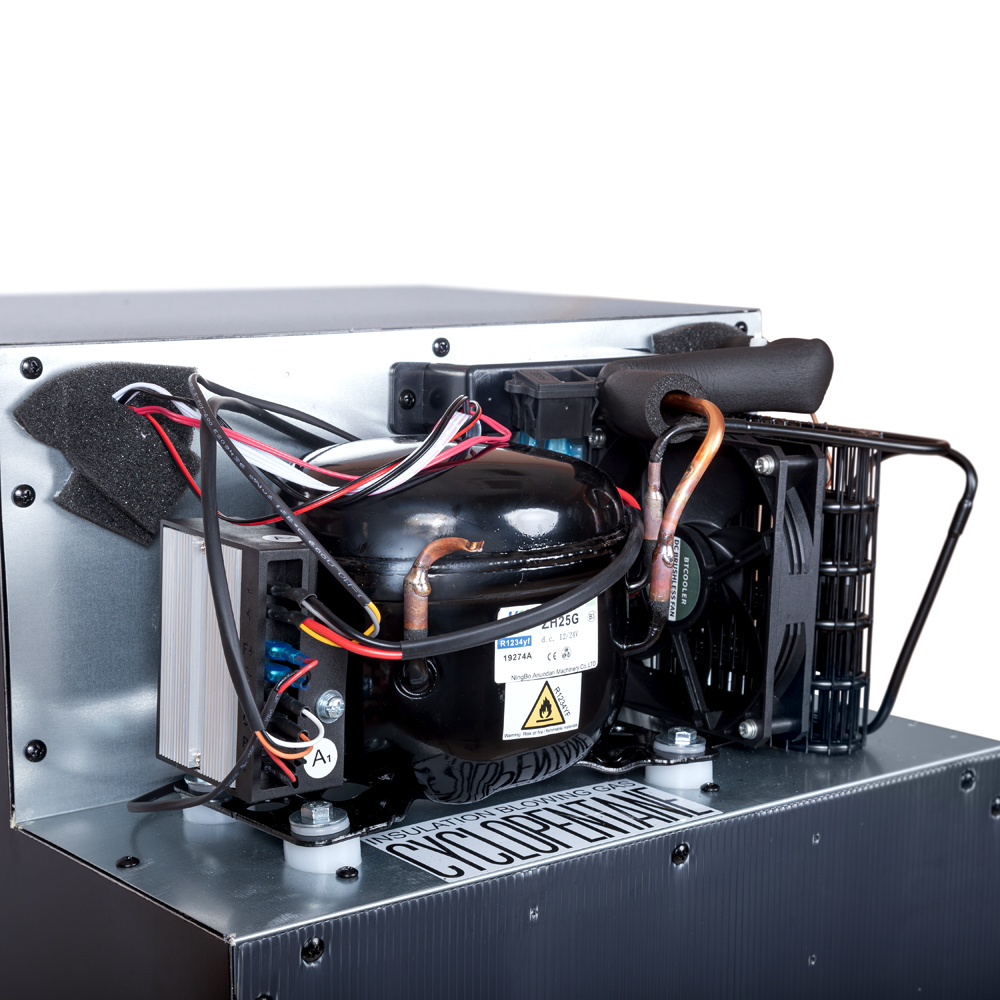

- refrigerant R1234yf (26 g), GWP 4
Built-in installation

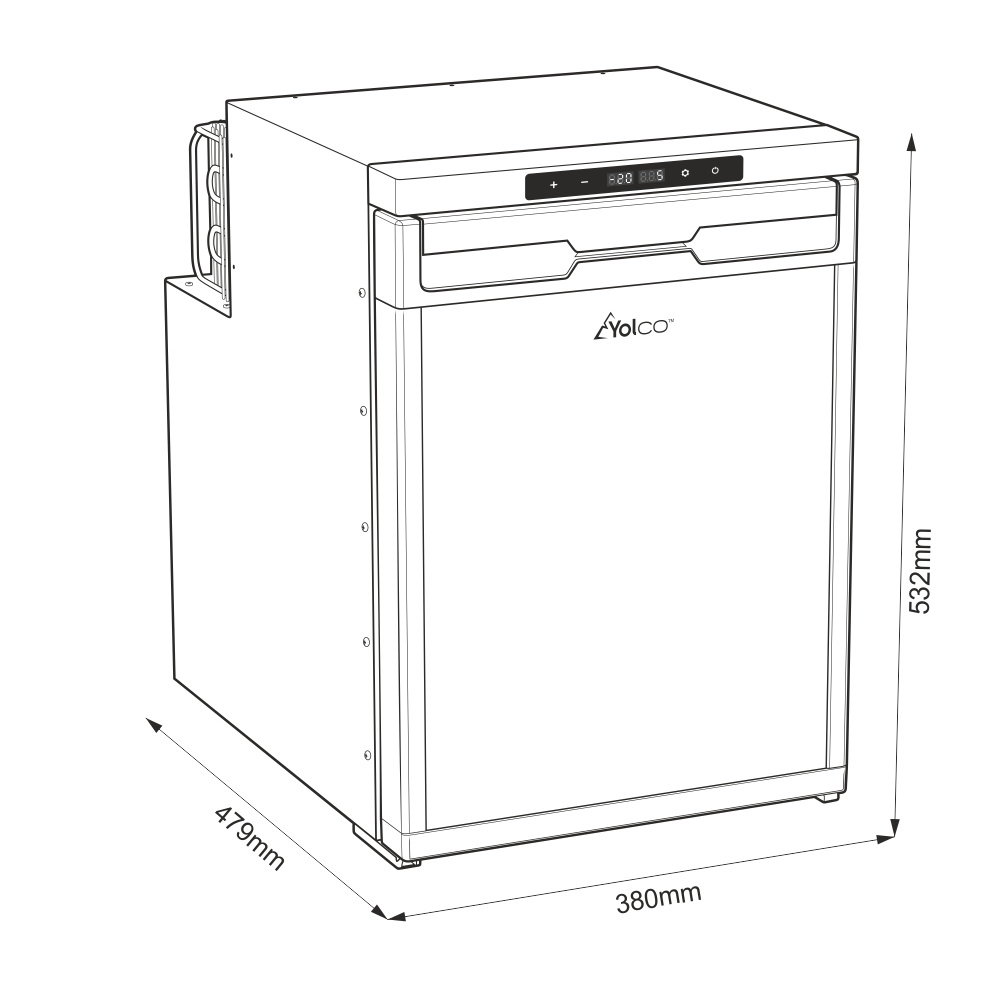

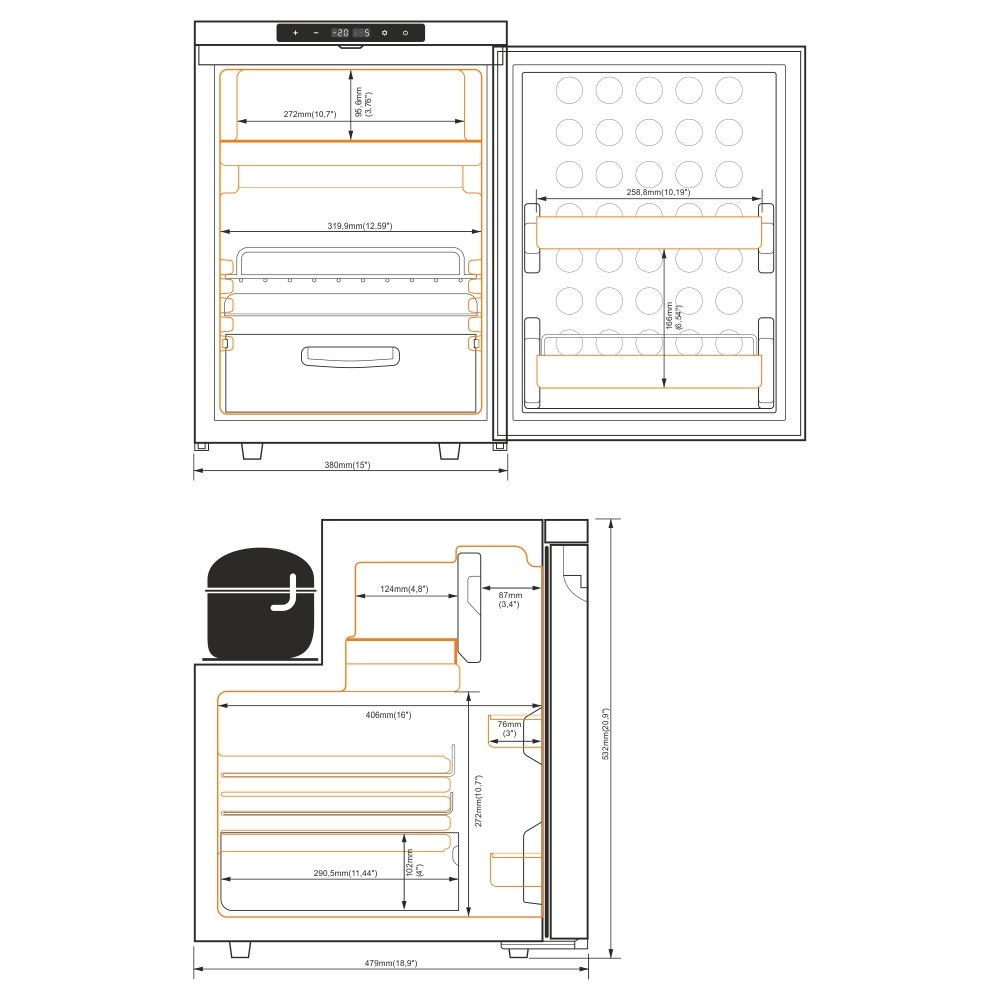

- dimensions 380 x 532 x 479 mm (W x H x D)
- clearance: 50 mm above and behind, 20 mm at the sides
- recess with a ventilation opening of at least 60 cm²
- in a vehicle the door must not face the direction of travel
- maximum tilt in operation 5°
- installation should be done by a qualified person
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Yolco (Arkas sp. z o.o., Poland) |
| Model | KL50D |
| Type | built-in compressor fridge, dual-zone |
| Usable capacity | 44 l |
| Fridge compartment | 41 l |
| Freezer compartment | 3 l |
| Capacity with freezer divider removed | 46 l |
| Fridge temperature range | 0 to +8°C |
| Freezer temperature range | -20 to -12°C |
| Supply voltage | 12/24 V DC; 100-240 V AC 50/60 Hz via AC/DC adapter (sold separately) |
| Rated current | 12 V / 5 A, 24 V / 2.5 A |
| Power consumption | 60 W |
| Climate class | SN, N, ST, T |
| Ambient temperature | +10 to +43°C |
| Noise level | 48 dB |
| Refrigerant | R1234yf (26 g), GWP 4 |
| Connectivity | Bluetooth 5.0, range up to 10 m, 2402-2480 MHz, max. 2 dBm |
| 12 V battery protection (cut-out / restart) | L: 8.5 / 10.9 V; M: 10.1 / 11.4 V; H: 11.1 / 12.4 V |
| 24 V battery protection (cut-out / restart) | L: 21.3 / 22.7 V; M: 22.3 / 23.7 V; H: 24.3 / 25.7 V |
| Dimensions (W x H x D) | 380 x 532 x 479 mm |
| Net weight | 14.1 kg |

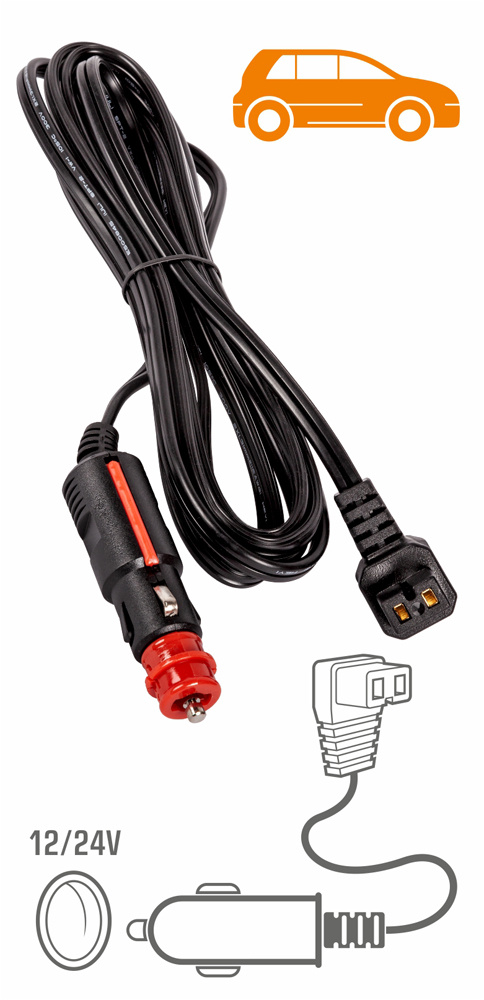

| Included | fridge, 12/24 V power cable, user manual |
| EAN | 5902721196169 |
Questions and answers
Does the fridge run on 230 V?
Yes, but only via a 100-240 V AC/DC adapter, which is sold separately. Directly it runs on 12 or 24 V DC.
Can the fridge compartment be enlarged?
Yes. With the freezer divider removed the capacity is 46 l.
How is the battery protected?
The fridge switches off when the voltage drops below the threshold of the selected protection mode (L, M or H) and restarts once the battery is recharged. On battery power the manufacturer recommends the low mode (L).
How do I ventilate the installation?
Leave 50 mm above and behind the fridge and 20 mm at the sides; the recess needs a ventilation opening of at least 60 cm².
Can the door opening be reversed?
Yes, the manual describes moving the hinges to the other side.
Manufacturer
Arkas sp. z o.o., ul. Kuziennicza 4, 59-400 Jawor, Poland (Yolco brand).
