Zadi 1051 lock white - oval push lock for motorhome locker doors, 78 x 41 mm, with barrel and keys
ID produktu: 47825
- Zadi 1051 oval push lock in white for locker and compartment doors in motorhomes and caravans. With barrel and keys. Head 78 x 41 mm, body Ø 27.5 mm, M12 thread.

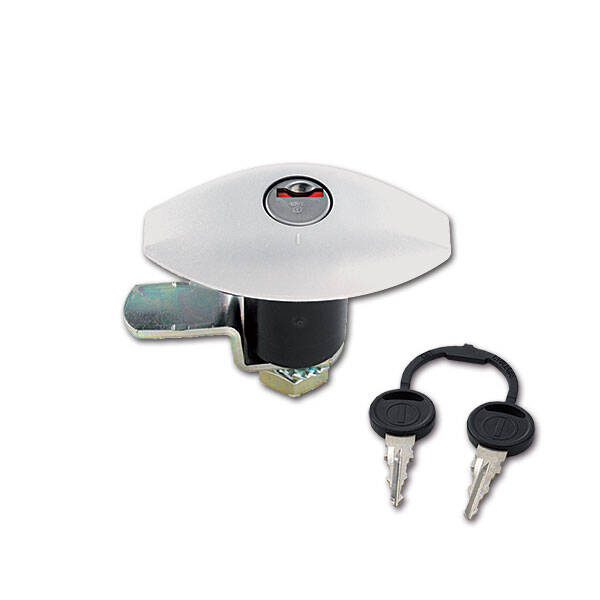

The Zadi 1051 is an oval push lock in white for locker and compartment doors in motorhomes and caravans. It comes with a barrel and keys. The oval head measures 78 x 41 mm.
Contents
- push lock with oval head, white
- lock barrel
- keys

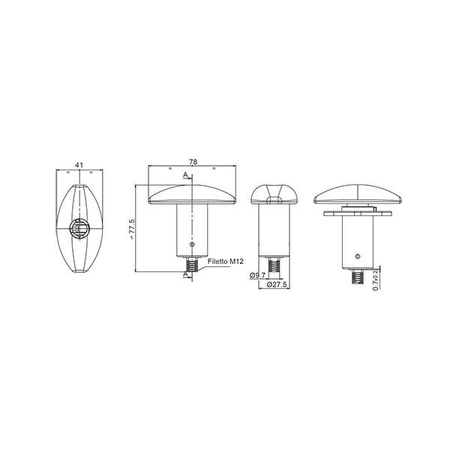

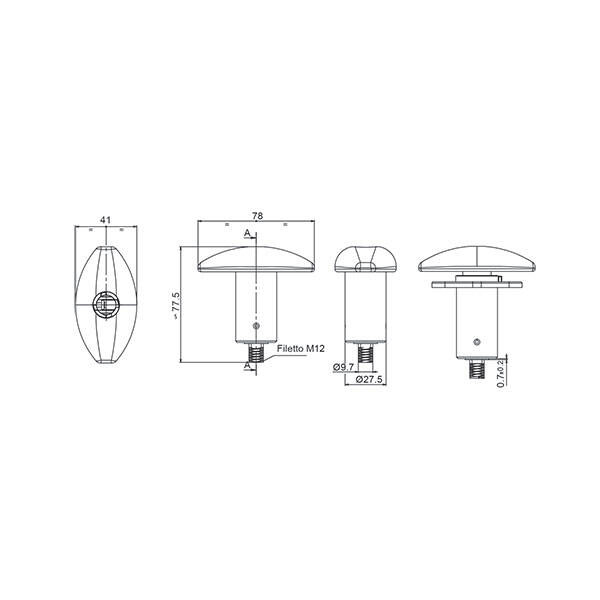

Dimensions from the technical drawing
- head 78 x 41 mm
- overall length approx. 77.5 mm
- body diameter 27.5 mm
- M12 thread at the end of the body
Other Zadi parts in our shop
- Zadi lock barrel with key
- pair of keys for Zadi A/S locks
- pair of keys for Zadi locks
- set of 10 Zadi barrels with 2 keys
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Zadi (Italy) |
| Model | 1051 |
| Type | push lock for locker and compartment doors |
| Colour | white |
| Head shape | oval |
| Head size | 78 x 41 mm |
| Overall length | approx. 77.5 mm |
| Body diameter | 27.5 mm |
| Thread | M12 |
| Contents | lock, barrel, keys |
Questions and answers
Are the barrel and keys included?
Yes, the lock comes with a barrel and keys.
What size is the head?
78 x 41 mm.
What is the body diameter?
27.5 mm, the overall length is approx. 77.5 mm.
Manufacturer
Zadi S.p.A., Via C. Marx 138, 41012 Carpi (MO), Italy.
