Moduł Bluetooth BT-1 do produktów Renogy (port R232)

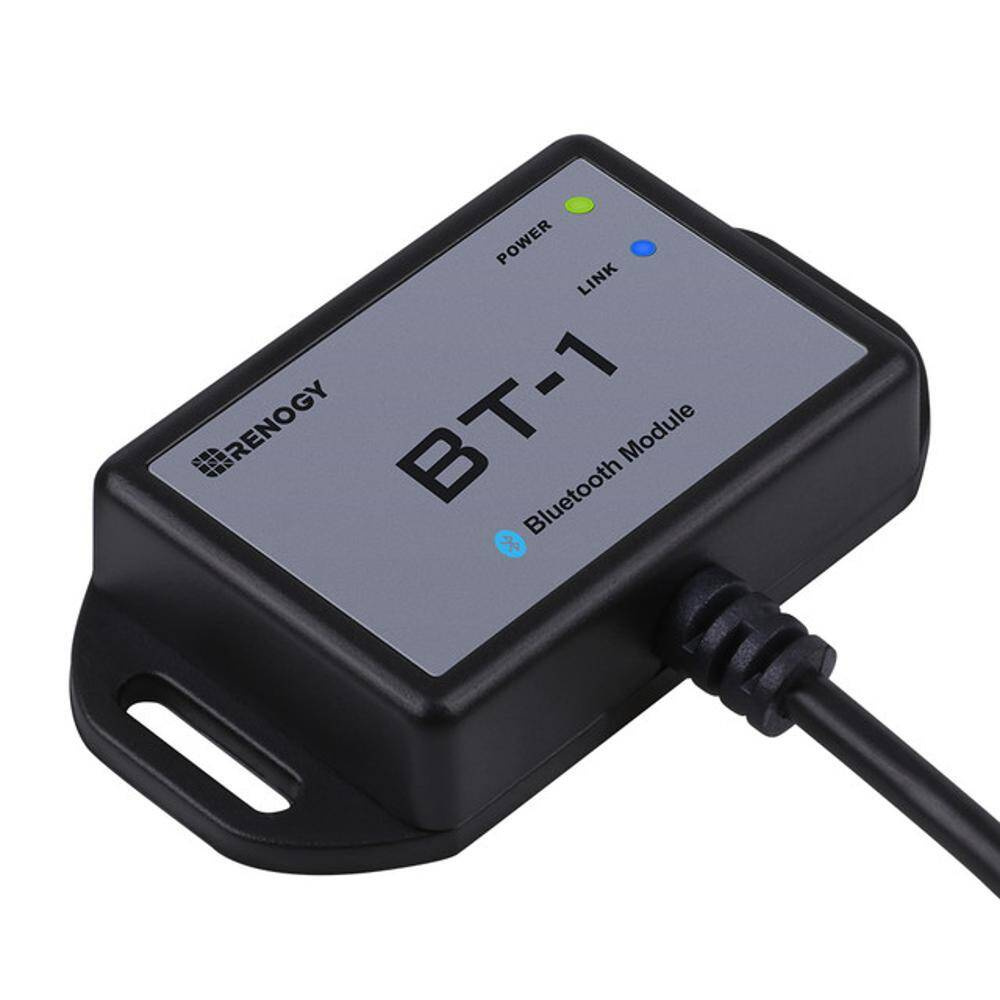

BT-1 Bluetooth Module for Renogy Products w/ RS232 Port

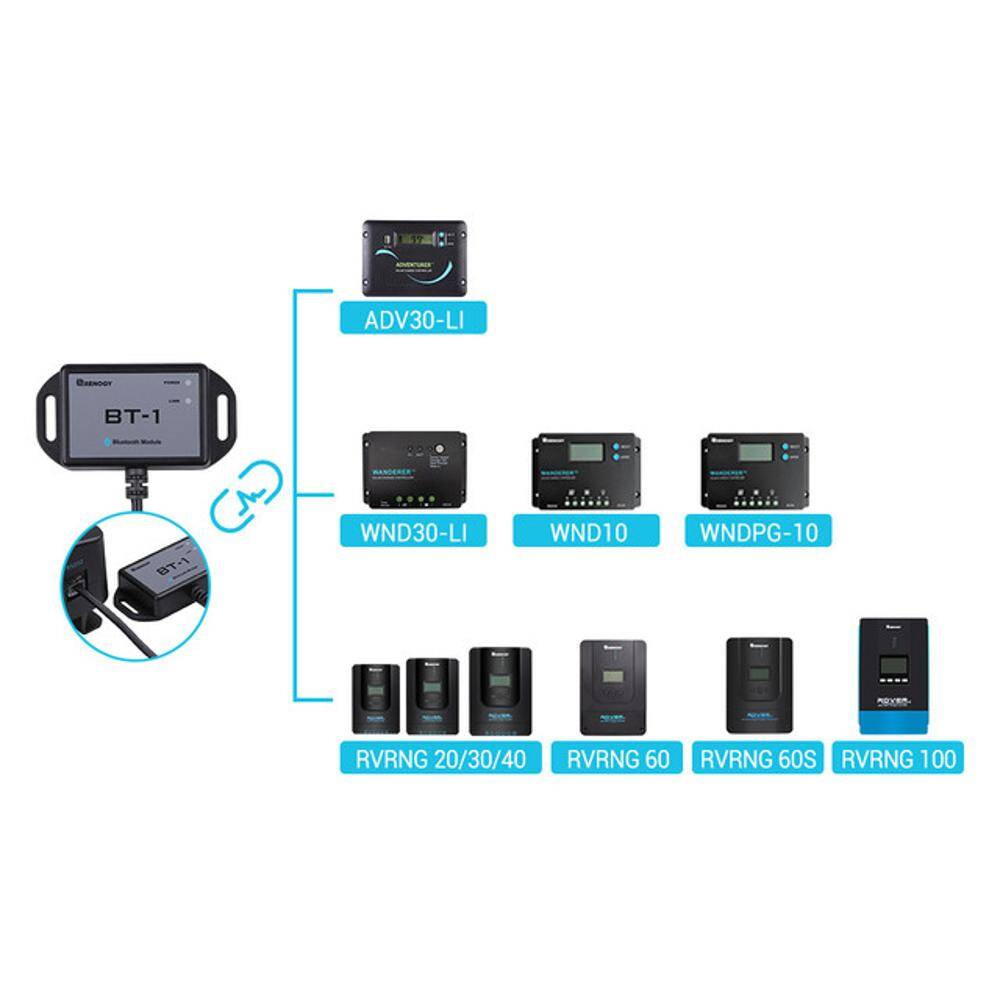

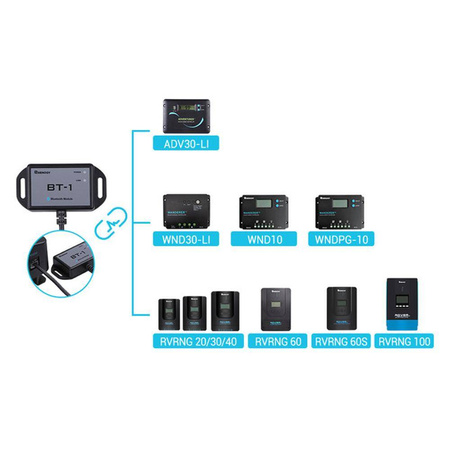

The Renogy BT-1 Bluetooth Module (New Version) pairs great with any compatible Renogy solar charge controller. This updatedmodel boasts an increased signal range of up to 82 feet and an additional LED to indicate when your devices have synced. Plugthe BT-1 into your controller's RJ12 port to seamlessly monitor and change settings straight from your smart device. Compatiblewith DC Home App, the Renogy DC Home App is available in both the App Store and Google Play.

Specifications

• Communication Protocol: RS232
• Port Type: RJ12
• Input Voltage: 5V
• Protection Grade: IP54
• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Communication Range: ≤82ft / 25m
• Serial Baud Rate: Fixed Baud Rate 9600bps
• Cable Length: 5.00 m (16.4 ft)

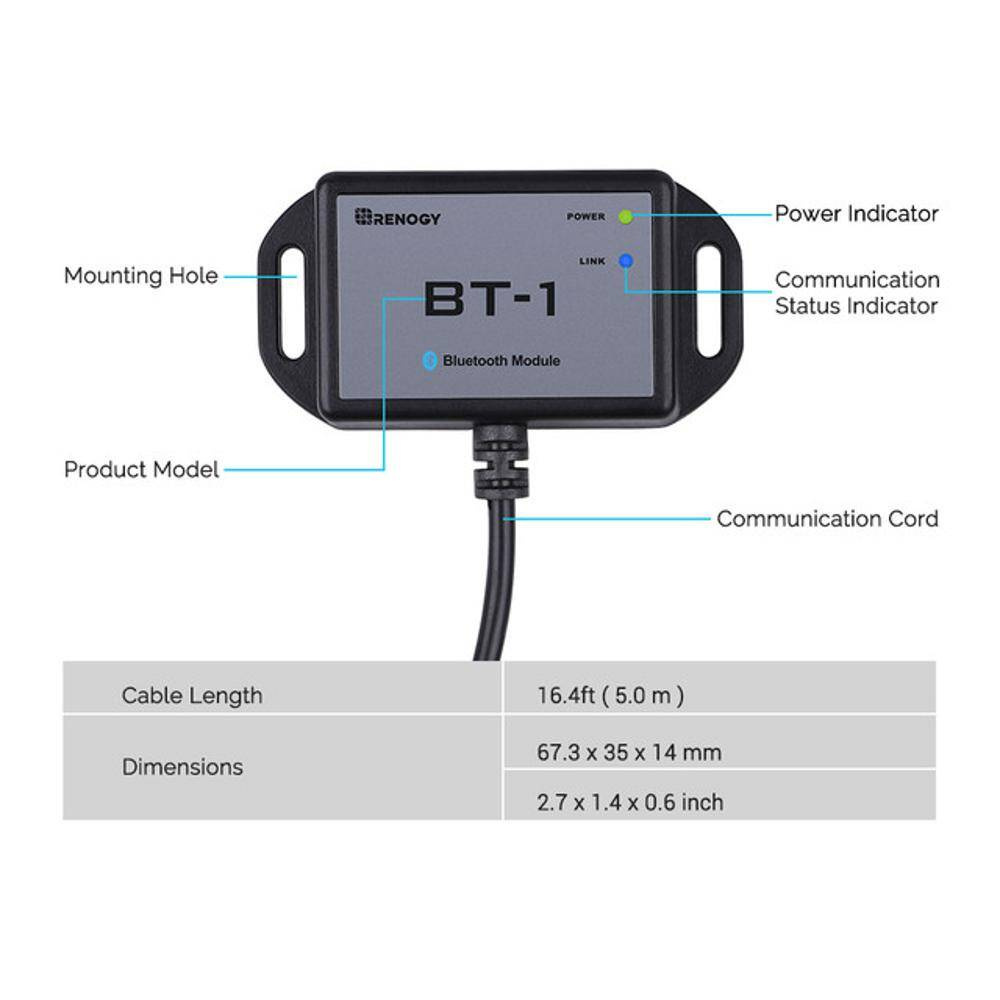

• Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
• Installation Dimensions: 67.3 φ3.5mm (2.66 φ 0.14in)
• Operation Temperature: -20℃~85℃ (-4°F to 185°F)
• Weight: 130g (4.58oz)
• WARRANTY INFORMATION: Accessories 1-year material warranty
