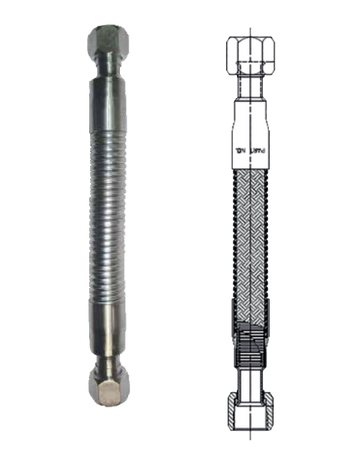

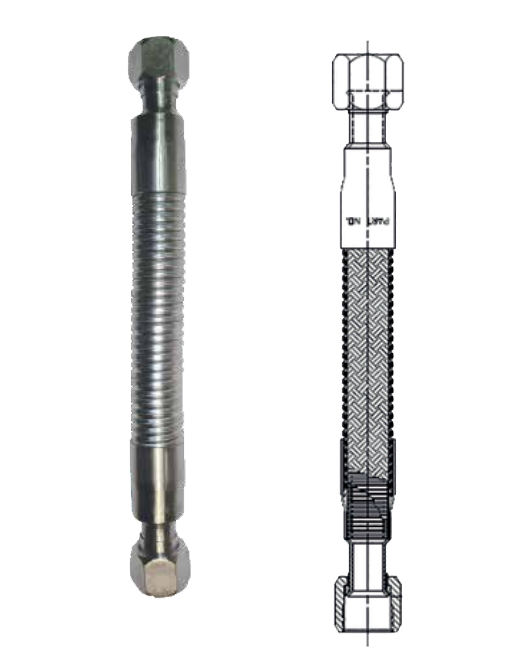

RegO 144" (3,60m) LNG 1/2" Hose Stainless Steel Connections - CHS-440-440-144
Łatwy zwrot towaru w ciągu 14 dni od zakupu bez podania przyczyny
...
Application
The CHS Series are cryogenic transfer hoses with stainless steel nuts used in the LNG dispensers. The flexibility and resistance of this cryogenic hoses guarantee a safe operation and easy handling during the refilling of liquid cylinders. The spiral support spring protects the hoses giving a longer term life.
Features
- Stainless steel corrugated inner core, a 304 stainless steel single braid.
- Armor cover protection.
- Max Working Pressure: 1100 psi (76 bar) for ½” hoses.
- Minimum Operating Temperature -454°F (-270°C)
- Serial number included
- 100% pressure tested
Materials
- Core tube : 321/316 Stainless Steel
- Exterior Braid : 304 Stainless Steel
- Armor : 304 Stainless Steel
- Ferrule,Flare, Tube : 304L/316 Stainless Steel
- Nut : 304/316 Stainless Steel
Ordering Information
| Old Part Number | New Part Number | Size | Length Inches (mts) | Double Armor Cover | Spiral Supporting Spring | End Connections |
|---|---|---|---|---|---|---|
| CHS-440-440-24 | CHS-4-440-440-024 | ½" |
24 (0.60) | Yes | No | CGA 440 (⅝ 45° SAE) |
| CHS-440-440-36 | CHS-4-440-440-036 | 36 (0.90) | ||||
| CHS-440-440-48 | CHS-4-440-440-048 | 48 (120) | ||||
| CHS-440-440-60 | CHS-4-440-440-060 | 60 (150) | ||||
| CHS-440-440-72 | CHS-4-440-440-072 | 72 (180) | ||||
| CHS-440-440-96 | CHS-4-440-440-096 | 96 (2.40) | ||||
| CHS-440-440-120 | CHS-4-440-440-120 | 120 (3.0) | ||||
| CHS-440-440-144 | CHS-4-440-440-144 | 144 (3.60) | ||||
| CHS-440-440-197 | CHS-4-440-440-197 | 197 (5.0) | ||||
| CHS-440-440-240 | CHS-4-440-440-240 | 240 (6.0) | ||||
| 11910-072 | CHS-8-514-514-072 | 1" | 72 (180) | SAE J514 ( 37° Flare JIC) | ||
| 11910-120 | CHS-8-514-514-120 | 120 (3.0) | ||||
| 11910-144 | CHS-8-514-514-144 | 144 (3.60) | ||||
| 11910-156 | CHS-8-514-514-156 | 156 (3.90) | ||||
| 11910-180 | CHS-8-514-514-180 | 180 (4.50) | ||||
| 11910-197 | CHS-8-514-514-197 | 197 (5.0) | ||||
| 11910-240 | CHS-8-514-514-240X | 240 (6.0) | ||||
| 14340-120 | CHS-8-514-514-072X | 120 (3.0) | ||||
| 14340-144 | CHS-8-514-514-120X | 144 (3.60) | ||||
| 14340-156 | CHS-8-514-514-144X | 156 (3.90) | ||||
| 14340-180 | CHS-8-514-514-180X | 180 (4.50) | ||||
| 14340-197 | CHS-8-514-514-197X | 197 (5.0) | ||||
| 14340-240 | CHS-8-514-514-240X | 240 (6.0) | ||||
| 14340-120 Special | CHS-8-514-514-072XS | 120 (3.0) | Yes | |||
| 14340-144 Special | CHS-8-514-514-120XS | 144 (3.60) |
