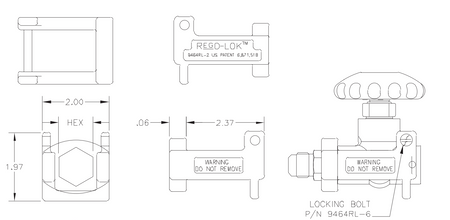

The REGO-LOK™ is designed for installation on the Rego T9450 and T9460 Series liquid cylinder valves to deter and prevent the removal of the CGA fitting from the valve. The REGO-LOK™ retains standard CGA outlet connection so unauthorized persons do not remove the fitting. By use of a special one-way bolt, the REGO-LOK™ is secured to the valve. The REGO-LOK™ installs in a few minutes with the use of screwdrivers, without valve disassembly, brazing, welding, or drilling. The REGO-LOK™ deters and prevents fitting removal by gas customers, however allows the replacement of fittings by authorized gas supplier plant personnel.
Use The REGO-LOK™ for compliance with CGA SB-26 for medical and industrial liquid cylinders.
- Stainless Steel REGO-LOK™ with one-way bolt.
- Retrofit all common liquid cylinder valves.
- Can be supplied on new Rego liquid cylinder valves
- REGO-LOK™ indicates “WARNING: DO NOT REMOVE”
- Worn CGA fittings can be simply replaced by authorized personnel. Requires new 9464RL-6 Bolt
- Can fit over existing fittings for CGA 540, CGA 440, CGA 295, CGA 320, and CGA 326. Check fitting hex size. NOTE: Rego supplied fitting P/N CGA580RL is required for REGO-LOK™ use with CGA 580 connection.
- Prevents loosening of CGA fittings on valves.
|Part Number||Item Description||Typical Service Connection|
|9464RL-0||REGO-LOK™ for ¾” hex fittings|
|9464RL-1||REGO-LOK™ for ⅞” fittings||CGA 320, CGA 326 & CGA 295|
|9464RL-2||REGO-LOK™ for 1” fittings||CGA 440, CGA 540|
|9464RL-3||REGO-LOK™ for 1⅛” hex CGA 580RL fitting by Rego||CGA 580|
|CGA580RL||⅜” MNPTxCGA for use with 9464RL-3||CGA 580|
