Wodoodporny Regulator solarny Voyager 10A PWM Renogy UK Nowa Edycja

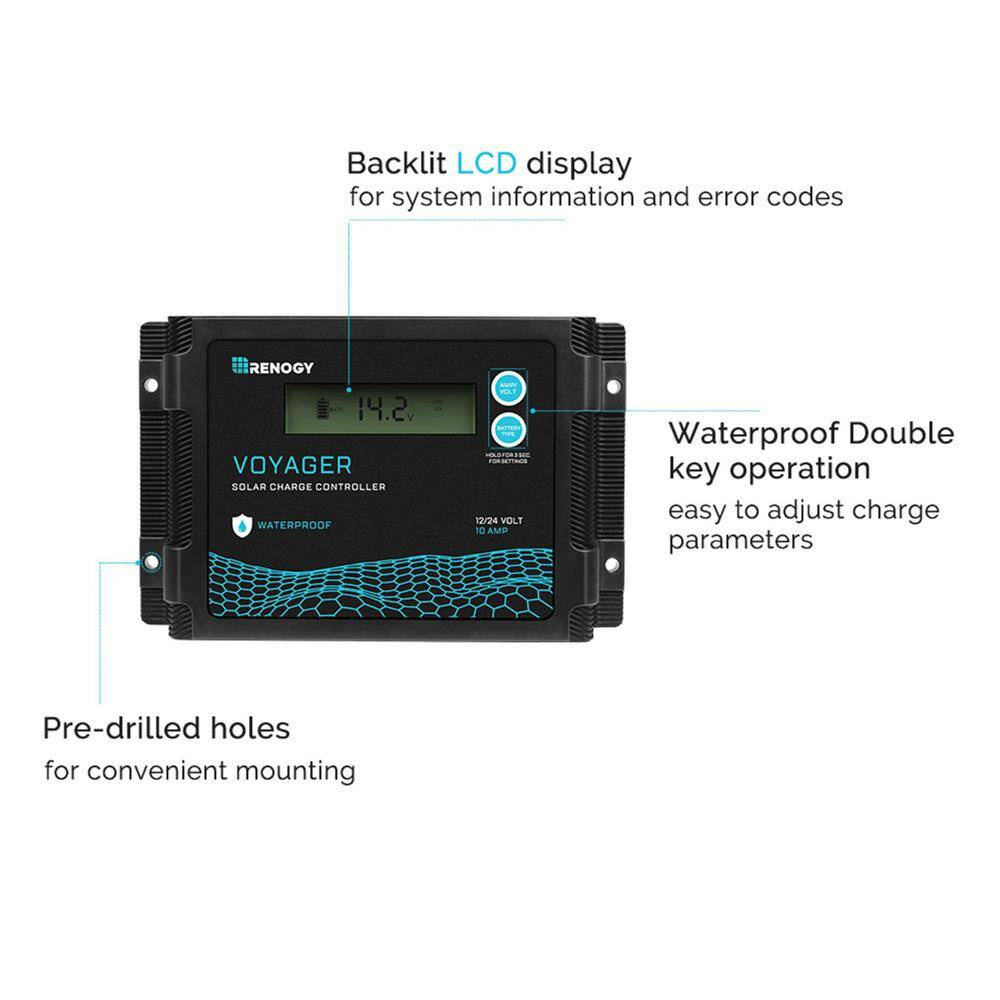

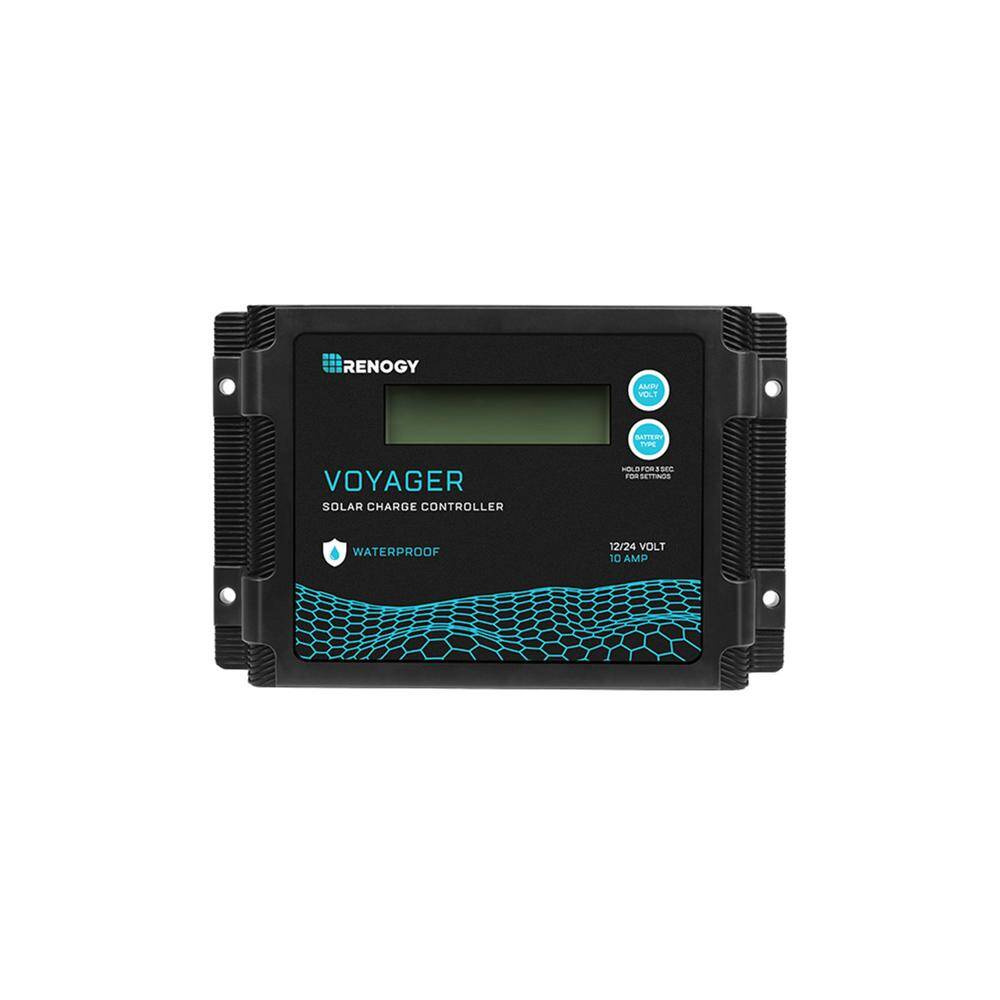

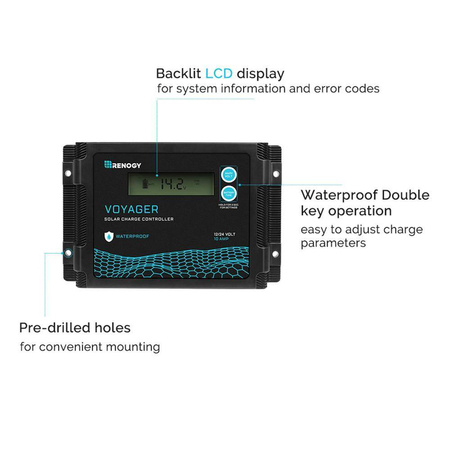

Voyager 10A PWM Waterproof Solar Charge Controller

The Voyager 10A PWM Waterproof Solar Charge Controller is a class leading 10-amp charge controller with an IP67 rating. Itis perfect for outdoor use, and can withstand water spray, rain, and condensation. Equipped with advanced PWM technology,it supports both 12V and 24V off-grid applications, and is compatible with 4 different battery types, including Lithium IronPhosphate. The Voyager 10A also ensures your system's longevity with solar panel, battery, and controller protections.

Specifications

• Nominal System Voltage: 12V/24V Auto-Detect
• Rated Charge Current: 10A
• PV Input Voltage Range：15V-55V
• Max. PV Open Circuit Voltage：12V@25V 24V@55V
• Max. PV Input Power：12V @ 130W / 24V@260W
• Max Battery Voltage：32V
• Power Consumption：12V @ 0.22W / 24V@0.72W
• Battery Types：SLD/AGM, GEL, FLD, LI
• Ground Type：Positive
• Electrical Protection：Battery/Controller over-temperature protection,PV/Battery reverse polarity, Over-voltage, Over-current protection
• Communication Port：N/A
• Protection Level：IP67
• Operating / Storage Humidity：10%-90%, No Condensation
• Operating Temperature Range： -31°F - 113°F / -35°C - 45°C
• Storage Temperature Range： -31°F - 167°F /-35°F - 75°C
• Temperature Compensation：-3mV / C / 2V excludes LI
• Dimensions：6.08*3.83*1.40 in / 152 * 95 * 40 * mm
• Controller Terminals：20 - 6 AWG, 2-pin terminals
• Weight：0.55Ibs / 0.2kg
• Max. Cable Size：6 AWG
• Material and workmanship warranty: 2-year
