Wodoodporny Regulator solarny Voyager 20A PWM Nowa Edycja Renogy UK

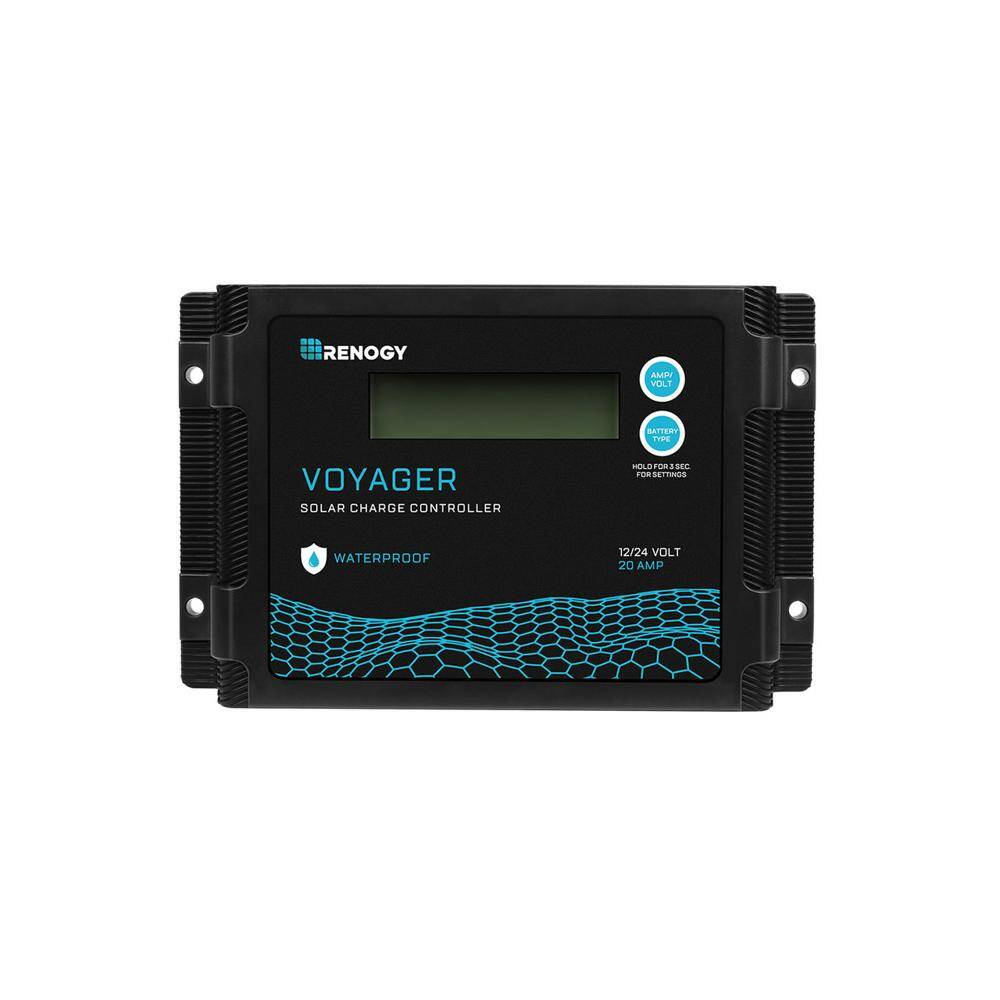

New Edition Voyager 20A PWM Waterproof Solar Charge Controller

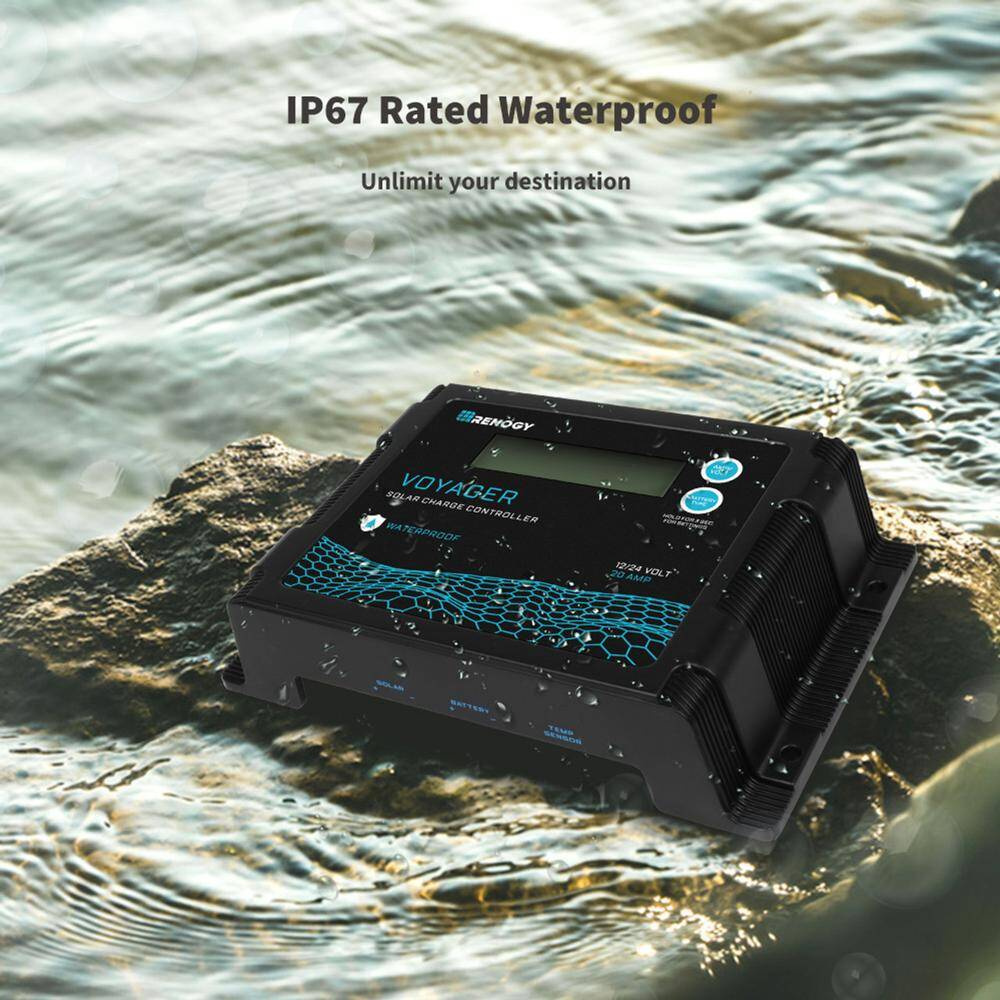

The New Edition Voyager 20A PWM Waterproof Solar Charge Controller is a class leading 20-amp charge controller with an IP67rating. It is perfect for outdoor use, and can withstand water spray, rain, and condensation. Equipped with advanced PWM technology,it supports both 12V and 24V off-grid applications, and is compatible with 4 different battery types, including Lithium IronPhosphate. The Voyager 20A also ensures your system's longevity with solar panel, battery, and controller protections. Note:Please set the voltage manually to charge lithium batteries.

Specifications

• Nominal System Voltage: 12/24V Auto-Detection (For Non-Lithium Batteries)
• Rated Charge Current: 20A
• PV Input Voltage Range: 15V-55V
• Max. Pv Open Circuit Voltage: 12V@25V 24V@55V
• Max. PV Input Power: 12V @ 260W / 24V@520W
• Battery Types: SLD/AGM, GEL, FLD. LI
• Power Consumption: 12V @ 0.24W / 24V@0.74W
• Max Battery Voltage: 32V
• Ground Type: Positive
• Electrical Protection: Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection
• Communication Port: N/A
• Protection Level: IP67
• Operating Temperature Range: -35°C - 45°C
• Storage Temperature Range: -31°F - 167°F / -35°C - 75°F
• Operating / Storage Humidity: 10%-90%, No Condensation
• Temperature Compensation: '-3mV/C/2V excludes LI
• Dimensions: 6.08*3.83*1.40 in / 152**95*40 mm
• Weight: 0.55Ibs/0.2kg
• Max. Cable Size: 6 AWG
• Controller Terminals: 20 - 6 AWG, 2-pin terminals
• OPTIONAL ACCESSORIES
• Temperature Sensor RTSVOY-US: 22AWG 10FT
