Carbest Wall Mount L 49396 TV wall bracket - with arm, aluminium, silver, VESA 75/100, 13-30 inch screens, up to 15 kg
ID produktu: 59972
- TV wall bracket with arm Carbest Wall Mount L (49396) in silver aluminium, 116 x 152 mm, depth 81-390 mm, 1 kg. VESA 75/100, 13-30 inch screens, up to 15 kg, 15 degree swivel and tilt.
The Carbest Wall Mount L (item number 49396) is a wall bracket with arm in silver aluminium for TVs and monitors from 13 to 30 inches with VESA 75 or 100 holes. It measures 116 x 152 mm, depth 81-390 mm, weighs 1 kg and carries up to 15 kg.
Design
- monitor plate with VESA 75 x 75 and 100 x 100 mm holes
- wall plate with cone-shaped bushing
- arm that lets you turn the TV in any direction, e.g. from the dinette towards the sleeping area
- depth 81-390 mm, depending on the arm position
- aluminium, silver
- dimensions 116 x 152 mm, depth 81-390 mm, weight 1 kg

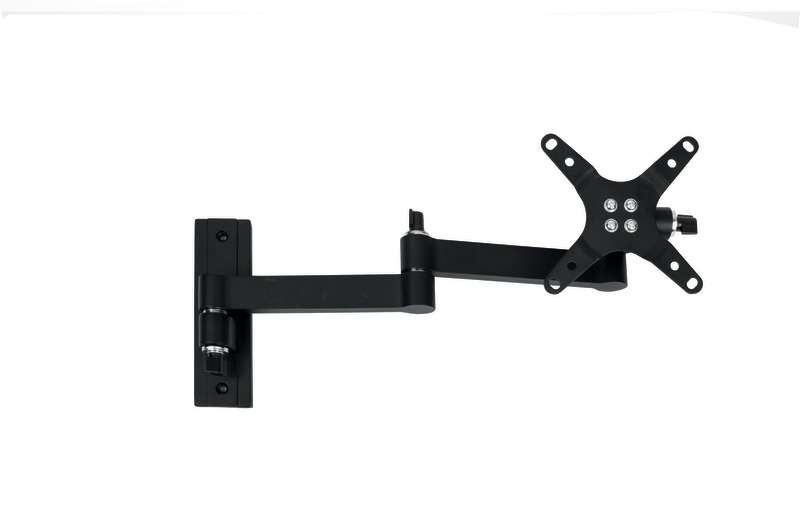

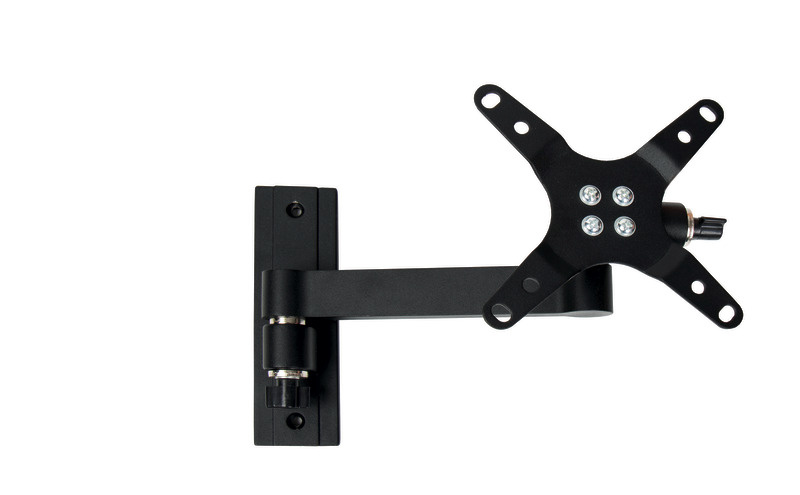

- The photo shows size L in black (493982), the silver version has the same design.
Adjustment and lock
- swivel and tilt of the screen up to 15 degrees in either direction
- knurled screws for quick fixing of the position
- the lock secures the TV while driving against damage and rattling
Mounting
- the monitor plate is bolted to the back of the TV with M4x10 bolts
- the wall plate is fixed to a vertical wall, the supplied screws are for wooden studs
- tools needed: drill with 5 mm bit and Phillips screwdriver
Included
- monitor plate
- wall plate
- 4 M4x10 bolts, 2 lag bolts
- knob and cap
Size S, silver (493962)
- Wall Mount S without arm, 114 x 114 x 98 mm, 0.6 kg - available as a separate item in our shop
Size S, black (493980)
- Wall Mount S without arm, 114 x 114 x 98 mm, 0.6 kg - available as a separate item in our shop
Size M, silver (493961)
- Wall Mount M with arm, 116 x 152 mm, depth 81-235 mm, 0.8 kg - available as a separate item in our shop
Size M, black (493981)
- Wall Mount M with arm, 116 x 152 mm, depth 81-235 mm, 0.8 kg - available as a separate item in our shop
Other Carbest bracket sizes and colours
- Carbest Wall Mount S, silver (493962)
- Carbest Wall Mount S, black (493980)
- Carbest Wall Mount M with arm, silver (493961)
- Carbest Wall Mount M with arm, black (493981)
- Carbest Wall Mount L with arm, black (493982)
- Carbest Simon Luxus TV bracket with double arm, silver
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Carbest |
| Model | Wall Mount L |
| Item number | 49396 |
| Size | L |
| Colour | silver |
| Material | aluminium |
| Width | 116 mm |
| Height | 152 mm |
| Depth | 81-390 mm |
| Arm | yes, swivelling |
| VESA mounting | 75 x 75 and 100 x 100 mm |
| Screen size | 13-30 inch |
| Load capacity | 15 kg |
| Adjustment | swivel and tilt up to 15 degrees |
| Net weight | 1 kg |
| Included | monitor plate, wall plate, 4 M4x10 bolts, 2 lag bolts, knob, cap |
Questions and answers
Which TVs does it fit?
Screens from 13 to 30 inches with VESA 75 x 75 or 100 x 100 mm holes, weighing up to 15 kg.
Does it have an arm?
Yes. The arm lets you turn the TV in different directions, the bracket depth is 81-390 mm. Size S has no arm, size M has a shorter arm.
Can the TV be secured while driving?
Yes, the bracket has a lock that prevents damage and rattling.
Manufacturer
Carbest.
ID produktu
59972
Brand
Width
11.6 cm
Depth
81-390 mm
Height
15.2 cm
Load capacity
15 kg
Net weight
1000 g
Material
Aluminum
Color
Silver
