Carbest Wall Mount S 493962 TV wall bracket - aluminium, silver, VESA 75/100, 13-30 inch screens, up to 15 kg

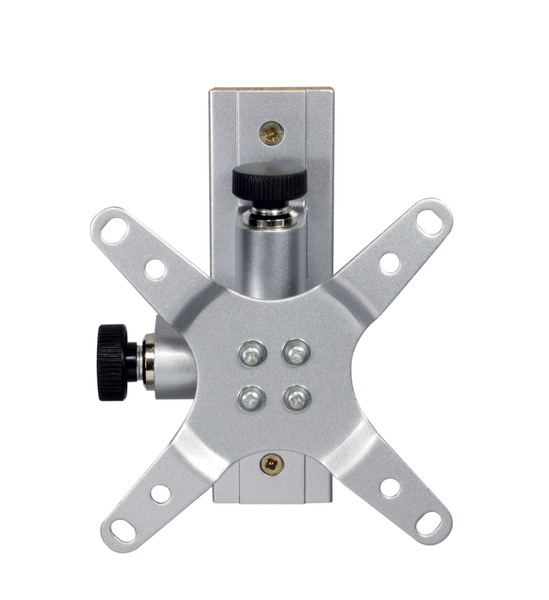

The Carbest Wall Mount S (item number 493962) is a compact silver aluminium wall bracket for TVs and monitors from 13 to 30 inches with VESA 75 or 100 holes. It measures 114 x 114 x 98 mm, weighs 0.6 kg and carries up to 15 kg.

Design

• monitor plate with VESA 75 x 75 and 100 x 100 mm holes
• wall plate with cone-shaped bushing
• aluminium, silver
• dimensions 114 x 114 x 98 mm (W x H x D), weight 0.6 kg

Adjustment and lock

• swivel and tilt of the screen up to 15 degrees in either direction
• knurled screws for quick fixing of the position
• the lock secures the TV while driving against damage and rattling

Mounting

• the monitor plate is bolted to the back of the TV with M4x10 bolts
• the wall plate is fixed to a vertical wall, the supplied screws are for wooden studs
• tools needed: drill with 5 mm bit and Phillips screwdriver

Included

• monitor plate
• wall plate
• 4 M4x10 bolts, 2 lag bolts
• knob and cap

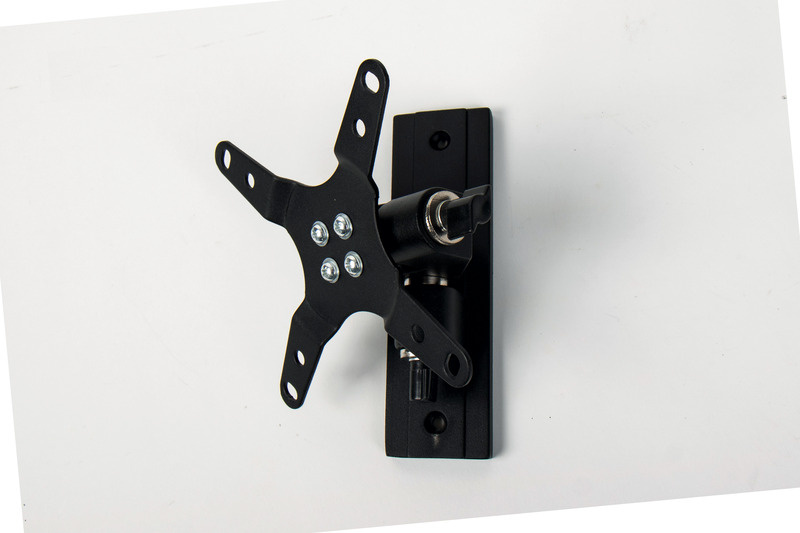

Black version

• the same size S bracket is available in black (493980)

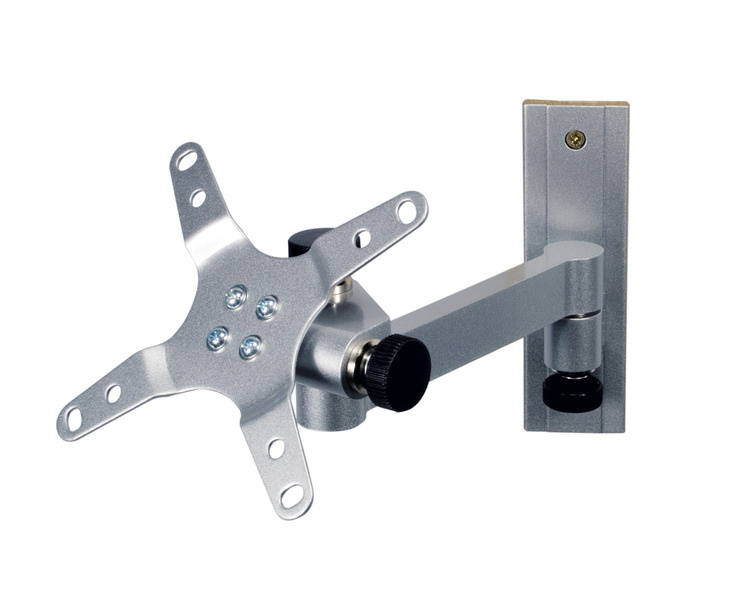

Size M with arm

• Wall Mount M has an arm and a depth of 81-235 mm, silver version 493961

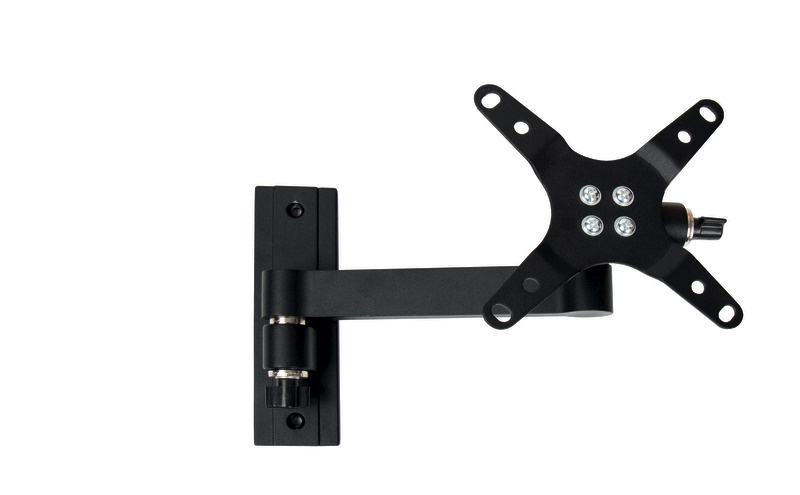

Size M in black

• Wall Mount M black: 493981

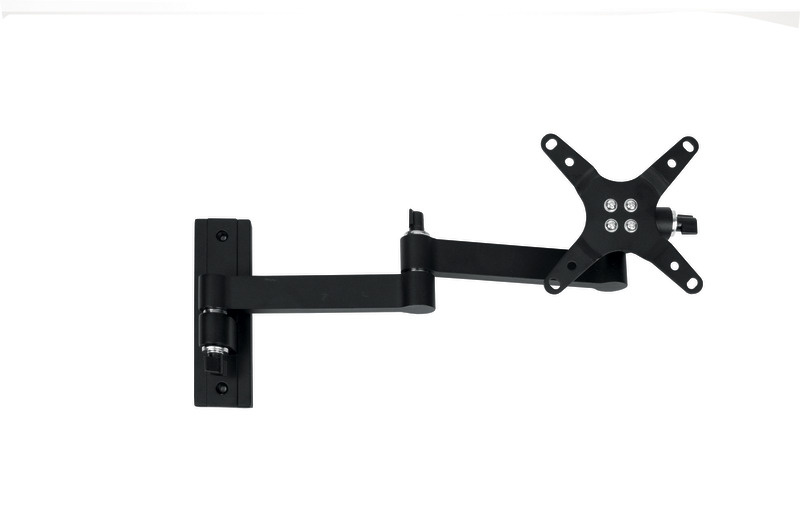

Size L with longer arm

• Wall Mount L has a depth of 81-390 mm, silver 49396 and black 493982
