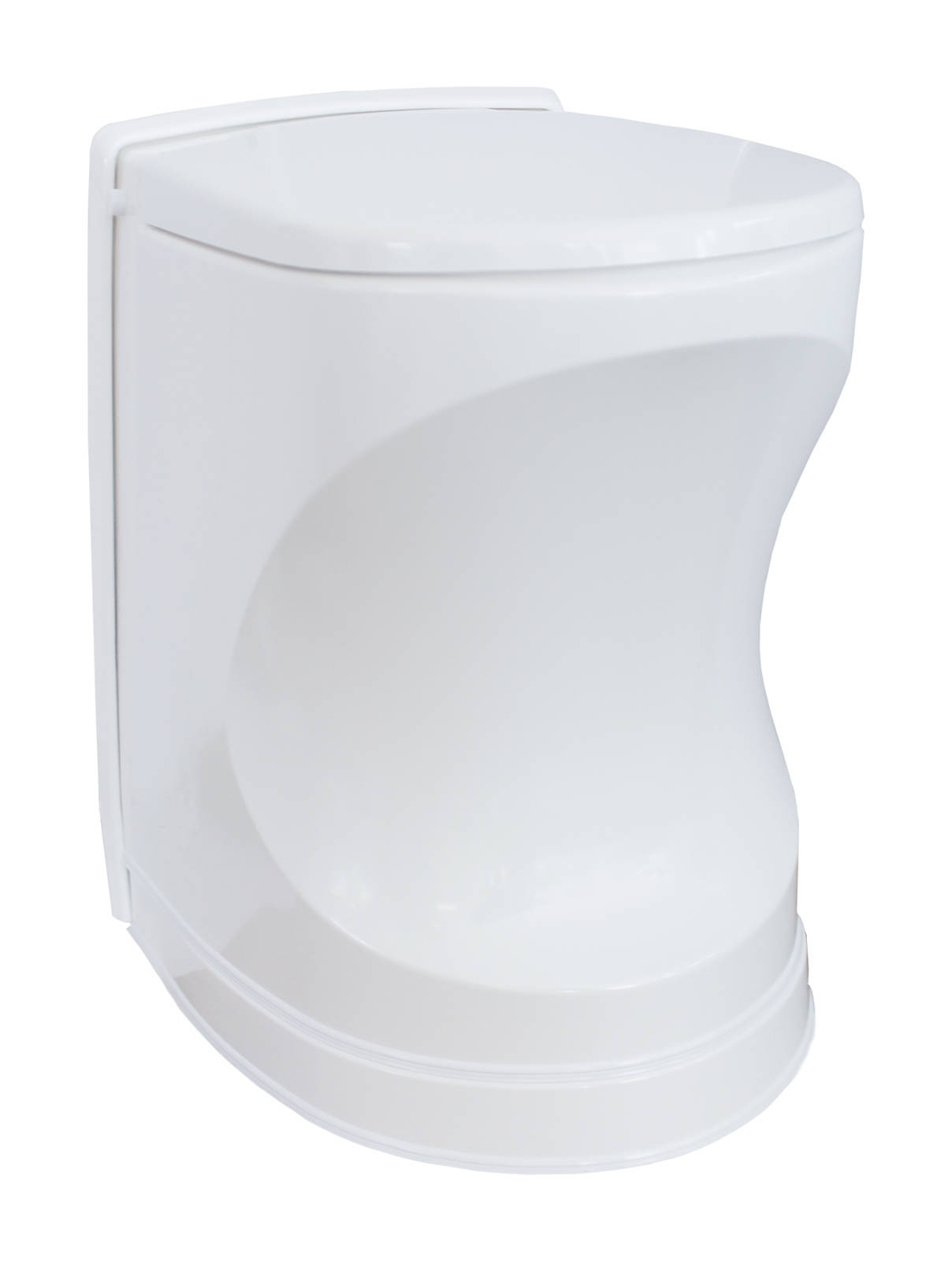

Cinderella Travel Diesel incineration toilet - waterless, runs on diesel from the vehicle tank, 12 V, for motorhomes and boats

No water, chemicals or tanks

• needs no water, holding tank or cassette to empty
• the only residue is a small amount of ash
• the ash is clean and free of bacteria and pathogens - it can normally go with household waste; check the local rules
• a catalytic converter prevents unpleasant odours

How it works

• place a new bowl liner in the bowl before every visit
• close the lid and press start - the liner and its contents drop into the incineration chamber
• liquid evaporates and the rest is burnt to ash; fumes leave through the exhaust pipe on the roof
• the burner ignites after approx. 3 minutes, the fan keeps running 1-1.5 h after incineration
• capacity up to 4 visits per hour; the vehicle can be driven while incinerating

Power and fuel

• automotive quality diesel or HVO100, supplied from the tank by a 12 V pump
• 100-250 ml of diesel per incineration, depending on usage pattern
• supply voltage 11-14.4 V DC, 1.5 A during incineration, 15 A peak, 0.005 A standby
• maximum altitude while incinerating 1500 m

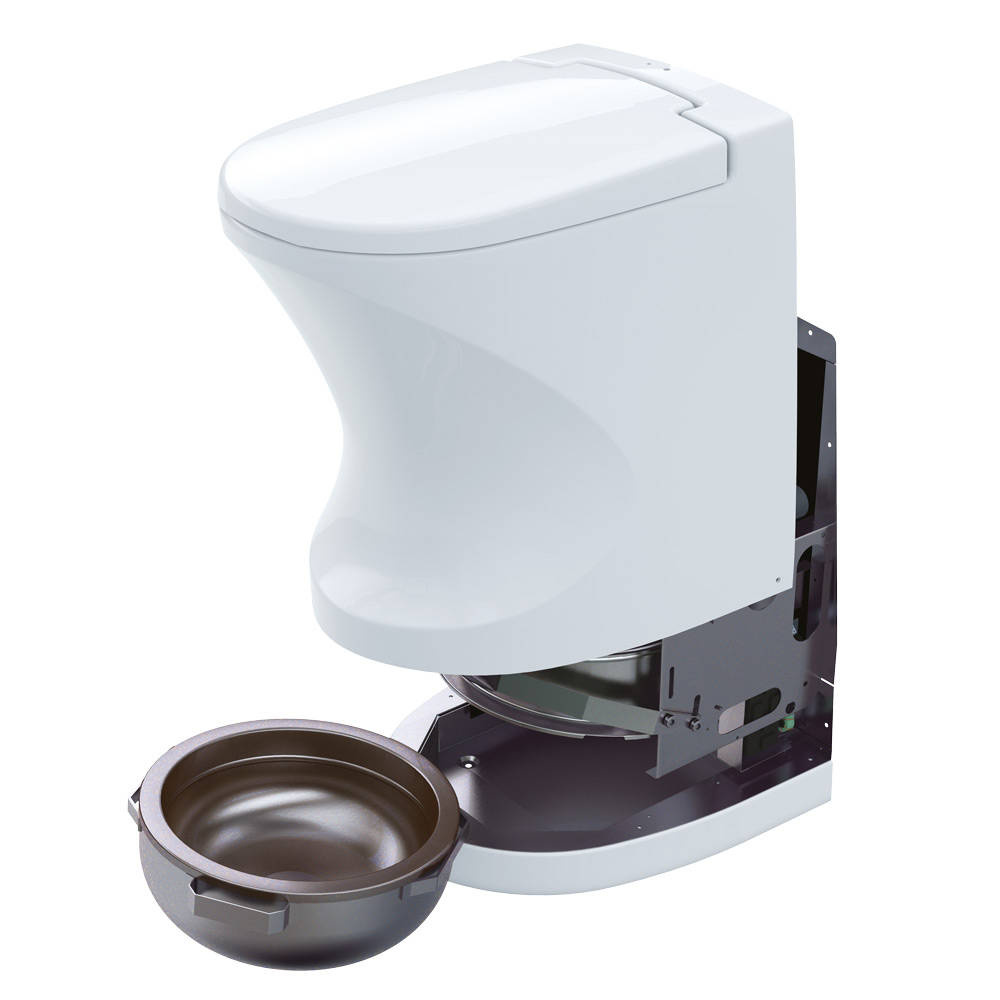

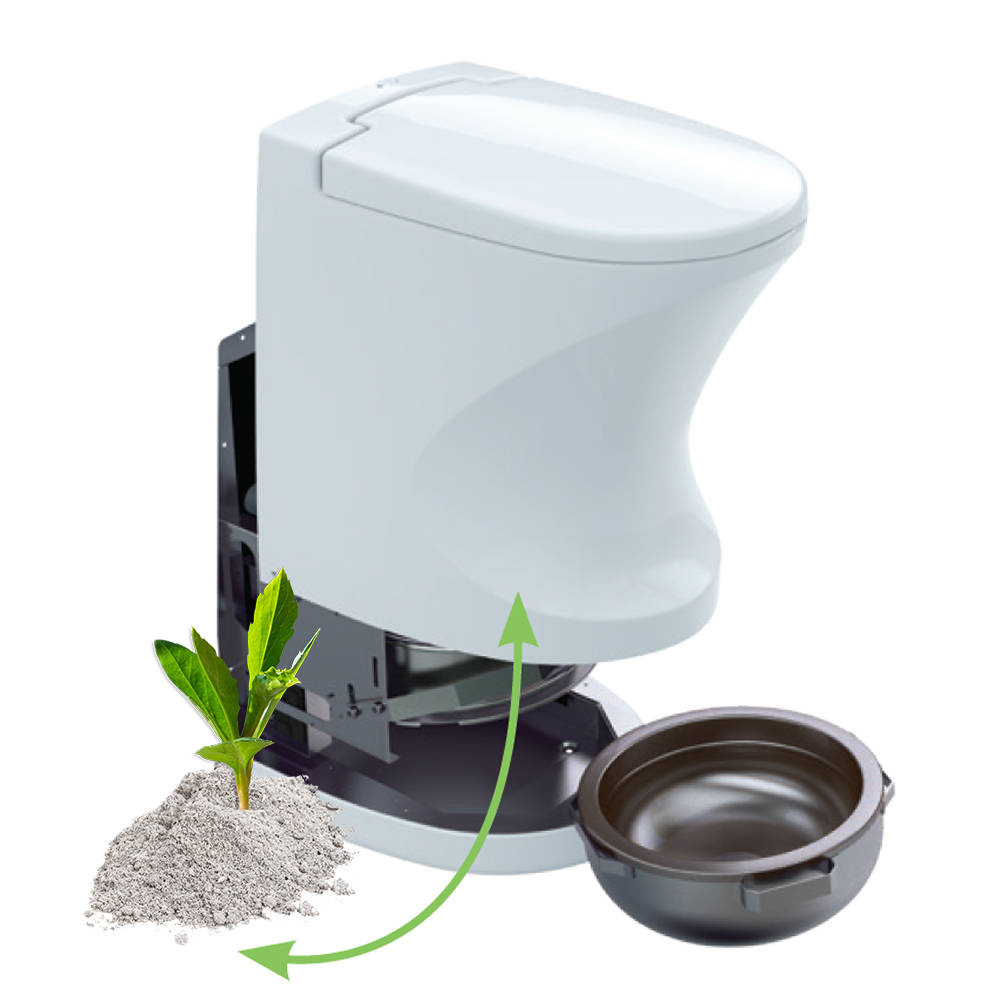

Emptying the ash

• empty the ash container once a week or when the panel signals, after approx. 70 incinerations

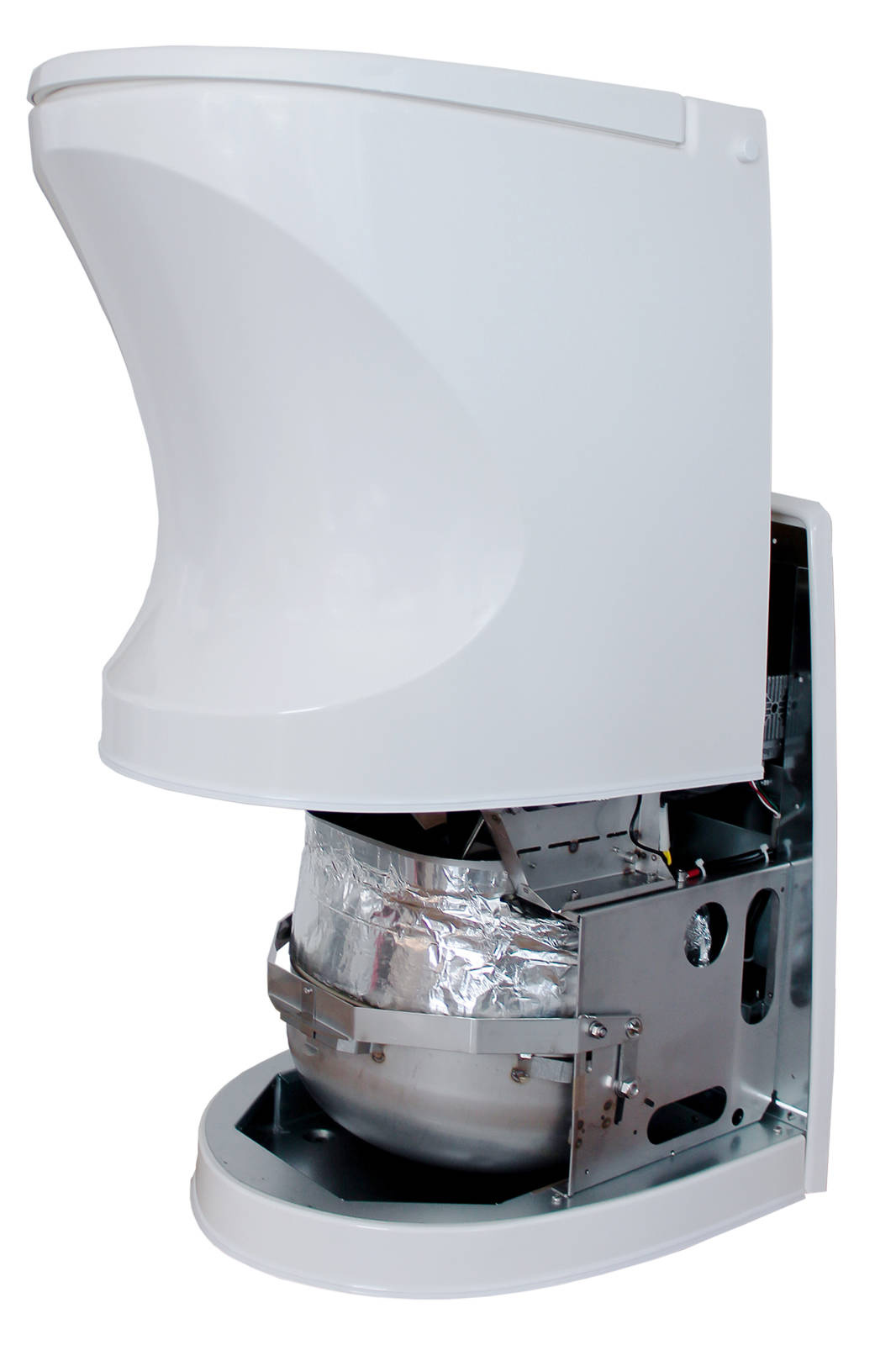

• once the toilet has cooled, the shell moves forward and up into the service position
• incineration is disabled if the ash container is not in place
• a winter extension for the chimney keeps snow away from the exhaust

Installation

• the 100 mm build-in module goes into the wall, the toilet is fixed to the floor at 4 points
• at least 40 cm free space in front of the toilet and 5 cm on each side
• exhaust: 60 mm hose, max. 250 cm, roof flange for an 83 mm hole
• air inlet: 75 mm hose, max. 120 cm, grille with at least 50 cm² opening
• the 4 mm fuel line connects to a spare tank outlet or the return line, never the engine supply line - in cooperation with the vehicle manufacturer
• professional installation is recommended; the installation hoses come in the separate Cinderella Travel installation kit

Box contents

• Cinderella Travel Diesel incineration toilet
• roof feed-through flange
• docking frame
• chimney top
• winter extension
• control panel with display
• 100 bowl liners
• 6 stainless steel screws
• air inlet cassette
• fuel pump
• nylon fuel hose

Do I need a gas bottle or mains power?

No. The burner runs on diesel from the tank and the electronics on 12 V.

Are the installation hoses included?

No. The exhaust and air inlet hoses come in the separate Cinderella Travel installation kit - see the link in the Installation section.

How often is the ash emptied?

About once a week or when the panel signals, after approx. 70 incinerations.

Can I drive while it is incinerating?

Yes, according to the manufacturer the vehicle can be driven during incineration.
