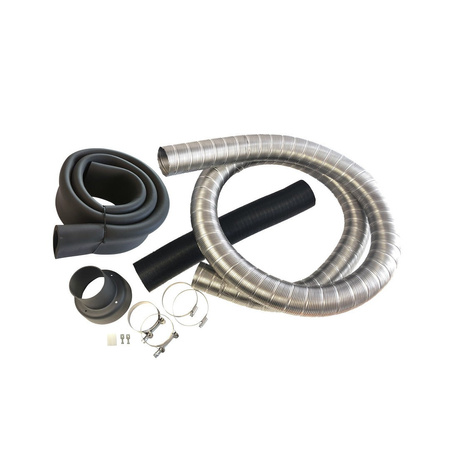

Cinderella Travel installation kit 100695 - 60 mm insulated exhaust hose, 75 mm air inlet hose, clamps, for Travel Gas and Diesel

The Cinderella Travel installation kit (manufacturer code 100695) is the original set of hoses, insulation and fittings for connecting the Cinderella Travel incineration toilet to the roof exhaust and the floor air inlet. The toilets are delivered without these hoses, so the kit is needed for every installation.

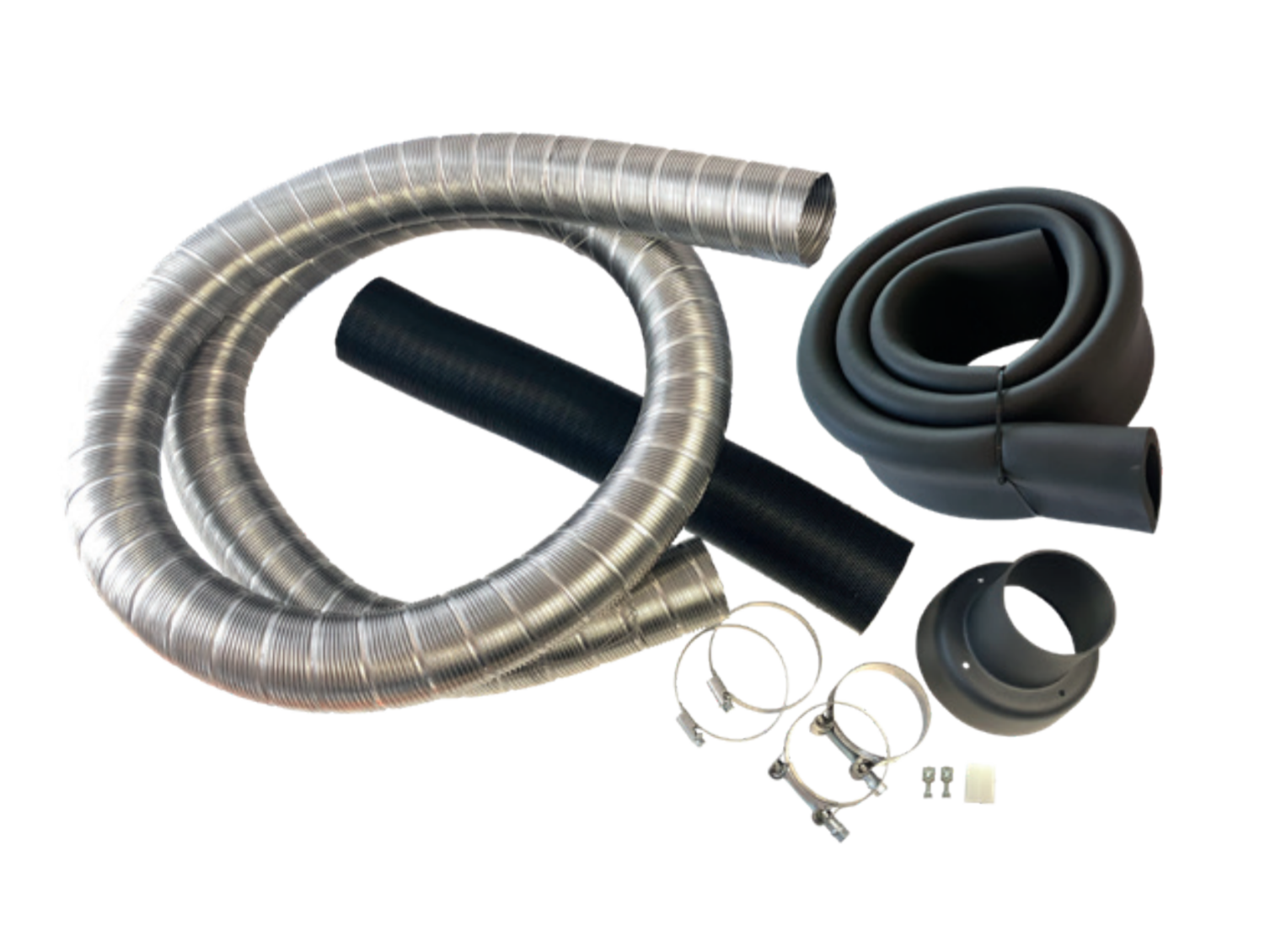

Kit contents

• inlet flange (100985)
• inlet hose (100986)
• exhaust hose (100561)
• exhaust hose insulation (101608)
• power cable connector (100422 + 100423)
• inlet air hose clamp (100253)
• exhaust hose clamp (100394)
• polarity marking for the connector

Which toilets it fits

• Cinderella Travel Gas - propane-butane incineration toilet
• Cinderella Travel Diesel - diesel incineration toilet
• the installation guides of both models list the same kit with the same part numbers

Manufacturer's installation notes

• exhaust hose with 60 mm inner diameter, 13 mm insulation - approx. 102 mm outer diameter
• exhaust hose max. 250 cm; horizontal stretches max. 60 cm, gentle bends, no negative fall and no sharp 90° bends
• do not squeeze the insulation; seal both ends with sealant paste and secure with the clamps
• inlet air hose 75 mm, max. 120 cm, 83 mm hole in the floor
• the roof feed-through flange and chimney top come with the toilet, not in this kit

Technical data

Manufacturer

Cinderella Eco Sales AS, Sjøvikvegen 67, 6475 Midsund, Norway. The toilet is made in Norway.
