GasBank set of 3 M10 LPG filling adapters GB006 - ACME, BAYONET, EUROCONNECTOR for all of Europe
- GasBank GB006 set: three LPG filling adapters with M10 thread - ACME, BAYONET and EUROCONNECTOR. For M10 filling points, e.g. DISH M10. Together with DISH you can fill at LPG stations all over Europe. Brass, seals.

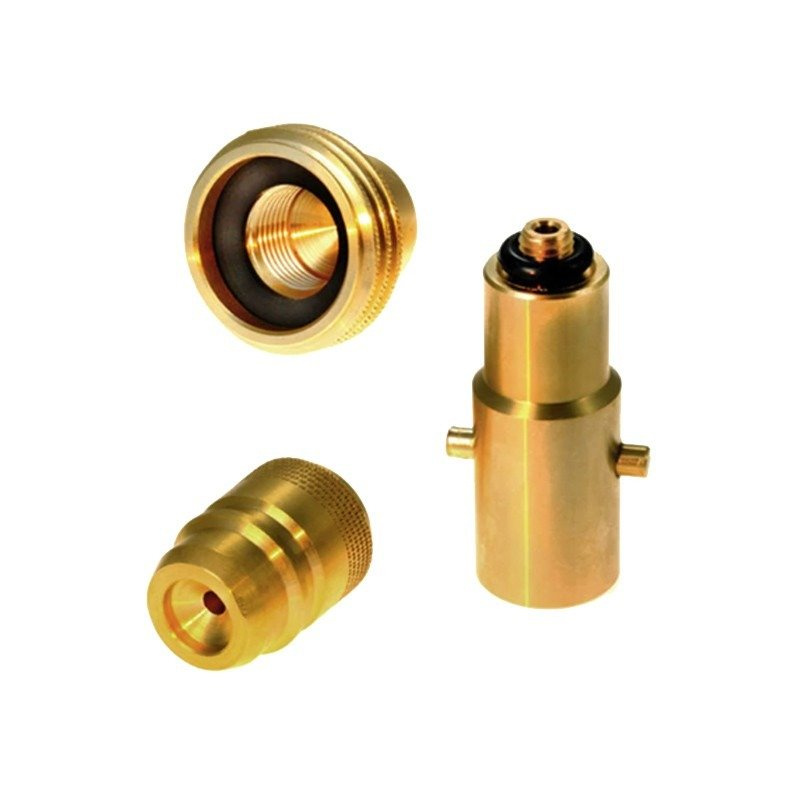

GasBank GB006 is a set of three LPG filling adapters with an M10 thread: ACME GB501, BAYONET GB502 and EUROCONNECTOR GB503. Screw the right one into an M10 filling point - for example a GasBank DISH M10 remote filler in a motorhome or caravan - and fill autogas at stations whose nozzles use a coupling other than DISH. Together with a DISH filling point, the set covers all four coupling standards found at LPG stations in Europe.
What is in the set

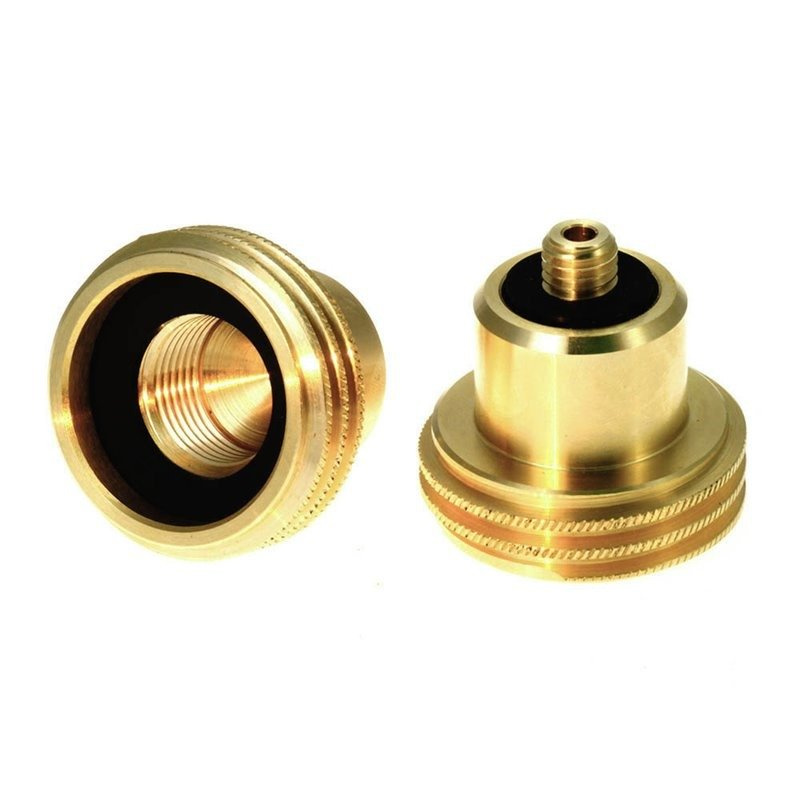

- ACME GB501 - ACME coupling, mainly Germany, Belgium, Ireland, Luxembourg

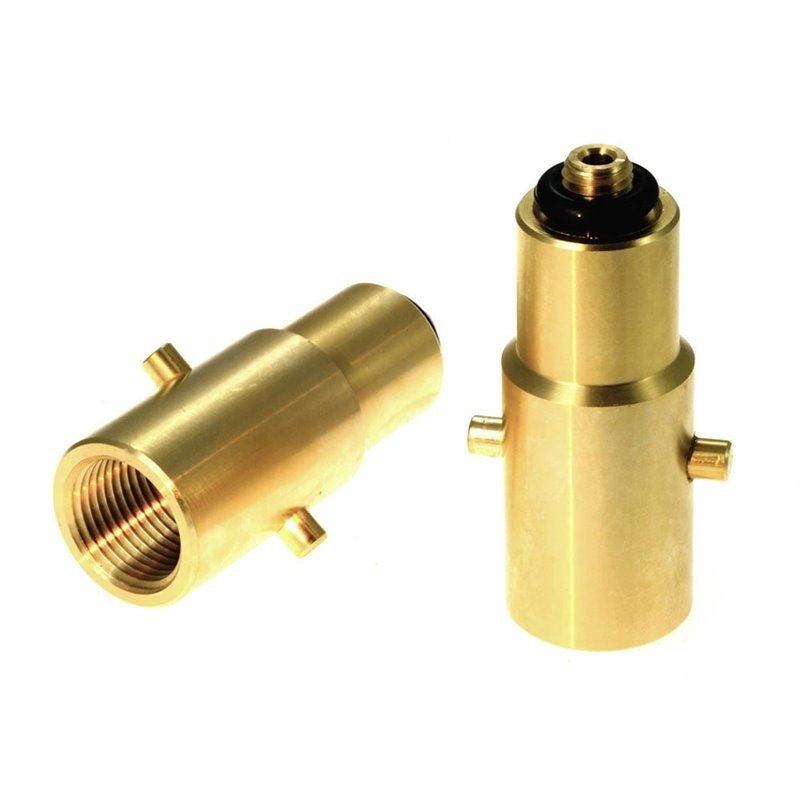

- BAYONET GB502 - bayonet coupling, mainly United Kingdom, Netherlands, Norway

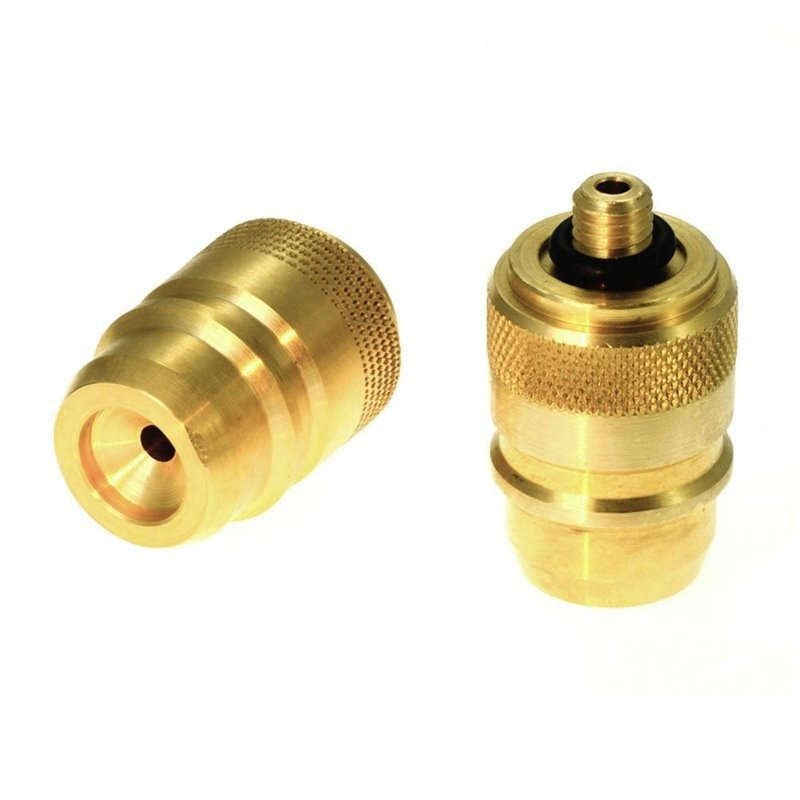

- EUROCONNECTOR GB503 - EUROCONNECTOR coupling, mainly Spain and Portugal
- each adapter has an M10 (M10x1.5) thread on the filling point side and a seal at the thread
Which adapter in which country
- ACME: Germany, Belgium, Ireland, Luxembourg, Liechtenstein, Austria and Switzerland (alongside DISH); outside Europe e.g. USA, Canada, Australia, Chile
- BAYONET: United Kingdom, Netherlands, Norway and Denmark (alongside DISH), Spain (alongside EURO); outside Europe New Zealand
- EUROCONNECTOR: Spain, Portugal (alongside DISH)
- DISH - no adapter needed: e.g. Poland, France, Italy, Czech Republic, Slovakia, Hungary, Croatia, Greece, Sweden
The map shows which couplings you will find at European stations. Some countries use more than one coupling, so it is worth carrying the whole set when travelling.
How to recognise the coupling at the station
- ACME - threaded coupling; the station nozzle is screwed onto the adapter and locked with its lever
- BAYONET - bayonet coupling; the nozzle is pushed onto the adapter and locked with a twist
- EUROCONNECTOR - a European standard from the early 2000s; the nozzle clicks on in one movement and very little gas escapes when disconnecting
- DISH - the nozzle is pressed directly onto the DISH filling point, no adapter needed
How to fill with the adapter
- switch off the engine and follow the station instructions
- choose the adapter that matches the station nozzle
- remove the filler cap and screw the adapter into the M10 thread so that the seal sits evenly
- connect the station nozzle to the adapter and fill according to the station rules
- after filling, disconnect the nozzle, unscrew the adapter and refit the filler cap - a small amount of gas may escape when unscrewing
- keep the adapters in a case so that the threads and seals stay clean
Safety and regulations
- the adapters are intended for LPG (autogas)
- only fill tanks and cylinders designed for filling at a station, following their instructions
- rules on filling cylinders at stations differ between countries - check the rules of your destination before travelling
- before each use check that the seal is in place and undamaged
- do not fill if you smell gas or the connection leaks
Matching GasBank products
- ACME M10 filling adapter (GB501) - single
- BAYONET M10 filling adapter (GB502) - single
- EUROCONNECTOR M10 filling adapter (GB503) - single
- DISH M10 filling adapter (GB500)
- DISH M10 universal filling adapter (GB500L)
- DISH to M10 adapter with filter
- Adapter case with 3 compartments
- Pouch for 1 DIN or 3 M10 adapters
- Service hose for an M10 filling point
- ACME adapter with W21.8 thread
- BAYONET adapter with W21.8 thread
- EUROCONNECTOR adapter with W21.8 thread
- ACME adapter, DIN version
- BAYONET adapter, DIN version
- EUROCONNECTOR adapter, DIN version
Technical data
| Parameter | Value |
|---|---|
| Brand | GasBank |
| Product code | GB006 |
| Set contents | 3 adapters: ACME GB501, BAYONET GB502, EUROCONNECTOR GB503 |
| Couplings (station side) | ACME, BAYONET, EUROCONNECTOR |
| Connection (filling point side) | M10 thread (M10x1.5) on each adapter |
| Fits | filling points with M10 thread, e.g. DISH M10 |
| Material | copper alloy (brass) |
| Fuel | LPG (autogas) |
| Coverage | together with a DISH filling point - LPG stations all over Europe |
Questions and answers
Does the set fit my filling point?
Yes, if it has an M10 thread - e.g. a DISH M10 remote filler. For W21.8 or DIN filling points choose the W21.8 or DIN versions of the adapters.
Do I need a DISH adapter?
No, if your filling point is a DISH type - the DISH nozzle connects to it directly. That is why the set has three adapters, not four.
Which adapter do I use in which country?
ACME e.g. in Germany, Belgium, Ireland and Luxembourg, BAYONET e.g. in the United Kingdom, the Netherlands and Norway, EUROCONNECTOR in Spain and Portugal. The map in the description shows the details.
Can I buy the adapters separately?
Yes, each of the three M10 adapters is also available as a single product - see the links in the matching products section.
Manufacturer
GasBank (Carbon Zorro Sp. z o.o.), ul. Humańska 8, 02-789 Warszawa, Poland.
