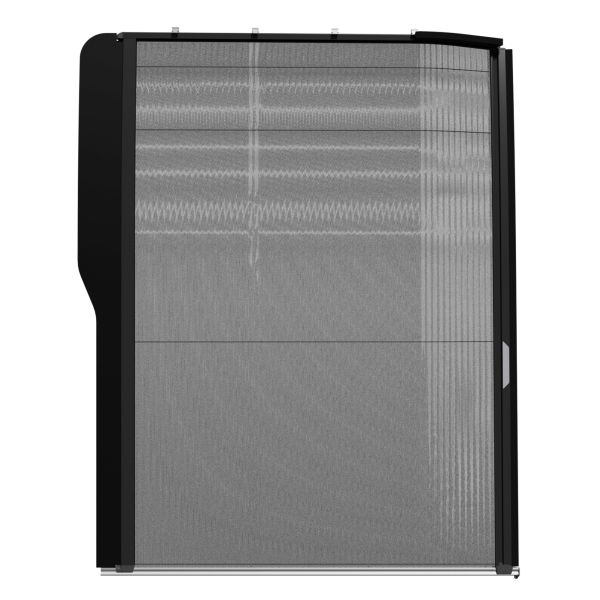

Horrex pleated fly screen door for Ford Transit V363 (7th generation) sliding door, 2014 - 2019, H3 roof
- Horrex pleated fly screen door for the Ford Transit V363 (7th generation) sliding door, 2014 - 2019, H3 roof, left-hand drive version. Fitted with clips and floor screws. Dark grey aluminium profiles, black mesh.
The Horrex pleated fly screen door for the sliding side door of the Ford Transit V363 (7th generation, 2014 - 2019) with H3 roof, left-hand drive version, lets you keep the door open and enjoy the view without mosquitoes and other insects inside. The curved cassette and pull bar take up a minimum of interior space and the screen runs quietly and smoothly. It comes as a semi-assembled kit with mounting parts.
Construction
- top guide profile in extruded aluminium 23.5 x 24.6 mm, powder coated dark grey (approx. RAL 7021)
- pull bar in aluminium 50 x 17 mm, dark grey (approx. RAL 7021)
- bottom guide profile in anodised aluminium 35.5 x 21.5 mm
- black pleated polyester mesh, mesh opening 1.3 x 1.3 mm
- corner pieces and caps in PA6 and PA6.6
Installation
- fixed on the inside: 4 clips under the door rubber at the top, bottom guide screwed to the floor with 4 screws
- included: screws 4 x 3.5 x 16 mm and 4 x 2.9 x 9.5 mm and foam tape for the top guide
- minimum door opening: width 1295 mm (measured at the bottom), height 1671 mm
- required space: 27 mm between door rubber and top cabinet and 20 mm between sliding door and kitchen cabinet
- pull bar resistance adjustable via cord tension

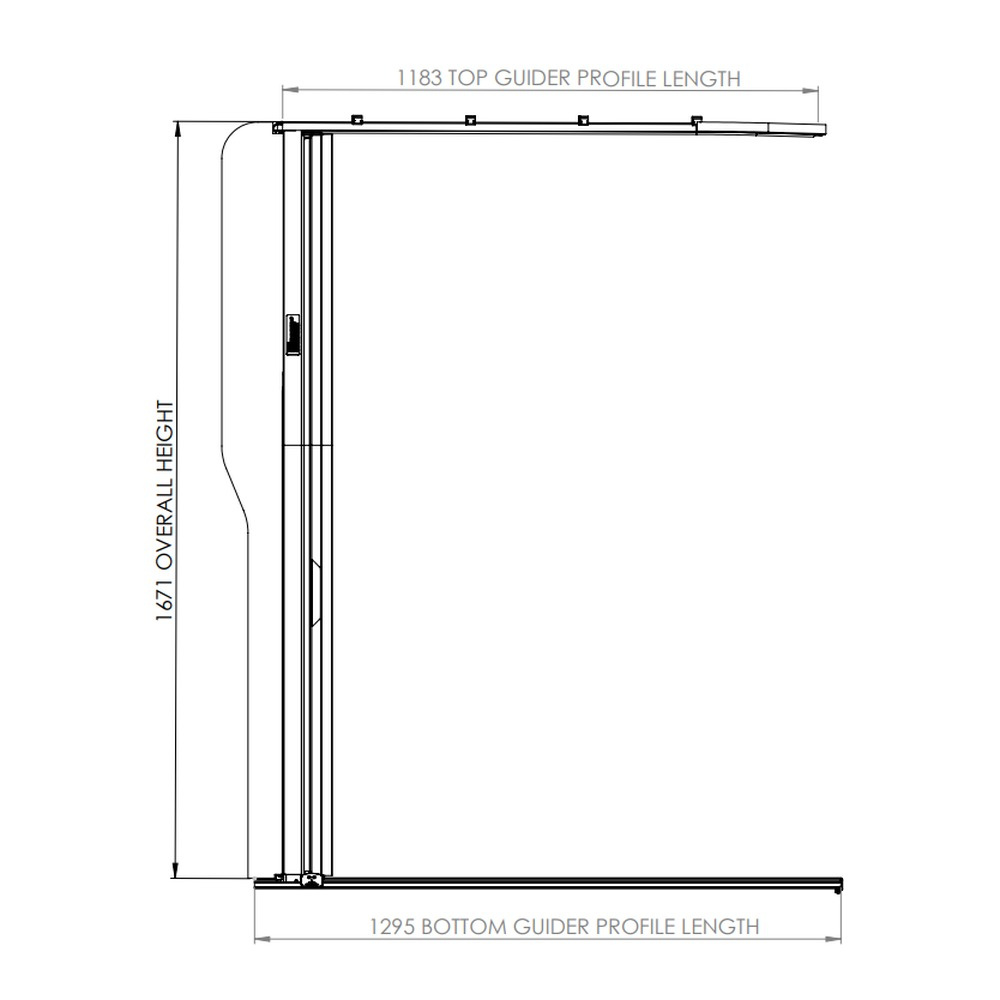

Dimensions
- top guide profile length 1183 mm
- bottom guide profile length 1295 mm
- overall height 1671 mm
- manual step-less adjustment
Use and care
- before closing, make sure the bottom guide is not blocked by objects or cables
- clean with a soft damp cloth and mild detergent, no sharp tools or aggressive chemicals
- spray the rails with PTFE spray from time to time
- children under 5 should only use the screen under adult supervision
The manufacturer graphics may show the optional side panel, which Horrex sells separately. The set includes the items listed in the description.
Horrex fly screen doors for other vehicles
- Horrex fly screen door for VW Crafter 2 and MAN TGE (2017 - 06/2024)
- Horrex fly screen door for Mercedes-Benz Sprinter W907/W910 from 06/2018
- Horrex fly screen door for Mercedes-Benz Sprinter W906 and VW Crafter 1
- Horrex fly screen door for Fiat Ducato, Peugeot Boxer, Citroën Jumper H2/H3
- Horrex fly screen door for Fiat Ducato, Peugeot Boxer, Citroën Jumper H1
- Horrex fly screen door for VW T5/T6
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Horrex (Netherlands) |
| Product | Pleated sliding door fly screen (Van Fly Screen Door) |
| Vehicle | Ford Transit V363 (7th generation) |
| Model years | 2014 - 2019 |
| Roof | H3 |
| Version | left-hand drive vehicles |
| Installation | inside the sliding side door |
| Top guide profile length | 1183 mm |
| Bottom guide profile length | 1295 mm |
| Overall height | 1671 mm |
| Minimum door opening | 1295 x 1671 mm |
| Profiles | aluminium, dark grey (approx. RAL 7021) |
| Mesh | polyester, black, 1.3 x 1.3 mm opening |
| Plastic parts | PA6 / PA6.6 |
| Fixing | 4 clips at the top, 4 screws in the floor |
| Manufacturer warranty | 2 years |
Questions and answers
Which vehicles does it fit?
The sliding side door of the Ford Transit V363, i.e. the 7th generation, 2014 - 2019, with H3 roof. This is the left-hand drive version.
Do I need to drill?
The top profile is held by 4 clips under the door rubber and the bottom guide is screwed to the floor with 4 screws. Screws are included.
Will it fit my conversion?
The door opening must be at least 1295 x 1671 mm and must not be narrowed by strips or panels. The manufacturer also requires 27 mm between door rubber and top cabinet and 20 mm between door and kitchen cabinet.
How do I look after it?
Clean it with a soft damp cloth and mild detergent and spray the rails with PTFE spray from time to time.
Manufacturer
Horrex Horren B.V., Taanderijstraat 19, 3133 ET Vlaardingen, The Netherlands.
