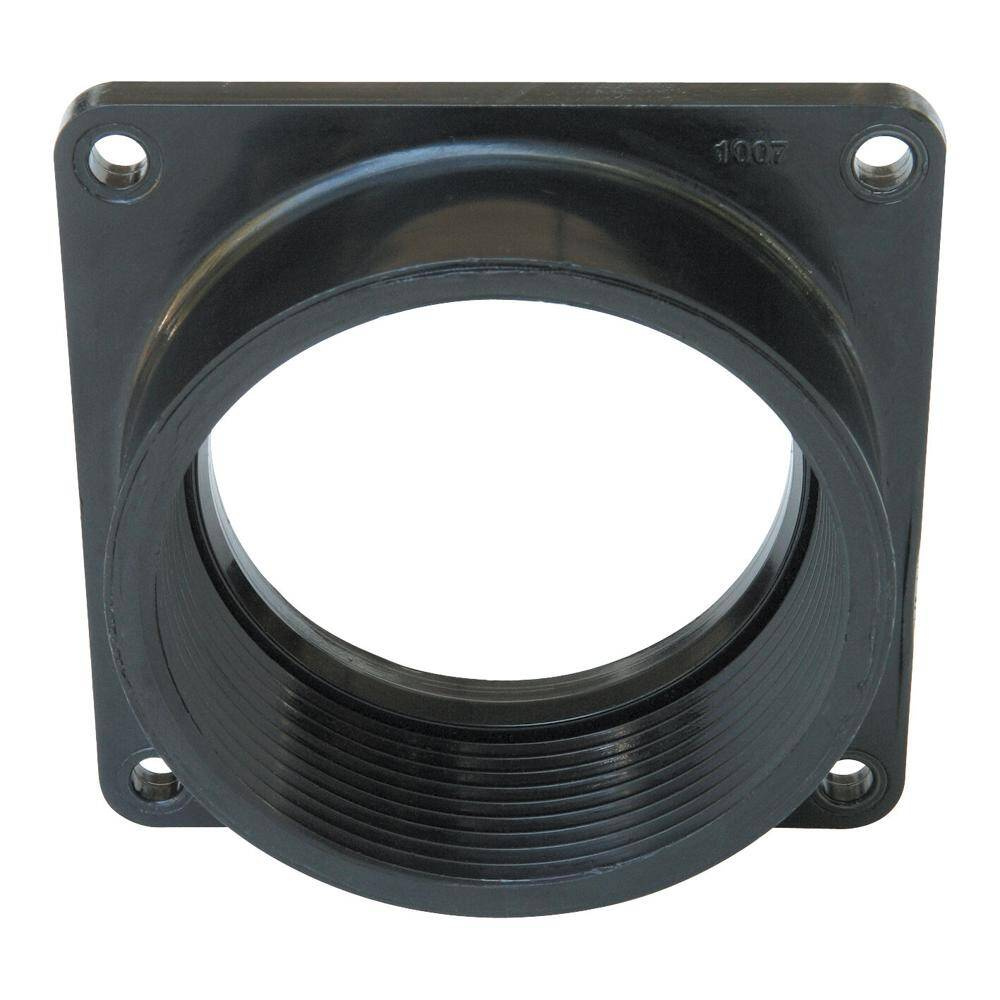

LILIE 3" US bolt-on flange for the tank - unthreaded, for bonding the slide valve, ø 89 mm
- LILIE 3" US flange for grey or black water tanks, unthreaded, for bonding a 3" US slide valve. Outer diameter 89 mm, height 44 mm, ABS plastic.
The LILIE 3" US flange is part of the 3" US standard tank drain system. It is mounted on the tank and the 3" US slide valve is bonded into it - the flange has no thread. According to LILIE it matches the second unthreaded 3" US flange of the same series (inner diameter 89 mm).
Key information
- 3" US standard
- unthreaded, for bonding the slide valve
- outer diameter 89 mm
- height 44 mm
- ABS plastic
- weight 117 g
Before you order
LILIE points out that in Europe dump stations use the 3" (76 mm) standard and that suitable adapters connect it to the US system. Before buying, check that your slide valve and hose are US standard. Before winter, drain the tank and leave the slide valve open or dried so it cannot freeze.
Related products
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | LILIE |
| Standard | 3" US |
| Thread | none, for bonding |
| Outer diameter | 89 mm |
| Height | 44 mm |
| Material | ABS |
| Weight | 117 g |
| LILIE article number | 24740 |
Questions and answers
Does the flange have a thread?
No, the slide valve is bonded into the flange.
Which system does it fit?
The 3" US standard drain system.
What is the diameter?
Outer diameter 89 mm, height 44 mm.
Manufacturer
LILIE GmbH & Co. KG, Heinrich-Hertz-Straße 30, 74354 Besigheim, Germany.
