LILIE ASS heating tape 12 V 70 W, 170 cm - fast defrosting of frozen pipes and valves
- LILIE ASS 12 V 70 W heating tape for defrosting frozen drain pipes and valves. The tape is wrapped around the pipe and the plug with an 8 A fuse goes into a 12 V socket. Defrosting takes 5 to 60 minutes. Length 170 cm.
LILIE ASS (Auftauen Super Schnell, meaning super fast defrosting) is a 12 V heating tape for defrosting frozen drain pipes and valves during winter camping. The 170 x 6 cm tape is wrapped around the frozen pipe or valve and the plug goes into a 12 V socket in the vehicle. Power comes from the on-board supply, so no external energy source is needed. With 70 W the ice melts quickly while the battery load stays relatively low.

Key information
- 12 V on-board supply, 70 W, 5.8 A
- 170 x 6 cm tape for wrapping around a pipe or valve
- 65 cm connection cable included
- universal plug with 8 A fuse for cigarette lighter and 12 V sockets
- defrosting in 5 to a maximum of 60 minutes
- temperature difference 65 °C according to the technical data
What it is for
In frost, the water in the drain pipes and drain valves of a motorhome or caravan freezes first, because these parts often run under the floor, outside the heated living area. A frozen drain blocks grey water draining, and a frozen valve cannot be opened.
LILIE ASS is used to clear such a spot quickly once the ice has formed. The tape is not a permanent frost protection system: it is put on for defrosting, then removed and stored. For permanent frost protection of tanks and pipes, LILIE offers separate systems such as Ultraheat tank heaters and Frostwächter heating elements.
How to use

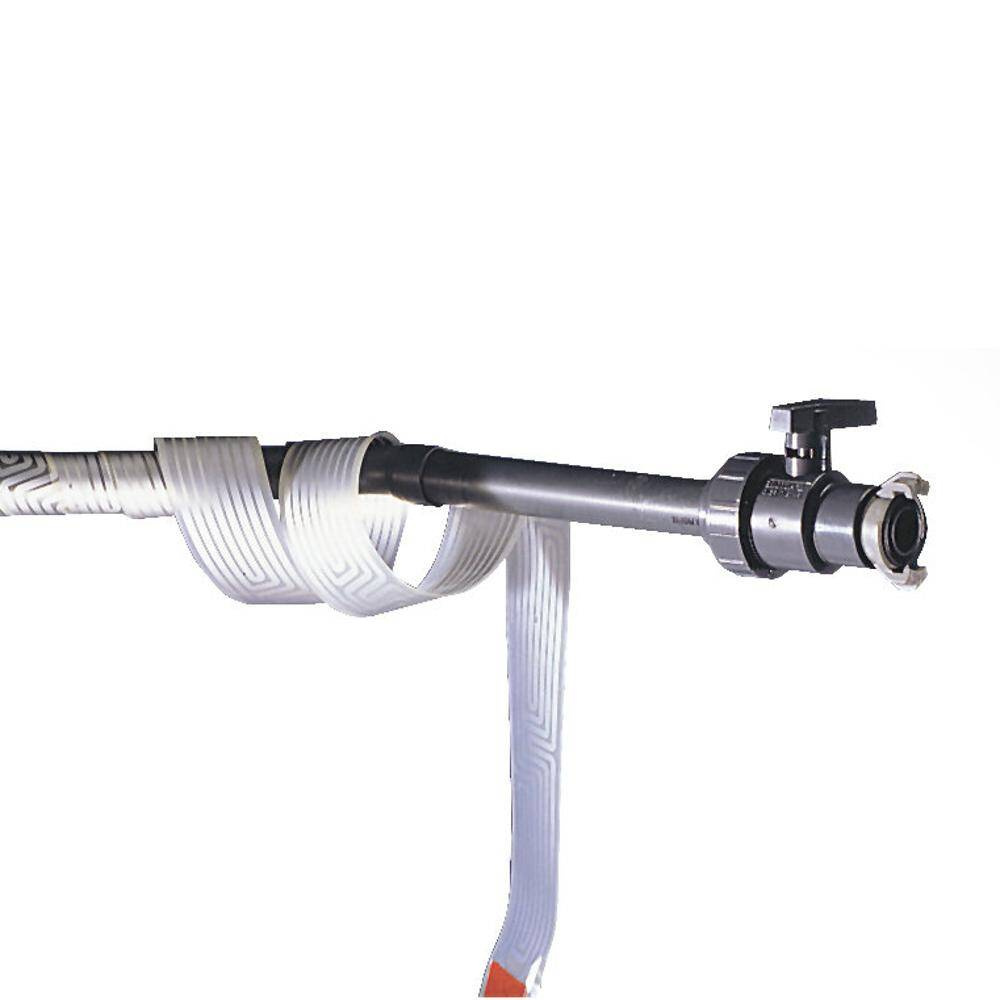

- Wrap the heating tape around the frozen drain pipe or valve.
- If needed, cover the wrapped pipe with pipe insulation foam as used in heating installations. Insulation speeds up defrosting.
- Plug the connector into the cigarette lighter or 12 V socket of the vehicle.
- Wait until the ice in the pipe or valve has melted. Depending on content, temperature and insulation, this takes 5 to a maximum of 60 minutes.
- After defrosting, unplug the connector and remove the tape.

Defrosting time and power consumption
According to LILIE, the defrosting time depends on the length and diameter of the pipe, the amount of ice, the outside temperature and the insulation. It ranges from 5 to a maximum of 60 minutes.
At the nominal current of 5.8 A, half an hour of operation draws about 2.9 Ah from the battery and a full hour about 5.8 Ah. The plug has an 8 A fuse, so the socket in the vehicle must be rated for this load.

Tips
- Extra insulation speeds up defrosting: the pipe wrapped with the tape can be covered with pipe insulation foam from the heating trade.
- The tape is 170 cm long and 6 cm wide, so it can cover a longer pipe section or the body of a valve.
- The connection cable is 65 cm long. Before use, check that a 12 V socket is within reach of the frozen spot.
Scope of delivery

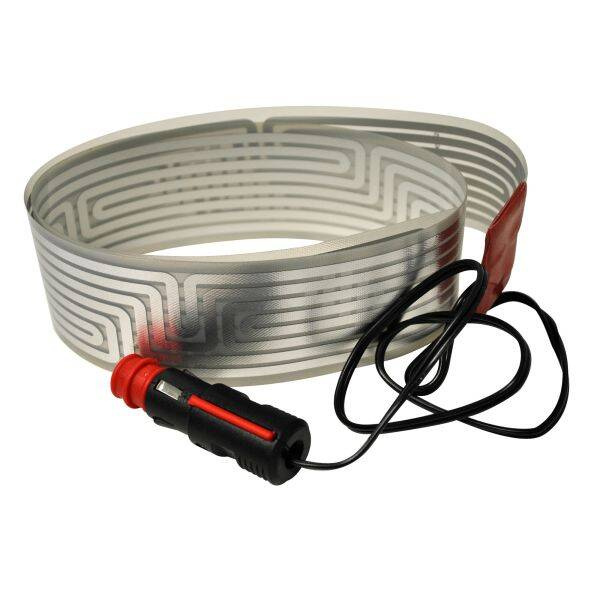

- LILIE ASS heating tape 170 x 6 cm
- 65 cm connection cable with universal plug and 8 A fuse
Related products
- LILIE Ultraheat 12 V 55 W - tank heater film for water tanks up to 110 l
- LILIE Frostwächter 12 V 30 W - heating element with thermostat for water tanks
- LILIE GrauGELB 40 mm XL - electric ball valve for grey water draining
- LILIE Winter Ban 3.78 l - antifreeze for drinking water systems
Key data at a glance
| Parameter | Value |
|---|---|
| Manufacturer | LILIE |
| Model | ASS (Auftauen Super Schnell) |
| Type | heating tape for defrosting pipes and valves |
| Voltage | 12 V |
| Power | 70 W |
| Nominal current | 5.8 A |
| Tape dimensions | 170 x 6 cm |
| Connection cable | 65 cm |
| Plug | universal, 8 A fuse, for cigarette lighter and 12 V sockets |
| Temperature difference | 65 °C |
| Defrosting time | 5-60 min |
| LILIE article number | 24233 |
| EAN | 4250009400950 |
| Application | drain pipes and valves in motorhomes and caravans |
Questions and answers
How long does defrosting take?
According to LILIE, 5 to a maximum of 60 minutes, depending on the length and diameter of the pipe, the amount of ice, the temperature and the insulation.
Which socket does it plug into?
Into the cigarette lighter or a 12 V socket in the vehicle. The universal plug has an 8 A fuse.
How much current does it draw?
5.8 A at 12 V, i.e. 70 W. Half an hour of operation draws about 2.9 Ah from the battery.
Can defrosting be accelerated?
Yes. The pipe wrapped with the tape can additionally be covered with pipe insulation foam.
Manufacturer
LILIE GmbH & Co. KG, Heinrich-Hertz-Straße 30, 74354 Besigheim, Germany.
