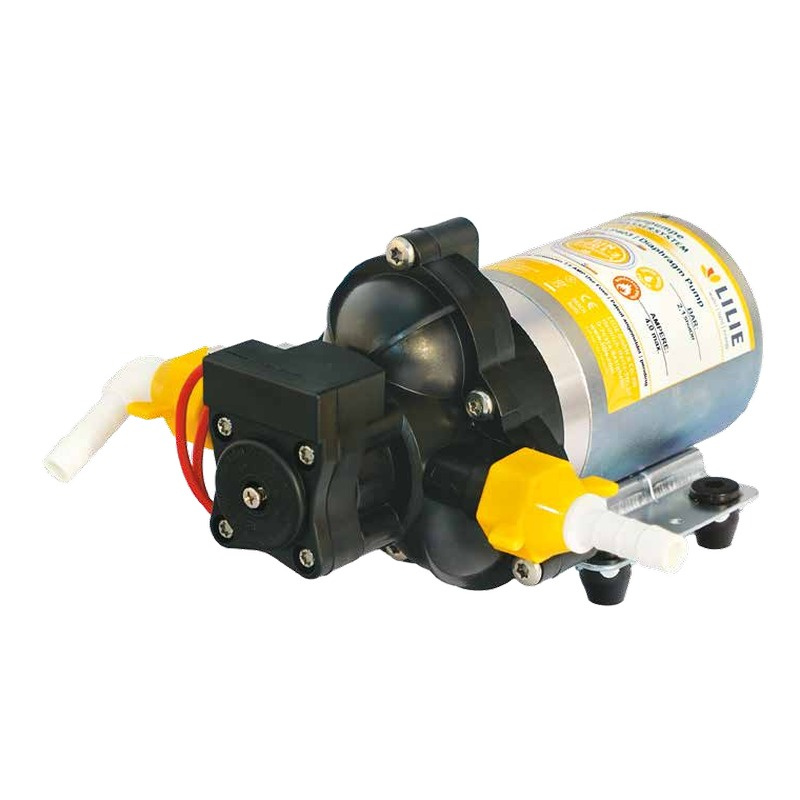

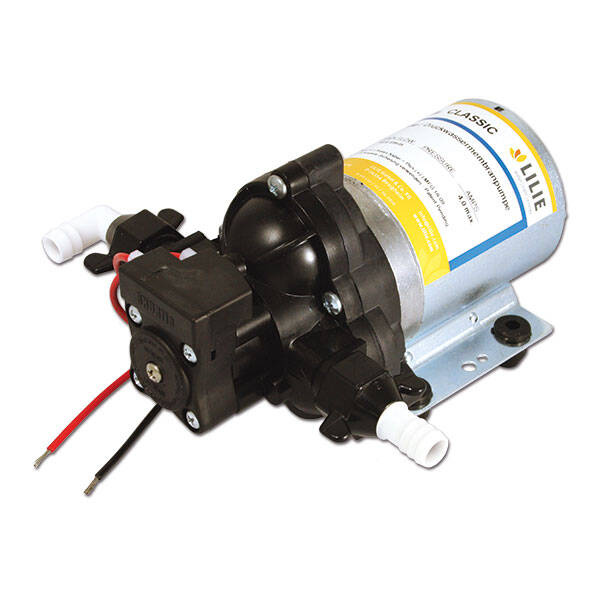

LILIE Classic Serie LP403 diaphragm water pump 12 V, 10.6 l/min, 2.1 bar - self-priming, for drinking water, motorhome and caravan
- LILIE Classic Serie LP403 3-chamber diaphragm pump: 12 V, 10.6 l/min, cut-out at 2.1 bar (adjustable 1.75-3.2 bar), max. 4 A, self-priming up to 3.1 m, up to 4 outlets, 1/2" NPT thread. For drinking water.
The LILIE Classic Serie LP403 is a 12 V 3-chamber diaphragm pump for the drinking water system of a motorhome or caravan. It delivers up to 10.6 l/min and starts by itself when you open a tap. The built-in pressure switch stops it at 2.1 bar, adjustable between 1.75 and 3.2 bar. The pump head has a non-return valve rated above 13 bar. According to the manufacturer the pump materials comply with DIN 2001-2 and are tested to DVGW W270 and KTW.
Operation
- pressure-controlled 3-chamber diaphragm pump
- cut-out at 2.1 bar, adjustable 1.75-3.2 bar, restart at 1.8 bar
- maximum flow 10.6 l/min at 12 V, max. current 4.0 A
- dry self-priming up to 3.1 m, short dry running does not damage the pump
- non-return valve above 13 bar in the pump head
- supplies up to 4 outlets
Installation and connection
- 1/2" NPT male threads and 10 mm hose tails
- the manufacturer recommends drinking water pressure hoses with 10-12 mm inner diameter and clamps on all connections
- cable up to 6 m: 2.5 mm², over 6 m: 4 mm², a fuse (e.g. 8 A) and a main switch in the (+) line
- pump up to 2 m vertically and up to 8 m horizontally from the tank, in a dry, ventilated place
- for vertical mounting, motor on top; tighten the screws by hand only so the rubber feet are not squeezed
- a pre-filter in front of the pump is recommended
Use and spare parts
- switch the pump off with the main switch whenever it is not in use, because the pressure switch cannot stop it when the tank is empty
- the cut-out pressure is set with the central screw of the pressure switch: clockwise higher, anticlockwise lower
- spare parts from the manufacturer: motor 11422, pump head 11402, pressure switch 11415, valve set 11404
- manufacturer warranty 24 months from the production date, excluding frost damage and continuous operation
Matching products in our shop
- Lilie pre-filter with hose tail
- Lilie pre-filter with 1/2" female thread
- pressure accumulator tank
- Lilie pump 11.3 l/min
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | LILIE (Germany) |
| Series | Classic Serie, WeißGELB drinking water system |
| Model | LP403 |
| EAN | 4250009415039 |
| Type | 3-chamber diaphragm pressure pump |
| Voltage | 12 V |
| Max. flow | 10.6 l/min |
| Cut-out pressure | 2.1 bar, adjustable 1.75-3.2 bar |
| Restart pressure | 1.8 bar |
| Max. current | 4.0 A |
| Max. suction height | 3.1 m |
| Outlets | up to 4 |
| Non-return valve | above 13 bar |
| Connections | 1/2" NPT male thread, 10 mm hose tails |
| Dimensions (L x W x H) | 210 x 129 x 114 mm |
| Net weight | 1.8 kg |
| Pump head materials | TPE diaphragm, EPDM and POM valves, glass-fibre reinforced PP housing |
| Drinking water | DIN 2001-2, tested to DVGW W270 and KTW |
| Manufacturer warranty | 24 months from the production date |
Questions and answers
What is the flow rate?
Up to 10.6 l/min at 12 V.
At what pressure does the pump switch off?
At 2.1 bar as delivered. The cut-out can be set between 1.75 and 3.2 bar, and the pump restarts at 1.8 bar.
Is the pump self-priming?
Yes, it primes dry from a height of up to 3.1 m.
How many taps can it supply?
According to the manufacturer up to 4 outlets.
Which fuse should I use?
The manufacturer gives an 8 A fuse in the (+) line as an example, plus a main switch.
Manufacturer
LILIE GmbH & Co. KG, Heinrich-Hertz-Straße 30, 74354 Besigheim, Germany.
