LILIE GrauGELB electric ball valve 40 mm XL 12 V with position indicator - grey water drain, 855 mm² flow
- LILIE GrauGELB 40 mm XL 12 V electric ball valve for grey water draining, supplied with position indicator and cable set. 855 mm² flow, 40 mm push-fit system, drinking water approved materials.

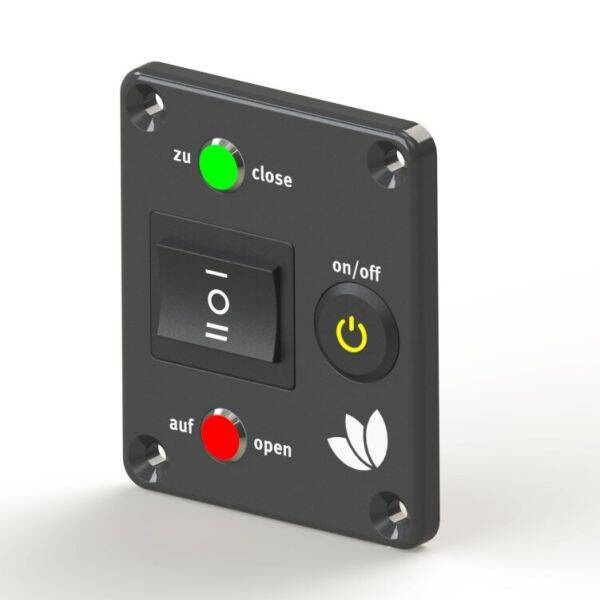

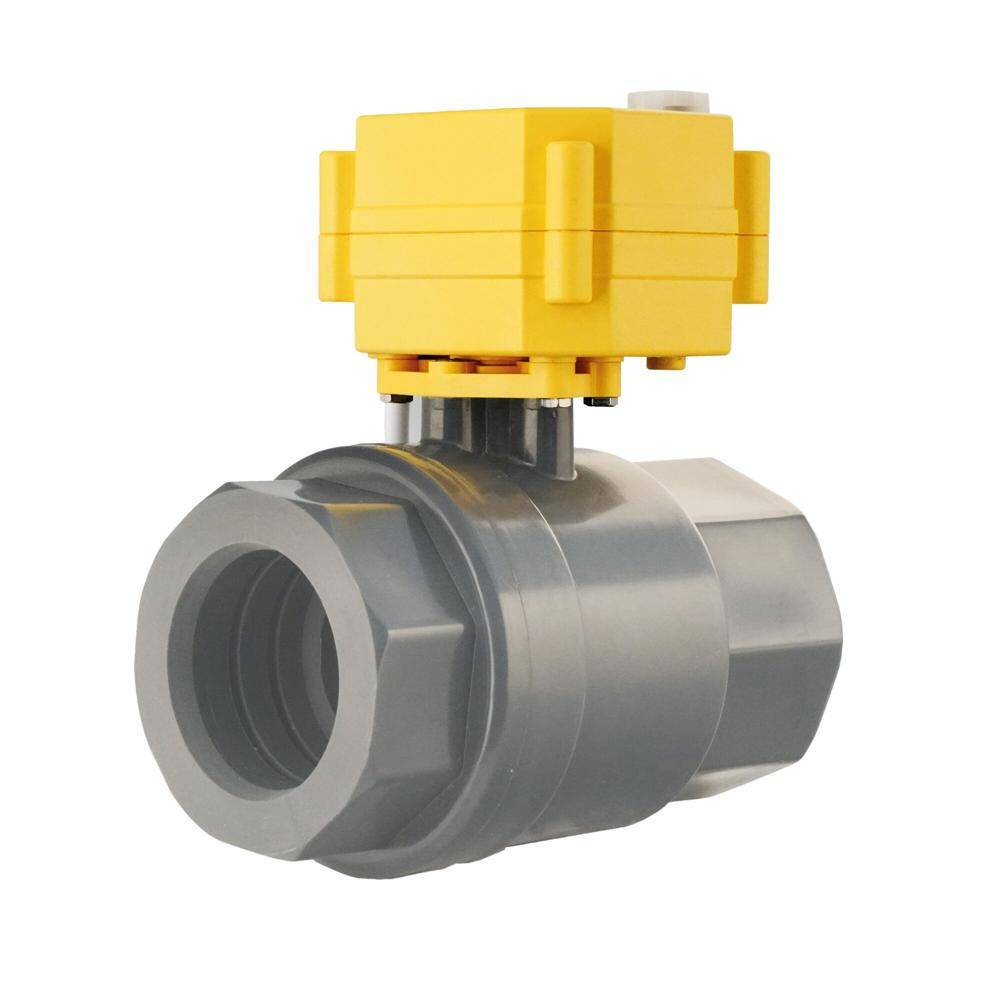

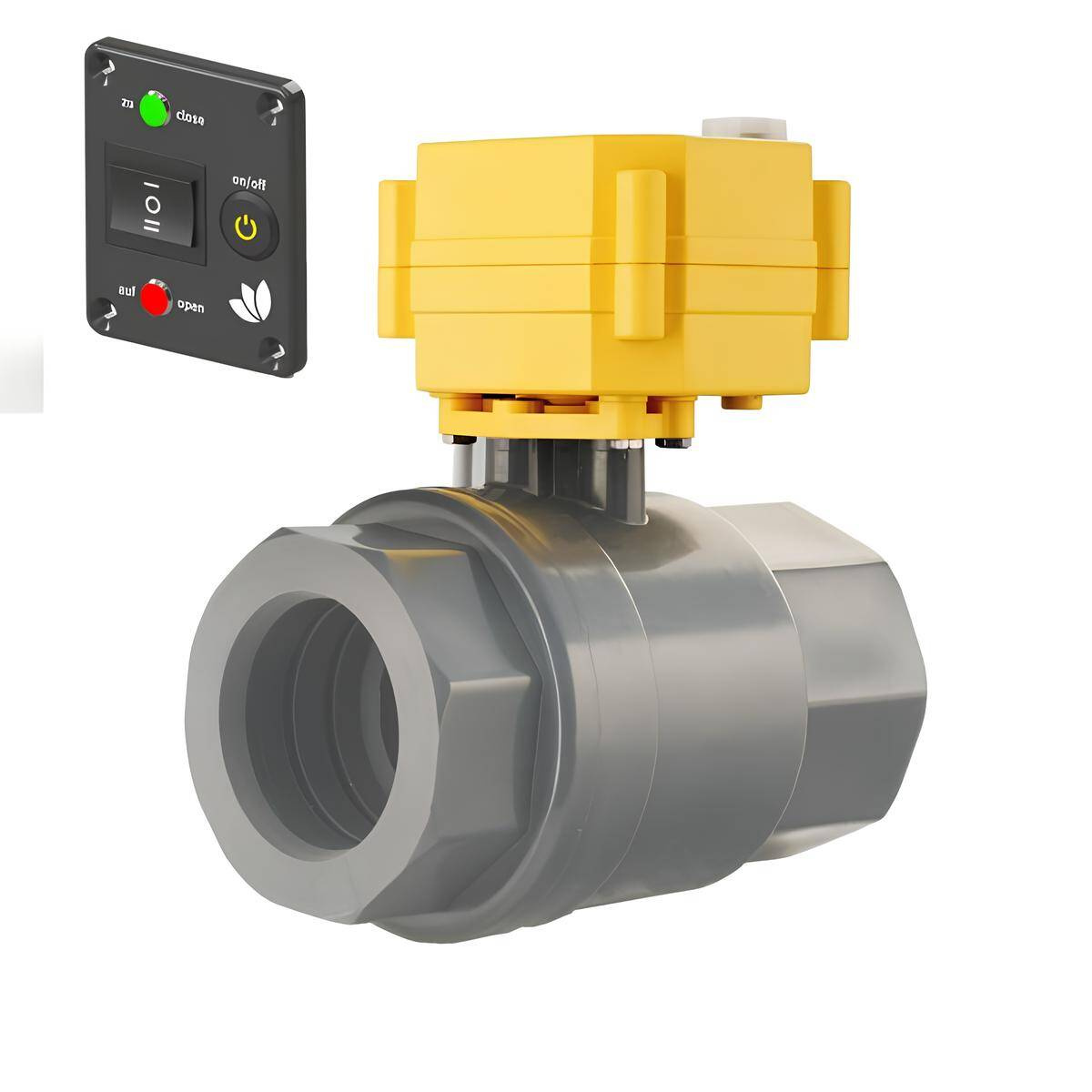

LILIE GrauGELB 40 mm XL is a remote-controlled 12 V electric ball valve for opening, closing and draining the grey water circuit. The set includes a position indicator and cable set - the indicator shows whether the valve is open (red) or closed (green). The valve fits the LILIE GrauGELB 40 mm push-fit pipe system with double O-ring, assembled without tools or glue.
Key information
- 12 V, max. current 500 mA
- 855 mm² flow
- position indicator: red open, green closed
- opening/closing time max. 5 s
- manual emergency operation
- drinking water approved materials
Before you order
The valve connects to LILIE GrauGELB 40 mm pipes by pushing them in - the double O-ring seals and secures the joint, which can later be released and reassembled. Check the valve works before fitting and check the joints for leaks afterwards. Do not open the actuator housing. Operating temperature 0-70°C, max. working pressure 1.0 MPa. Drain the grey water circuit before winter. Before ordering, check the system voltage and the mounting position in your vehicle.
Photos
Related products
- LILIE GrauGELB 90° elbow 40 mm
- LILIE GrauGELB straight connector 40 mm
- LILIE GrauGELB 45° elbow 40 mm
- LILIE GrauGELB T-connector 40 mm
- LILIE GrauGELB pipe 40 mm, 50 cm
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | LILIE |
| Voltage | 12 V |
| Current draw | max. 500 mA |
| Flow | 855 mm² |
| Connections | LILIE GrauGELB 40 mm push-fit system |
| Opening/closing time | max. 5 s |
| Operating temperature | 0-70°C |
| Working pressure | max. 1.0 MPa |
| Connection cable | 0,8 m |
| Dimensions | 118 x 74 x 137 mm |
| Weight | 555 g |
| LILIE article number | 24361 |
Questions and answers
How can I tell if the valve is open?
The indicator shows red when the valve is open and green when it is closed.
Which pipes does it fit?
The LILIE GrauGELB 40 mm push-fit pipe system.
Can it be opened without power?
Yes, the valve has a manual emergency operation.
Is there a 24 V version?
LILIE also offers a 24 V version; this product is the 12 V version.
Manufacturer
LILIE GmbH & Co. KG, Heinrich-Hertz-Straße 30, 74354 Besigheim, Germany.
