LILIE position indicator (Funktionsanzeige) for the electric ball valve - open/close switch with position display, grey
- LILIE position indicator for the electric ball valve system. One switch opens and closes the valve, the display shows whether it is open or closed. Aluminium, 6 x 3 x 5 cm, 90 g. Connection cable sold separately.

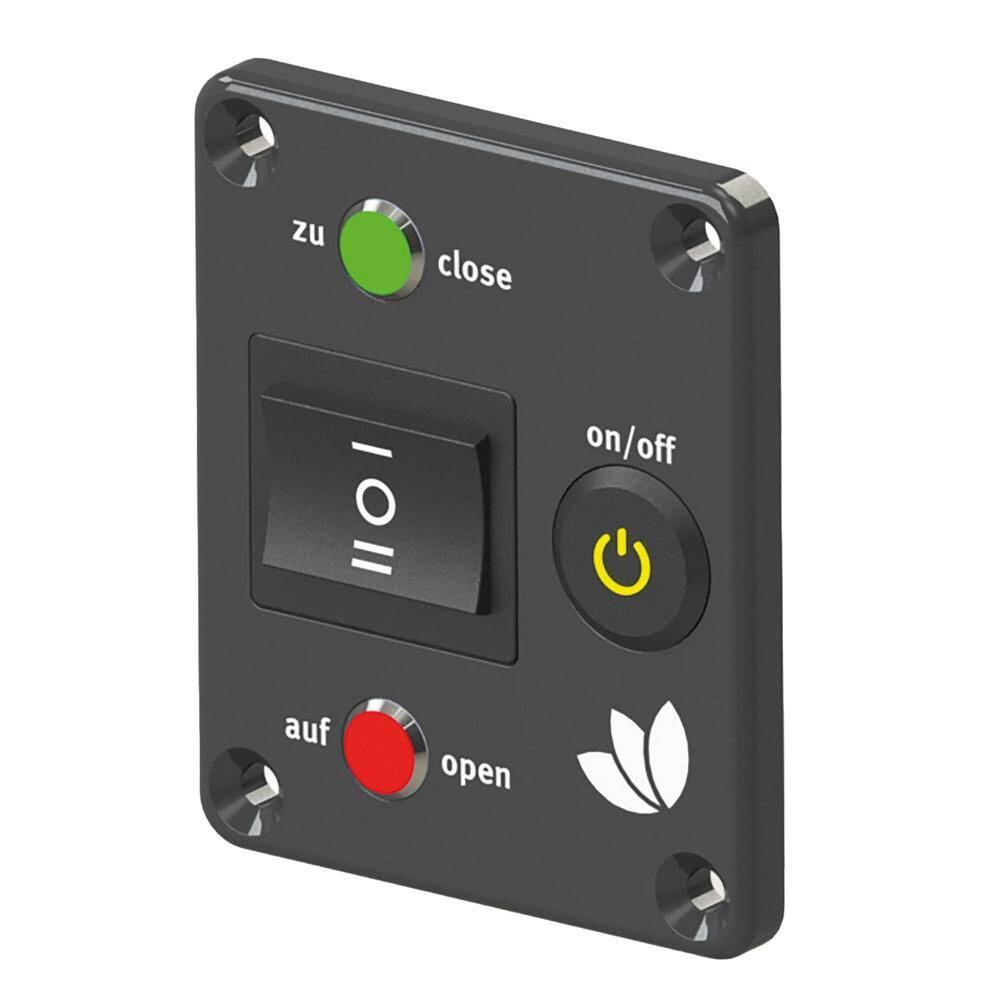

The LILIE position indicator (Funktionsanzeige) is the control panel for the LILIE electric ball valve system, for example a grey water drain valve. It has an on/off switch for the display, an open/close switch for the valve and a position indicator showing whether the valve is open or closed. The housing is grey aluminium.
Key information
- on/off switch for the display
- open/close switch for the valve
- position indicator: open / closed
- aluminium housing, grey
- dimensions 6 x 3 x 5 cm (W x H x D)
- net weight 90 g
Before you order
A short cable of about 5 cm comes out of the housing. The connection cable to the valve is not included - it is a separate cable set for the position indicator. The indicator fits the LILIE electric drain valves 300/090 (12 V), 303/041 (12 V) and 300/089 (24 V), and can also be used to retrofit the LILIE valve 303/069 (from 01/2024). Before laying up for winter, use the indicator to check that the valve is open and the grey water tank is drained.
Related products
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | LILIE |
| Type | position indicator with switch |
| Use | electric ball valve system |
| Colour | grey |
| Material | aluminium |
| Dimensions | 6 x 3 x 5 cm |
| Weight | 90 g |
| Fits LILIE valves | 300/090 (12 V), 303/041 (12 V), 300/089 (24 V); retrofit 303/069 (from 01/2024) |
| Cable included | only approx. 5 cm at the housing, connection cable separate |
Questions and answers
Is the valve cable included?
No, the connection cable is a separate set; only about 5 cm of cable is on the housing.
Which valves does it fit?
LILIE valves 300/090 (12 V), 303/041 (12 V) and 300/089 (24 V), plus retrofit of valve 303/069 (from 01/2024).
What does the indicator show?
Whether the valve is open or closed.
What is it made of?
Aluminium, grey.
Manufacturer
LILIE GmbH & Co. KG, Heinrich-Hertz-Straße 30, 74354 Besigheim, Germany.
