Lilie THE40 heating pad for electric ball valves - 12 V, 30 W, 175 x 95 x 2 mm, with switch, valve not included
- Lilie THE40 12 V, 30 W heating foil for thawing Lilie electric ball valves (24352, 24353, 24354, 24375, 24382, 24384). Switch with indicator light included, de-iced in about 10-20 minutes. The valve is not included.

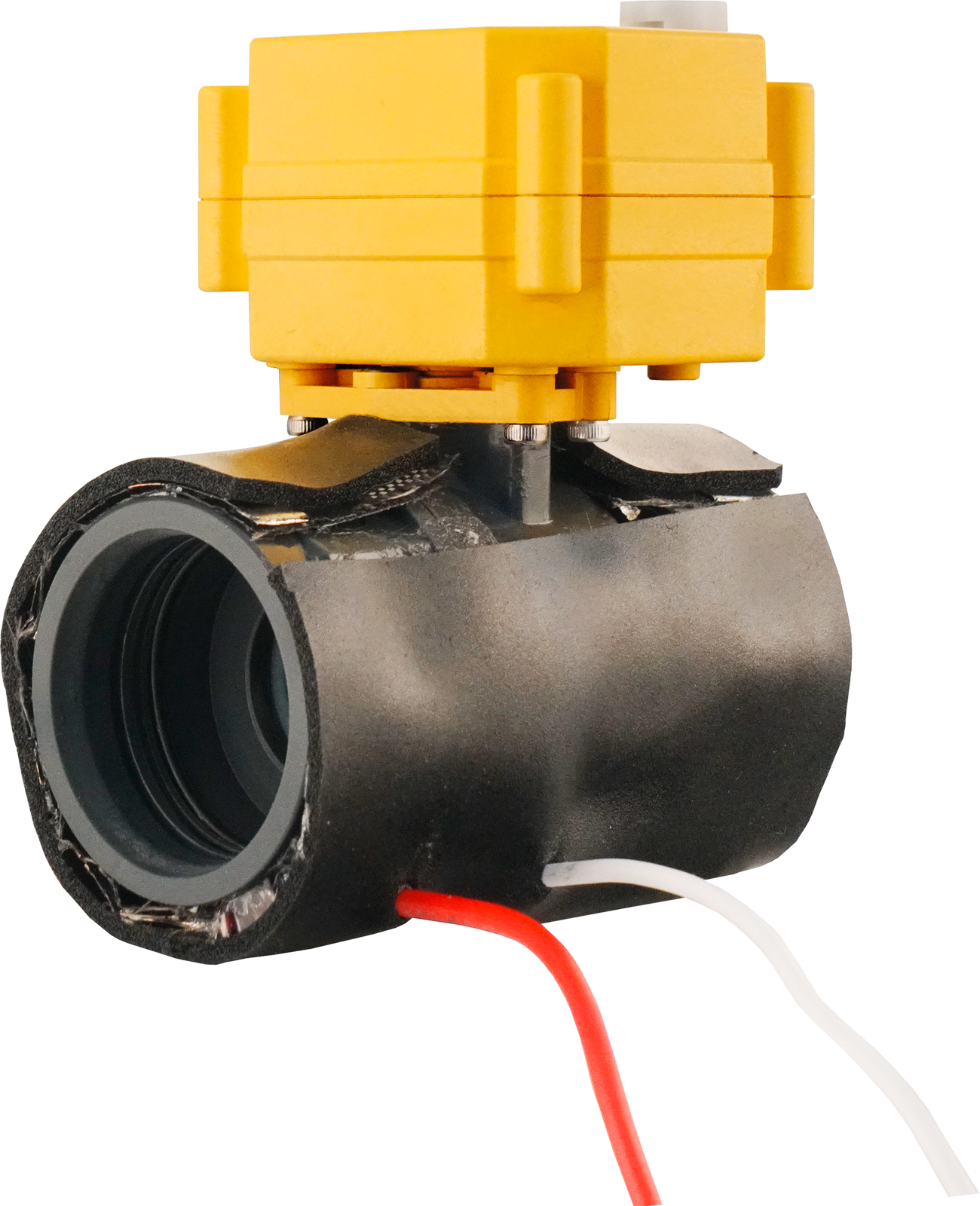

The Lilie THE40 is a heating pad (heating foil) for Lilie electric ball valves in the grey water system of a motorhome or caravan. It is stuck directly onto the valve body and switched on with the switch with indicator light when the valve freezes. After about 10-20 minutes the valve is de-iced and works again. Only the heating foil with switch is supplied - the ball valve is not included. The valve in the first photo only shows how the foil looks once fitted.
How it works
- the foil is stuck directly onto the body of the electric ball valve
- in frost it is switched on with the switch with indicator light
- the valve is de-iced after about 10-20 minutes
- 12 V supply, 2.5 A current, 30 W power
- foil size 175 x 95 x 2 mm, weight 50 g
Box contents

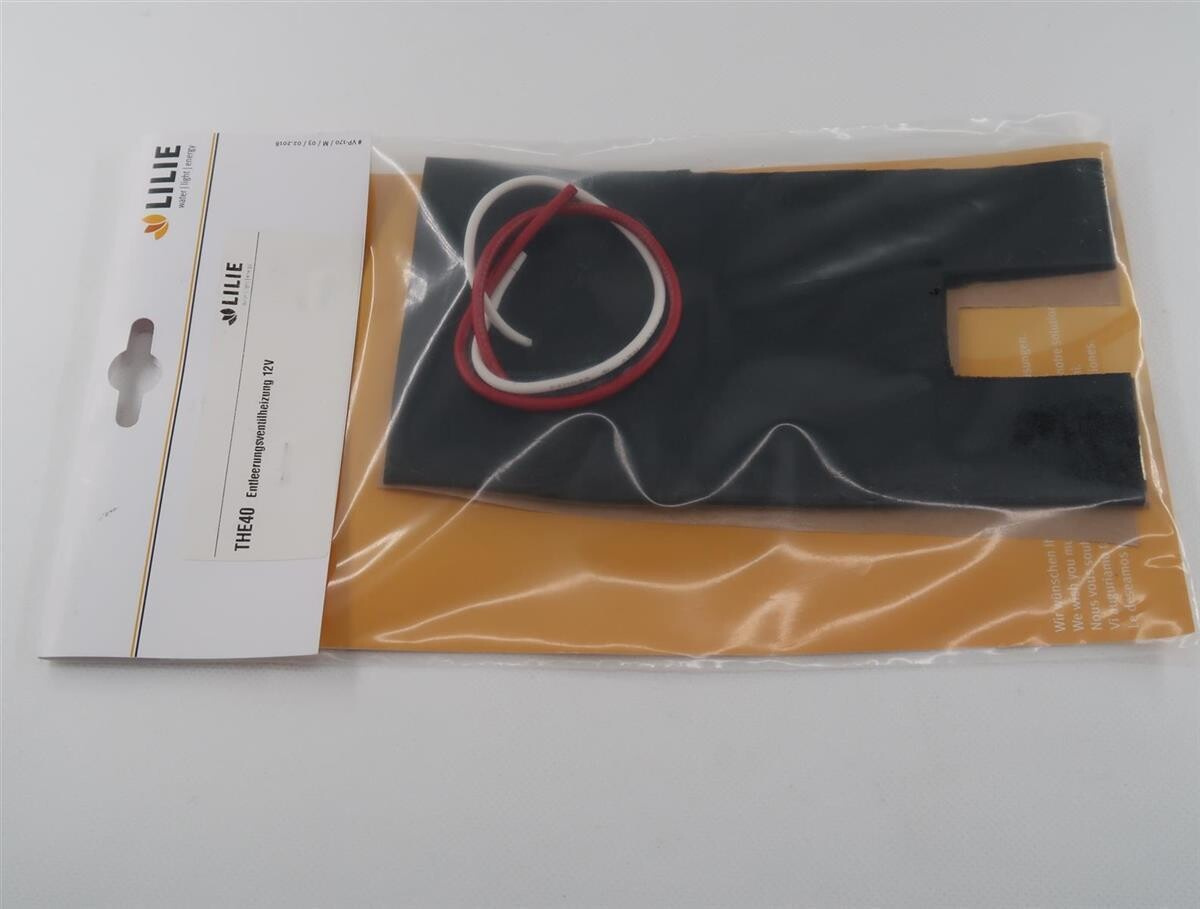

- Lilie THE40 heating pad (foil)
- switch with indicator light
- the ball valve is not included and must be bought separately
Which valves it fits
- according to the manufacturer the THE40 fits Lilie electric ball valves 24352, 24353, 24354, 24375, 24382, 24384:
- Lilie 24352 - electric ball valve, brass 1 1/4", 490 mm²
- Lilie 24353 - ball valve system, brass 1", with toggle switch
- Lilie 24354 - ball valve system, brass 1 1/4", with toggle switch
- Lilie 24375 - ball valve for direct tank connection
- Lilie 24382 - electric ball valve, plastic 40 mm, 530 mm²
- Lilie 24384 - plastic ball valve system, 530 mm², with 0.5 m pipes
- for the larger XL 855 mm² valves (Lilie 24383, 24361, 24362) the manufacturer offers the larger THE41 pad
Other Lilie frost protection products
- Lilie THS30 heating pad for slide drain valves
- Lilie ASS 12 V, 70 W heating tape for frozen pipes and valves
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | LILIE |
| Model | THE40 |
| Type | heating pad (foil) for electric ball valves |
| Fits | Lilie ball valves 24352, 24353, 24354, 24375, 24382, 24384 |
| Voltage | 12 V |
| Current | 2.5 A |
| Power | 30 W |
| Dimensions (L x W x T) | 175 x 95 x 2 mm |
| Mounting | stuck directly onto the valve body |
| Control | switch with indicator light |
| De-icing time | about 10-20 minutes |
| Net weight | 50 g |
| Included | heating foil, switch with indicator light |
| Ball valve | not included |
Questions and answers
Is the ball valve included?
No. Only the heating foil and the switch with indicator light are supplied. The valve in the photo only shows how it is fitted.
Which valves does the THE40 fit?
According to Lilie, Lilie electric ball valves 24352, 24353, 24354, 24375, 24382, 24384. For XL 855 mm² valves there is the larger THE41.
How long does de-icing take?
According to the manufacturer about 10-20 minutes.
Manufacturer
LILIE GmbH & Co. KG, Heinrich-Hertz-Straße 30, 74354 Besigheim, Germany, www.lilie.com.
