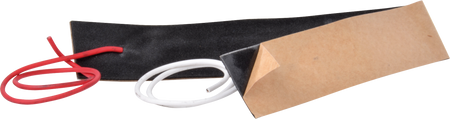

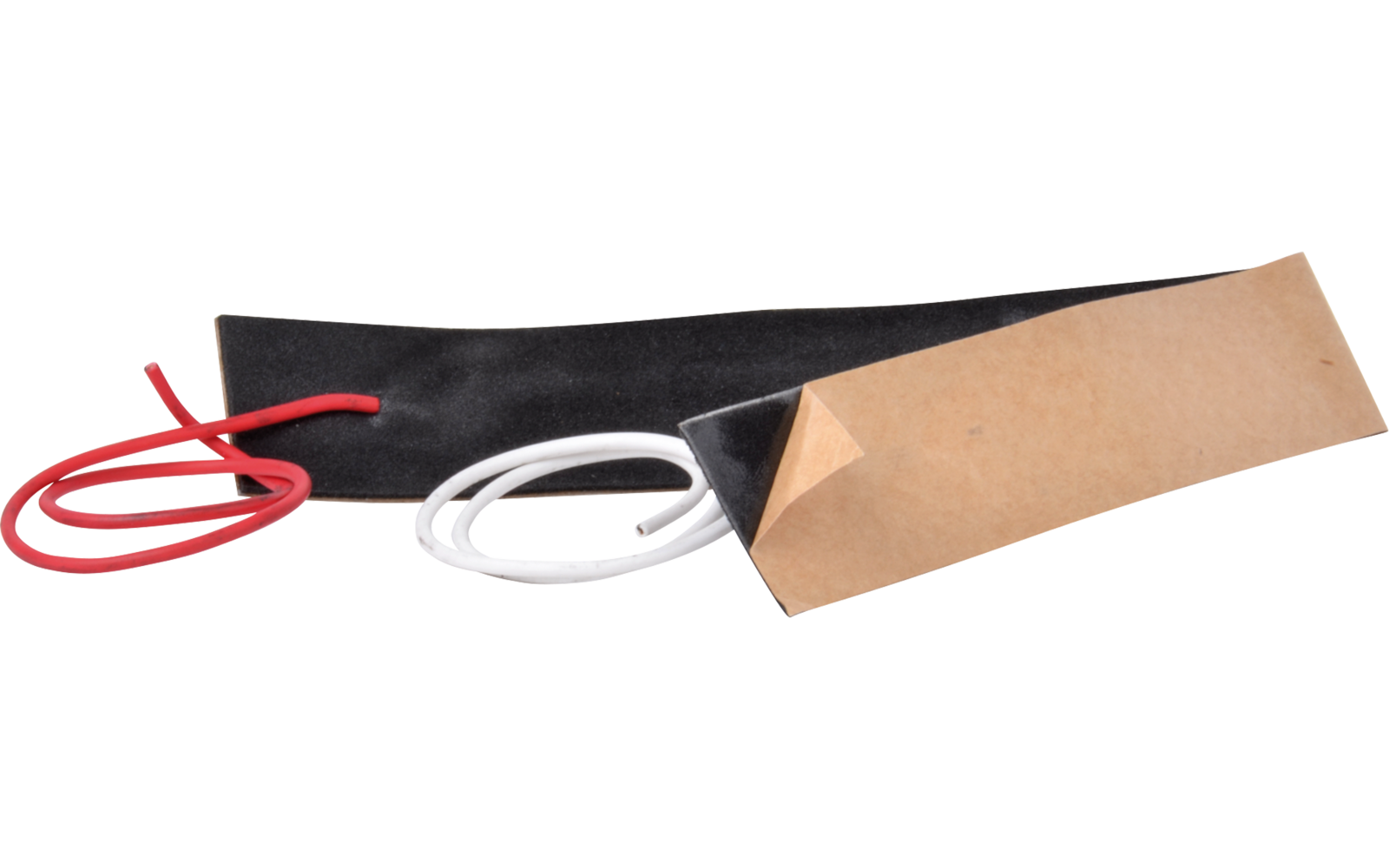

Lilie THS30 heating pad for slide drain valves - 12 V, 40 W heating foil for thawing gate valves, with switch
ID produktu: 62059
- Lilie THS30 12 V, max 3 A, 40 W heating foil for thawing frozen slide drain valves. It is stuck onto the narrow sides of the valve body and de-ices the valve in about 10-20 minutes.
The Lilie THS30 is a heating pad (heating foil) for slide drain valves (gate valves) on the grey or black water tank of a motorhome or caravan. It quickly thaws a frozen drain valve. The foil is stuck onto the narrow sides of the valve body and switched on with the supplied switch in frost. After about 10-20 minutes the valve is de-iced. The slide valve is not included.
Fitting
- the foil is stuck onto the three narrow sides of the slide valve body
- fit it at an ambient temperature above 10 °C
- self-adhesive side, black foam
- connection: 12 V cable
Use
- in frost it is switched on manually with the switch
- the valve is de-iced after about 10-20 minutes
- switch the heating off after max 10-20 minutes
- 12 V supply, max 3 A current, 40 W power, weight 20 g
Box contents
- Lilie THS30 heating pad (foil)
- switch
- the slide drain valve is not included
Lilie slide valves and other frost protection products
- Lilie US 3" slide valve with bayonet and cap
- Lilie 3" US slide drain valve
- Lilie 1 1/2" US slide valve
- Lilie THE40 heating pad for electric ball valves
- Lilie ASS 12 V, 70 W heating tape for frozen pipes and valves
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | LILIE |
| Model | THS30 |
| EAN | 4250009413837 |
| Type | heating pad (foil) for slide drain valves |
| Voltage | 12 V |
| Current | max 3 A |
| Power | 40 W |
| Connection | 12 V cable |
| Material | foam |
| Colour | black |
| Mounting | self-adhesive, on the narrow sides of the valve body |
| Control | switch, manual switching |
| De-icing time | about 10-20 minutes |
| Net weight | 20 g |
| Included | heating foil, switch |
| Slide valve | not included |
Questions and answers
Is the slide valve included?
No. Only the heating foil with switch is supplied.
How long can it be switched on?
De-icing takes about 10-20 minutes, then the heating must be switched off.
When should the foil be fitted?
At an ambient temperature above 10 °C, on the narrow sides of the slide valve body.
Manufacturer
LILIE GmbH & Co. KG, Heinrich-Hertz-Straße 30, 74354 Besigheim, Germany, www.lilie.com.
ID produktu
62059
Brand
Nominal voltage
12 V
Rated current
3 A
Nominal power
40 W
Net weight
20 g
Color
Black
Material
Foam
