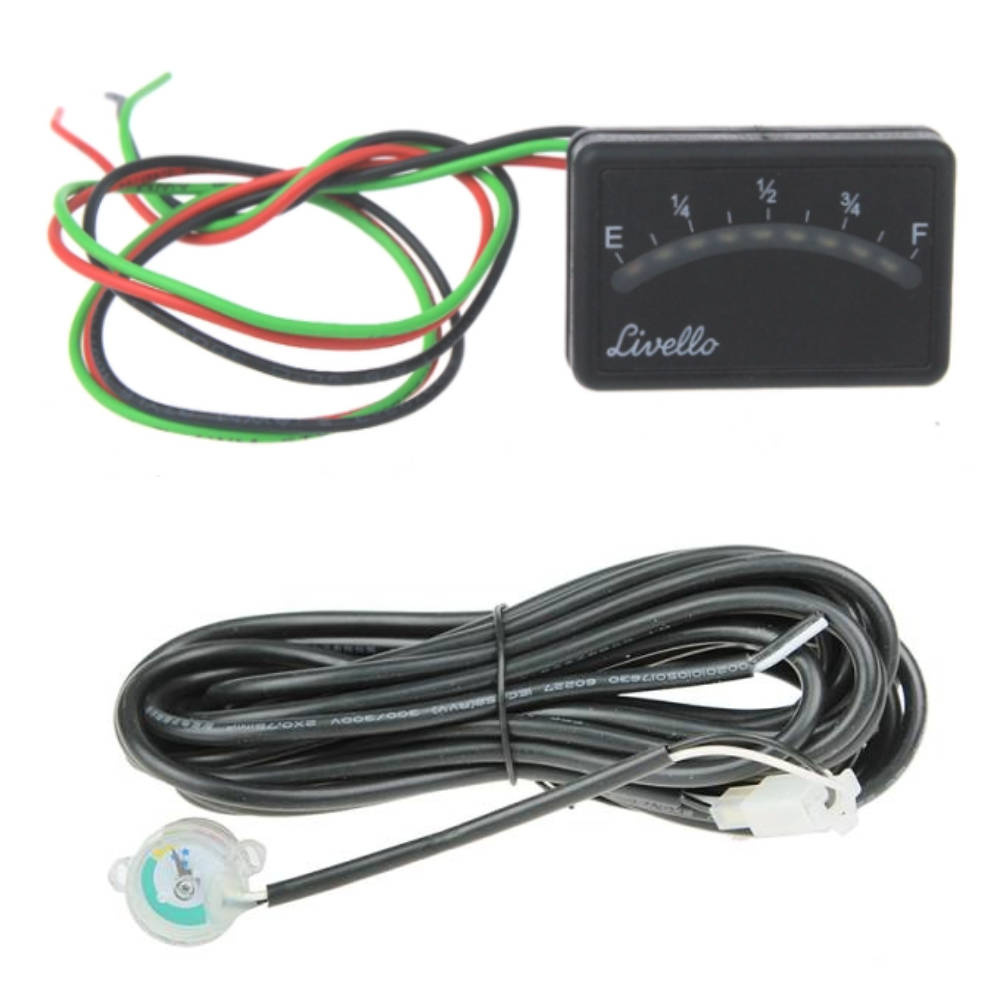

Livello LED Gas Level Indicator with Switch and level sender

Livello LED Gas Level Indicator with Switch and level sender for GasBank MULTI bottles

LPG level remote indicator. Compatible with all 0-90Ohm or 0-95Ohm level senders.

It reads the resistance value from level sender and it lights up corresponding LEDs. This is version with built in switch so it can be plugged directly to the battery (trough fuse), the level is shown when the button is pushed.

Wiring is as follow:

• black - ground
• red - fused 12V
• green - signal from level sender, usually green or white wire
