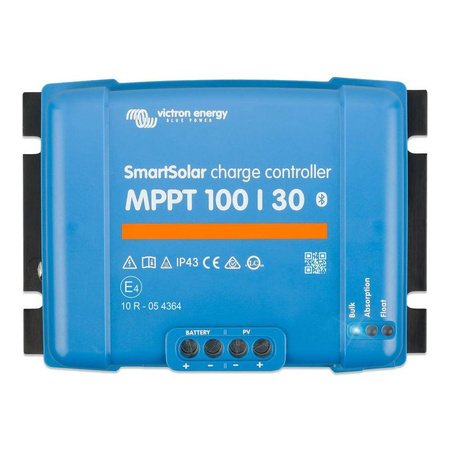

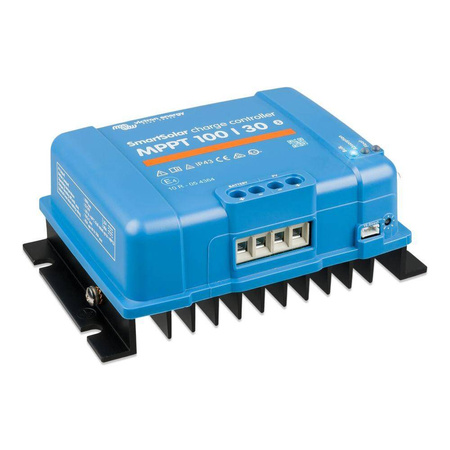

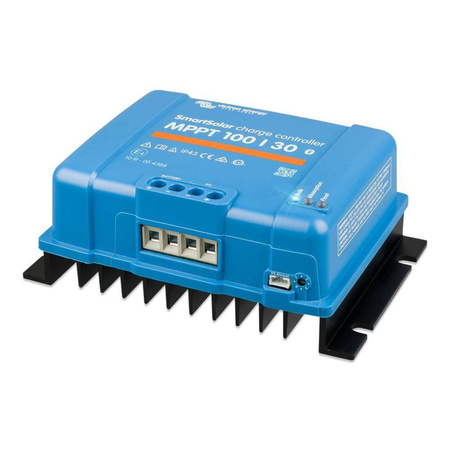

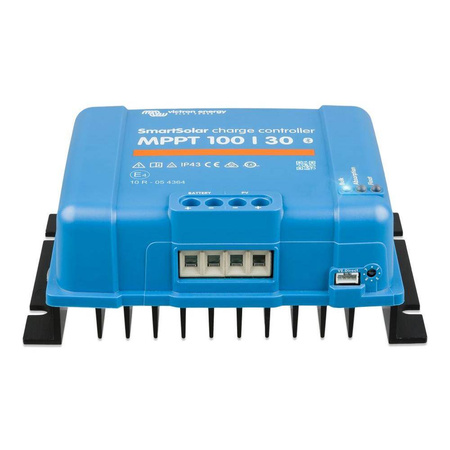

Solar charge controller SmartSolar MPPT 100/30
- The photo of the product is for illustration purposes only and may not correspond to a specific product model
Solar charge controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
Load output
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
Technical data
- Battery nominal voltage: 12 / 24 V automatic.
- Rated charging current: 30 A
- Power of 12 / 24 V panels: 440 / 880 W
- Maximum panel voltage: 100 V
- Max. short-circuit current: 35 A
- Absorption charging: 14.4 / 28.8 V
- Sustaining charge: 13.8 / 27.6 V
- Connectors: 4 x 16 mm2 (AWG6)
- Operating temperature: -30 to +60 °C
- Weight: 1.3 kg
- Communication type: VE.Direct, Bluetooth
- Dimensions: 130 x 186 x 70 mm
- Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
