Thule Roof Top - adapter for mounting Omnistor 6200, 6300 and 9200 awnings on a flat caravan roof, set of 4 profiles
- Thule Roof Top adapter set for mounting Omnistor 6200, 6300 and 9200 roof awnings on a straight, flat caravan roof. The set includes 2 profiles of 50 cm, 2 profiles of 27 cm, feet and all bolts.

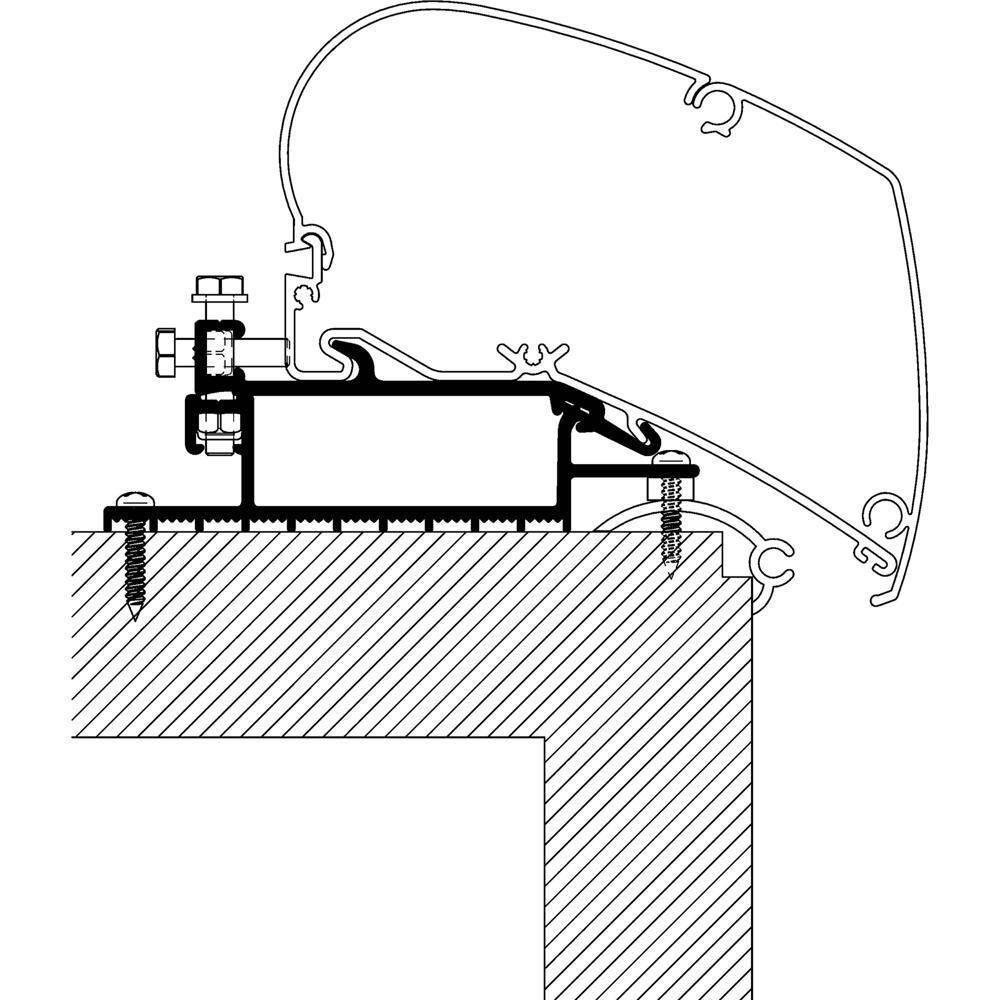

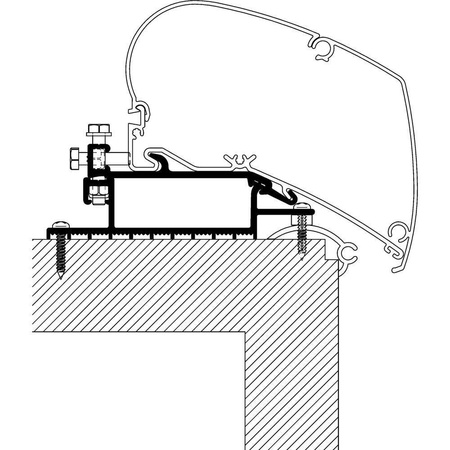

Thule Roof Top is an adapter set for mounting a Thule Omnistor series 6 (6200, 6300) or series 9 (9200) roof awning on a caravan with a straight, flat roof. The profiles are bonded to the roof and screwed down, then the awning is hooked into the adapter and locked with bolts. The manufacturer recommends installation by a specialist workshop.
Key features
- for Thule Omnistor 6200, 6300 and 9200 awnings
- for caravans with a straight, flat, rigidly bonded roof
- roof mounting: bonded and screwed
- set of 4 profiles: 2 x 50 cm and 2 x 27 cm
- manufacturer number 308299
Contents
- adapter profile 50 cm - 2 pcs
- adapter profile 27 cm - 2 pcs
- adapter foot 50 cm - 2 pcs
- adapter foot 27 cm - 2 pcs
- bolt DIN 933 M6 x 35 - 8 pcs and lock nut DIN 985 M6 - 8 pcs
- screw DIN 7981 4.2 x 25 - 10 pcs
- spacer 10-6.2 x 5 - 18 pcs

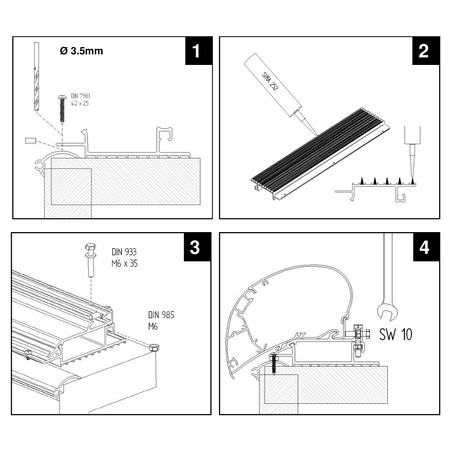

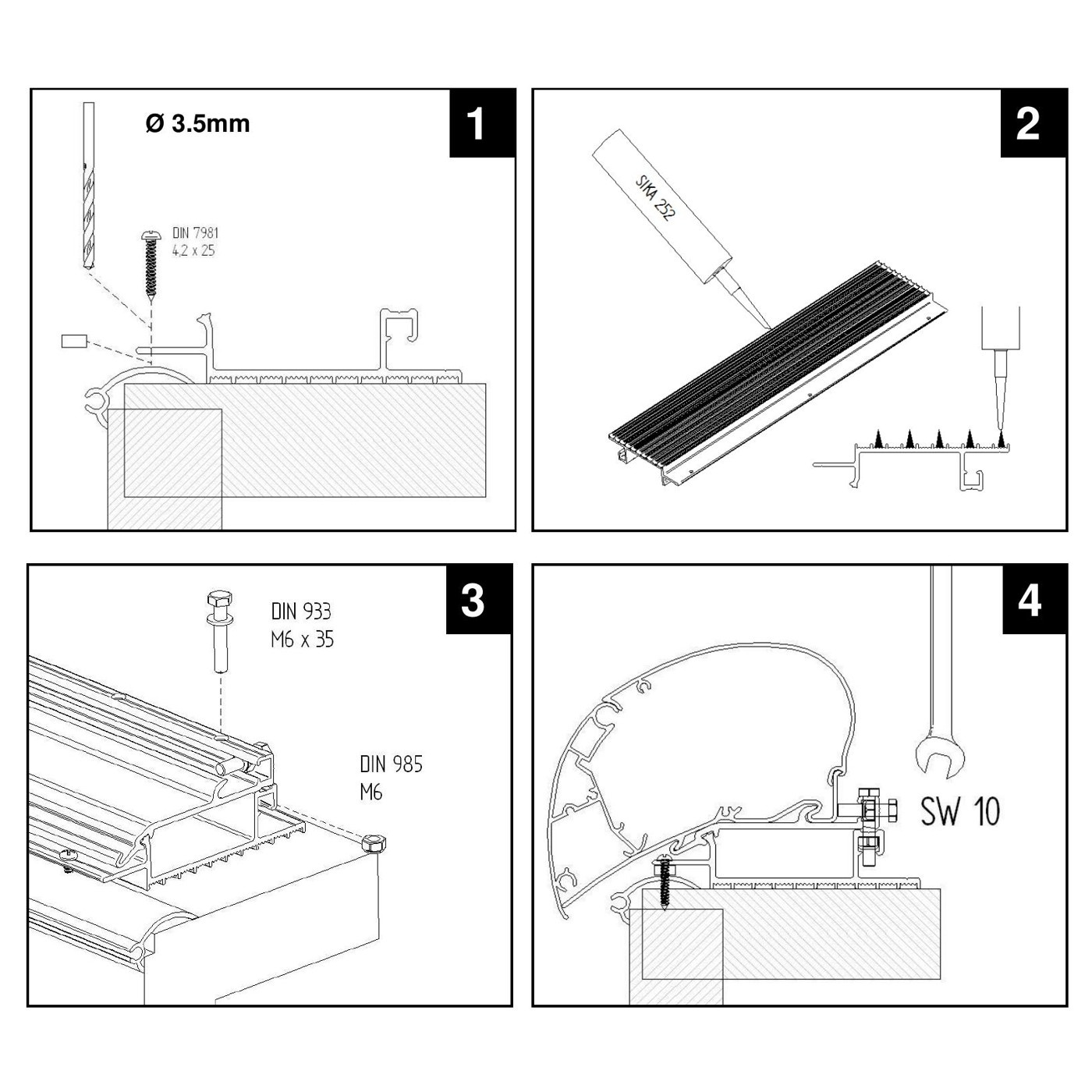

Installation according to the manufacturer
- position the adapter on the roof and drill the holes in the roof rail before bonding
- sand the ribbed surface of the adapter and degrease it, then apply SIKA 252 adhesive (adhesive and activator not included)
- degrease the roof with SIKA activator and place the adapter
- screw the adapter down with 4.2 x 25 screws in Ø 3.5 mm holes filled with acid-free silicone
- hook the awning into the adapter and lock it with the M6 bolts at the back of the adapter plate
Notes
- while the adhesive cures, leave the awning open by about 5 cm so the adapter is not twisted
- never extend the awning fully without the support legs - set them up after about 1 m
- check the adapter mounting on the vehicle regularly
Related products
- Thule Omnistor 6300 roof awning 2.60 x 2.00 m
- Thule Omnistor 9200 awning 4 m
- Thule series 6 and 9 awning adapter for Mercedes Sprinter from 2006 with roof rail
- Thule Omnistor 6200 and 6300 awning adapter for VW Crafter and MAN TGE from 2017
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Thule |
| Manufacturer number | 308299 |
| EAN | 5415182005623 |
| Fits awnings | Thule Omnistor 6200, 6300, 9200 |
| Vehicle | caravan with a straight, flat roof |
| Mounting | roof, bonded and screwed |
| Set | 2 x 50 cm + 2 x 27 cm |
| Net weight | 4.5 kg |
| Package size | 83 x 15 x 11 cm |
Questions and answers
Which awnings does it fit?
Thule Omnistor 6200, 6300 and 9200 roof awnings.
What roof is it for?
Straight, flat, rigidly bonded caravan roofs. Check before buying that your caravan roof is built this way.
Is adhesive included?
No. The manufacturer recommends SIKA 252 adhesive with SIKA activator, sold separately. The set contains profiles, feet, bolts, nuts, screws and spacers.
Who should fit the adapter?
The manufacturer recommends a specialist workshop that can assess the mounting on your roof.
Manufacturer
Thule NV, Kortrijkstraat 343, 8930 Menen, Belgium.
