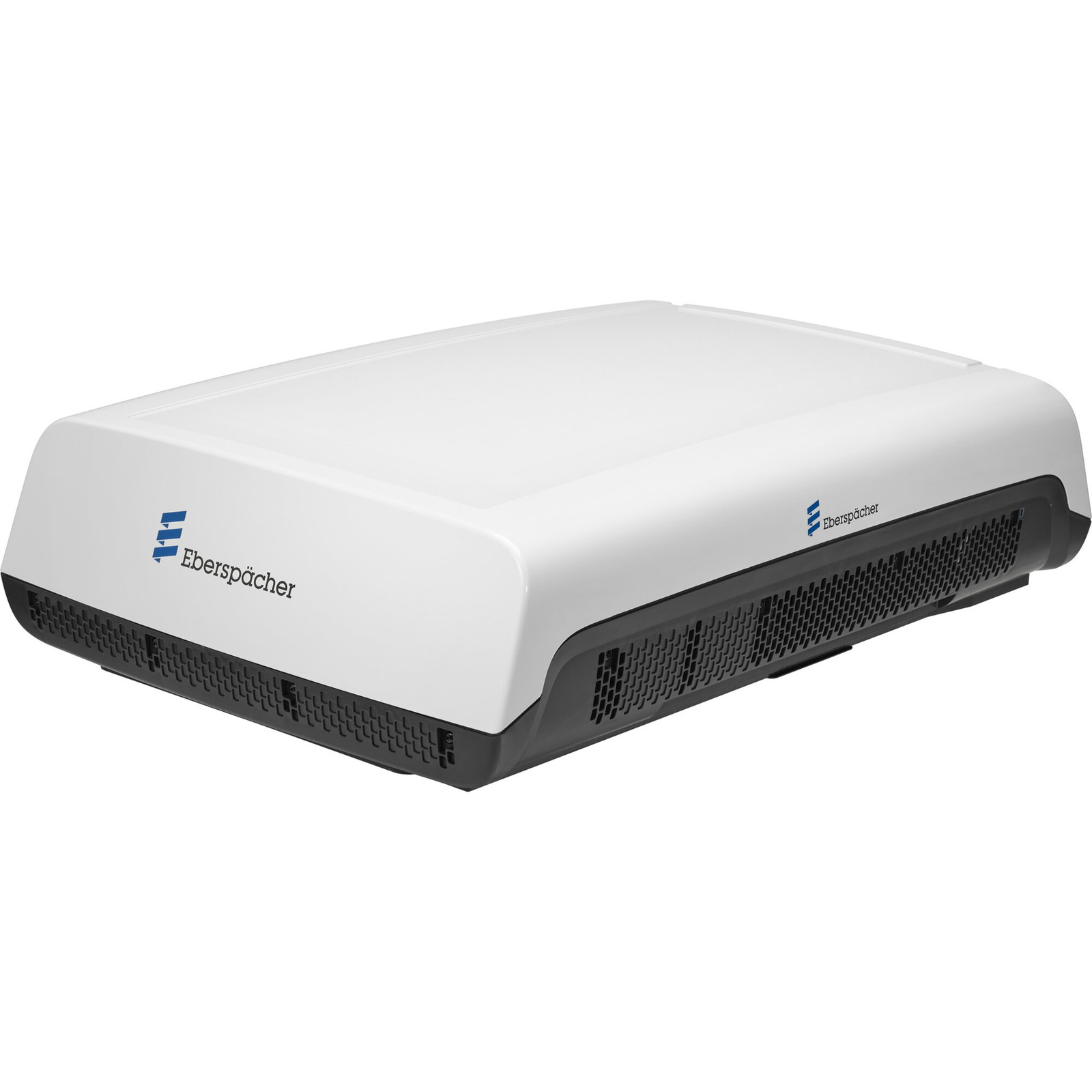

Eberspächer Breezonic Performance Plus HP roof air conditioner - 3500 W cooling, 3600 W heating, R32, 230 V, 40 x 40 cm cut-out
- The Eberspächer Breezonic Performance Plus HP is a roof air conditioner with heat pump for motorhomes and caravans. It cools with 3500 W and heats with 3600 W. It fits a cut-out of up to 40 x 40 cm. The air distributor is ordered separately.

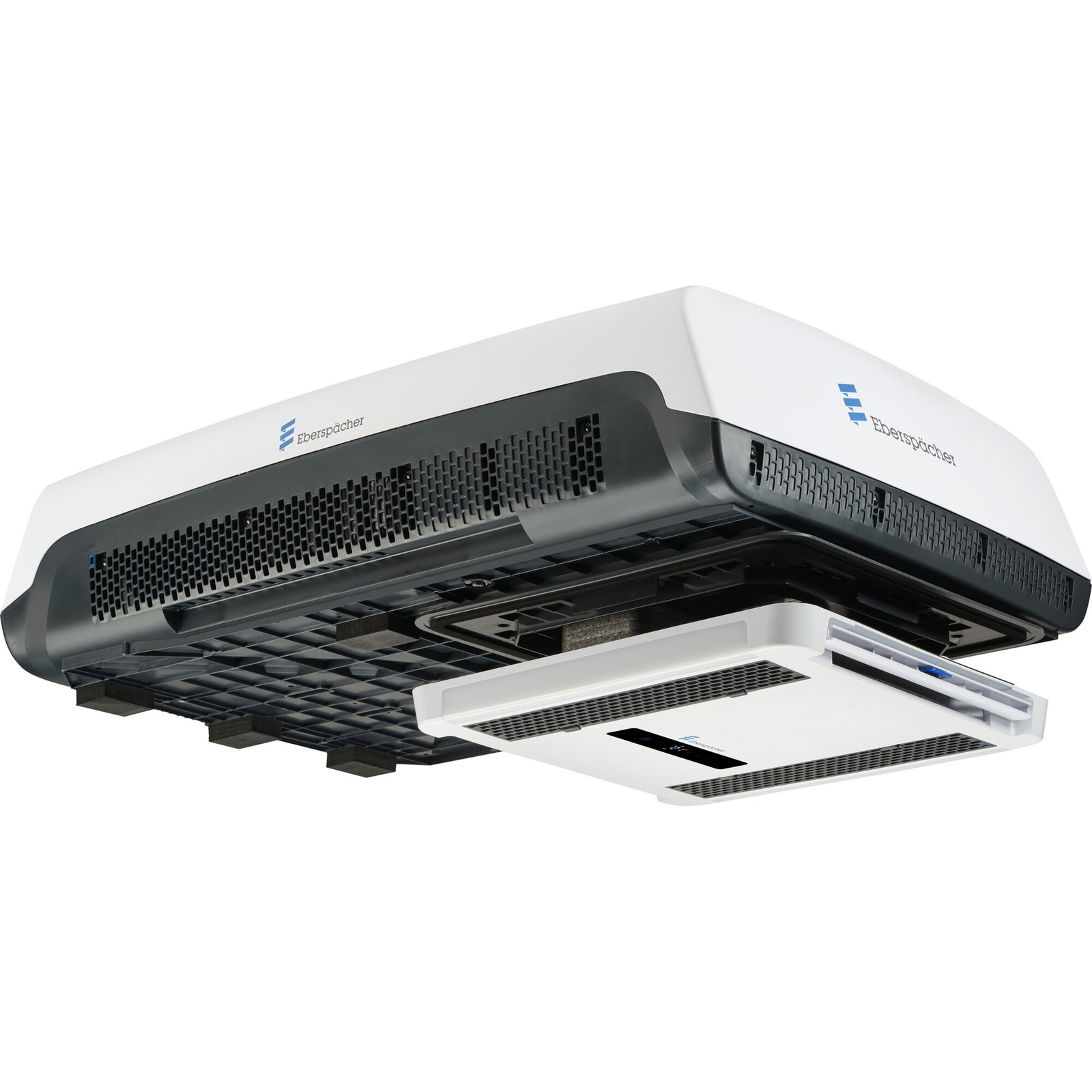

The Eberspächer Breezonic Performance Plus HP is the more powerful version of the Breezonic roof air conditioner with heat pump for motorhomes, vans and caravans. It cools with 3500 W and heats with 3600 W (ISO 5151). The variable-speed inverter compressor with soft start keeps noise and power draw low. The roof unit needs the Breezonic air distributor with touch panel and dimmable LED lighting, sold separately.
Performance
- cooling 3500 W, heating 3600 W (ISO 5151)
- current: 6.5 A cooling, 6.0 A heating
- max. air flow 608 m³/h
- inverter compressor with soft start, R32 refrigerant (0.495 kg)
- operating temperature -7 to 52°C
Control and modes

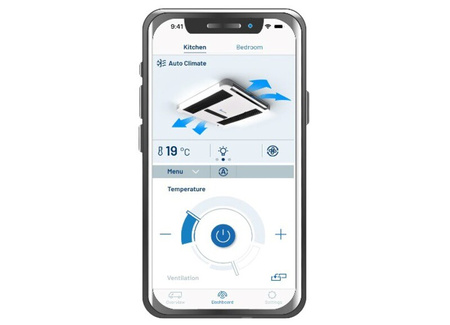

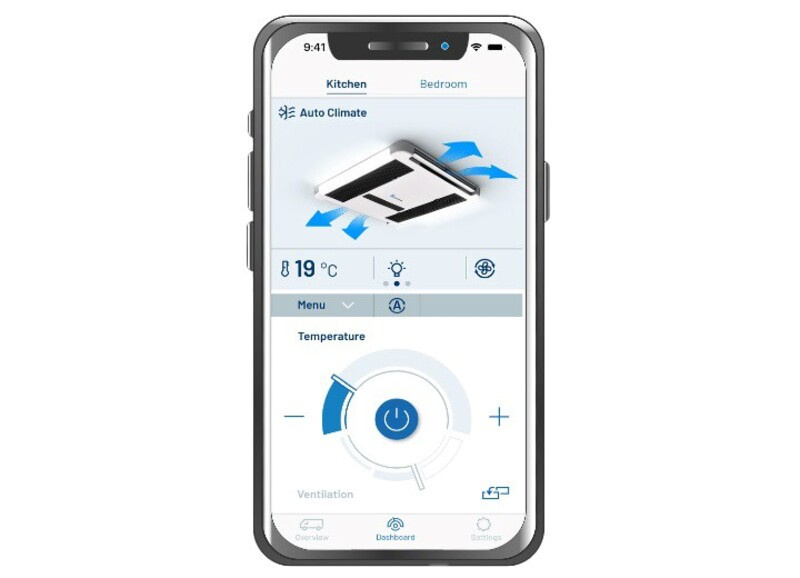

- touch panel on the air distributor, app (Bluetooth), optional remote control or EasyStart Touch
- interfaces CI-Bus, RV-C, Bluetooth, infrared
- modes: heating, cooling, auto, timer, turbo, eco, dehumidifying, recirculation; night mode; 3 fan speeds
Installation
- roof opening 360 x 360 to 400 x 400 mm
- roof thickness 25-70 mm, 75-100 mm with the additional installation kit

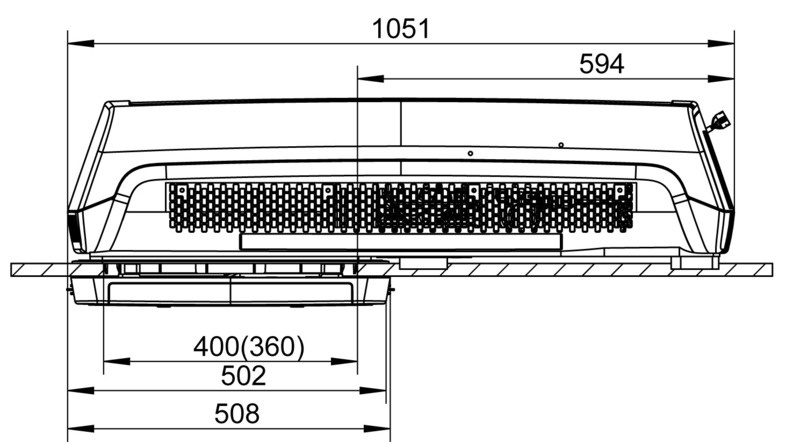

- roof unit 1051 x 698 x 250 mm, air distributor 503 x 482 x 45 mm
- max. operating angle 10° in all directions
Matching products
- Breezonic Performance / Performance Plus air distributor (required)
- remote control for Breezonic Performance / Performance Plus
- weaker version: Breezonic Performance HP 230 V 2.5 kW
- alternative: Truma Aventa comfort 2nd generation - 2500 W cooling, 2000 W heating
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Eberspächer |
| Model | Breezonic Performance Plus HP 230 V 3.5 kW |
| Colour | white |
| Manufacturer part no. | 29.0218.41.0002 |
| EAN | 4056637347342 |
| Cooling power (ISO 5151) | 3500 W |
| Heating power (ISO 5151) | 3600 W |
| Current | 6.5 A cooling / 6.0 A heating |
| Voltage | 230 V AC, 50 Hz |
| Max. air flow | 608 m³/h |
| Refrigerant | R32, 0.495 kg |
| Operating temperature | -7 to 52°C |
| Roof unit dimensions | 1051 x 698 x 250 mm |
| Air distributor dimensions | 503 x 482 x 45 mm (sold separately) |
| Roof opening | 360 x 360 to 400 x 400 mm |
| Roof thickness | 25-70 mm, 75-100 mm with additional installation kit (manufacturer part no. 29.0280.03.0065) |
| Max. operating angle | 10° in all directions |
| Weight | 35 kg roof unit, 3.1 kg air distributor |
| Protection class | IPX4 |
| Interfaces | CI-Bus, RV-C, Bluetooth, infrared |
Questions and answers
Is the air distributor included?
No, the Breezonic Performance / Performance Plus air distributor is ordered separately. It has a touch panel and dimmable LED lighting in cold or warm white.
What roof opening is needed?
360 x 360 to 400 x 400 mm, roof thickness 25-70 mm (75-100 mm with the additional installation kit).
How does it differ from the Breezonic Performance HP?
The Performance Plus HP cools with 3500 W instead of 2500 W and heats with 3600 W instead of 2400 W. It has the same dimensions, roof opening and air distributor, but it is heavier and draws more current.
Manufacturer
Eberspächer Climate Control Systems International GmbH, Eberspächerstraße 24, 73730 Esslingen, Germany.
