Eberspächer Breezonic air distributor for Performance HP and Performance Plus HP air conditioners - white, touch panel, LED, 503 x 482 x 45 mm
- Eberspächer Breezonic air distributor, white: the indoor part of the Breezonic Performance HP and Performance Plus HP roof air conditioners. Touch panel, dimmable LED lighting, 503 x 482 x 45 mm, 3.1 kg.

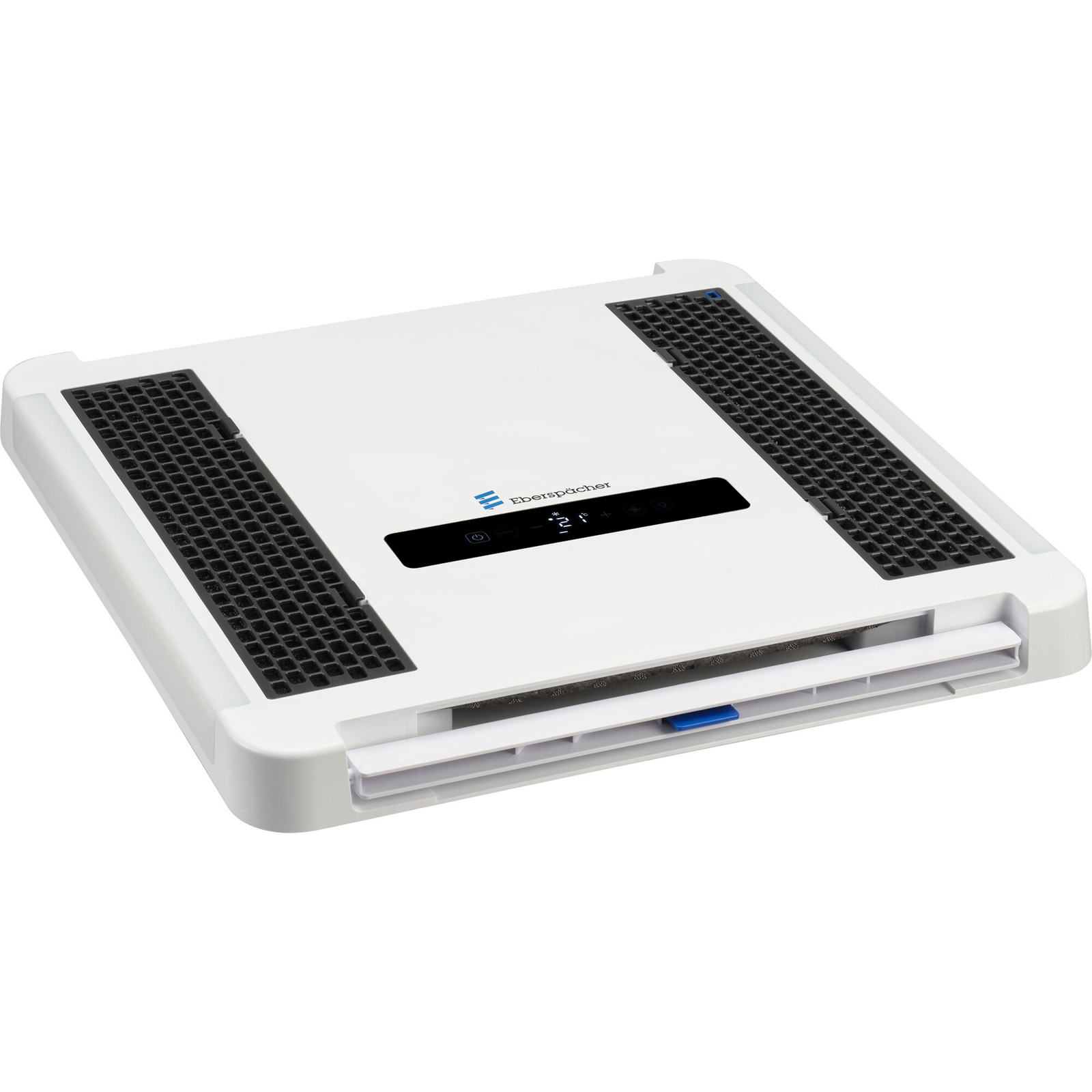

The Eberspächer Breezonic air distributor is the indoor part of the Breezonic Performance HP or Performance Plus HP roof air conditioner. It is mounted on the vehicle ceiling below the roof unit. It distributes the cooled or heated air and has a touch panel for operating the air conditioner. It is only 45 mm high and has integrated dimmable LED lighting in cold or warm white. The roof unit does not work without it, so order both together.
Control and lighting
- touch panel on the air distributor
- smartphone app (Bluetooth)
- optional infrared remote control or EasyStart Touch panel
- integrated dimmable LED lighting: cold or warm white
Installation and scope of delivery

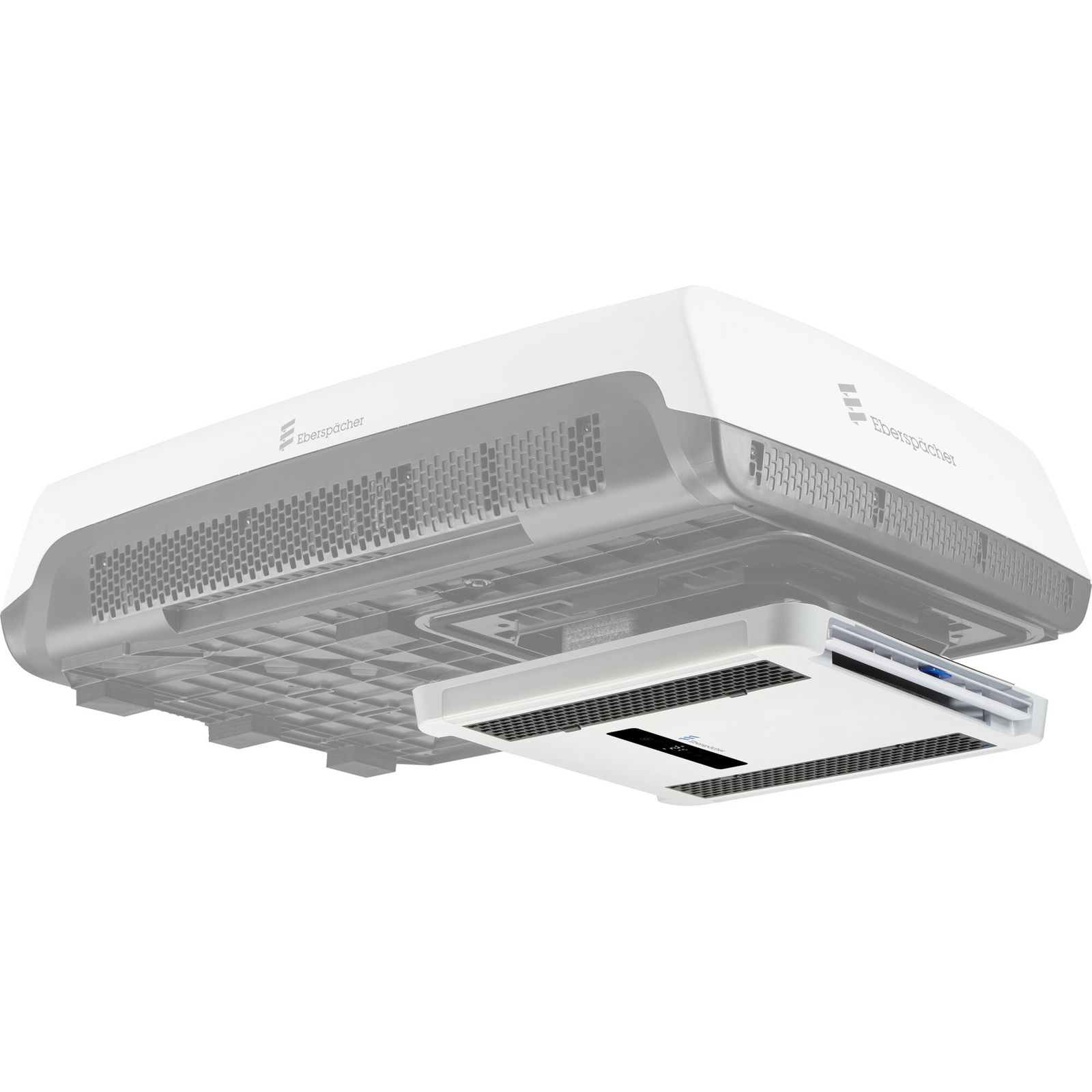

- mounted below the Breezonic Performance HP or Performance Plus HP roof unit
- very flat housing: 503 x 482 x 45 mm
- included: air distributor with 2 pre-installed holders and lower air guide insert, 4 middle inserts, 1 upper insert
- 4 M6 x 125 mm screws with washers for the roof unit
Operating modes
- heating, cooling, automatic
- timer, turbo, eco
- dehumidifying and fan only (recirculation)
- 3 fan speeds and night mode
Matching products
- Breezonic Performance HP 230 V 2.5 kW roof air conditioner
- Breezonic Performance Plus HP 230 V 3.5 kW roof air conditioner
- remote control for Breezonic Performance / Performance Plus
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Eberspächer |
| Model | Breezonic Performance air distributor |
| Colour | white |
| Manufacturer part no. | 29.0218.11.0001 |
| EAN | 4056637355903 |
| Fits | Breezonic Performance HP 230 V 2.5 kW (29.0218.41.0001) and Breezonic Performance Plus HP 230 V 3.5 kW (29.0218.41.0002) |
| Dimensions (L x W x H) | 503 x 482 x 45 mm |
| Weight | 3.1 kg |
| Lighting | integrated dimmable LED, cold or warm white |
| Control | touch panel, app (Bluetooth), optional infrared remote control or EasyStart Touch |
| Scope of delivery | air distributor with 2 holders and lower insert, 4 middle inserts, 1 upper insert, 4 M6 x 125 mm screws with washers |
Questions and answers
Which air conditioners does it fit?
The Eberspächer Breezonic Performance HP (2.5 kW) and Performance Plus HP (3.5 kW) roof units. The Breezonic Slim models have their own air distributor.
Is a remote control included?
No. The air conditioner is operated with the touch panel on the distributor or with the app; the infrared remote control is available separately.
Are mounting screws included?
Yes, it comes with 4 M6 x 125 mm screws with washers for the roof unit and a set of air guide inserts.
Manufacturer
Eberspächer Climate Control Systems International GmbH, Eberspächerstraße 24, 73730 Esslingen, Germany.
